Manual Lifting Pallet Factory Hydraulic Single Scissor Lift for Car Platform Lifts
Qingdao Sinofirst Machinery Co., Ltd.- After-sales Service：Free Part Provided
- Warranty：24 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
Base Info
- Model NO.：SS1001
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof, Insulating, Emergency Stop
- Certification：GS, CE, RoHS, ISO 9001
- Lifting Height：205~4140mm or Customized
- Load Capacity：500~4000kg or Customized
- Platform Size：1600*1000mm or Customized
- Customized Service：Platform Size,Load Capacity,Lifting Height
- Switch：up,Down Button
- Anti-Corrosion：Yes
- Emergency Decline Valve：Yes
- Design：Scissor Structure
- Platform Materials：Steel or Aluminum or Stainless Steel
- Optional 1>：Remote Control,Foot Step Control
- Optional 2>：Wheel,Guardrail,Organ Cover,Roller,Rotary Platform
- Usage：Factory,Workshop,Home Garage
- Transport Package：Wooden Pallet and High Quality Paper Boxes with St
- Specification：400kg-4000kg
- Trademark：SAGAFIRST
- Origin：China
- HS Code：8428909090
- Production Capacity：5000
Description
1phase or 3phase
customized160 SS1002 1000 205 1000 1600×1000 20~25 186 SS1003 1000 240 1300 1700×850 30~35 200 SS1004 1000 240 1300 1700×1000 30~35 210 SS1005 1000 240 1300 2000×850 30~35 212 SS1006 1000 240 1300 2000×1000 30~35 223 SS1007 1000 240 1300 1700×1500 30~35 365 SS1008 1000 240 1300 2000×1700 30~35 430 SS2001 2000 230 1000 1300×850 20~25 235 SS2002 2000 230 1050 1600×1000 20~25 268 SS2003 2000 250 1300 1700×850 25~35 289 SS2004 2000 250 1300 1700×1000 25~35 300 SS2005 2000 250 1300 2000×850 25~35 300 SS2006 2000 250 1300 2000×1000 25~35 315 SS2007 2000 250 1400 1700×1500 25~35 415 SS2008 2000 250 1400 2000×1800 25~35 500 SS4001 4000 240 1050 1700×1200 30~40 375 SS4002 4000 240 1050 2000×1200 30~40 405 SS4003 4000 300 1400 2000×1000 35~40 470 SS4004 4000 300 1400 2000×1200 35~40 490 SS4005 4000 300 1400 2200×1000 35~40 480 SS4006 4000 300 1400 2200×1200 35~40 505 SS4007 4000 350 1300 1700×1500 35~40 570 SS4008 4000 350 1300 2200×1800 35~40 655 HD1000 1000 305 1780 1300X820 35-45 210 HD2000 2000 350 1780 1300X850 35-45 295 HD4000 4000 400 2050 1700X1200 55-65 520 HT1000 1000 470 3000 1700x1000 35-45 450 HT2000 2000 560 3000 1700x1000 50-60 750 HF400 400 600 4140 1700x1000 30-40 800 HF800 800 706 4210 1700x1000 70-80 858 HD1000 1000 305 1780 1300X820 35-45 210

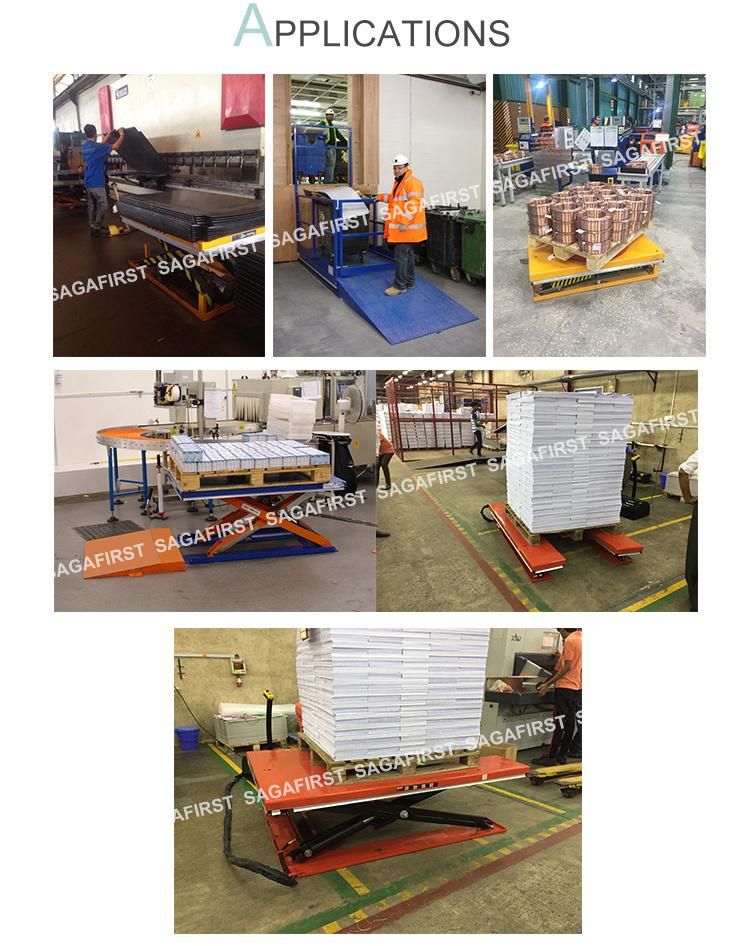

Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.
Standard Scissor Lift Table will be packed in paper carton and wooden pallet.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
Two year quality guarantee.send the parts free of charge
Please feel free to contact with us, our salesman are 24 hours on service.
Vicky
customized
Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.

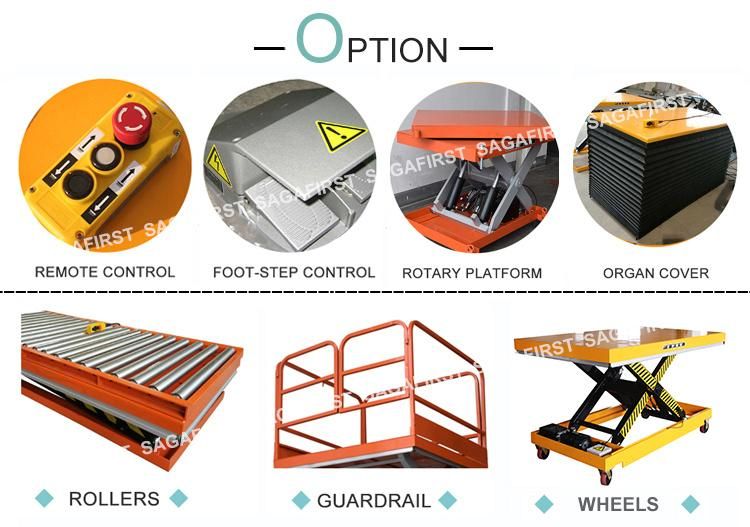

SAGA FIRST can also provide customer many options like wireless controller, footstep control, roller, safety bellows and so on, customer can provide their need to SINOFIRST, and we will try to fulfill all customers' need.

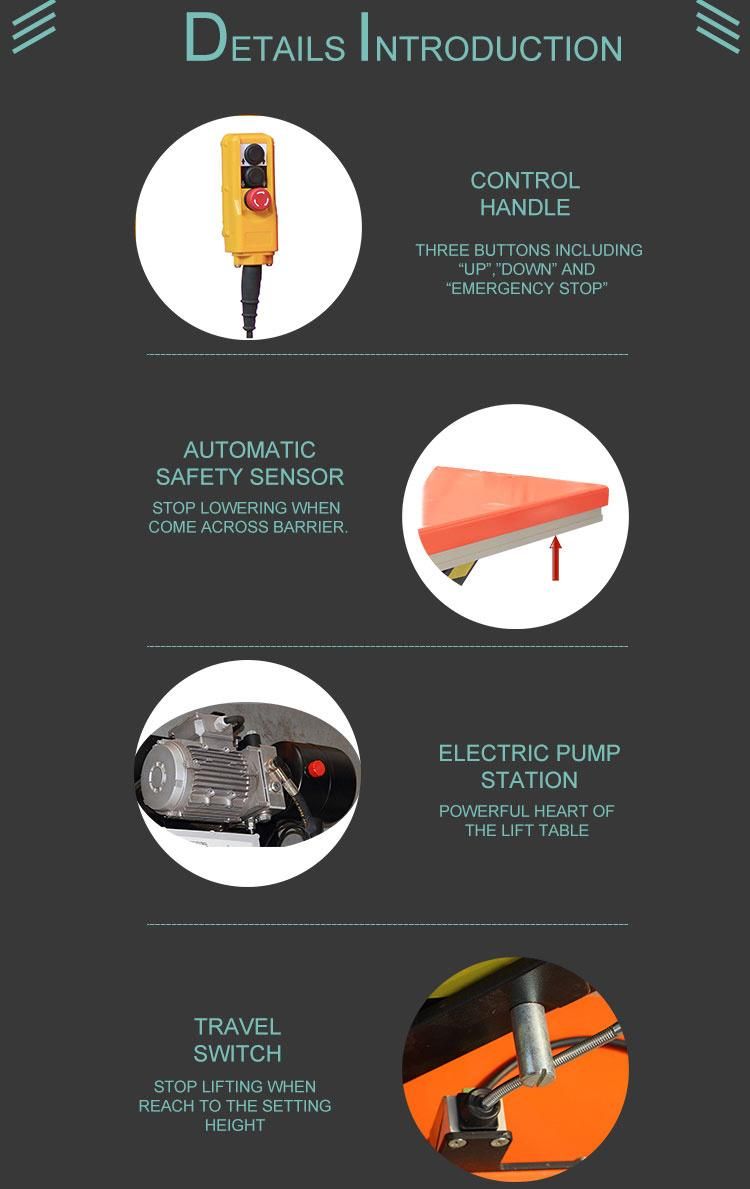

Features and Advantages:
1. Sagafirst scissor lift tables are dealt with shot blasting and stoving varnish, high anti-corrosion function.
2. High quality pump station make the scissor lift table lifts and falls very stably.
3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye can help to lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.
Standard Scissor Lift Table will be packed in paper carton and wooden pallet.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.
Our Service:1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
Two year quality guarantee.send the parts free of charge
| Frequent Asked Questions | Answers |
| Are you a factory or trading company? | We're factory with over 12years exporting experience. |
| What's the MOQ? | 1UNIT,the more,the better. |
| What's the payment terms? | <USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight. |
| Do you offer OEM&ODM service? | Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
| What's the delivery time? | 15~20days after down payment |
| What's the quality warranty? | 24 months.Offer free parts for replacement. |
| How can I get the after-sales service? | We offer videos,pictures and technical guidance immediately. |
| What's your QA&QC policy? | 3times 100% inspection before shipping. |
| Can you tell me your clients in my country? | Of course. But only after the permittance of customers. |
Please feel free to contact with us, our salesman are 24 hours on service.
Vicky
