• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating, Emergency Decline
• Certification：GS, CE, RoHS, ISO 9001, SGS
• Voltage：110V, 220V, 380V, 400V or Customized

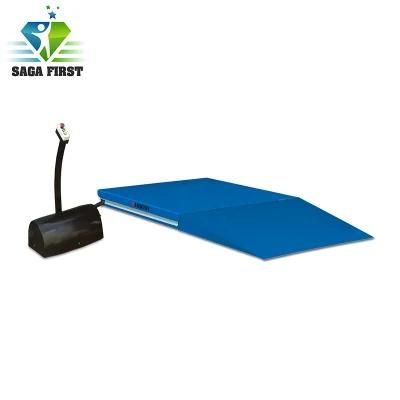

• Other Shape：E Shape, Low Profile or Customized
• Colour：Blue, Orange, Red, White, Yellow or Customized
• Platform Size：1450X1140mm or Customized
• Design：Scissor
• Load Capacity：600kg, 1000kg, 1500kg
• Platform Size Lxw：1450X985
• Min.Platform Height：85mm
• Max.Platform Height：860mm
• Lifting Time：25~35s
• Material：Steel
• Emergency Decline Valve：Yes

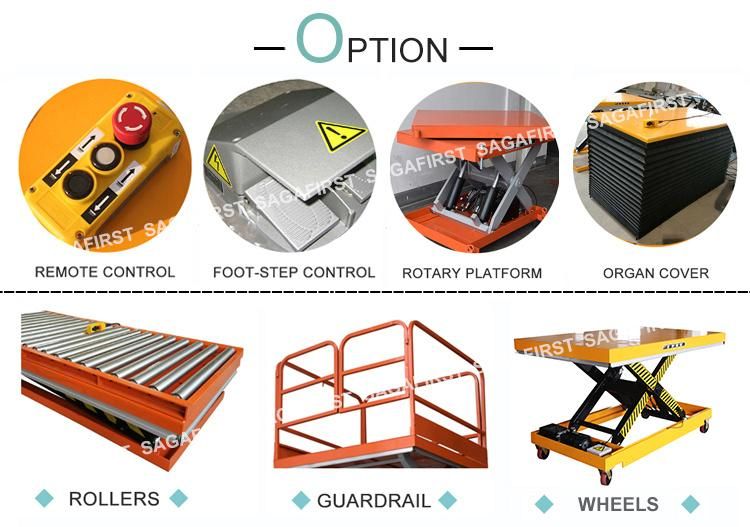

• Remote Control：Yes

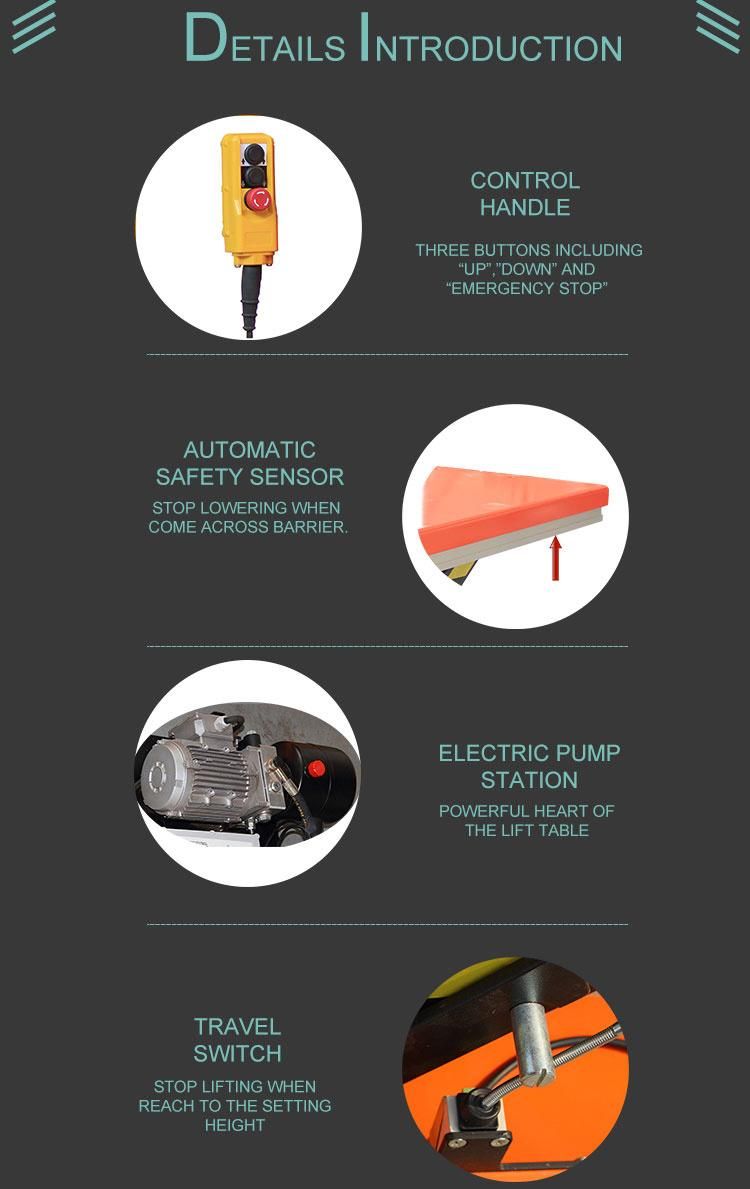

• Operation：Control Handle
• Quality Warranty：2 Years
• Specification：1600*1180mm
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：5000

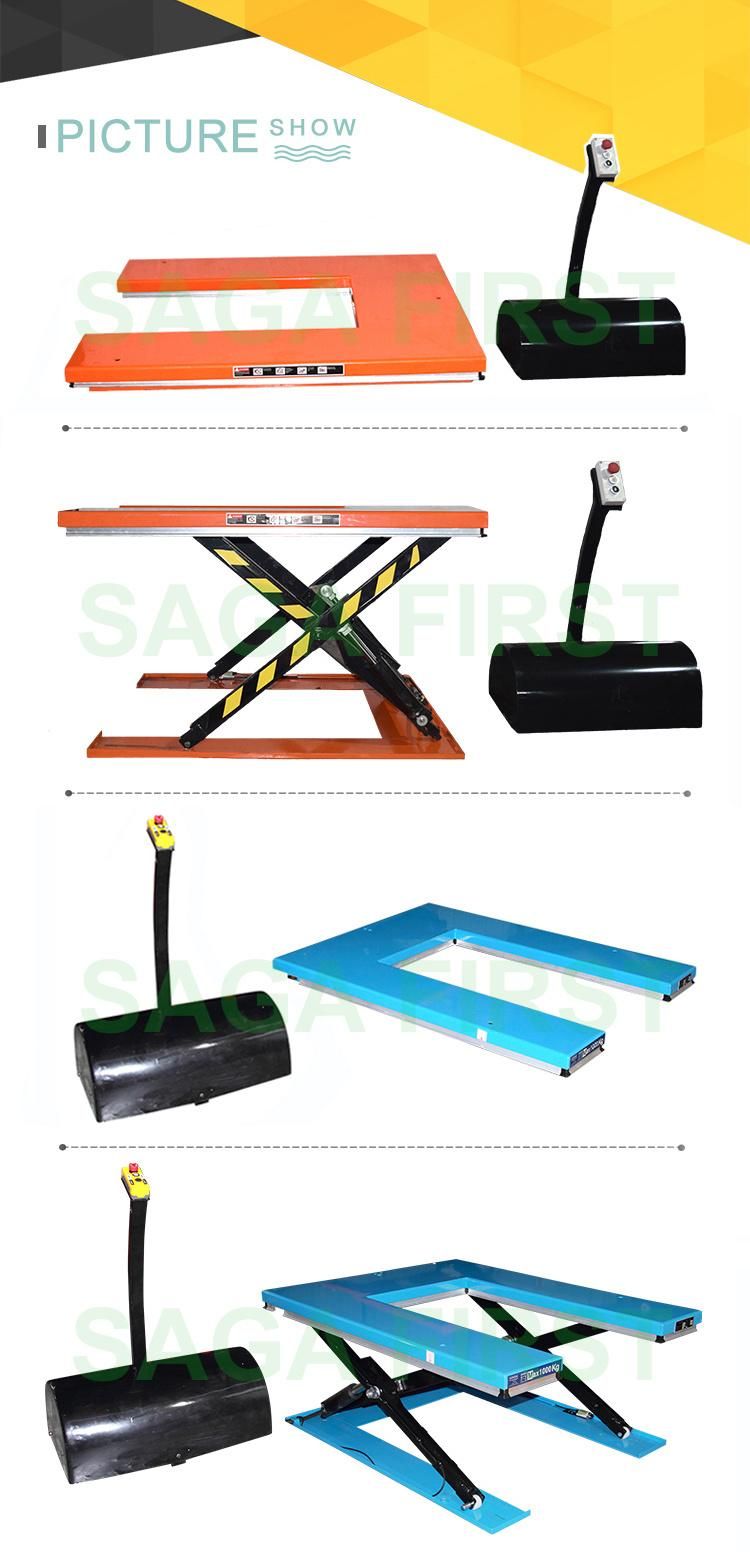

U shape lift tables are designed to lift/position lighter loads in most manufacturing, processing, printing or other material handling operation. They feature the benefits of proven and reliable hydraulic technology. U shape lift tables are a durable, economical scissor lift table that improve productivity and enhance workplace ergonomics for a wide range of material handling operations. U shape scissor lift tables are designed to lift 2 way entry pallets from the pallet truck without the need to use a ramp to load onto a table.

SAGAFIRST Brand UL Series Scissor Lift Tables are high-quality electronic hydraulic scissor lifts with loading capacities from 600KG to 1,500KG, and lifting heights up to 860mm. We also accept customized platform size and lifting height.



Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.

1. Sagafirst scissor lift tables are dealt with shot blasting and stoving varnish, high anti-corrosion function.
2. High quality pump station make the scissor lift table lifts and falls very stably.
3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye can help to lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

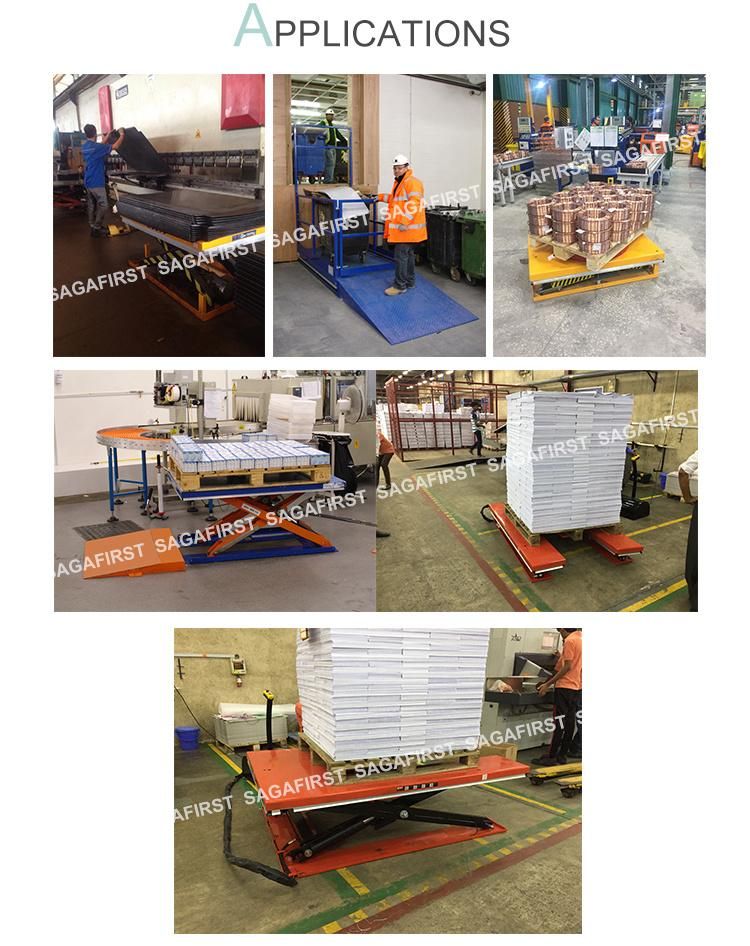

Stationary scissor lift table is mainly used in workshop, warehouse and factory .And it can load cars just as parking lot and automobile showrooms. Also the lift can use in electric and building roof maintenance and many industrial application.

Certificate: CE,ROHS,ISO,SGS ETC.
Dealers and Wholesalers are especially welcomed and we will give special discounts.Vacuum Lifter Robot will be packed in strong wooden carton and shipped by sea.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.


Our Service:
1.We can design the customerized stationary scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the stationary scissor lift break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer buy parts once it break down?
The stationary scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware
market or forklift parts shop.
2.How can customer repair the stationary scissor lifts.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
two year quality guarantee.send the parts free of charge


Feel free to contact us anytime. Our professional salesmen are 24hours online.
