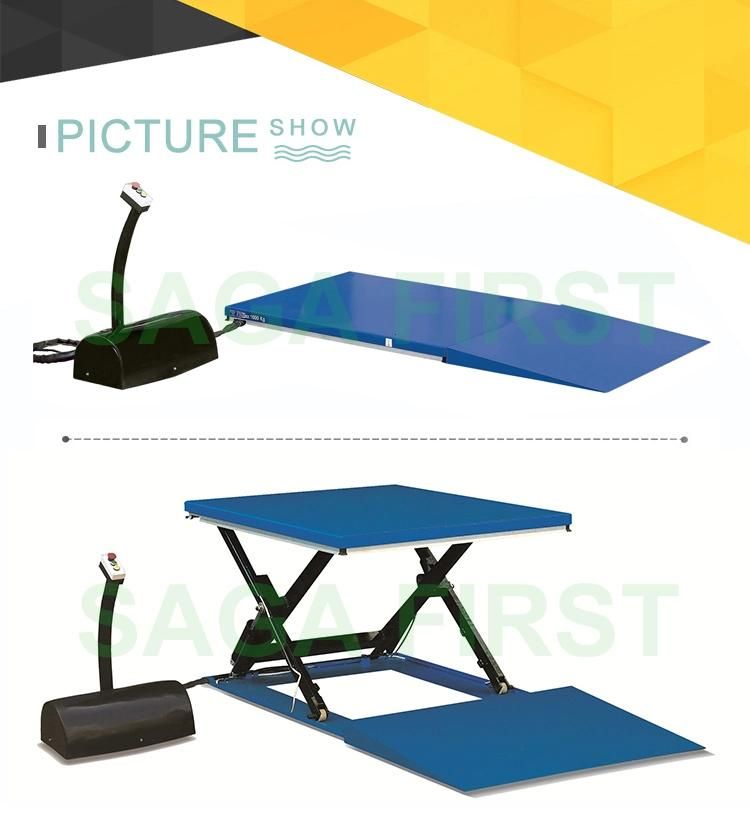

Low Profile Height Hydraulic Scissor Lift Hydraulic Lift
Qingdao Sinofirst Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
Base Info
- Feature：Explosion-Proof, Insulating, Spillover Valve
- Certification：GS, CE, ISO 9001, SGS
- Load Capacity：100kg to 2000kg or Customized
- Lifting Height：870mm
- Quality Warranty：2year, Free Parts
- Quantity of Hydraulic Cylinder：2
- Voltage as Per Customers′：Local Standard
- Color Yellow, Blue, Red or as Per：Customer Requiement
- Lowering Speed：Adjustable
- Advantage：Meet Europe and USA Pallet
- Platform Size：1450X1140mm
- Base Size (mm)：1325X1074
- Min Height：85mm
- Max Platform Height：860mm
- Lifting Time：25s
- Net Weight：357kg
- Motor：2.2kw
- Transport Package：High Quality Paper Box
- Trademark：SAGA FIRST
- Origin：China
- HS Code：8428909090
- Production Capacity：20, 000PCS,Year
Description
as per your local standard357 HL1002 1000 1600x1140 1325x1074 85 860 25 364 HL1003 1000 1450x800 1325x734 85 860 25 326 HL1004 1000 1600x800 1325x734 85 860 25 332 HL1005 1000 1600x1000 1325x734 85 860 25 352 HL1501 1500 1600x800 1325x734 105 870 30 302 HL1502 1500 1600x1000 1325x734 105 870 30 401 HL1503 1500 1600x1200 1325x734 105 870 30 415 HL2001 2000 1600x1200 1427x1114 105 870 35 419 HL2002 2000 1600x1000 1427x734 105 870 35 405
Features and advantages:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570
Certificate: CE,ROHS,ISO,SGS ETC.
Dealers and Wholesalers are especially welcomed and we will give special discounts.Vacuum Lifter Robot will be packed in strong wooden carton and shipped by sea.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.
Our Service:

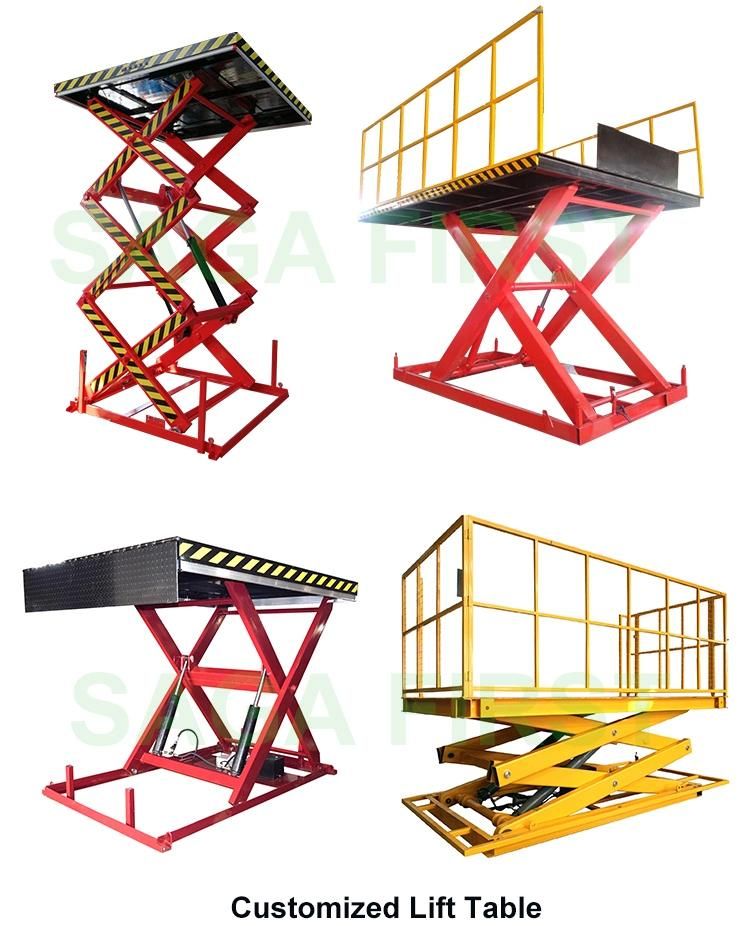

1.We can design the customerized stationary scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the stationary scissor lift break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The stationary scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware
market or forklift parts shop.
2.How can customer repair the stationary scissor lifts.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
two year quality guarantee.send the parts free of charge
Features and advantages:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570
Certificate: CE,ROHS,ISO,SGS ETC.
Dealers and Wholesalers are especially welcomed and we will give special discounts.Vacuum Lifter Robot will be packed in strong wooden carton and shipped by sea.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.
Our Service:
1.We can design the customerized stationary scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the stationary scissor lift break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The stationary scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware
market or forklift parts shop.
2.How can customer repair the stationary scissor lifts.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
two year quality guarantee.send the parts free of charge
| Frequent Asked Questions | Answers |
| Are you a factory or trading company? | We're factory with over 12years exporting experience. |
| What's the MOQ? | 1UNIT,the more,the better. |
| What's the payment terms? | <USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight. |
| Do you offer OEM&ODM service? | Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
| What's the delivery time? | 15~20days after down payment |
| What's the quality warranty? | 24 months.Offer free parts for replacement. |
| How can I get the after-sales service? | We offer videos,pictures and technical guidance immediately. |
| What's your QA&QC policy? | 3times 100% inspection before shipping. |
| Can you tell me your clients in my country? | Of course. But only after the permittance of customers. |
Feel free to contact us anytime. Our professional salesmen are 24hours online.
