• Model NO.：SV13Y series mechanical jack
• Condition：New
• Mechanical Jack Capacity：5-50 Ton
• Cylinder Stroke：5-25 mm
• Oil Capacity：8.02-66.48 mm2
• Min. Jack Height：35-54 mm
• Max. Jack Height：40-79 mm
• Cylinder O.D.：52-120 mm
• Max. Jack Length：275-401 mm
• Min. Jack Length：195-293 mm
• Weight：1.3-3.5 Kg
• OEM：Yes
• Transport Package：Standard Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：Shanghai
• HS Code：8425421000
• Production Capacity：500 PCS,Month

Basic Info.

Model NO. SV13Y series mechanical jack Condition New Mechanical Jack Capacity 5-50 Ton Cylinder Stroke 5-25 mm Oil Capacity 8.02-66.48 mm2 Min. Jack Height 35-54 mm Max. Jack Height 40-79 mm Cylinder O.D. 52-120 mm Max. Jack Length 275-401 mm Min. Jack Length 195-293 mm Weight 1.3-3.5 Kg OEM Yes Transport Package Standard Wooden Case Specification CE, ISO Trademark SOV Origin Shanghai HS Code 8425421000 Production Capacity 500 PCS/Month

Product Description

SV13Y Series Ultra Thin Mechanical Jack

Feature
1. Ultra thin flat design for use where other cylinders can not fit.
2. Small, short, thin, lightweight and portable
3. Made from high-strengh alloy steel for increased length and extended service life
4. Integrated hydraulic screw structure removes the need for additonal oil pump or hose.

Specifications

Model	Capacity (ton)	Stroke (mm)	Oil Capacity (mm2)	Closed Height (mm) D	Extended heiht (mm)  F	Cylinder OD. (mm)	Max. Length (mm)	Min. Length (mm)	Weight (kg)
SV13Y525	5	25	8.02	52	77	52	275	195	1.3
SV13Y1025	10	25	13.85	54	79	62	348	237	2.1
SV13Y205	20	5	28.27	35	40	84	289	218	1.8
SV13Y305	30	5	38.49	36	41	95	314	236	2.0
SV13Y505	50	5	66.48	40	45	120	401	293	3.5

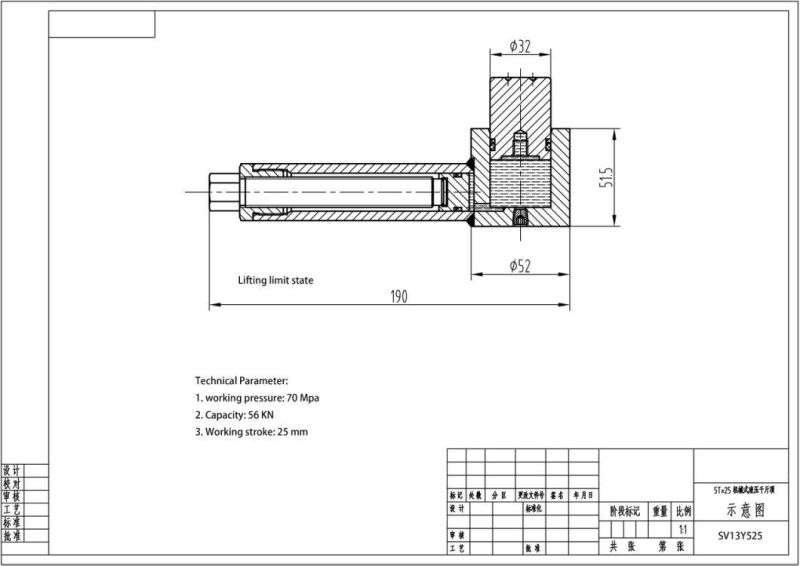

Drawing

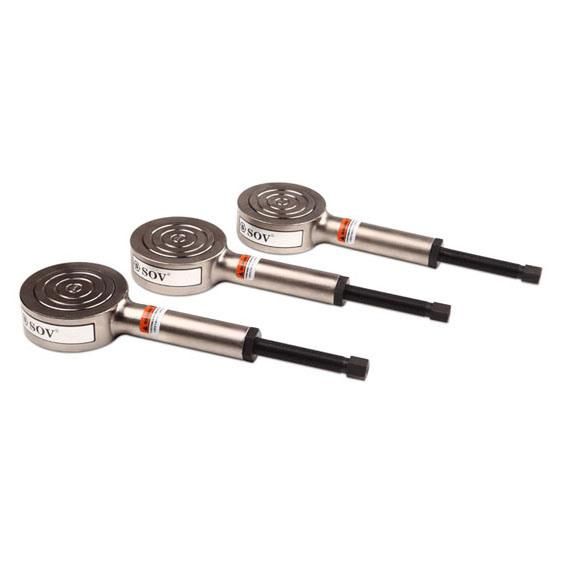

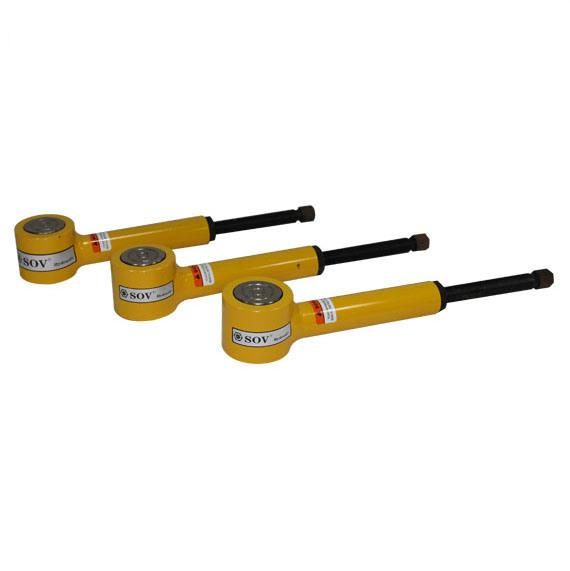

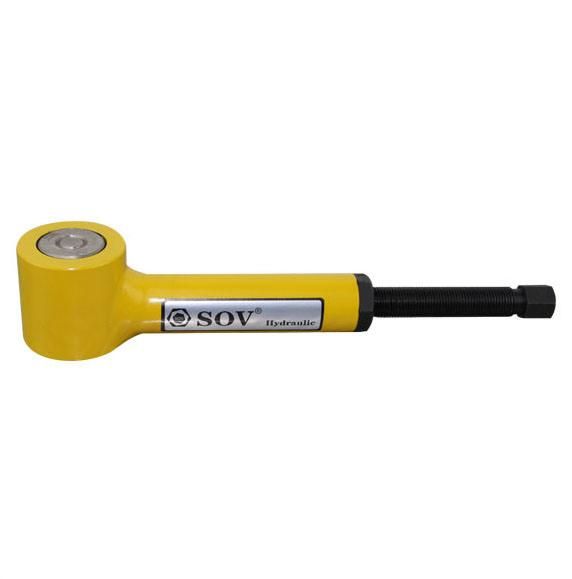

Photos





Packaging and Shipping
1. Wooden case
2. Shipping is designated by customer.


Our Services
1. One Year Warranty
2. Endless free maintenance service
3. Quick response
4. OEM service available

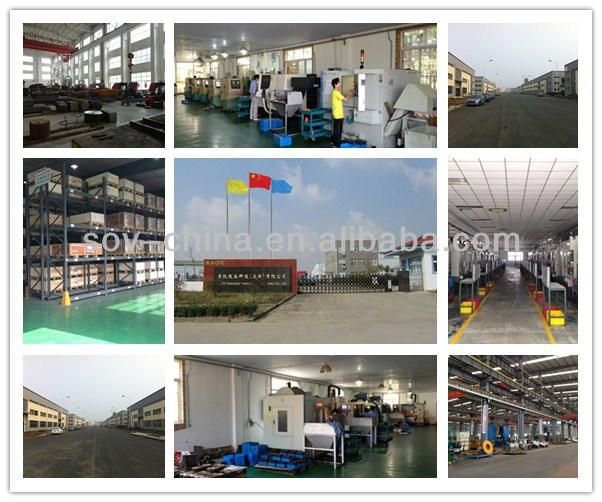

Brief Introduction
Shanghai SOV Hydraulic Technology Co., Ltd is a professional manufacturer engaged in design and production of hydraulic cylinders/jacks, synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, electric torque wrenches, and hydraulic components.

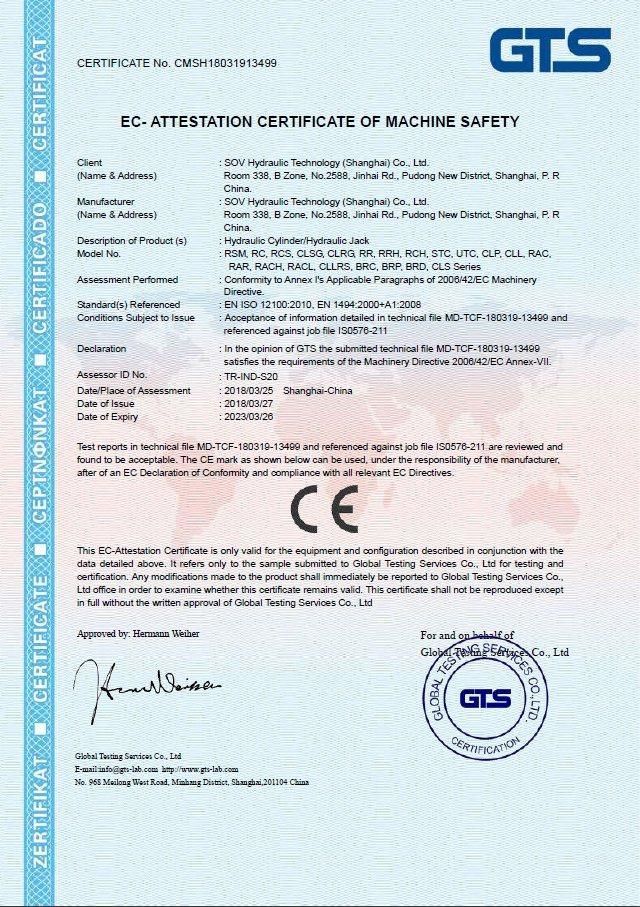

Certificates
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.

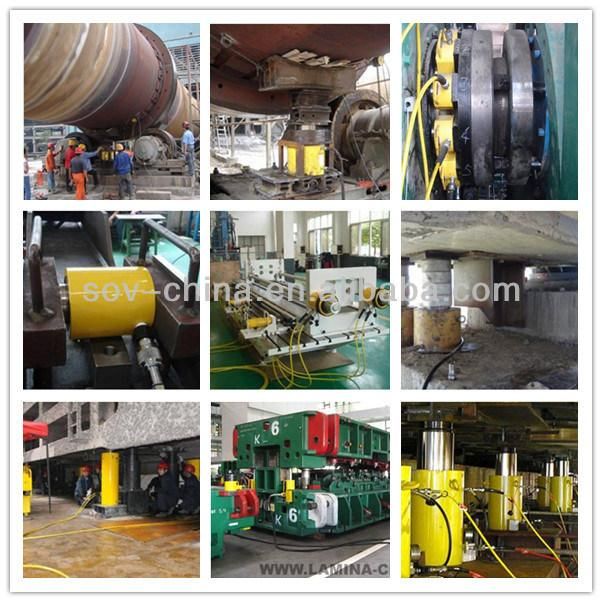

Project Case
Our customer base includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Also, our products can be exported worldwide to many countries such as the Europe, Asia, North America, Latin America, Australia, New Zealand, the Middle East and Africa.

Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

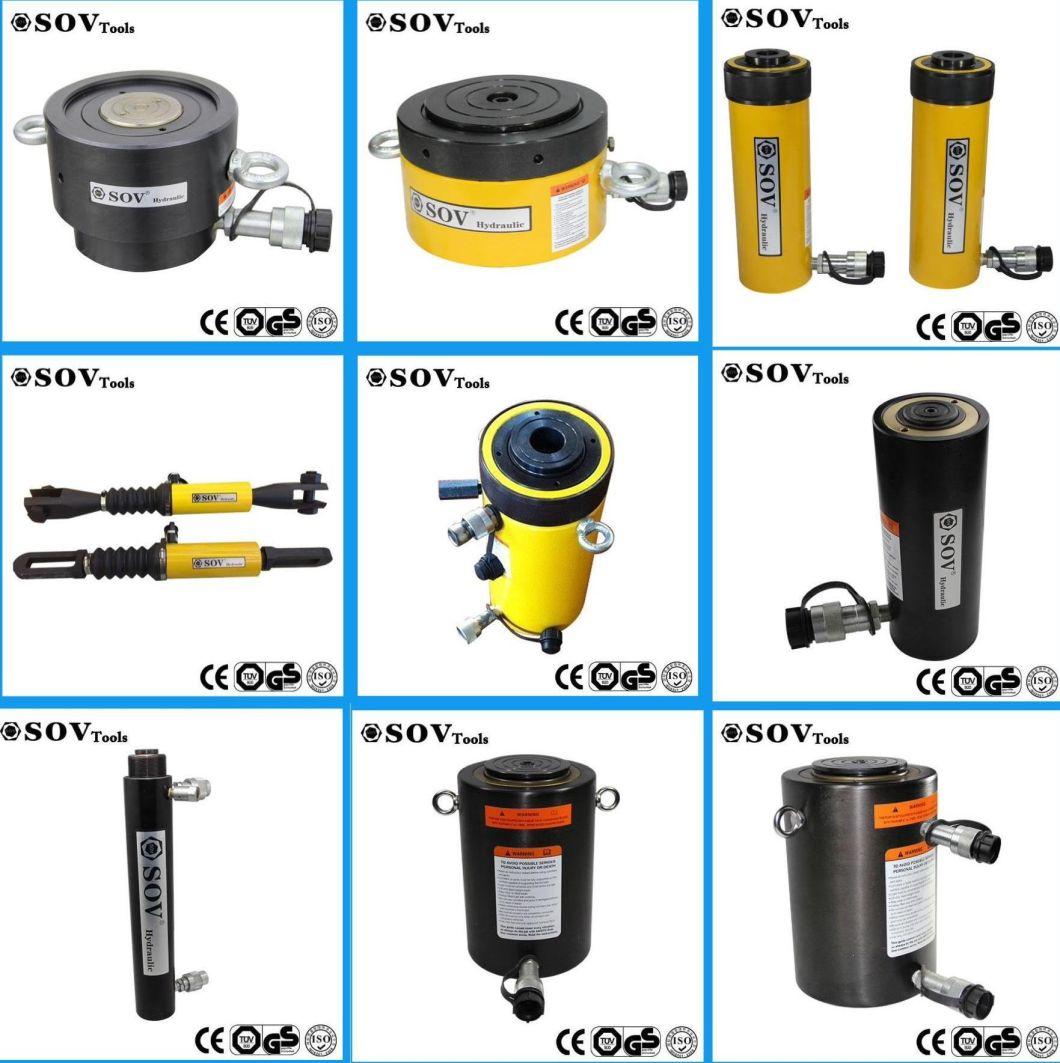

Main Products
We are a manufacturer in tools, such as:
1. Hydraulic jacks (5-3000ton), single acting and double acting, hollow plunger;
2. Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
3. Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-1000 ton)
4. Hydraulic pumps, manual and electric type (max. Up to 4000bar);
5. Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6. Hydraulic nut and couplings. (M50-Tr1000)



Teams



Contact Information
Contact Person: Helen Tong

Web: sov-china.en.made-in-china.com

We make every effort to meet your requirement!
