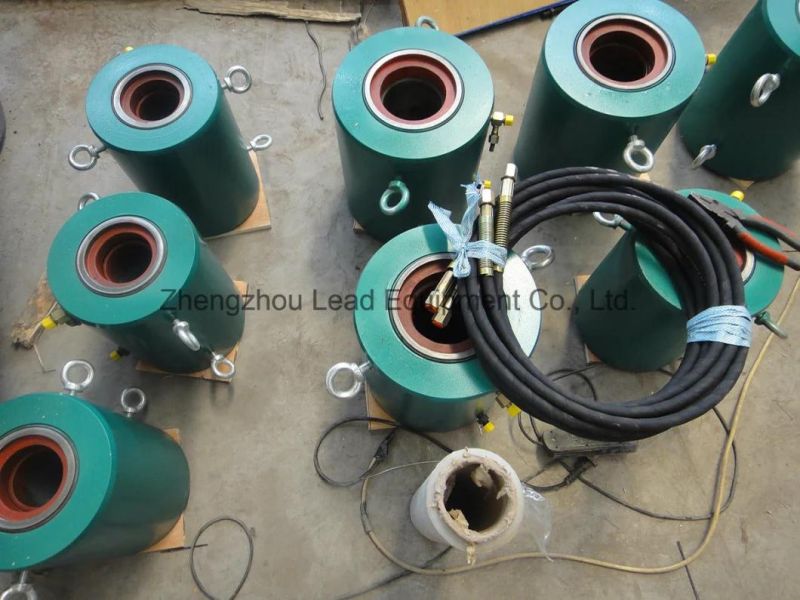

Building Construction Strutting Beams Prestressed Hydraulic Lifting Jack
Zhengzhou Lead Equipment Co., Ltd.- Type：Hydraulic Jack
- Structure：Hydraulic Jack
- Power Source：Electric
- Certification：CE, ISO 9001:2000
- Condition：New
- Color：Green, Natural,Red, or According to Your Requireme
Base Info
- Model NO.：YDC
- Mating Oil Pump：50MPa and 63MPa Oil Pump
- Capacity(Load)：>50t
- Apply：Concrete Anchor
- Materials：Alloy Steel, Casting Iron, Steel , Plastic
- Shape：Long Round
- Performance：Good
- Operation：Simple and Convenient
- Custom-Made：Can Be Customized

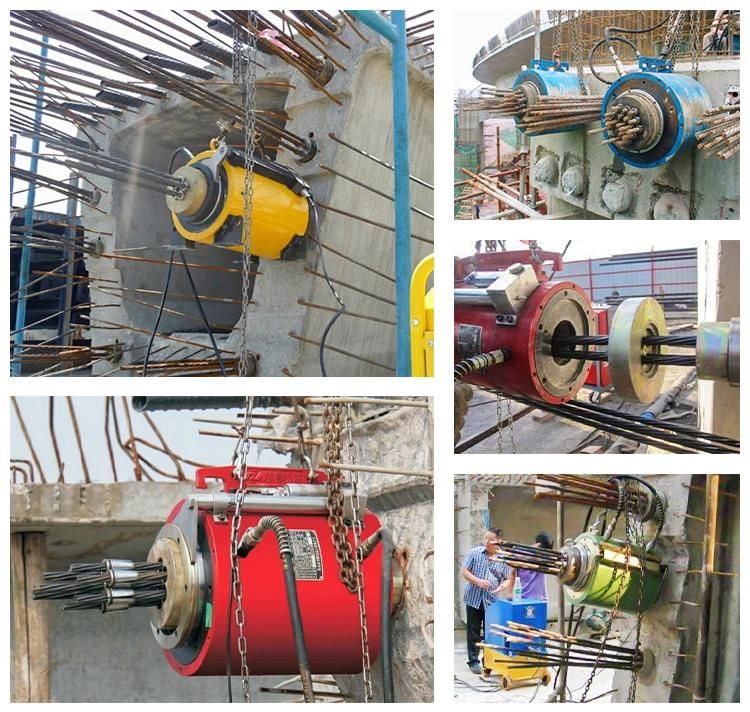

- Occasion：Bridges, High Buildings, Coal Mine, Railway and Su
- Transport Package：Standard Export Package with Ply Wooden Case
- Specification：CE and ISO certificate
- Trademark：Leadcrete
- Origin：Henan, China(Mainland)
- HS Code：84254210
- Production Capacity：10000 Sets Per Month
Description
OverdimensionKN Mpa mm mm² mm L(mm) E(mm) K(mm) out diameter
(mm) length
(mm) YDC60 60 54 150 1119 30 874 59.5 387 70 287 YDC130 130 50 160 2592 30 838 77 395 90 295 YDC270 270 61 185 4418 30 888 89 415 105 315 YDC650 650 50 150 13018 40 860 145 380 170 288 YDC1100 1100 51 200 19792 80 1210 184 680 217 330 YDC1500 1500 50 200 30257 90 1210 230 680 270 330 YDC2000 2000 51 200 39820 110 1296 272 723 320 360 YDC2500 2500 52 200 48381 127 1306 298 728 350 360 YDC3000 3000 52 200 57727 145 1322 336 736 375 380 YDC3500 3500 48 200 73435 162 1322 336 745 415 395 YDC4000 4000 51 200 79168 162 1324 374 745 435 395 YDC4600 4600 51 200 91028 180 1350 420 750 470 410 YDC5000 5000 49 200 96997 200 1340 434 745 495 410 YDC5500 5500 50 200 110506 198 1350 520 800 526 498 YDC6500 6500 49 200 67544 212 1350 550 850 568 538 YDC9000 9000 51 200 78618 275 1400 620 900 680 603 YDC12000 12000 51 200 231300 275 1400 620 900 780 603
