Quality Platform Scissor Type Vehicle Hydraulic Lift System
Qingdao Mutrade Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：S-VRC
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Lifting Capacity：10ton Max
- Lifting Height：18m Max
- Platform Width：Customized
- Platform Length：Customized
- Running Speed：4m,Min
- Power：3kw,4kw,5.5kw,7.5kw
- Surface Treatment：Powder Coating
- Multilevel：Available
- Guardrail：Available
- Guide Rail：Available
- Transport Package：Standard Exporting Package
- Specification：Customized
- Trademark：Mutrade
- Origin：Qingdao, China
- HS Code：84289020
- Production Capacity：400 Units,Month
Description

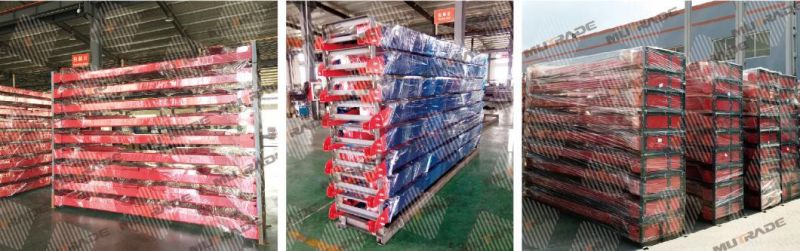

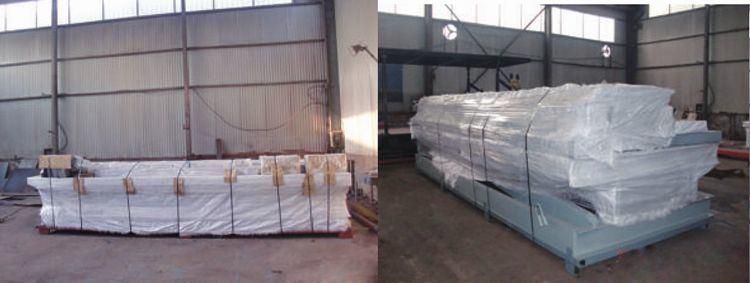

Packing & Delivery
At MUTRADE, we offer professional steel frame packaging for easy and stable container load. The main structure of S-VRC has be pre-assembled in our plant, and one package will contain all the parts.

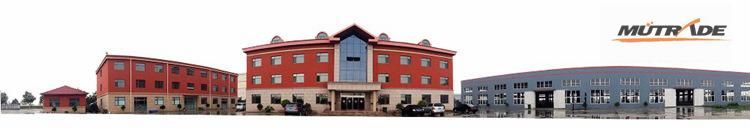

Our Company
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking solution providers in CHINA. We are committed to provide the most suitable and cost effective parking solutions to our customers all over the world.
Hydro-Park is a subsidiary company and sub-brand built by Mutrade for high-end mechanical simple parking equipment. We develop, design and manufacture mechanical parking equipment with our own advanced technology and kept consistent high quality.
Our target is to become world class manufacturer with following competitive advantages:
Advanced Technology
Precise Manufacture Processing
Strong Service Support
Customer Oriented
For all the people who work in the mechanical parking business, if you are looking for a reliable partner in CHINA, Mutrade is the one company you can not miss!
Certifications
We have different certifcates for different markets.
Q&A1. Is this product can be used indoor or outdoor?S-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the pit dimensions needed for S-VRC?
The dimensions of pit depends on platform size and lifting height, our technical department will provide you
the professional drawing to guide your excavation.
3. What is the surface fnishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better
water-proof and looking.
4. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less
than one movement per hour), a single phase power supply can be used, otherwise it may lead to motor
burnt out.5. Can this product still operate if electricity failure happens?Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure
happens often in your city.
6. What is the warranty?
It's fve years for main structure and one year for moving parts.
7. What is the production time?
It's 30 days after prepayment and fnal drawing confrmed.
8. What is the shipping size? Is LCL acceptable, or it must be FCL?
As S-VRC is a fully customized product, the shipping size depends on the specifcations you need.
As the structure of S-VRC is pre-assembled, the package will take most space of container, LCL cannot be used.
20 feet or 40 feet container is necessary as per the platform length.
1. Three years guarantee for the whole machine and ten years for main structure.
2. Calling door to door service
3. Friendly English software, user manual or detailed drawing/CD.
4. To meet different user purposes, we provide customized service. Lifting capacity, lifting height, dimension of platform, color and so on is necessary. But, only quantities of order are available
