• Model NO.：HW
• Certification：CE
• Capacity：4400lbs
• Min. Height：8"
• Max. Height：40"
• Table Size：48X24"
• Lift Time：25s
• Color：Customizable
• Net Weight：456lbs
• Type：Stationary Lift Table
• Certificate：Ce Approved
• Scissor：Single Scissor Lift Table
• Transport Package：1PC,Wooden Case
• Trademark：Buytool
• Origin：Made in China
• HS Code：8427900000
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. HW Certification CE Capacity 4400lbs Min. Height 8" Max. Height 40" Table Size 48X24" Lift Time 25s Color Customizable Net Weight 456lbs Type Stationary Lift Table Certificate Ce Approved Scissor Single Scissor Lift Table Transport Package 1PC/Wooden Case Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 3000PCS/Month

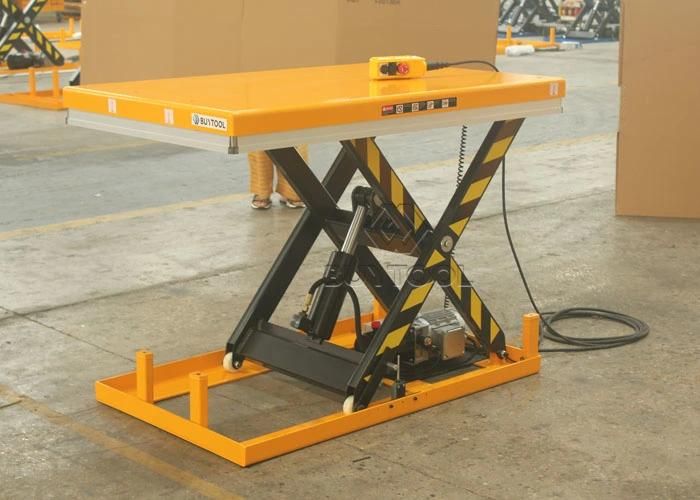

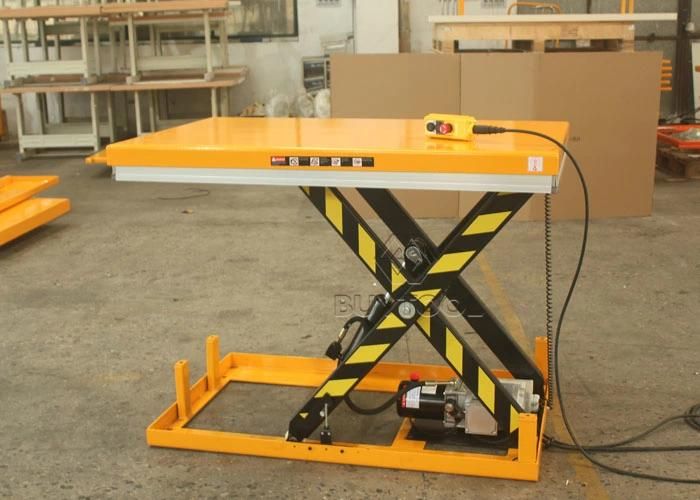

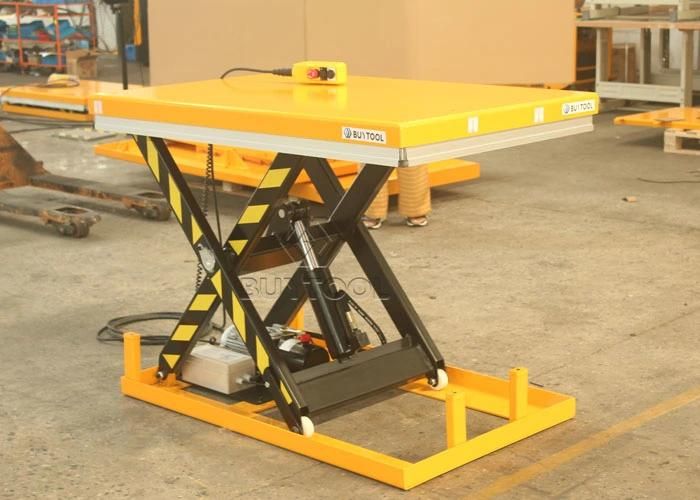

Product Description

Why and Where to Use:
Ideal for handling bulky heavy materials. Maximize worker and machine productivity by hydraulically positioning work at just the right level. Raise or lower to feed or accumulate from machines or conveyor lines. Raise load to desired position to prevent back injuries and reducing bending, caused by heavy-duty tasks like lifting and bending.
Widely used in automotive, container, mold manufacturing, wood processing, chemical canning and other industrial enterprises and production lines.

Standard Safety Features
1. Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
2. Low-tention(24V) control box with up-down buttons.
3. Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
4. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
5. Safety clearance between scissors to prevent trapping during operation.
6. With anti-explosion valve
7. With Safety guard
8. Upper travel limit switch to stop table at maximum height to reduce motor wear
9. Product meet EN norm and ANSI/ASME safety standards.

Warning
1. Do not put foot or hand in scissors mechanism or through frame.
2. Use the lift table on flat and solid ground.
3. It is forbidden to operate the lift table while a person is under the table.
4. Do not adjust the safety valve of hydraulic power pack.
5. It is forbidden to operate the lift table even if there is small structure distortion.
6. Do not use in an explosive or flammable place.




FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
