• Model NO.：HD
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：CE, ISO 9001
• Load Capacity：1000kg to 5000kg
• Lifting Height：1000mm to 4000mm
• Quantity of Hydraulic Cylinder：2
• Voltage：as Per Customers′ Local Standard
• Color：Yellow, Blue, Red or as Per Customer Requiement.
• Quality Warranty：12 Months
• Way of Installation：on Ground or Underground.
• Lowering Speed：Adjustable
• OEM：as Per Customer Request
• Name：Hydraulic Scissor Lift with Ce
• Warranty：2 Years
• Material：Steel
• Emergency Decline Valve：Yes
• Anti Corrison：Yes
• Lifting Time：20~35s
• Transport Package：High Quality Paper Box
• Specification：CE, ISO, SGS
• Trademark：SINOFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. HD Feature Explosion-Proof, Insulating, Spillover Valve Certification CE, ISO 9001 Load Capacity 1000kg to 5000kg Lifting Height 1000mm to 4000mm Quantity of Hydraulic Cylinder 2 Voltage as Per Customers′ Local Standard Color Yellow, Blue, Red or as Per Customer Requiement. Quality Warranty 12 Months Way of Installation on Ground or Underground. Lowering Speed Adjustable OEM as Per Customer Request Name Hydraulic Scissor Lift with Ce Warranty 2 Years Material Steel Emergency Decline Valve Yes Anti Corrison Yes Lifting Time 20~35s Transport Package High Quality Paper Box Specification CE, ISO, SGS Trademark SINOFIRST Origin China HS Code 8428909090 Production Capacity 10000

Product Description

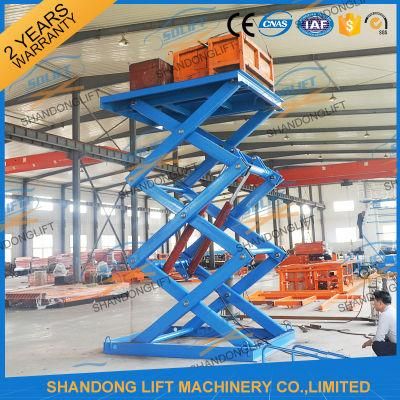

Stationary Electric Double Scissor Lift Table

Standard size Hydraulic Scissor Lift Table is one of the most popular product of SINOFIRST. The scissor lift table load capacity, platform size, max height and net height is standard and can't be changed. Standard scissor lift tables are all produced by automatic production line. In this way, SINOFIRST can reduce the basic cost of the raw material and production cost. Furthermore, the quality is very stable because these standard scissor lift table has been tested thousands of times.

Introduction for electric scissor lift:
Driven by the electric and hydraulic system.
Installed in the pit or on ground floor

Advantages for electric scissor lift:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570
Specification for Hydraulic Scissor Lift Table:


Model	Load Capacity(KG)	Self Height (MM)	Max Platform Height(MM)	Platform Size(MM)	Lifting time (S)	Voltage (V)	Net weight (KG)
SS1001	1000	205	1000	1300×820	20~25	1ph or 3ph	160
SS1002	1000	205	1000	1600×1000	20~25		186
SS1003	1000	240	1300	1700×850	30~35		200
SS1004	1000	240	1300	1700×1000	30~35		210
SS1005	1000	240	1300	2000×850	30~35		212
SS1006	1000	240	1300	2000×1000	30~35		223
SS1007	1000	240	1300	1700×1500	30~35		365
SS1008	1000	240	1300	2000×1700	30~35		430
SS2001	2000	230	1000	1300×850	20~25		235
SS2002	2000	230	1050	1600×1000	20~25		268
SS2003	2000	250	1300	1700×850	25~35		289
SS2004	2000	250	1300	1700×1000	25~35		300
SS2005	2000	250	1300	2000×850	25~35		300
SS2006	2000	250	1300	2000×1000	25~35		315
SS2007	2000	250	1400	1700×1500	25~35		415
SS2008	2000	250	1400	2000×1800	25~35		500
SS4001	4000	240	1050	1700×1200	30~40		375
SS4002	4000	240	1050	2000×1200	30~40		405
SS4003	4000	300	1400	2000×1000	35~40		470
SS4004	4000	300	1400	2000×1200	35~40		490
SS4005	4000	300	1400	2200×1000	35~40		480
SS4006	4000	300	1400	2200×1200	35~40		505
SS4007	4000	350	1300	1700×1500	35~40		570
SS4008	4000	350	1300	2200×1800	35~40		655
HD1000	1000	305	1780	1300X820	35-45	1ph or 3ph	210
HD2000	2000	350	1780	1300X850	35-45		295
HD4000	4000	400	2050	1700X1200	55-65		520
HT1000	1000	470	3000	1700x1000	35-45		450
HT2000	2000	560	3000	1700x1000	50-60		750
HF400	400	600	4140	1700x1000	30-40		800
HF800	800	706	4210	1700x1000	70-80		858
HD1000	1000	305	1780	1300X820	35-45		210

Quality warranty: 12 Months Quality Guarantee with One Year Free Spare Parts Replacement (Human causes excluded)

Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Overload protection locking device.
5. Emergency decline valve
6. Overload protection locking device.










Certificate:ISO and CE


Our Service :

1.We can design the customerized scissor lift table as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Opetion video can be sent to you if needed.

5.Maintenance video will be given once the scissor lift table break down to help you repair.

6.Parts of scissor lift table can be sent to you by express within 7 days if needed.

Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.

2.How can customer repair the scissor lift table.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

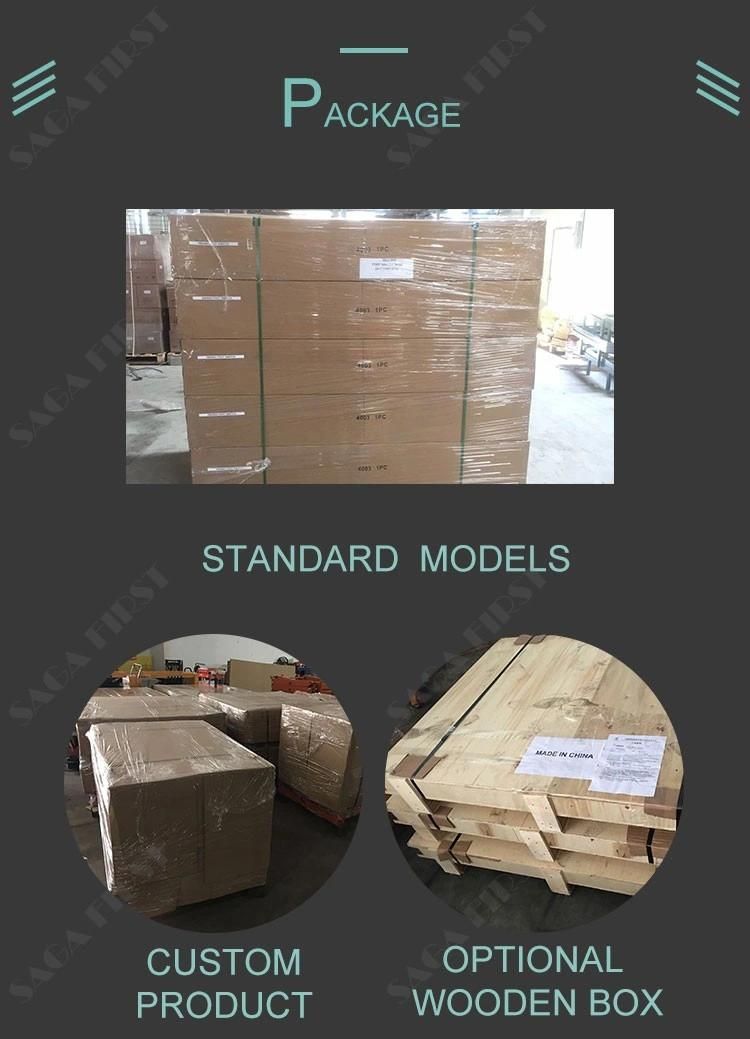

Package and Delivery :

Scissor lift tables will be packed by high quality boxes and put on pallet.

Production time: about 20~25days after getting payment.

Loading Port: Qingdao port, Shanghai Port, Ningbo port, Guangzhou Ports.
