• Model NO.：SJY0.3-8
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Safety Device：Explosion-Proof Lock Valve
• Mobile：4 Wheels
• Power：Electric and Hyraulic
• Style：Scissor Aerial Work Platform
• Lift System：Hydraulic System
• Voltage：110V 220V 240V 380V Optional
• Material：High Strength Manganese Steel
• Lifting Capacity：300kg
• Platform：Anti-Skid Checkered Plate
• Lifting Height：8m
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：3800 Set Per Year

ModelCapacityTable sizeMax heightWork heightTotal dimensionNet weightSJY0.3-4300Kgs1500×750mm4m5.7m1850×900×1900mm400KgsSJY0.3-6300Kgs1500×750mm6m7.7m1850×900×1970mm650KgsSJY0.3-8300Kgs1650×1000mm8m9.7m2100×1200×2460mm1200KgsSJY0.5-8500Kgs1980×1220mm8m9.7m2500×1550×2380mm1400KgsSJY0.8-8800Kgs2000×1220mm8m9.7m2600×1550×2640mm1700KgsSJY0.3-10300Kgs2100×1220mm10m11.7m2700×1550×2380mm1500KgsSJY0.5-10500Kgs2100×1220mm10m11.7m2700×1550×2380mm1600KgsSJY1.0-101000Kgs2220×1220mm10m11.7m2820×1720×2850mm2380KgsSIY0.3-12300Kgs2550×1500mm12m13.7m3150×1860×2850mm2580KgsSIY0.5-12500Kgs2550×1500mm12m13.7m3150×1860×2850mm2780KgsSJY1.0-121000Kgs2600×1500mm12m13.7m3200×2015×3090mm3580KgsSJY0.3-14300Kgs2990×1600mm14m15.7m3600×2000×2850mm3000KgsSJY0.5-14500Kgs2990×1600mm14m15.7m3600×2000×2850mm3200KgsSJY0.3-16300Kgs3230×1600mm16m17.7m3700×2000×3030mm3900KgsSJY0.3-18300Kgs3230×1600mm18m19.7m3700×2000×3250mm4500KgsSJY0.3-20300Kgs3230×1600mm20m21.7m3700×2000×3450mm 5100Kgs Configuration:

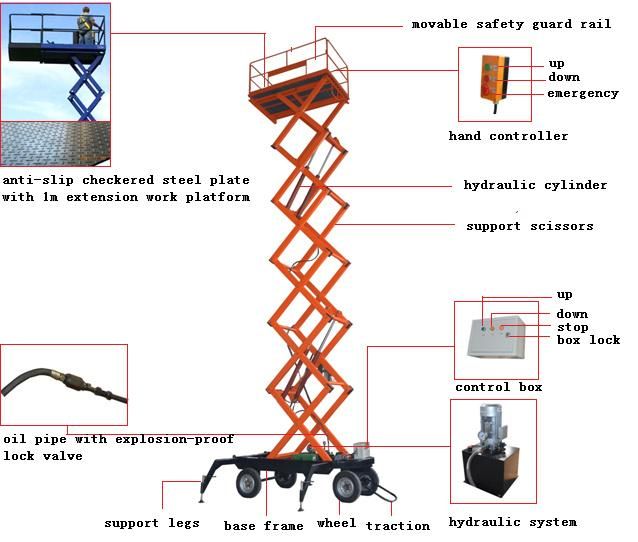

1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or other
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform



Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above work platform.
3) The limit switch system helps the telescopic ladder to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the telescopic ladder are passed 1.2 times loading test before leaving factory.
Our Services
1) We can design the customerized telescopic ladder as per your requirement.
2) The most suitable telescopic ladder will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
 Engineers are available to your country if necessary.
