• Model NO.：SJG2-2.2
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Handrail：4 Sides
• Installation：Underground
• Safety Device：Explosion Proof Lock Valve, Emergency
• Stationary Hydraulic Scissor Lift：Scissor Lift
• Motor：Customer Required Brand or Chinese Famous Brand
• Color：Red, Blue, Orange, Gray
• Power：220V, 240V, 380V, 400V or Other
• Warranty：24monthes
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：5000 Set Per Year

MODELLOAD CAPACITYPLATFORM SIZELIFT HEIGHTPIT DEPTHPOWERSJG0.3-20.3T1.5m x 1.5m2m400mm220V, 240V, 380V or 400VSJG0.5-30.5T2m x 1.8m3m500mm220V, 240V, 380V or 400VSJG1-4.51T2.1m x 1.5m4.5m650mm220V, 240V, 380V or 400VSJG1.5-41.5T2.2m x 1.6m4m600mm220V, 240V, 380V or 400VSJG2-6.52T5.2m x 2.8m6.5m800mm220V, 240V, 380V or 400VSJG2.5-32.5T5.2m x 2.6m3m750mm220V, 240V, 380V or 400VSJG2.5-3.52.5T5.2m x 2.6m3.5m800mm220V, 240V, 380V or 400VSJG2.5-52.5T5.6m x 3m5m800mm220V, 240V, 380V or 400VSJG3-2.53T5m x 2.3m2.5m750mm220V, 240V, 380V or 400VSJG3-33T5.2m x 2.6m3m800mm220V, 240V, 380V or 400VSJG3-3.53T5.6m x 2.7m3.5m800mm220V, 240V, 380V or 400VSJG5-105T4.5m x 2.5m10m1150mm220V, 240V, 380V or 400VSJG8-2.58T6.5m x 4.5m2.5m850mm220V, 240V, 380V or 400VSJG12-312T5.5m x 2.8m3m950mm220V, 240V, 380V or 400VSJG15-4.515T8m x 2.2m4.5m1150mm220V, 240V, 380V or 400VSJG20-520T6m x 3m5m1200mm220V, 240V, 380V or 400V The lifting equipment can be customized as your detailed size.Configuration:

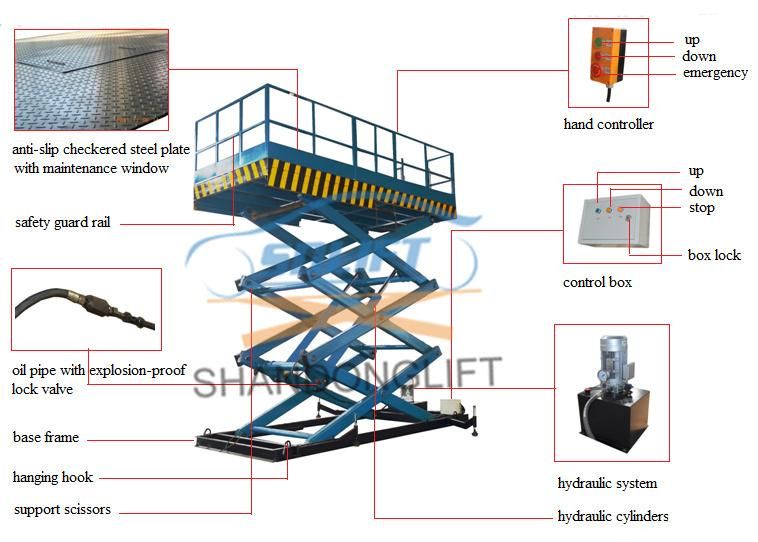

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe:  high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform


Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above Electric Hydraulic lift platform .
3) Equipped 4 guide rails, to ensure the lifting equipment runs more smoothly and steadily.
4) The limit switch system helps the lifting equipment to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the lifting equipment are passed 1.2 times loading test before leaving factory.
Our services:
1) We can design the lifting equipment as per your requirement.
2) The most suitable lifting equipment will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
