Vertical Wheelchair Lift for Disabled People (SJD)
Jinan Moral International Co., Ltd.- Application：Building
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJD
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Load Capacity：250kg
- Platform Size：1300*900mm
- Lifting Height：Max 12m
- Speed：70mm,s
- Drive：Hydraulic,Screw
- Material：Aluminum Extruded
- Power Input：220V, 50Hz,60Hz, or Customized Local Power
- Control：Button,Remote control
- Power：2.2KW
- Warranty：12 Months
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：MORAL,OEM
- Origin：Shandong. China
- HS Code：842890
- Production Capacity：5000PCS,Year
Description
1300mm(L)* 900mm(W) or customized
Max Platform Height
6000mm
Min Platform height
80mm
Speed
70mm/s
Load capacity
250KG~350KG
Control voltage
24V/DC
Power Output
1.5KW
Power Input
220V/50HZ/25A (or customized for local power supply)
Drive System
Hydraulic or screw
Control Mode
Inching Switch or Automatic
Drive Control
Self-resetting system
Overload
Protection Over current relay
Material of Platform
Checkered slip-proof aluminum alloy
Painting
Plastic electrostatic spraying
Guard panel & drive cabinet (framework)
Aluminum Alloy / 304 stainless steel
Operation Panel
Polished aluminum Alloy
Working Condition
Both indoors and outdoors
Working temperature
From -50°~60°C
Installation
Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)
Emergency Stop
The lifting and lowering process can be stopped immediately
by pressing the emergency button.
Safety device
Safety Interlock
Lock the platform when it is out of control
Safety Sensor
The operation must be stopped immediately the safety
edge meets obstacles during operation.
Emergency lowering
The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
Auto-flap
Turn up after lifting

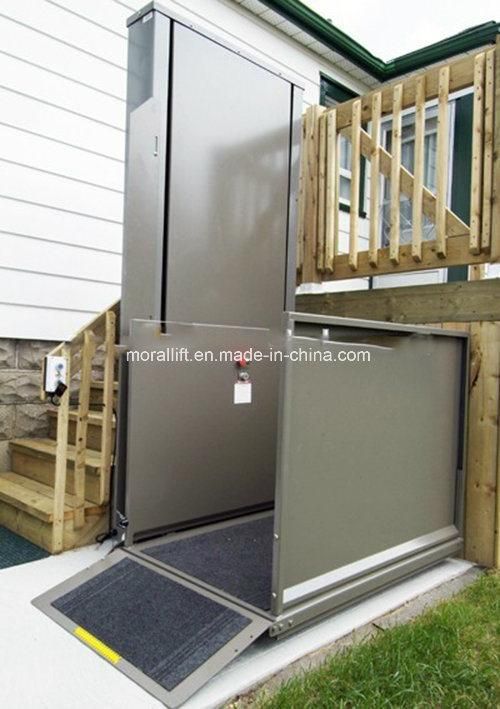

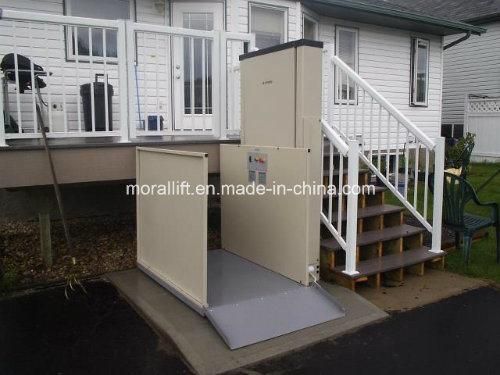

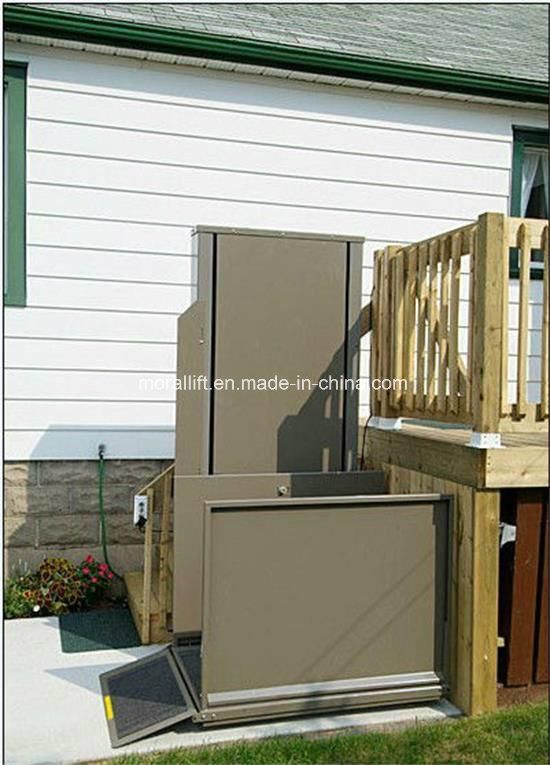

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical wheelchair lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.
