Attic Hydraulic Wheelchair Elevator Lift
Jinan Moral International Co., Ltd.- Application：Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJD
- Feature：Explosion-Proof, Antiseptic
- Certification：CE
- Load Capacity：250-350kg
- Platform Size：1300*1100mm
- Lifting Height：Max Height 10, 000mm
- Speed：70mm,S
- Power：1.5kw
- Drive：Hydraulic or Screw
- Installation：Pit
- Type of Work：Special Weight Level
- Warranty：12 Months
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：MORAL,OEM
- Origin：Shandong, China
- HS Code：842890
- Production Capacity：500PCS,Year
Description
The lifting and lowering process can be stopped immediately
by pressing the emergency button.
Safety device
Safety Interlock
Lock the platform when it is out of control
Emergency lowering
The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
Maintenance:
Homeowners are required on a frequent basis (every 6 months) to perform:
a) General operation of the Vertical Platform Lift.
b) Functional operation of the under pan safety sensors.
c) Emergency stop switch operation.
d) Inspect and free debris under vertical lift.
Pre-Sales Service:
a) Inquiry and consulting support.
b) Sample testing support.
c) View our Factory.
After-Sales Service:
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas.
1. All the machines will be full tested before shipment.
2. The total machine guarantee is 12 moths.
3. 24 Hours technical support, email, telephone or video online.
4. User-friendly english manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.

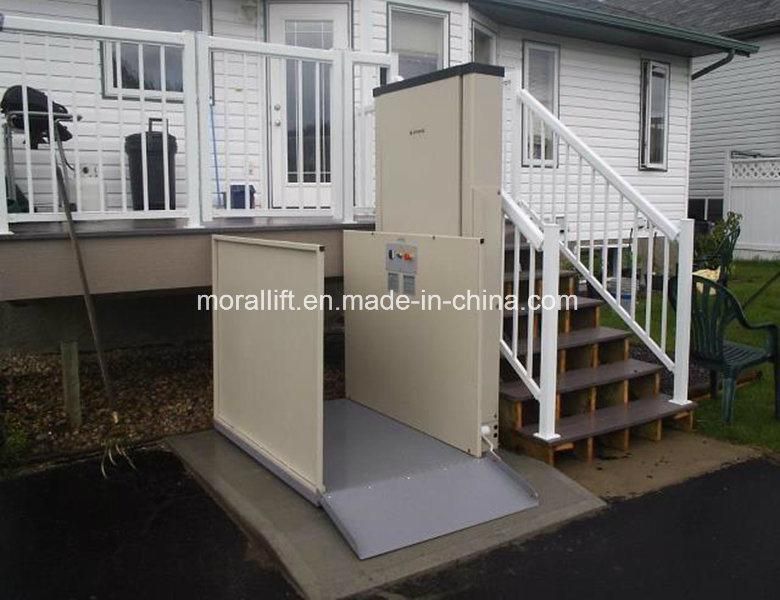

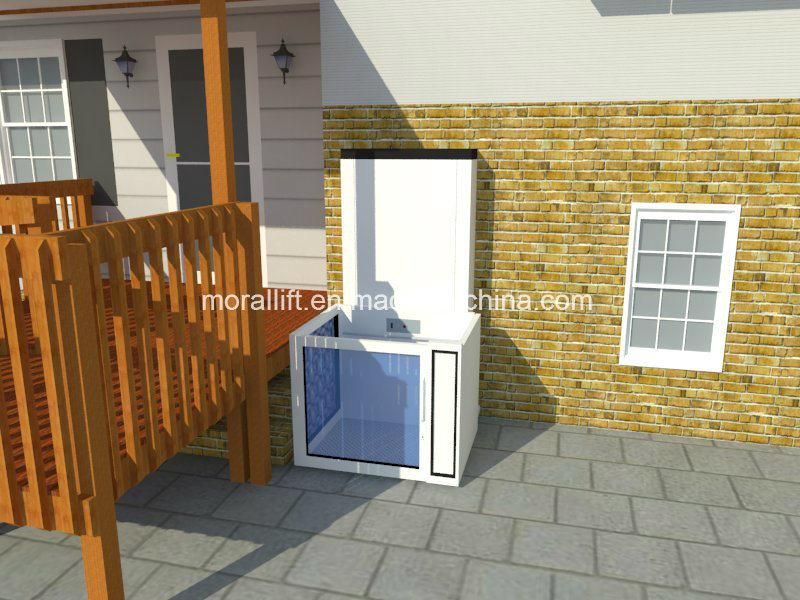

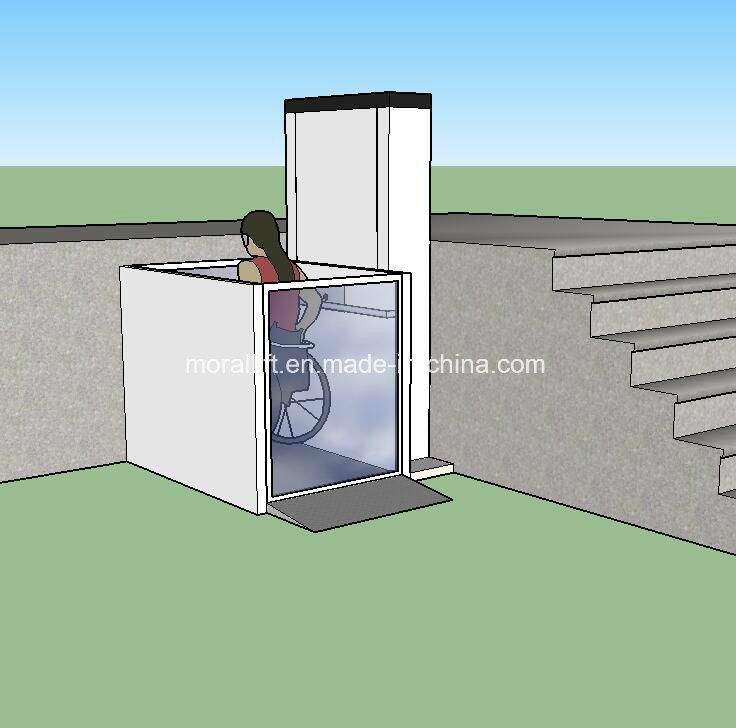

Pictures:
''
