• Model NO.：RSM Series
• Condition：New
• Name：Sov Thin Hydraulic Cylinder(Sv15y)
• Stroke：6-18mm
• Capacity：5-150ton
• Cylinder O.D.：58*40-215*185 mm
• Piston Rod Diameter：26.2-95mm
• Working Pressure：700bar
• Delivery Time：Stock or 15 Days
• Customerized：Yes
• OEM：Yes
• Export Market：Global
• Transport Package：Wooden Case Packing
• Specification：CE ISO9001: 2008
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：50000


Product Features

1. Compact, flat design for use where other cylinders will not fit
2. SOV-RSM-750, 1000 and 1500 have handle for easy carrying
3. Mounting holes permit easy fixturing
4. CR-400 coupler and dust cap included on all models
5. Hard chrome plated high quality steel plungers
6. Grooved plunger ends require no saddle
7. Single-acting, spring return

Product Parameter

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-RSM-501)	5 (45)	6	6,5	4	32	38	58 x 41	1
SOV-RSM-100	10 (101)	12	14,5	18	43	54	82 x 55	1,4
SOV-RSM-200	20 (201)	11	28,7	32	51	62	101 x 76	3,1
SOV-RSM-300	30 (295)	13	42,1	55	58	71	117 x 95	4,5
SOV-RSM-500	45 (435)	16	62,1	99	66	82	140 x 114	6,8
SOV-RSM-750	75 (718)	16	102,6	164	79	95	165 x 139	11,3
SOV-RSM-1000	90 (887)	16	126,7	203	85	101	178 x 153	14,5
SOV-RSM-1500	150 (1368)	16	198,1	317	100	116	215 x 190	26,3

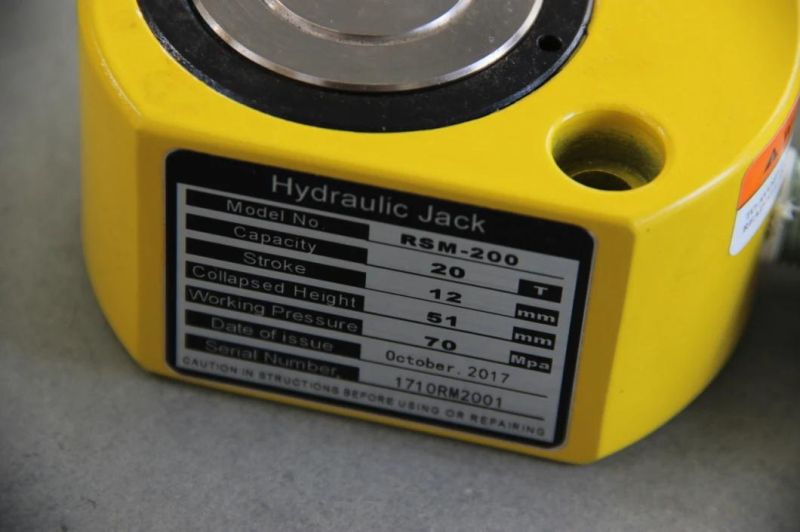

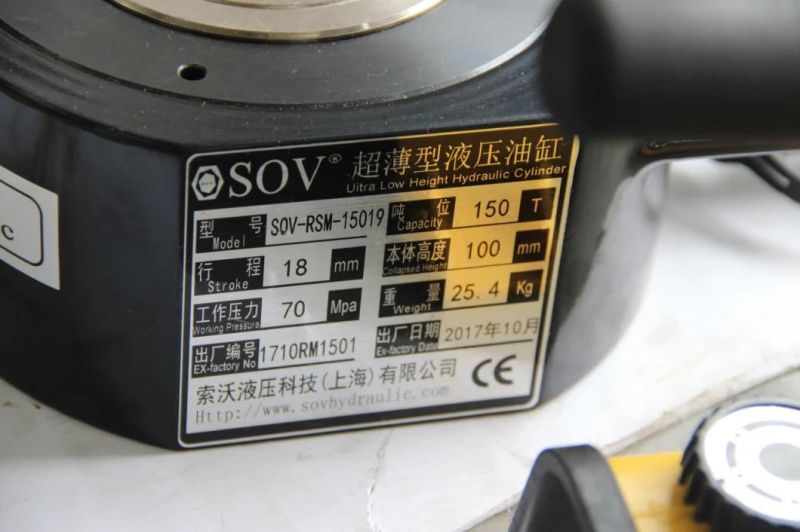

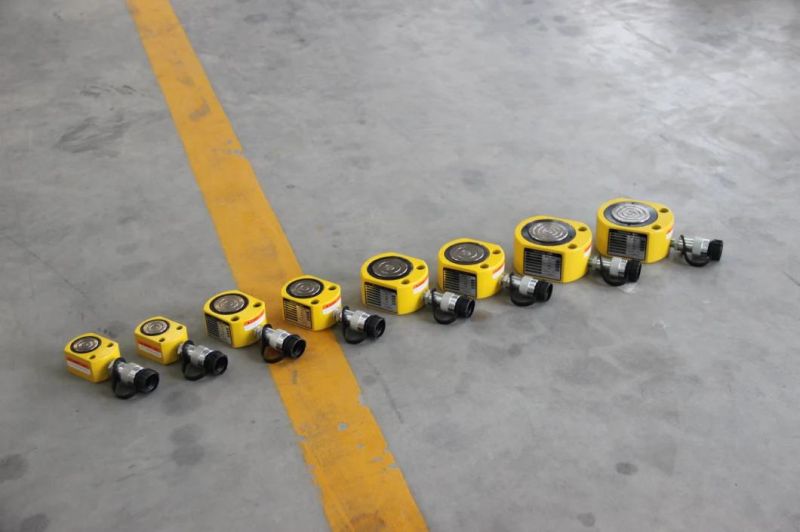

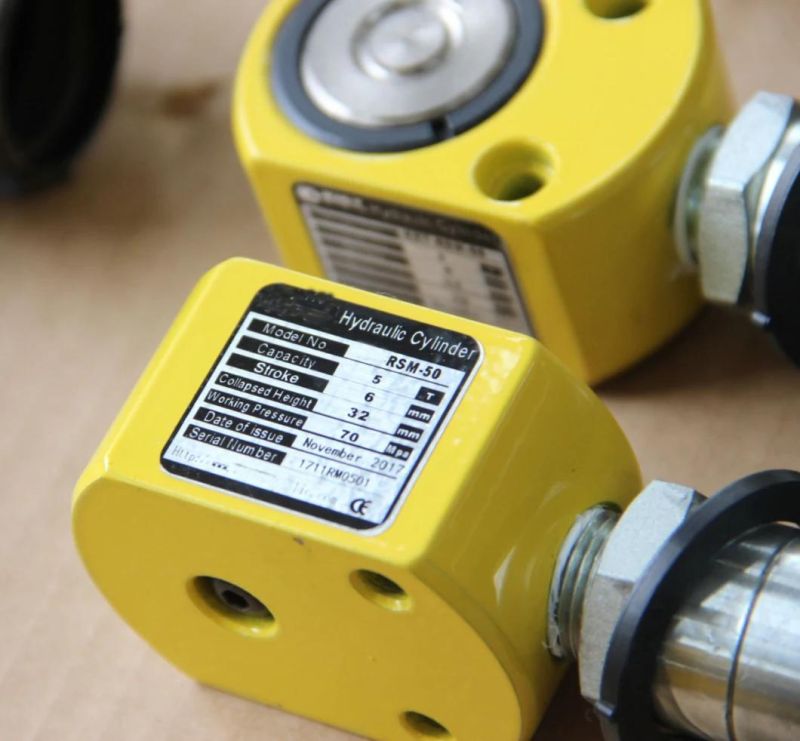

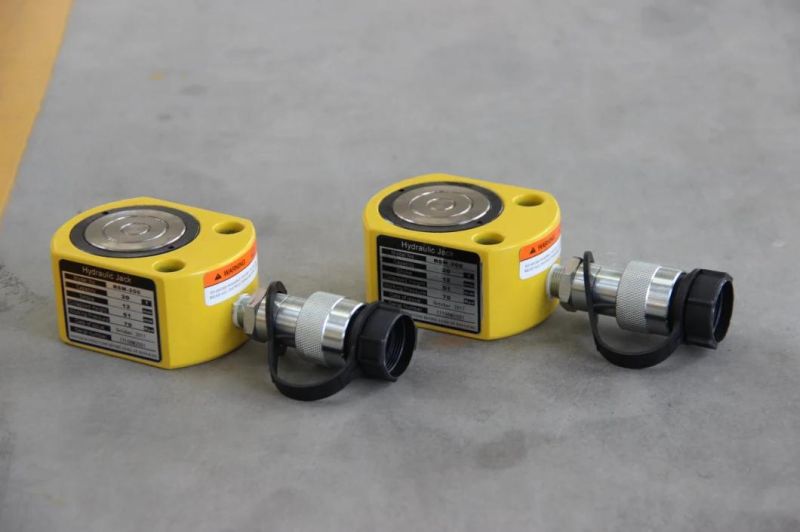

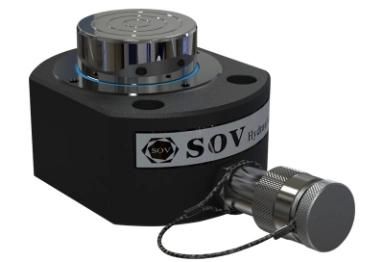

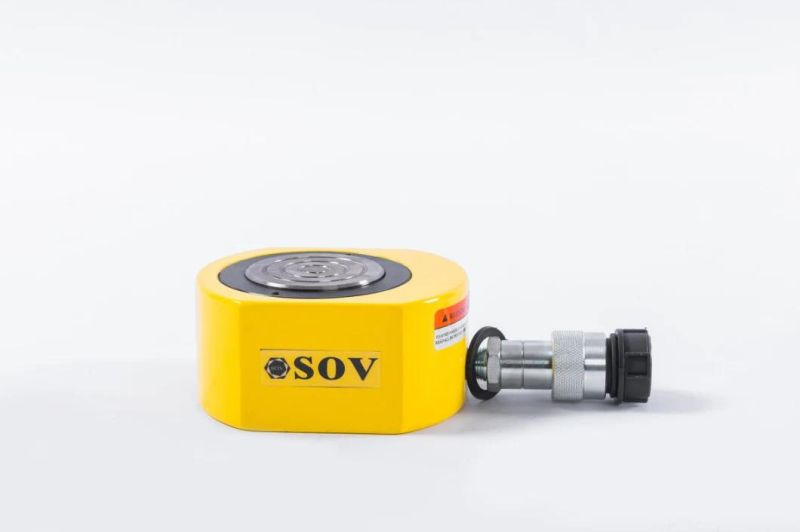

Photos

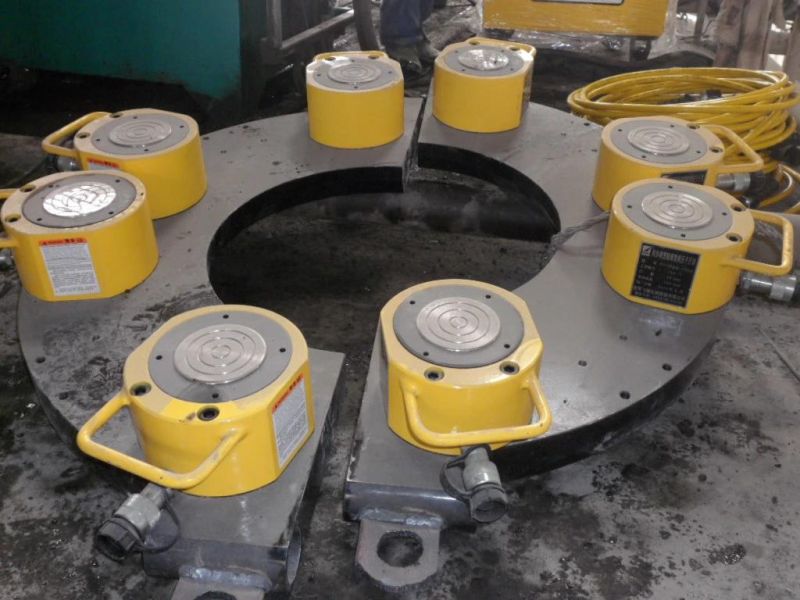

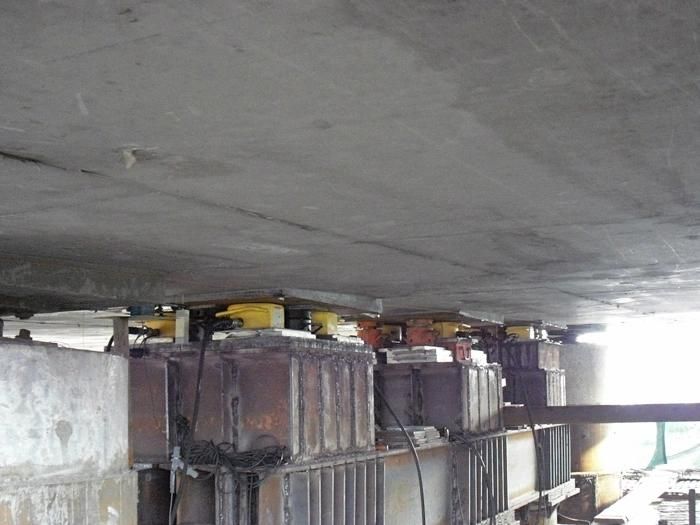

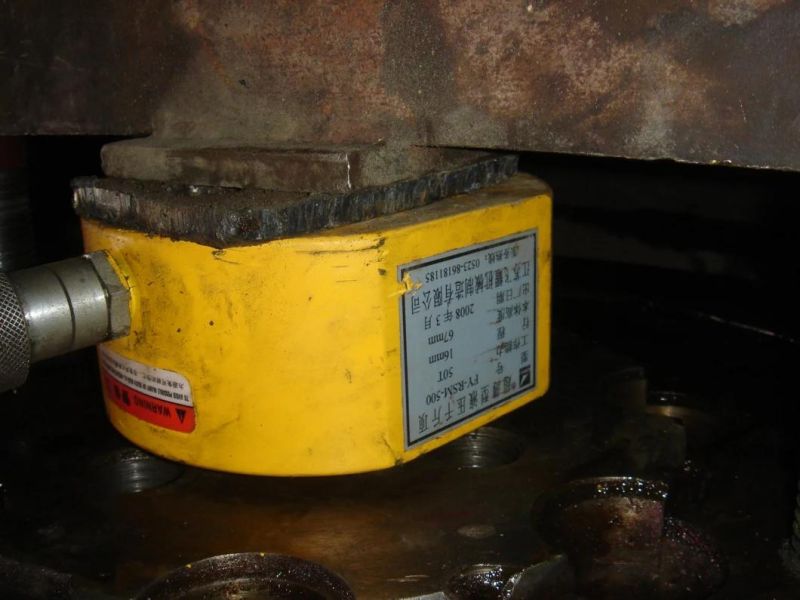

Applications






Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.


Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.

Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

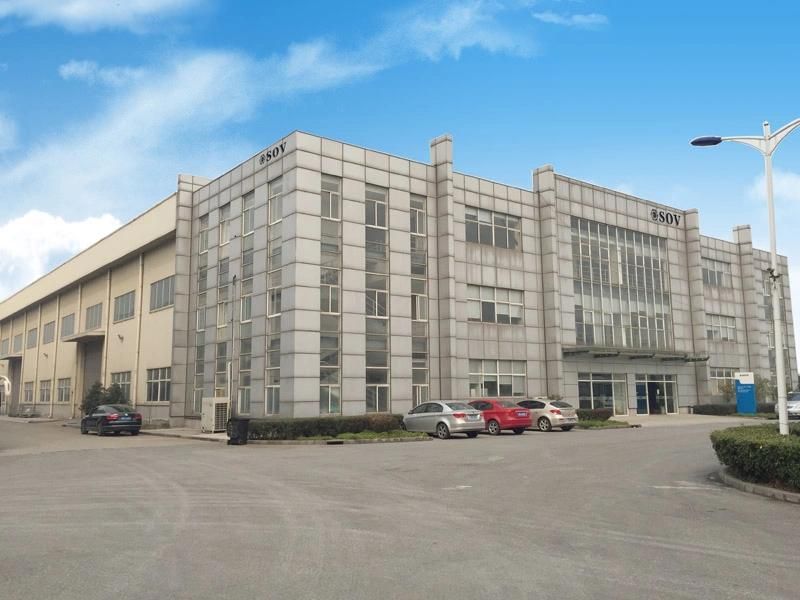

Company Information



SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.

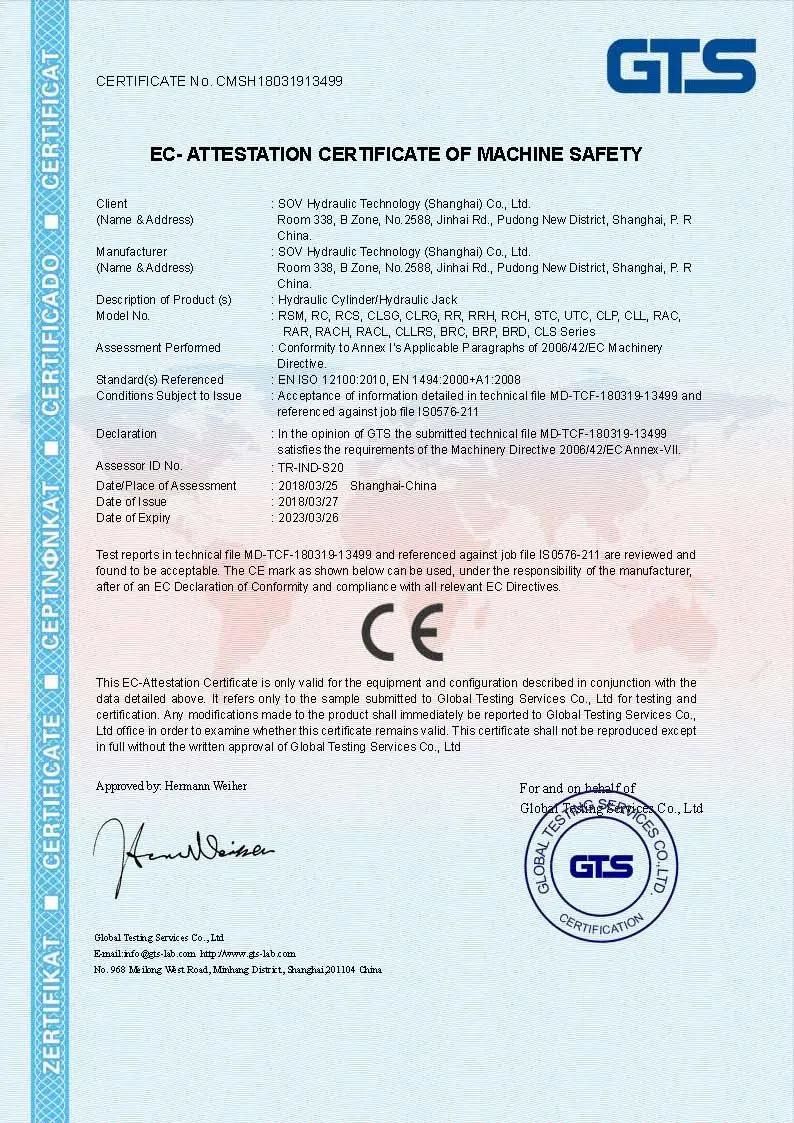

Cettificates:


Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.


Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.

WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?

A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.

Q2: Hydraulic cylinder internal leakage?

A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3: Does your piston rod get ruptured easily?

A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.

Q4: Is your design reasonable? What about your product safe coefficient?

A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.

Q5: How about the delivery time?

A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.

Q6: What's the after-service?

A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.

Thank you for your time!
