• Model NO.：SOV-CLP
• Condition：New
• Name：Single Acting Lock Nut Hydraulic Jack Cylinder
• Model Number：Sov-Clp
• Cylinder Capacity Ton (Kn)：60 (606)-520 (5114)
• Stroke(mm)：45-50
• Cylinder Effective Area Cm2：86, 6-730, 6
• Oil Capacity Cm3：432-3287
• Collapsed Height(a) mm：125-192
• Extended Height(B) mm：175-237
• Outside Diameter(D) mm：140-400
• Weight Kg：15-189
• Transport Package：in a Wooden Case
• Specification：CE, ISO9001
• Trademark：SOV
• Origin：China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

Model
NumberCylinder
CapacityStrokeCylinder
Effective AreaOil
CapacityCollapsed
Height(A)Extended
Height(B)Outside
Diameter(D)Weight ton (kN)mmcm2cm3mmmmmmkgSOV-CLP-60260 (606)5086,643212517514015SOV-CLP-1002100 (1027)50146,873413718717526SOV-CLP-1602160 (1619)45231,3104014819322044SOV-CLP-2002200 (1999)45285,6128515520024557SOV-CLP-2502260 (2567)45366,8165015920427574SOV-CLP-4002400 (3916)45559,52517178223350134SOV-CLP-5002520 (5114)45730,63287192237400189
§  SOV pancake lock nut cylinders have a flat design for use in confined areas
§  Safety lock nut for mechanical load holding
§  Single-acting load return
§  Special bearing design resists sideload forces
§  Overflow port functions as a stroke limiter
§  CR-400 coupler and dust cap included on all models

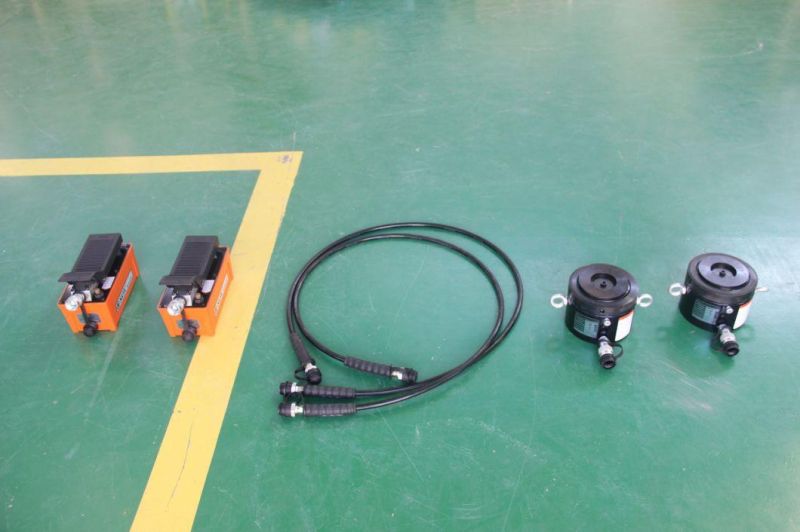

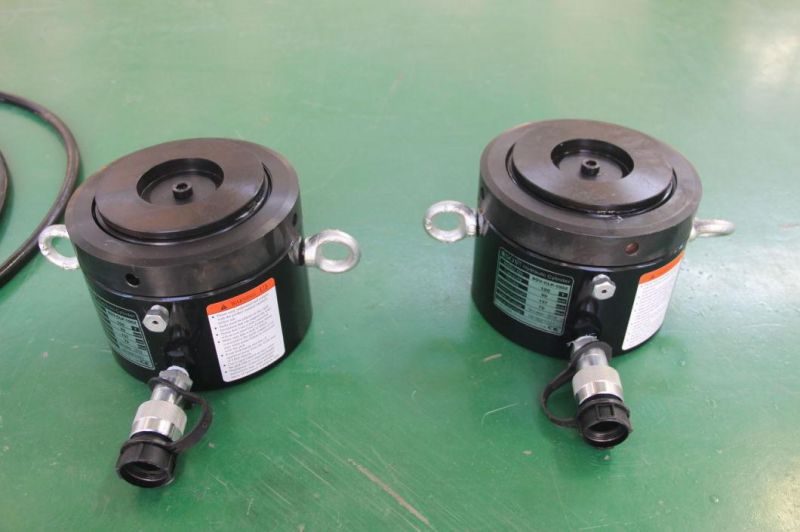

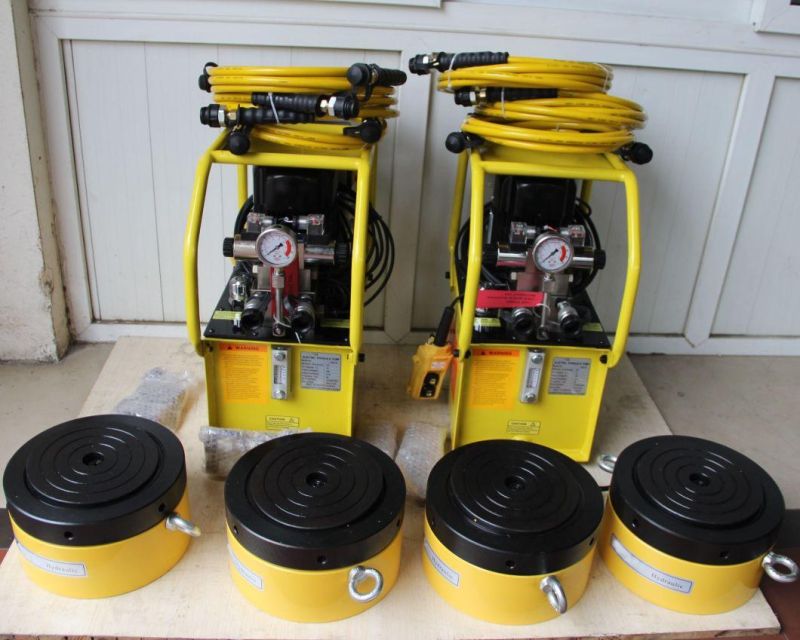

Photos





Applications

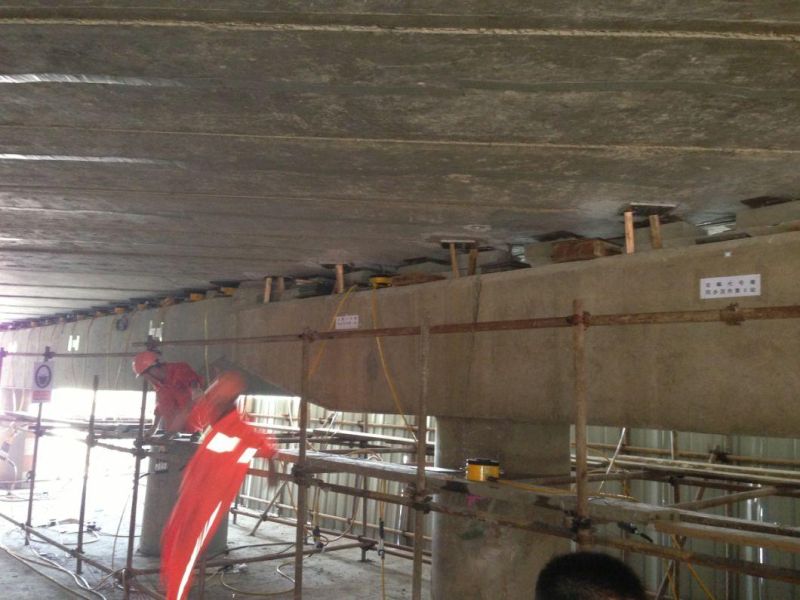

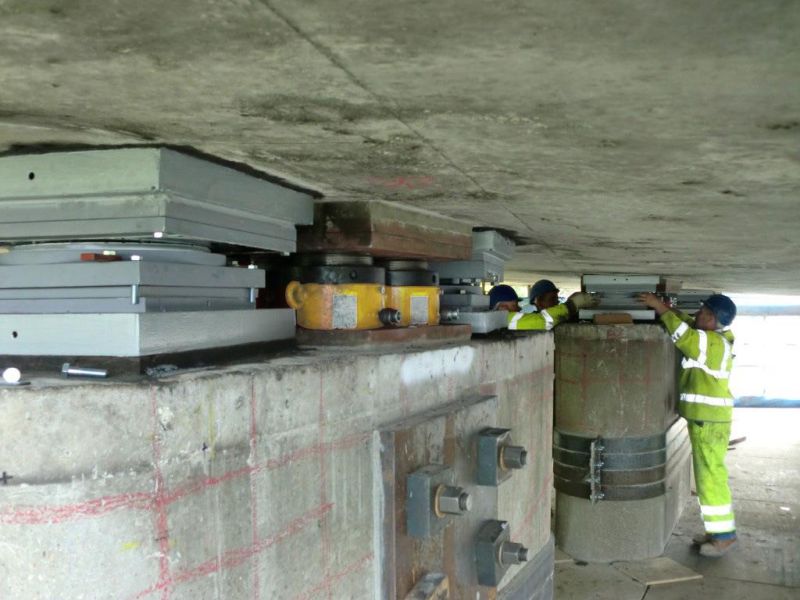

Low Height Cylinders ( synchronous lifting for the rubber bearing's replacement of highway bridge )

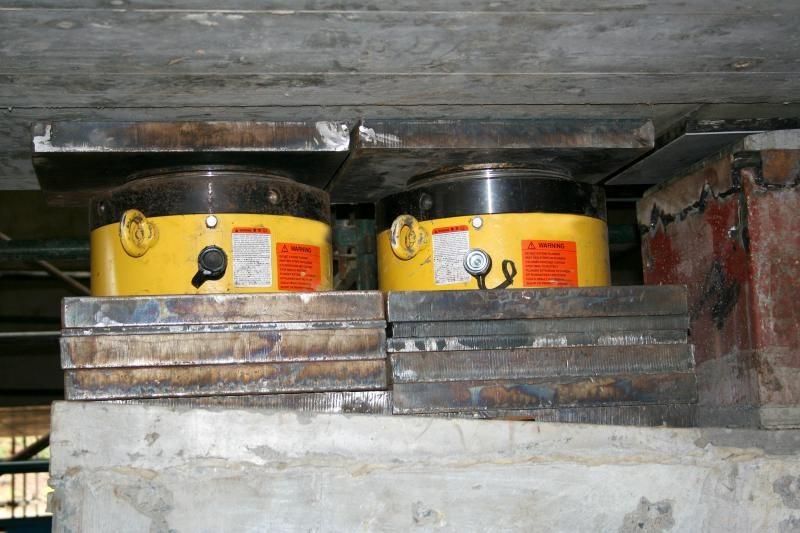

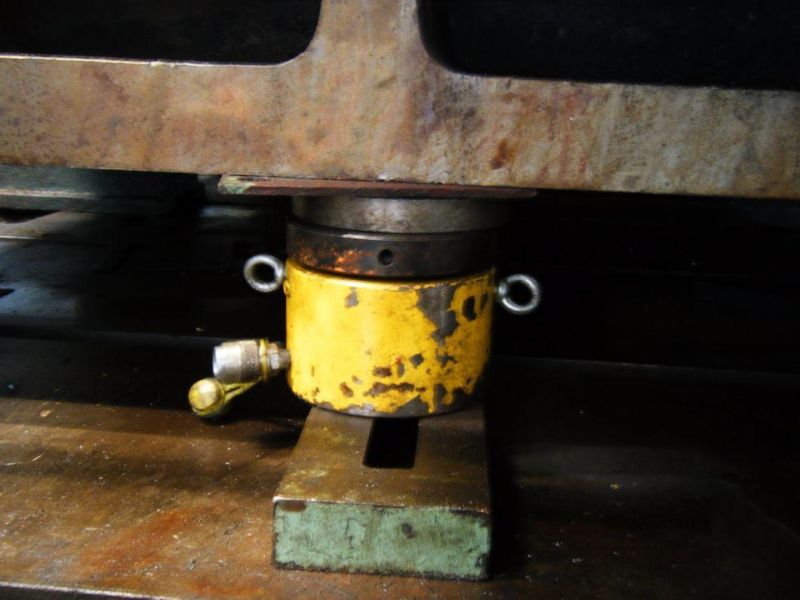

Pancake Lock Nut Cylinders ( long time lifting for repairing massive equipment )

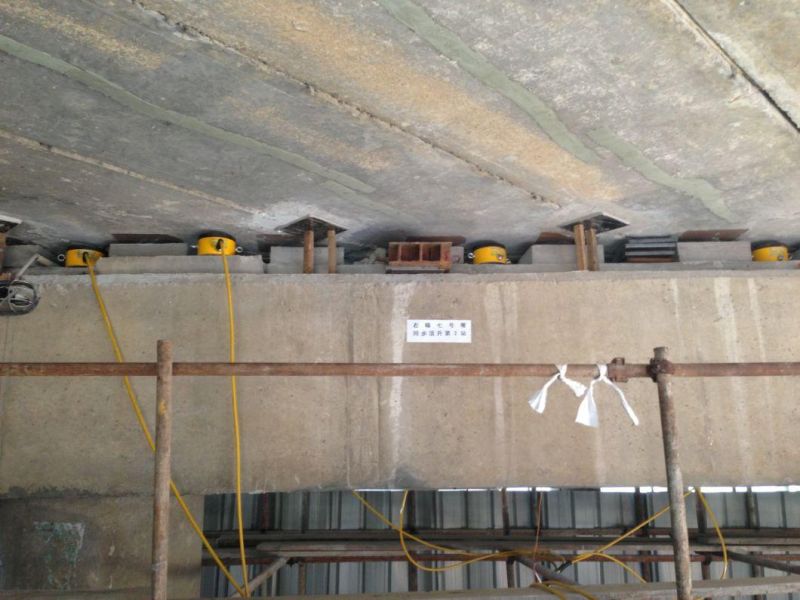

Low Height Cylinders ( synchronous lifting for the rubber bearing's replacement of highway bridge )



Packing





Company information:



SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.
SOV has always been focusing on providing customers with the most stable and the safest hydraulic tools and helping customers to achieve the maximum efficiency with our suggested hydraulic solution. SOV earned good reputation from Chinese local market and international market for the following SOV main product lines,

 Hydraulic Cylinder (5ton-3000ton). --Single Acting--Double Acting--Hollow Plunger.
 PLC Based Synchronous Lift Systems( 4-72 lift pointes for house translation or leveling, bridge supporting and tank welding supporting, etc.)
 Hydraulic/ Electric /Pneumatic Torque Wrench (100Nm-160000Nm).
 Hydraulic Bolt Tensioner (M24-M600).
 Hydraulic Nut.
 Hydraulic puller (5-1000 ton).
 Hydraulic pump. --Hand and Electric Type (Max Up To 4000Bar).
 Hydraulic Hose, Quick Coupling, Manifold and other hydraulic tools accessories.
