• Model NO.：JZ
• Safety Factor：4:1
• Other Name：Tirfor
• Hook：Eye Hook
• Certificates：Ce GS
• Transport Package：Wooden Case
• Specification：0.8T 1.6TON 3.2T 6.4T
• Trademark：HUAXIN
• Origin：China
• HS Code：789650000
• Production Capacity：1000psc, Week

Basic Info.

Model NO. JZ Safety Factor 4:1 Other Name Tirfor Hook Eye Hook Certificates Ce GS Transport Package Wooden Case Specification 0.8T 1.6TON 3.2T 6.4T Trademark HUAXIN Origin China HS Code 789650000 Production Capacity 1000psc/ Week

Product Description

CE certificate wire rope lever hoist 3.2 ton 20 m

Product descriptions:

The manual wire rope puller is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.

The principle function of the wire puller is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.

The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.

A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.

This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.

The load is held securely at all times.

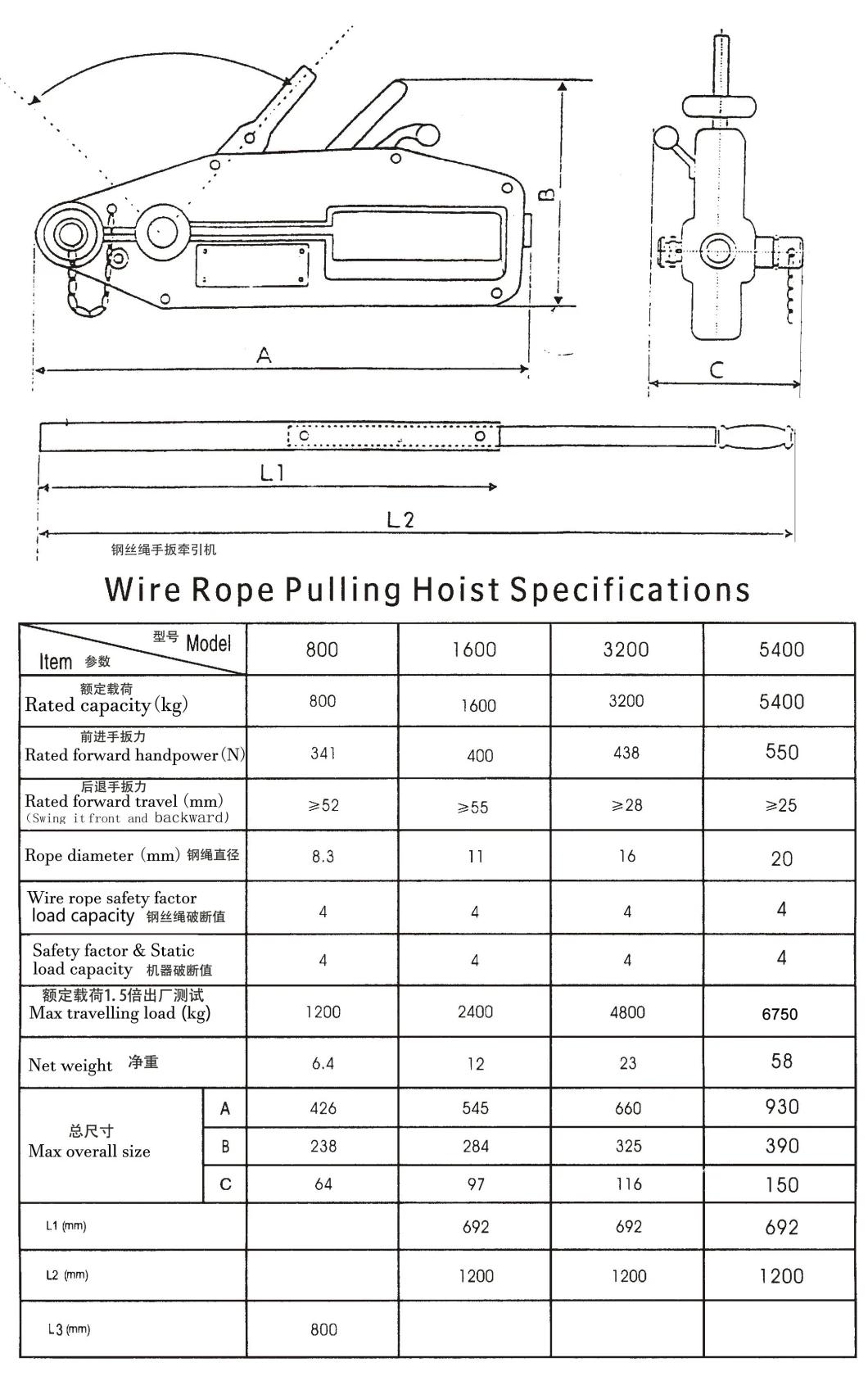

Product parameter as belows:

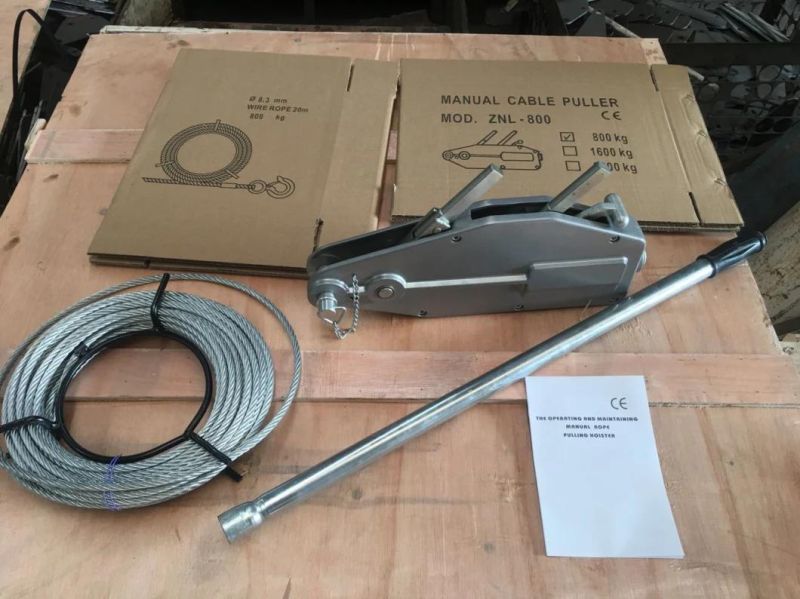

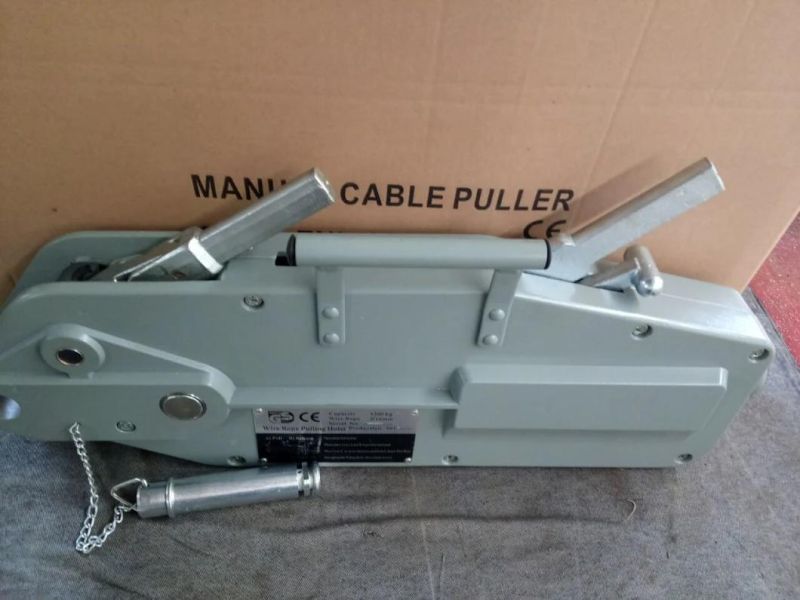

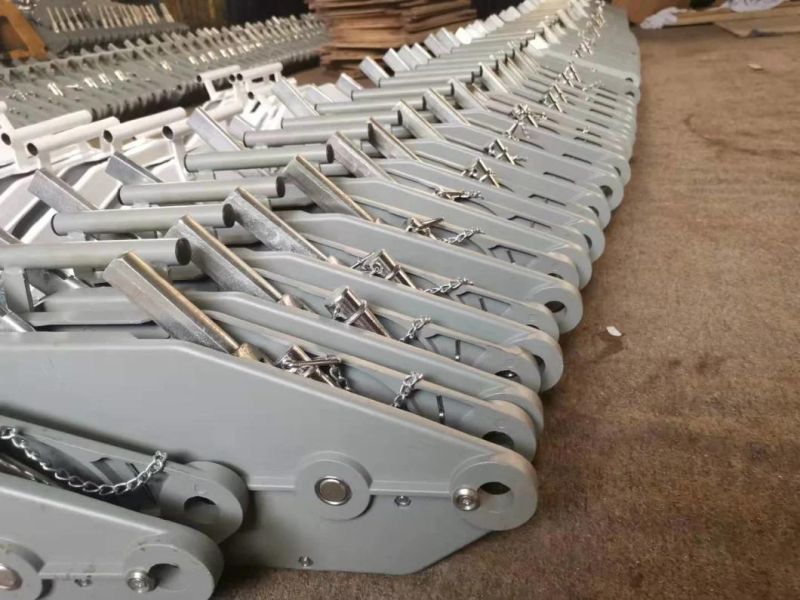

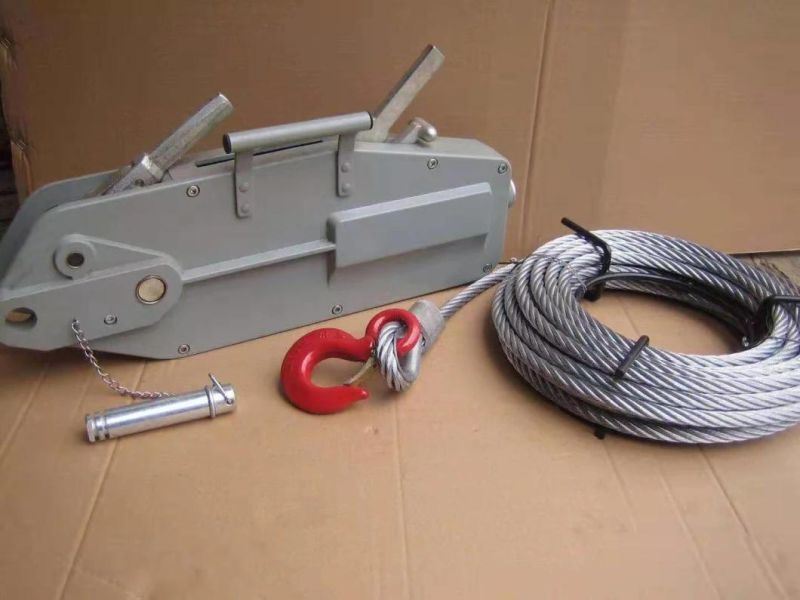

Prouduct pics as belows:





Tirfor machine features:

1.CE,TUV certificate

2.Wire rope: High quality

3.Hook: Deep Forged, High alloy steel

4.Gear: High standard Gear steel

5.Cover: Aluminium alloy

6.Surface treatment: Powder coating

7.Longer life span

For more any questions please feel free to contact us at any time!
