Lifting Equipment

Electric Fixed Hydraulic Table Lift with Fixed Loading / Unloading Platform

Wuxi Buytool Industrial Equipment Co., Ltd.
  • Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Scissor Lift
  • Carrying Capacity:Weight Level
  • Moves:Stationary
  • Driven Type:AC
  • Running Mode:Stationary

Base Info

  • Model NO.:HW
  • Certification:CE
  • Capacity:1000kg, 2000kg, 4000kg
  • Min. Height:205-240mm
  • Max. Height:990-1300mm
  • Table Size:820*1300mm
  • Lift Time:20-25s
  • Color:Customizable
  • Net Weight:160-430kg
  • Type:Stationary Lift Table
  • Certificate:Ce Approved
  • Scissor:Single Scissor Lift Table
  • Usage:Material Handling
  • Delivery Time:One Month
  • Power:380V,50Hz
  • Base Frame:640*1240mm
  • Product Name:Hydraulic Lift Table
  • Transport Package:1PC,Wooden Case
  • Trademark:Buytool
  • Origin:Made in China
  • HS Code:8427900000
  • Production Capacity:3000PCS,Month

Description

10002051000820×1300640×124020-25380v/50HZ,AC1.1kw160HW100220510001000×1600640×124020-25186HW10032401300850×1700640×158030-35200HW100424013001000×1700640×158030-35210HW10052401300850×2000640×158030-35212HW100624013001000×2000640×158030-35223HW200120002301050850×1300785×122020-25380v/50HZ,AC1.5kw235HW200223010501000×1600785×122020-25268HW20032501300850×1700785×160025-35289HW200425013001000×1700785×160025-35300HW20052501300850×2000785×160025-35300HW200625013001000×2000785×160025-35315HW4001400024011001200×1700900×160030-40380v/50HZ,AC2.2kw375HW400224011001200×2000900×160030-40405HW400330014001000×2000900×200045-50470HW400430014001200×2000900×200045-50490HW400530014001000×2200900×200045-50480HW400630014001200×2200900×200045-50505HW400730014001500×17001200×160045-50420HW400830014001800×22001500×200045-50540

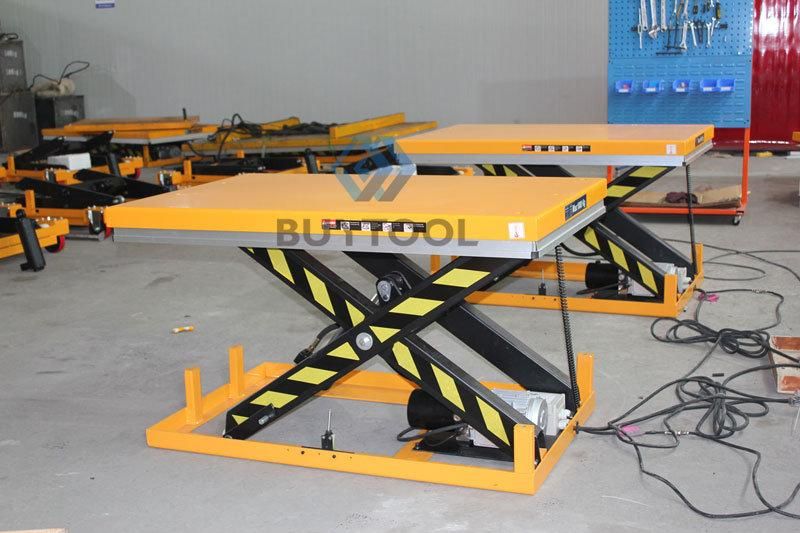

Electric Fixed Hydraulic Table Lift with Fixed Loading / Unloading PlatformElectric Fixed Hydraulic Table Lift with Fixed Loading / Unloading Platform

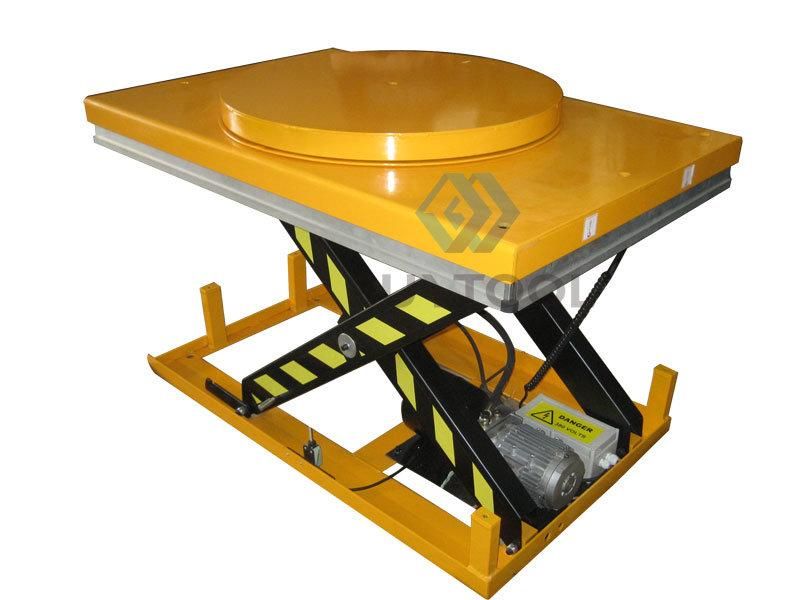

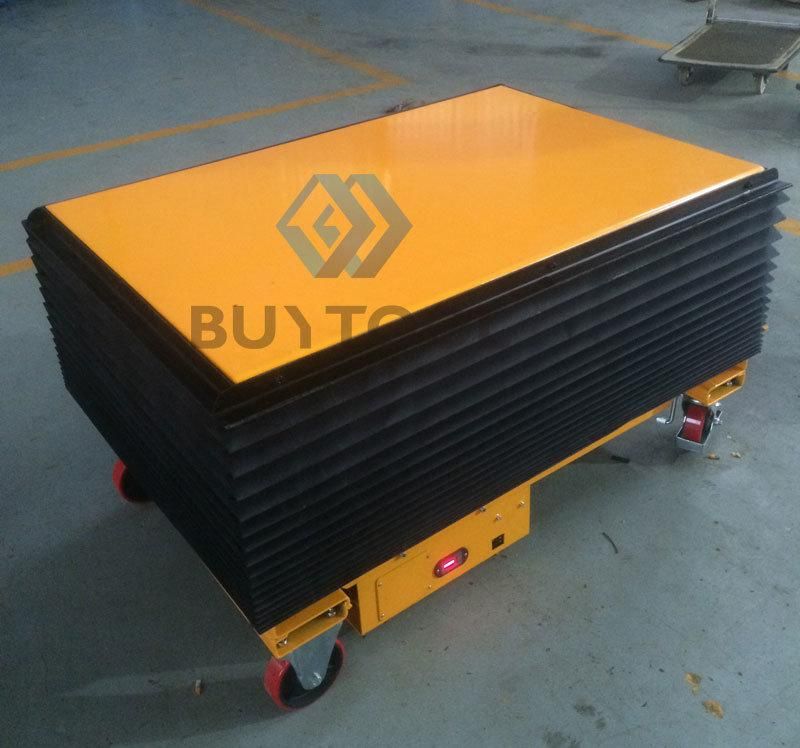

HW Series with turnable top platform:Electric Fixed Hydraulic Table Lift with Fixed Loading / Unloading PlatformElectric Lift Table with Protection Skirt and Wheels:

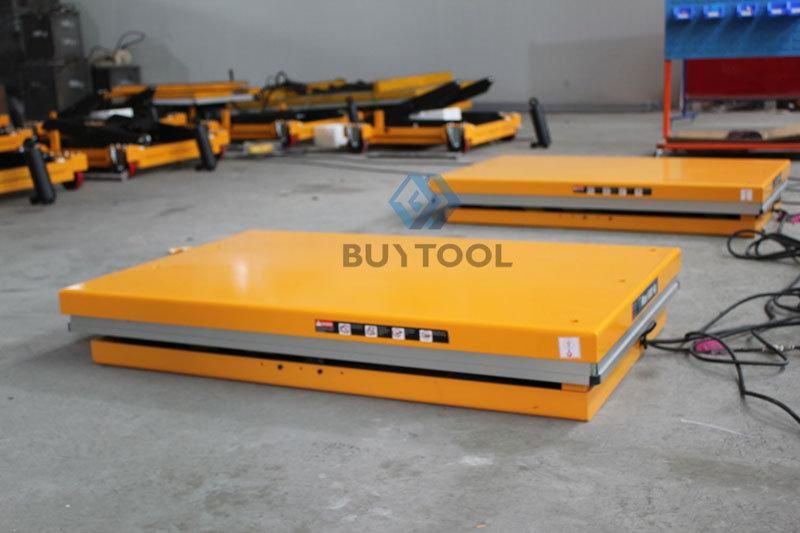

Electric Fixed Hydraulic Table Lift with Fixed Loading / Unloading Platform

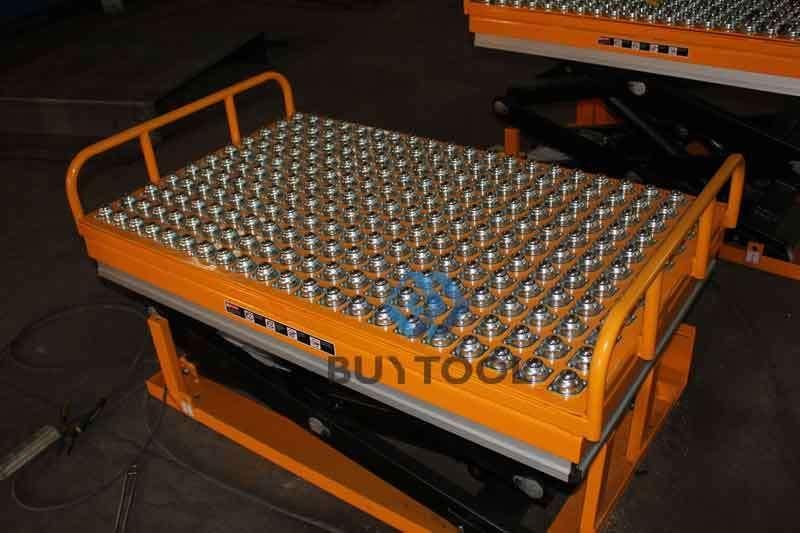

Electric Lift Table with Ball Table:Electric Fixed Hydraulic Table Lift with Fixed Loading / Unloading Platform
Electric Fixed Hydraulic Table Lift with Fixed Loading / Unloading Platform




FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
