Jaw Type Cylinder Hydraulic Piston Toe Jack

Hebei Huiyu Lifting Machinery Manufacturing Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：2 Years
  • Type：Claw-Type Jack
  • Structure：Hydraulic Jack
  • Capacity (Load)：11-20T
  • Power Source：Hydraulic

Base Info

  • Model NO.：10 ton
  • Max Height：351-400mm
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Usage：Lifting and Adjusting
  • Customized Support：OEM, ODM
  • Min Height：322mm

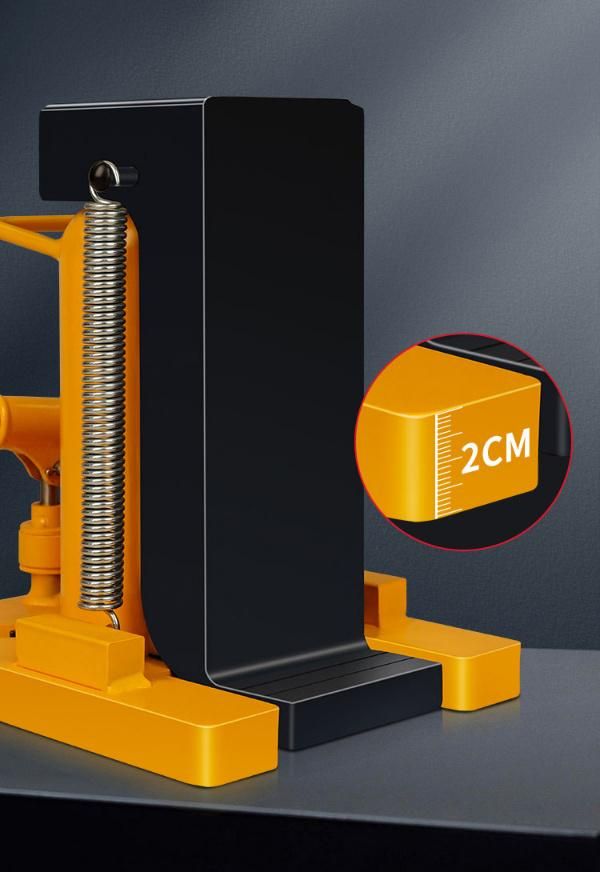

  • Claw Height：25mm
  • Material：Steel
  • Stroke：158mm
  • Transport Package：Wooden Case
  • Specification：295*220*322mm
  • Trademark：Huiyu
  • Origin：Hebei, China
  • HS Code：8425491000
  • Production Capacity：1000 Sets,Month

Description

Hydraulic toe jack

5 ton

10 ton

20 ton

30 ton

50 ton

Max. lifting capacity of the  top

5 tons

10tons

20 tons

30tons

50tons

Max. lifting capacity of the hook

2.5tons

5tons

10tons

15tons

25tons

Max. lifting stroke

115mm

148mm

158mm

158mm

158mm

Mini.Hook Height

16mm

20mm

25mm

30mm

50mm

Size (mm)

210X140X232

260X200X283

295X220X322

305X255X350

340X285X350

Weight

11kgs

24kgs

36kgs

55kgs

75kgs

Jaw Type Cylinder Hydraulic Piston Toe JackJaw Type Cylinder Hydraulic Piston Toe JackJaw Type Cylinder Hydraulic Piston Toe JackJaw Type Cylinder Hydraulic Piston Toe Jack
