• Model NO.：OUCO-5T15M-SB
• Slewing Speed：~0.7r,Min
• Slewing Angle：360
• Luffing Time：~50s
• Power：45kw
• Speed：1780r,Min
• Working Type：S1
• Power Source：AC380V,50Hz,3p
• Oil Flow：88L,Min
• Transport Package：Nude
• Specification：5T15M
• Trademark：OUCO
• Origin：China
• HS Code：8426990000
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. OUCO-5T15M-SB Slewing Speed ~0.7r/Min Slewing Angle 360 Luffing Time ~50s Power 45kw Speed 1780r/Min Working Type S1 Power Source AC380V,50Hz,3p Oil Flow 88L/Min Transport Package Nude Specification 5T15M Trademark OUCO Origin China HS Code 8426990000 Production Capacity 100 Sets Per Year

Product Description

OUCO 5T15M  stiff /fixed/straight jib boom marine crane mounted pedestal  CCS ABS BV certificated
Product description
OUCO  5t15m stiff /fixed/straight boom marine crane:It has hoisting point which can be 5t4m,5t6m,5t8m.5t10m,5t15m etc.
The straight arm type Marine Crane is composed of base, boom, hydraulic winch, variable amplitude oil cylinder, operating platform, hydraulic transmission part and electric control part.

The base is a cylindrical structure that can be welded to the deck or connected to the deck by high-strength bolts. The connection mode must be marked.

By the rotary mechanism to control the crane left and right turn. There is a special operating platform for operation and maintenance debugging. The hydraulic transmission part provides pressure oil for the system; The electrical control system mainly controls the motor to stop and run.
The whole system of the crane is sealed to prevent the influence of damp environment, and the internal critical parts are well protected and the purpose of corrosion protection is achieved.

Technical Specification


SWL	5t15m
Working Radius	15m
Hoisting Speed	0-15m/min
Hoisting height	20m
Slewing Speed	~0.7r/min
Slewing Angle	360°
Luffing time	~60s
Design Temperature	-10° - +45 °
Tirm	≤2°
Heel	≤5°
Power	45KW
Speed	1780r/min
Working type	S1
Power source	AC380V, 50Hz, 3P
Oil  flow	88L/min

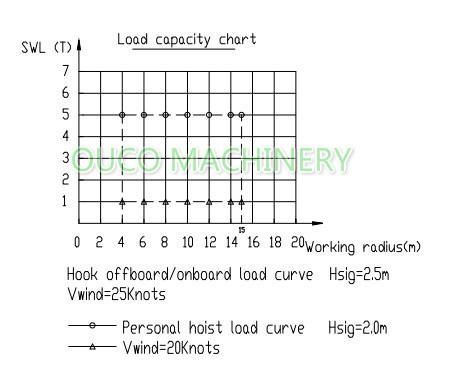

General Arrangement

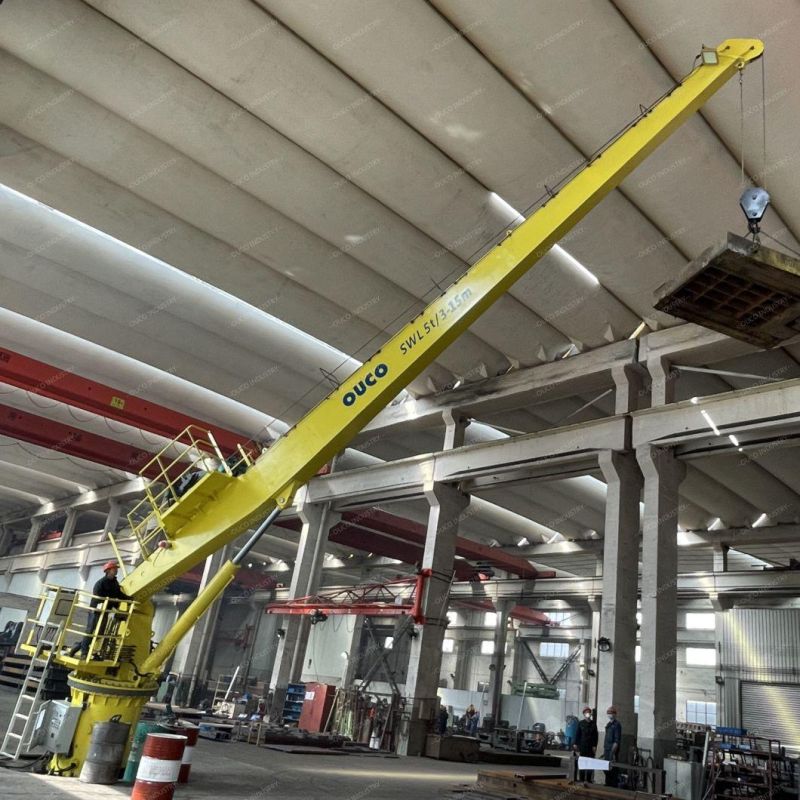

Detailed Images





FAQ:



Q: What's the capacity of your request crane?
A: From 0.5t to 100t.

Q: What's working radius of your request crane?
A: From 1m to 100m.

Q: Which type of the crane should I choose?
A: Folding boom, knuckle boom, telescopic boom, stiff boom, etc. Some advices can be offered accordingly.

Q: Can this crane be explosion proof?
A: Sure, any extra function based on your requirement.

Q: Does your crane have safety devices?
A: Of course, all cut off limits and alarms for safety reasons.

Q: How can I install the crane to my vessel?
A: Our service engineers will go to the vessel site for guiding or ship the crane in whole piece.

Anything else? We will be pleased to answer all your questions and doubts.
