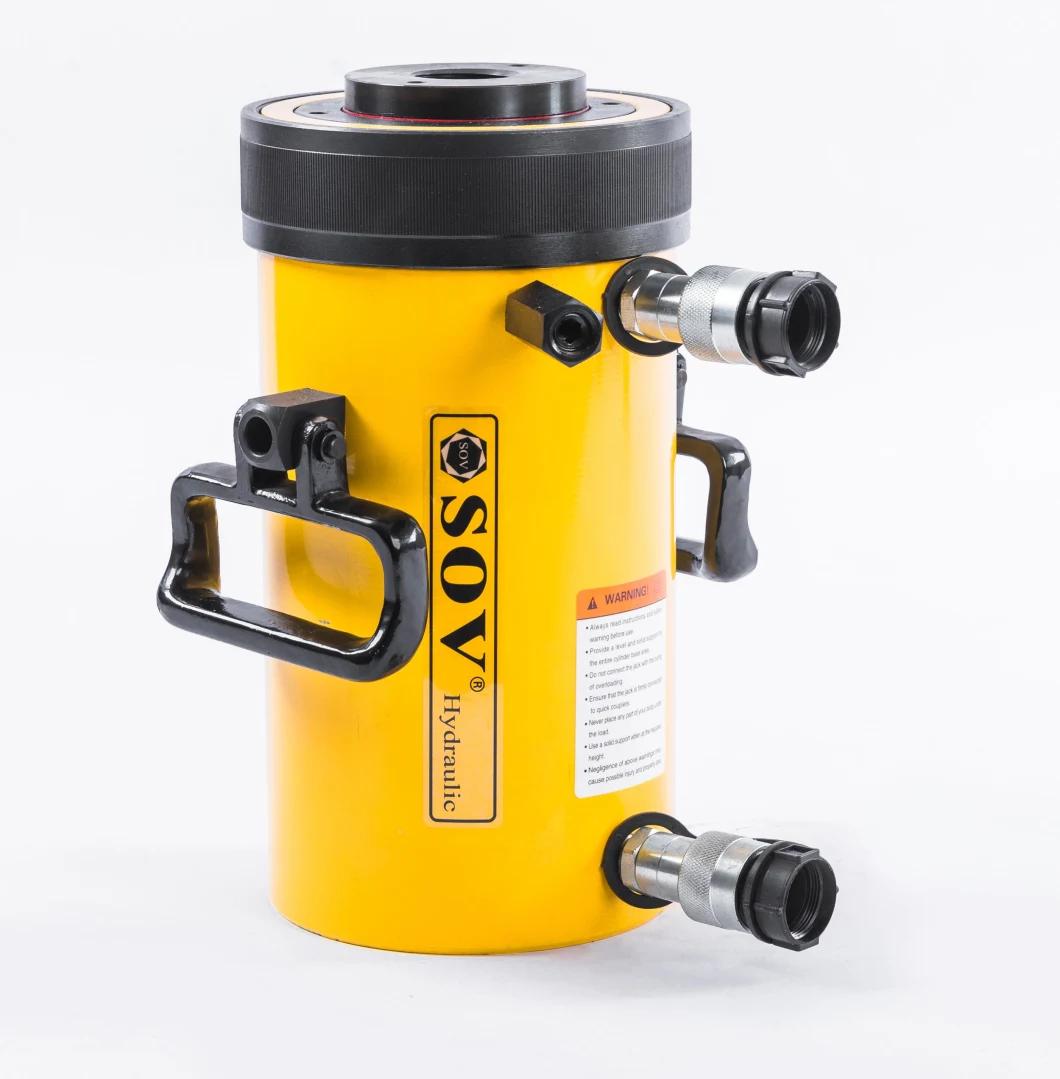

Good Double Acting Hollow Plunger Hydraulic Jack
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Type：Hydraulic Jack
- Structure：Hydraulic Jack
- Capacity (Load)：41-50T
- Power Source：Hydraulic
- Max Height：>400mm
- Certification：CE, ISO 9001:2008
Base Info
- Model NO.：SOV-RRH-Series
- Condition：New
- Name：Good Double Acting Hollow Plunger Hydraulic Jack
- Cylinder Capacity：30-600 Ton
- Stroke：38-300 mm
- Collapsed Height：165-700 mm
- Weight：21-800 Kg
- Color：Yellow or Black
- OEM：Yes
- Center Hole Diameter：33.3-140 mm
- Outside Diameter：114-495 mm
- Plunger Diameter：63.5-305 mm
- Transport Package：Standard Export Wooden Case
- Specification：CE, ISO, SGS
- Trademark：SOV
- Origin：China
- HS Code：8412210000
- Production Capacity：500 PCS,Month
Description
Maximum
Cylinder CapacityCylinder
Effective Area Oil
Capa-
city Coll.
Height Ext.
Height Out-
side
Dia. Center Hole
Dia. Weight kN cm2 cm3 A B D Y ton mm Adv. Retr. Adv. Retr. Adv. Retr. mm mm mm mm kg SOV-RRH-307 30 178 326 213 46,6 30,4 829 541 330 508 114 33,3 21 SOV-RRH-3010 258 326 213 46,6 30,4 1202 784 431 689 114 33,3 27 SOV-RRH-603 60 89 576 380 82,3 54,2 733 482 247 336 159 53,8 28 SOV-RRH-606 166 576 380 82,3 54,2 1366 900 323 489 159 53,8 35 SOV-RRH-6010 257 576 380 82,3 54,2 2115 1393 438 695 159 53,8 45 SOV-RRH-1001 95 38 931 612 133 87,4 505 333 165 203 212 79,2 33 SOV-RRH-1003 76 931 612 133 87,4 1011 666 254 330 212 79,2 61 SOV-RRH-1006 153 931 612 133 87,4 2035 1337 342 495 212 79,2 79 SOV-RRH-10010 257 931 612 133 87,4 3420 2246 460 717 212 79,2 106 SOV-RRH-1508 145 203 1429 718 204,1 102,6 4144 2083 349 552 247 79,2 111

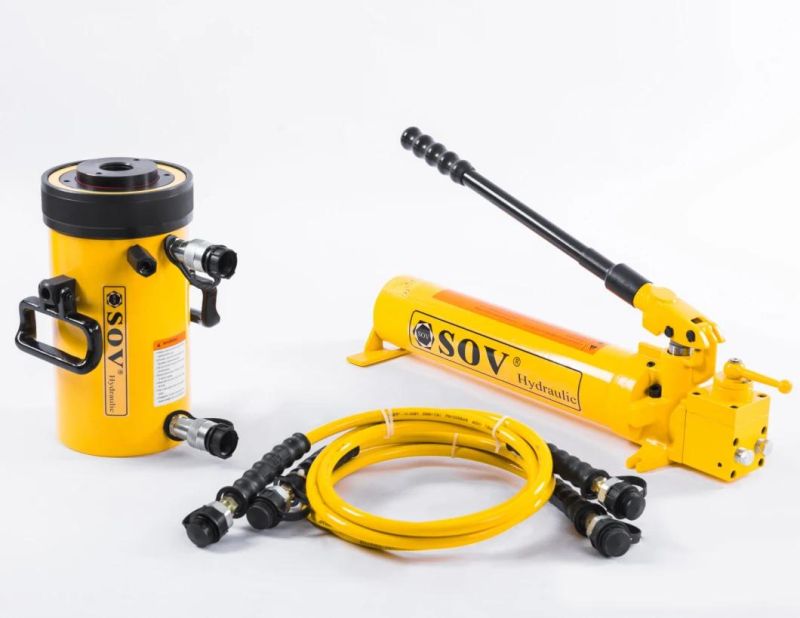

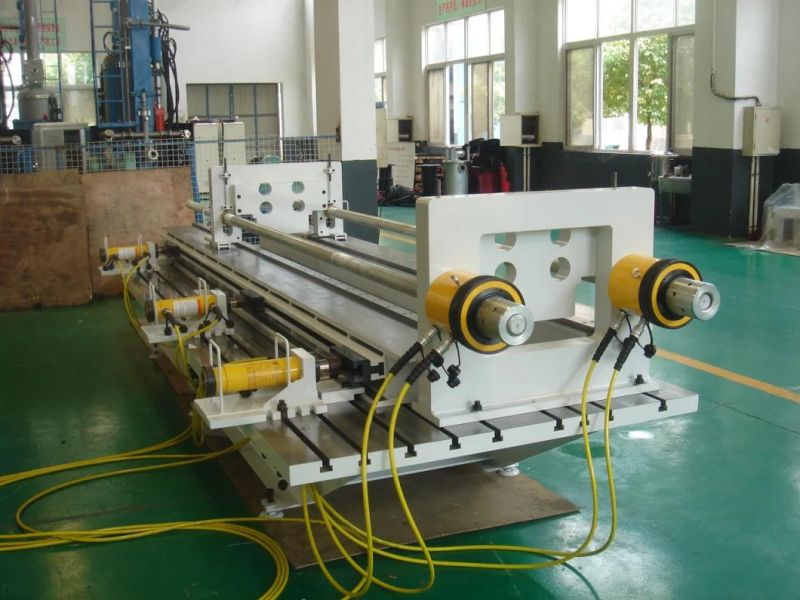

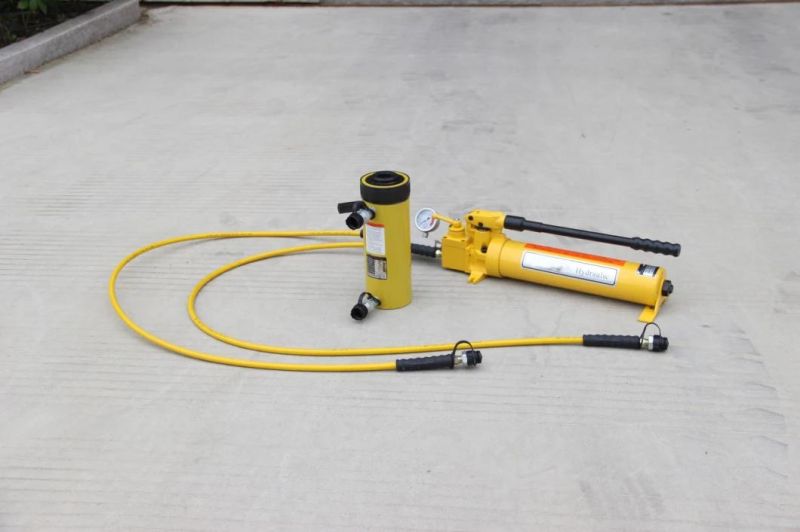

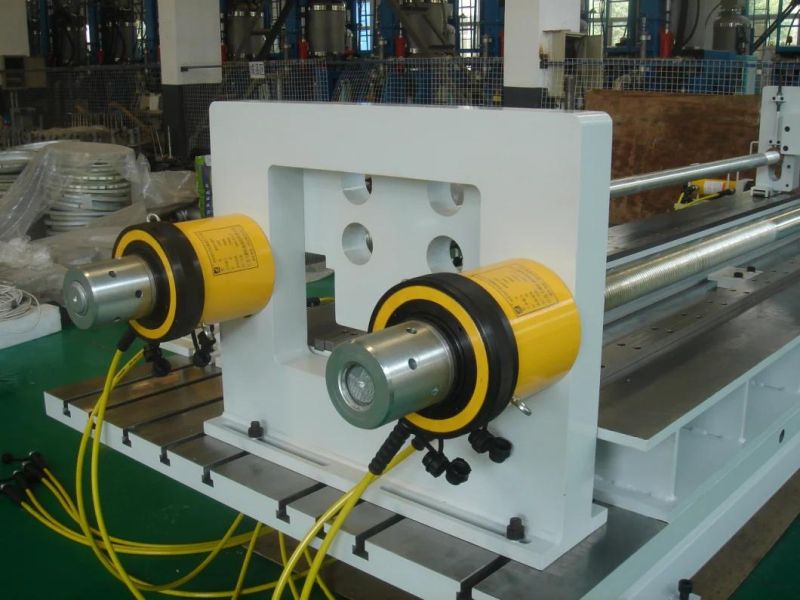

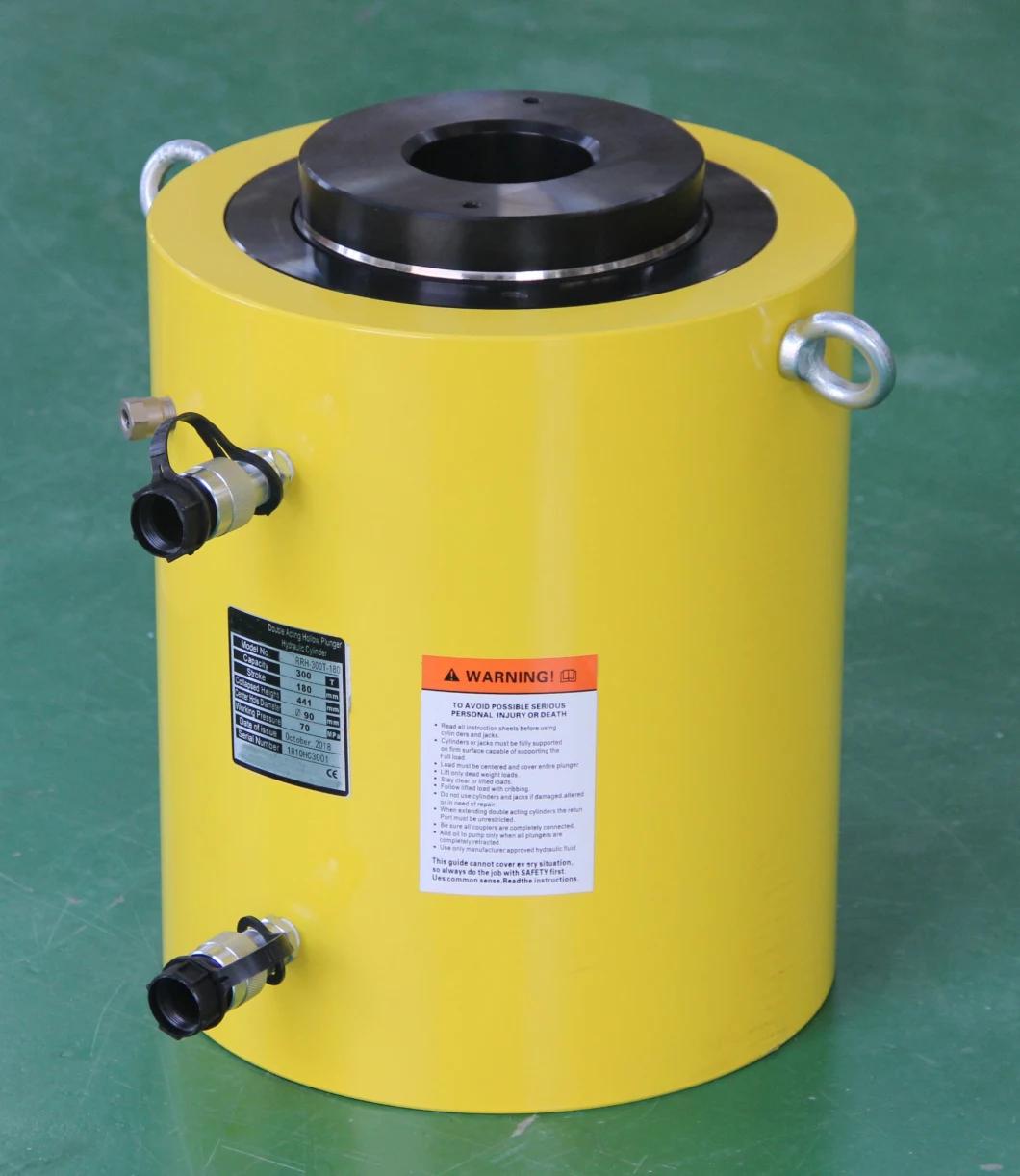

Photos
Application

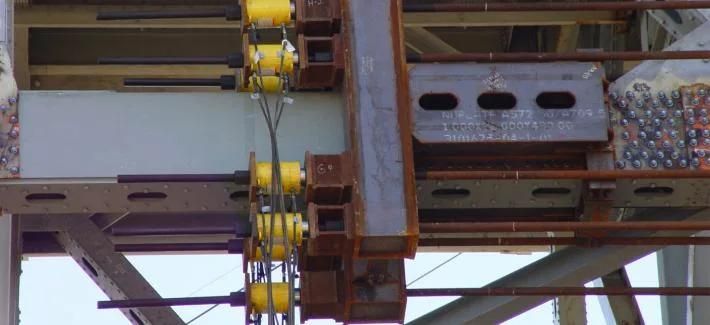

synchronous stretching for the construction of steel structure bridge
Package and Delivery
1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Our Services
1. Warranty: Replacement request acceptable within one year, repair service assured within three years
2. Customer Service: Questions report responds in 24 hours, and reply in 48 hours.
Our Company
Established in 1995, SOV hydraulic technology company is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, America, Southeast Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our wellequipped facilities and excellent quality control enables us meet customers' satisfaction. Besides,we have
gained CE and ISO9001:2008 certificates.
Main Series Products
1.Hydraulic cylinders, jacks (53000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut;
2.Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
3.Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
4.Hydraulic pumps, manual and electric type (max up to 4000bar);
5.Integrated hydraulic lifting system solutions (499 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6.Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Why Choose SOV?
1. Various style for completely series hydraulic products for you to choose.
2. High quality with competitive price.
3. SOV hydraulic technology factory are produced in modern facilities using advantage processing technology. All SOV products meet or exceed CE and ISO standards and tolerances.
4. Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
5. Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
6. If you have a lifting problem that others can't solve call SOV, the hydraulic tools supplier you need.
