• Model NO.：TBL
• Feature：Explosion-Proof
• Certification：CE
• Load Capacity：150kg-200kg
• Lifting Height：4m-14m
• Platform Size：900*700mm
• Power：Diesel,Electrical,Gasoline
• Working Radius：4000mm
• Control：Push button,remote control
• Color：Blue,customized
• Motor：220V,380V,customized
• Rotation：359 degree
• Warranty：12 Months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：500PCS,Year

Basic Info.

Model NO. TBL Feature Explosion-Proof Certification CE Load Capacity 150kg-200kg Lifting Height 4m-14m Platform Size 900*700mm Power Diesel/Electrical/Gasoline Working Radius 4000mm Control Push button/remote control Color Blue/customized Motor 220V/380V/customized Rotation 359 degree Warranty 12 Months Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 500PCS/Year

Product Description

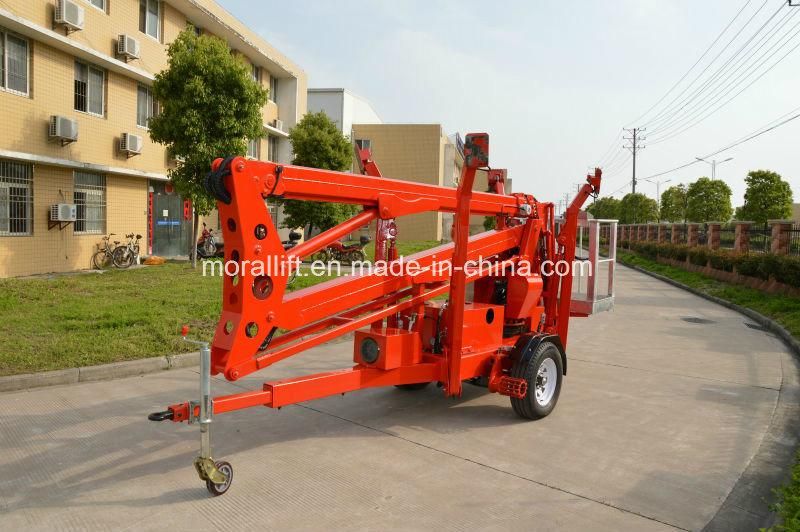

CE Approval Trailer Mounted Towable Boom Lift (TBL)

Features:

1.Platform: Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.
2.Legs: With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3.Drive: It can be diesel or storage battery according to customer's requirements.
4.Material: Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5.Hydraulic cylinder: Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time,
6.Aloft work platform: Equipped with balanced valve, automatic pressure maintaining ,etc.

Application:

Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, market places, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.

Parameters:


Model	TBL-12
Max platform height	12m
Max. horizontal extent	4m
Rotation	360°
Basket capacity	250kg
Dimensions	5400×2000X3100mm
Total weight	2200kg
Lifting speed	0.05-0.09m/s
Work pressure	10Mpa
Travel speed	15-30km/h
Wind-proof	≤5
Motor	115V/230V/460V 3KW
Delivery time	Within 20days after the confirmation of the purchase order

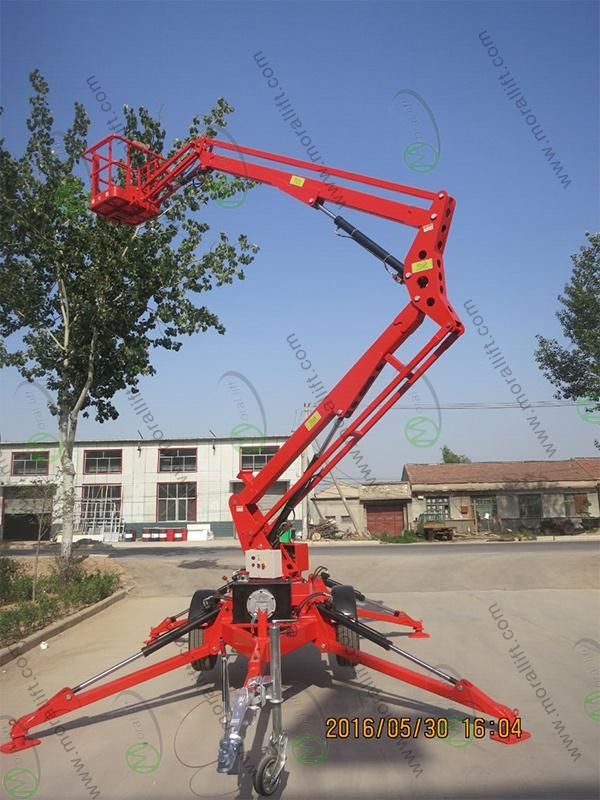

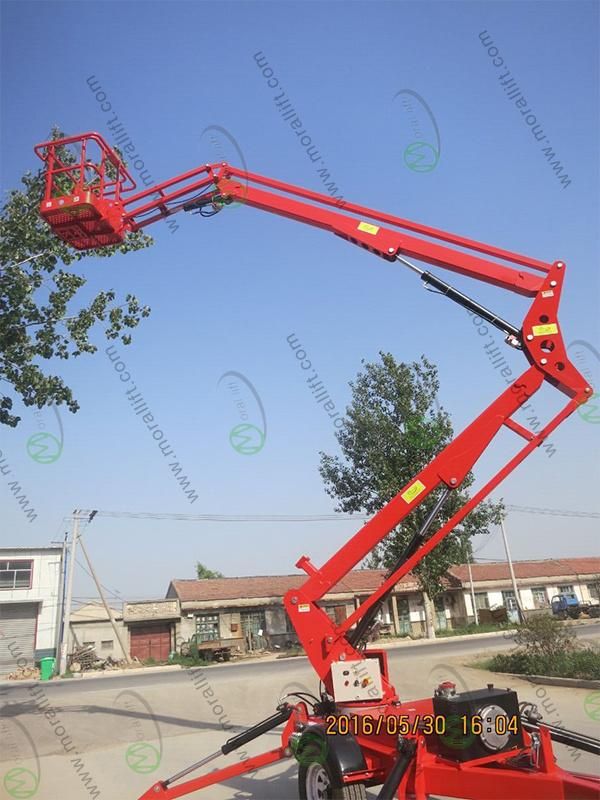

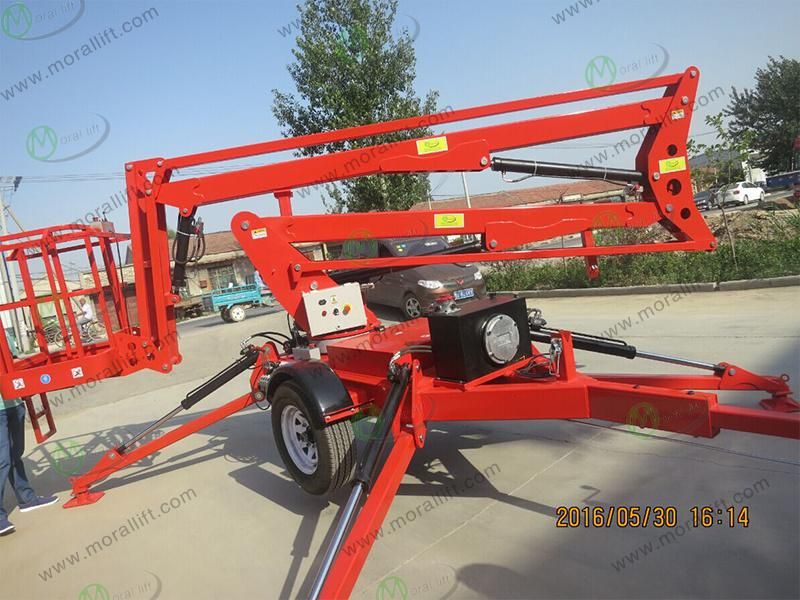

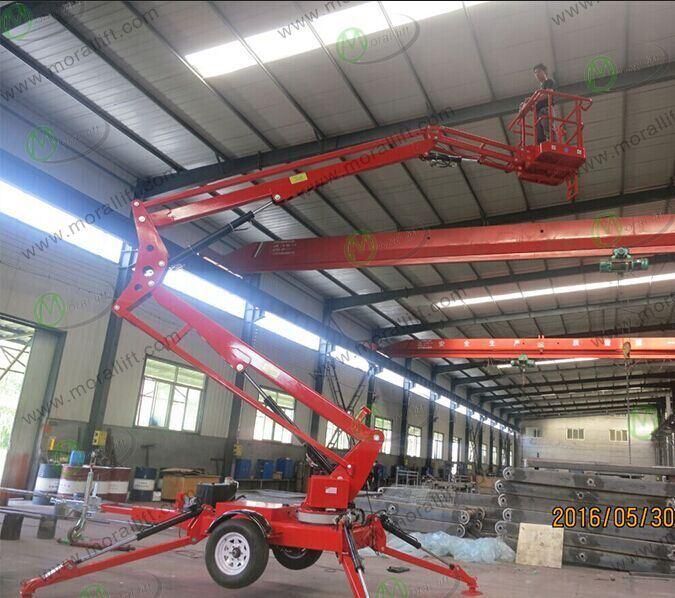

Pictures:
