• Model NO.：UL
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：GS, CE, RoHS, ISO 9001
• Load Capacity：600kg to 1500kg
• Lifting Height：860mm
• Quantity of Hydraulic Cylinder：2
• Voltage：as Per Customers′ Local Standard
• Color：Yellow, Blue, Red or as Per Customer Requiement.
• Way of Installation：on Ground or in Pit
• Lowering Speed：Adjustable
• Scissor Structure Qty：1unit
• Dropping Time：Weight Drop, Adjustable Speed
• Pump Station Place：Built-in or External (Optional)
• Function：Lifting
• Delivery Time：20days Upon Advance Payment
• Quality Warranty：12 Months
• Lifting Time：25s-40s
• Motor：1.1kw,2.2kw
• Transport Package：High Quality Paper Box
• Specification：CE, ISO, SGS
• Trademark：SAGA FIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. UL Feature Explosion-Proof, Insulating, Spillover Valve Certification GS, CE, RoHS, ISO 9001 Load Capacity 600kg to 1500kg Lifting Height 860mm Quantity of Hydraulic Cylinder 2 Voltage as Per Customers′ Local Standard Color Yellow, Blue, Red or as Per Customer Requiement. Way of Installation on Ground or in Pit Lowering Speed Adjustable Scissor Structure Qty 1unit Dropping Time Weight Drop, Adjustable Speed Pump Station Place Built-in or External (Optional) Function Lifting Delivery Time 20days Upon Advance Payment Quality Warranty 12 Months Lifting Time 25s-40s Motor 1.1kw/2.2kw Transport Package High Quality Paper Box Specification CE, ISO, SGS Trademark SAGA FIRST Origin China HS Code 8428909090 Production Capacity 10000

Product Description

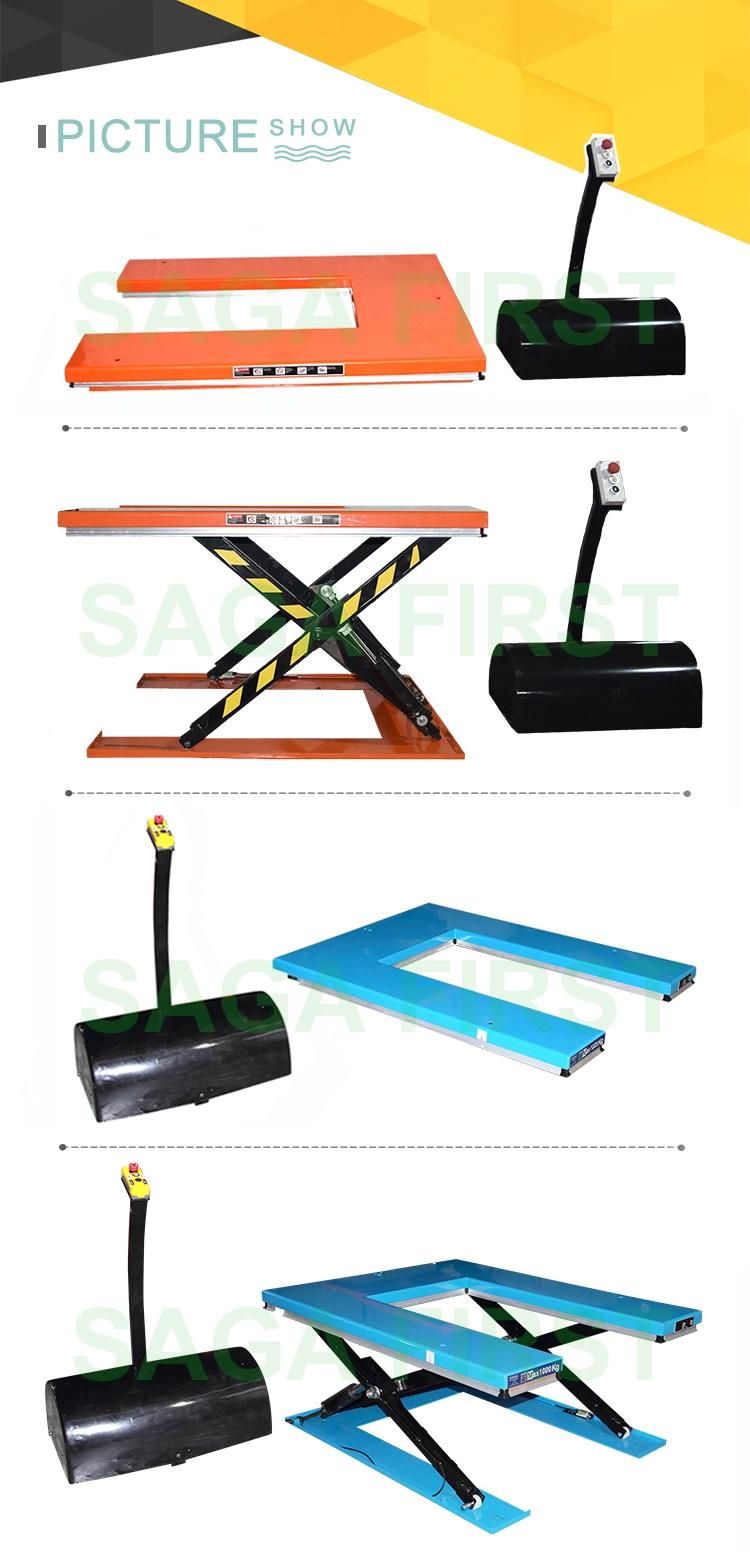

U Shape Low Profile Hydraulic Scissor Lift tables
U Shape Low Profile Hydraulic Scissor Lift tables are high-quality electronic hydraulic scissor lifts with loading capacities from 600KG to 1500KG with lifting heights up to 860mm.We also accept customized platform size and lifting height. It is designed to lift 2 way entry pallets from the pallet truck without the need to use a ramp to load onto a table.

Specification for scissor lift:

Model	Load Capacity	Self Height	Max Height	Platform Size	Base Size	Size A	Size B	Size C	Motor	Net Weight
	kg	mm	mm	mm	mm	mm	mm	mm	kw	kg
UL600	600	85	860	1450*985	1335*947	200	1080	580	1.1	207
UL1000	1000	85	860	1450*1140	1335*947	280	1080	580	1.1	280
UL1500	1500	105	860	1600*1180	1335*947	300	1194	580	2.2	380

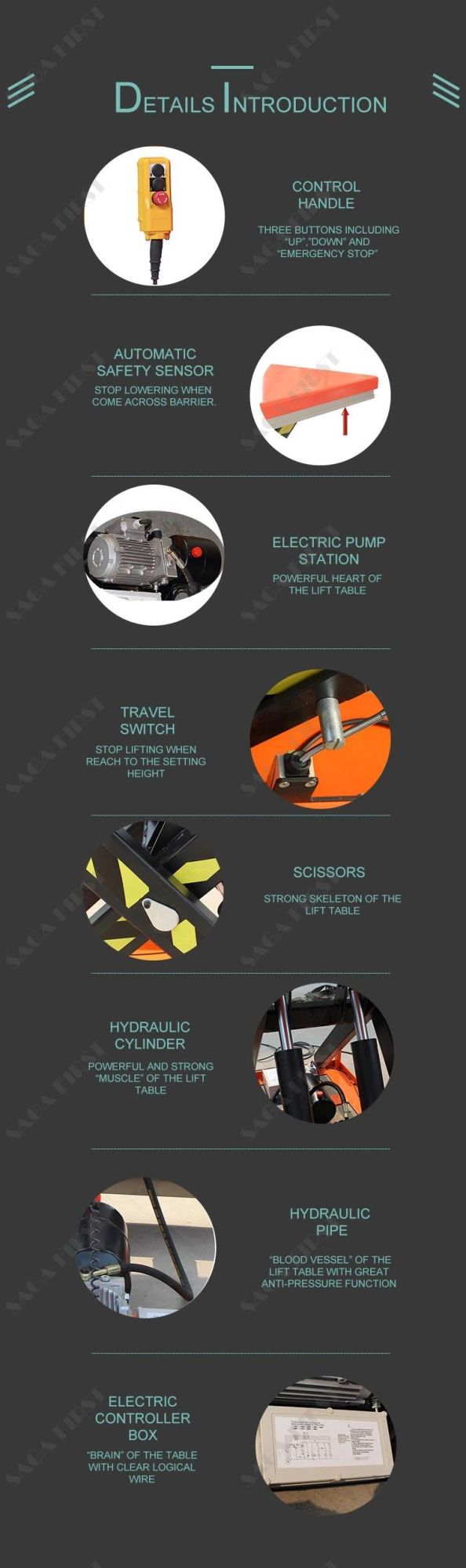

Detail Instruction
1.Control Handle: three buttons including "up", "down", "emergency stop".
2.Automatic Safety Sensor: stop lowering when come across barrier.
3.Electric Pump Station: Powerful heart of the lift table.
4.Travel Switch: stop lifting when reach to the setting height.
5.Scssiors: strong skeletion of the lifting table.
6.Hydraulic Cylinder: powerful and strong "muscle" of the lift table.
7.Hydraulic Pipe: "blood vessel" of the lift table with great anti-pressure function.
8.Electric Control Box: "Brain" of the table with clear logical wire.

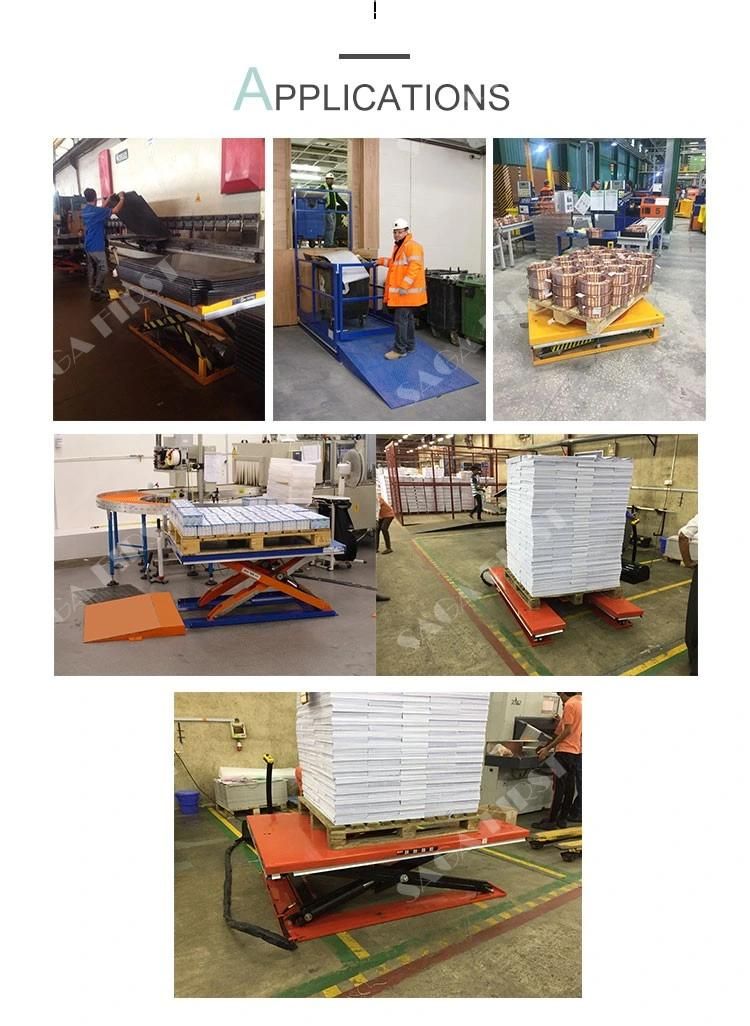

Applications:
It is lifting by the electric and hydraulic system.
It is installed on the ground to convey the goods from one working level to another.

Package:
1. High strength carton          2. Customized wooden box (optional)


Advantages:
1.Hydraulic lifting system, the far-end control and multi-control points at the different floors could  be realized      hierarchical control.
2.Stop anywhere at the pre-concerted and accurate location point.
3.It can work under any condition, great load capacity, safe and reliable.
4.There are sensitive overload protection devices locking device for falling protection.
5.Brief structure make it much easier to operate and maintain.
6.High quality AC power packs are made in Europe.
7.Removable lifting eye to facilitable handling and lift table installation.
8.Safe clearance between scissor to prevent damages during operation.
9.Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in the case of hose burst

Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform

Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
one year quality guarantee.send the parts free of charge

Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance.  >USD5000:  30%TT in advance,balance before shipment.  >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.
