• Model NO.：DDCP
• Feature：Insulating
• Certification：CE
• Name：Garage Car Parking Lift
• Load Capacity：3000kg,customized
• Lifting height：4000mm,customized
• Drive：Hydralic
• Platform size：5500*2500mm,customized
• Warranty：12monthes
• Color：Customized
• Key Words：Garage car lift
• Transport Package：Standard Export Packing
• Specification：6000(L)*3000(W)*2500(H)m
• Trademark：MORAL
• Origin：Shandong, China(Mainland)
• HS Code：842980
• Production Capacity：500pieces,Month

Basic Info.

Model NO. DDCP Feature Insulating Certification CE Name Garage Car Parking Lift Load Capacity 3000kg/customized Lifting height 4000mm/customized Drive Hydralic Platform size 5500*2500mm/customized Warranty 12monthes Color Customized Key Words Garage car lift Transport Package Standard Export Packing Specification 6000(L)*3000(W)*2500(H)m Trademark MORAL Origin Shandong, China(Mainland) HS Code 842980 Production Capacity 500pieces/Month

Product Description

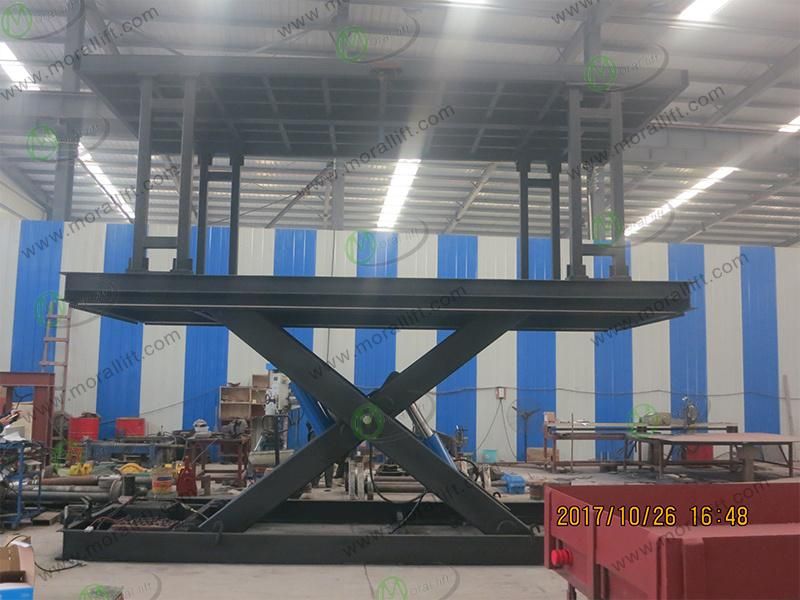

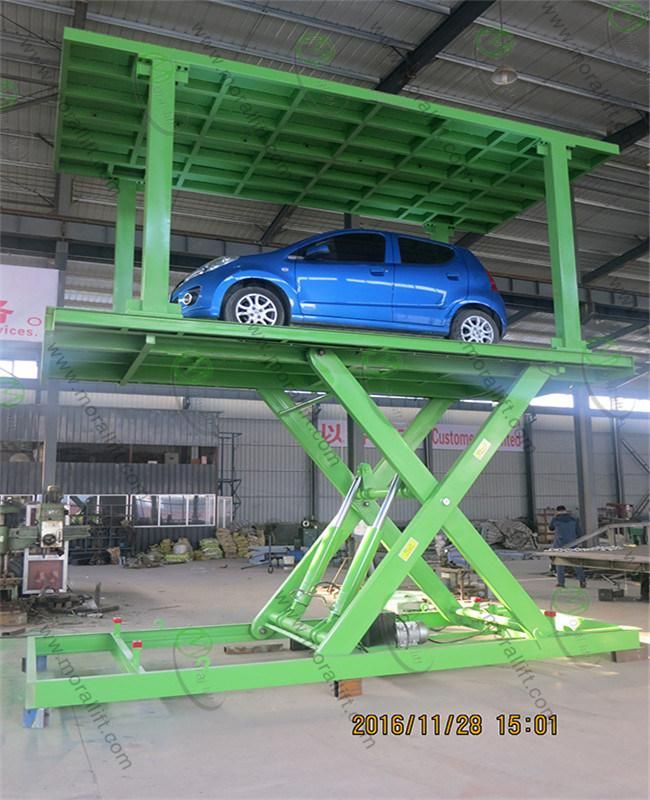

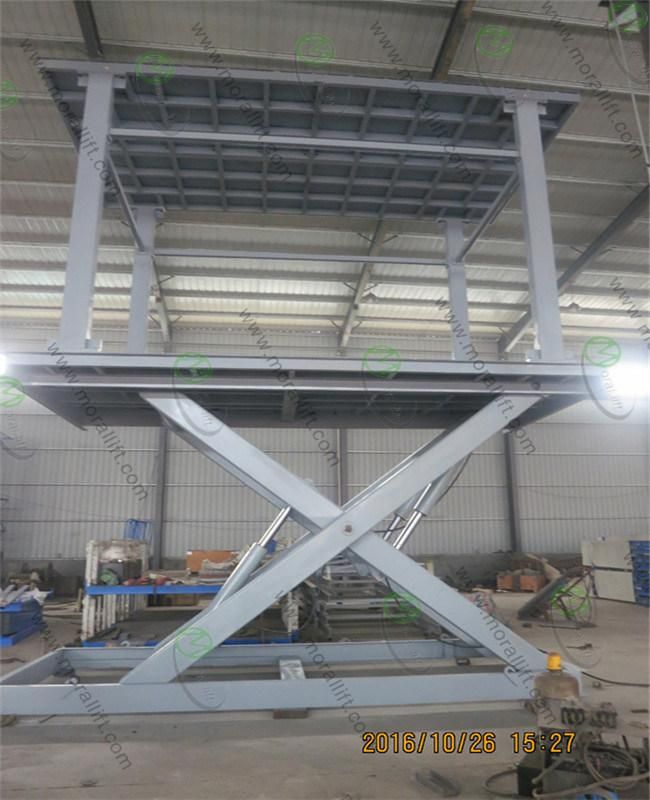

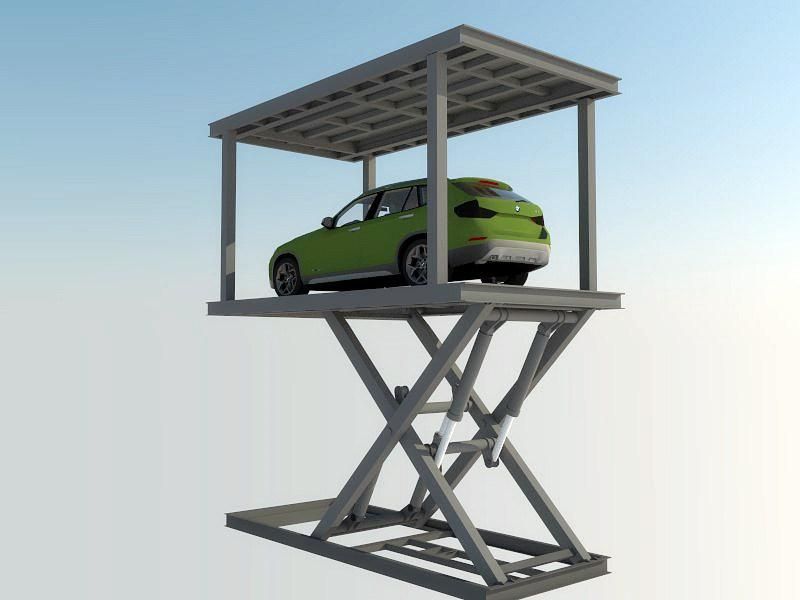

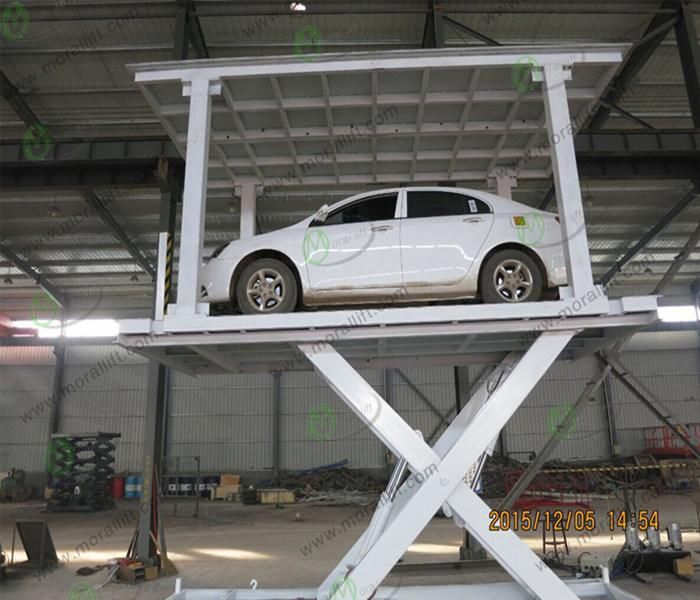

Garage Invisible Scissor Hydraulic Car Lift
The car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
Operation is easy. There are 2 sets control system installed on the car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



Model	DDCP
Load capacity	3000KG
Platform size	5500*2500mm
Lifting height	4000mm
Speed	100mm/s
Power	5.5kw
Power supply	AC 220V/380V 50Hz/60Hz

1. load weight: 3000kgs/customize
2. table size: 5.5m x 2.5m/customize
3. travel height: 4m/customize
4. structure: high-strength Mn steel

SAFETY




1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.


KEY BENEFITS




1.Four high capacity hydraulic cylinders design
2.Double your space by parking two vehicles in the footprint of one parking stall
3.Unobtrusive and secure - the lift and lower vehicle are completely concealed
4.Aesthetically pleasing - canopy surface can be tiled to match surroundings
5.Multiple units can be installed side-by-side for use in condo's, offices etc
6.Ideal for low-ceiling applications - use as 'vertical tandem parking' to save space
7.Safe, easy to operate

FEATURE

1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. the handrail to guarantee safety of car
3. equipped with 4 guide rails to ensure safety and steady.
4. the limit switch system ensure lifts stop at accurate position.
5. overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.













FRIENDSHIP TIP

If you are interested in our products, please provide the following parameters:

1. Lifting height (mm)
 the distance between your underground garage and the ground is __?___mm

2. Load capacity (kg)
How many cars you want to lift?
2t ( one car)
4t (two cars)
or other load capacity

3. Platform size (mm)
recommend size: 5500(L)*2500(W)mm
or customize according to your car length and width
