3D Vertical Man lift Electric Platform Lift
Jinan Moral International Co., Ltd.- Application：Spraying room
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Self-propelled
- Driven Type：Chain
- Running Mode：Moving
Base Info
- Model NO.：SJD
- Feature：Explosion-Proof
- Certification：CE
- Material：High Strength Steel
- Control Method：Remote,Button Control
- Drive：Chain
- Payload：300kg
- Dimension of Basket：900X650X900mm (LxWxH)
- Extension Distance：500mm
- Working Height：550mm~3000mm from floor
- Total Power：3kw
- Usage：Spraying room
- Colour：Pls tell us
- Transport Package：Standard Plywood Packaging
- Specification：7CBM
- Trademark：MORAL
- Origin：Jinan, Shandong, China
- HS Code：842890
- Production Capacity：3000PCS,Year
Description
3-AXIS MOVEMENT
1.Horizontal Movement (X-axis):
Travel Rate: 8 meters per minute
Travel Distance: 20000mm
Drive Mechanism: 0.75kw anti-explosion motor(explosion-proof grade:EXDIIBT4), reduction gear
Horizontal Control: button control in the front of the guard
2.Vertical Movement (Z-axis):
Travel Rate: 5 meters per minute
Working Area: 550mm~3000mm from floor
Drive Mechanism: 1.5kw anti-explosion motor (explosion-proof grade:EXDIIBT4), reduction gear, sprocket, chain, shaft, bearing seat, scroll wheel shield
Vertical Control: button control in the front of the guard
3.Extended Movement (Y-axis)
Travel Rate: 3 meters per minute
Extended Distance: 500mm
Drive Mechanism: 0.55kw anti-explosion motor (explosion-proof grade:EXDIIBT4), screw, sprocket, chain, shield
Extended Control: button control in the front of the guard

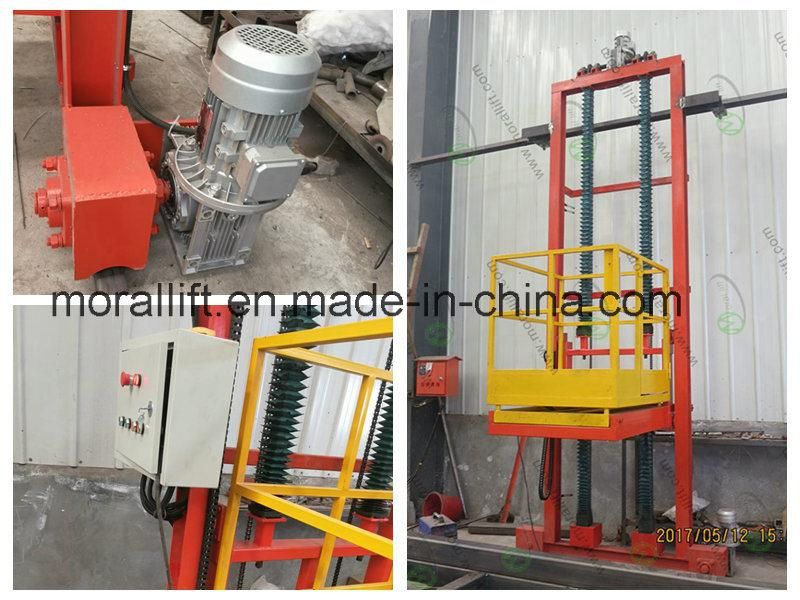

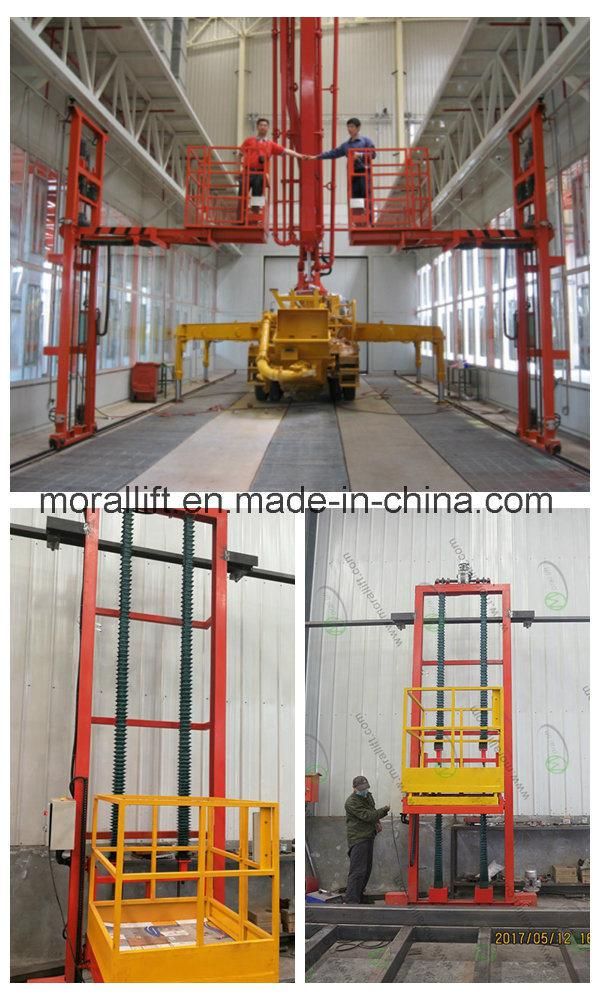

PRODUCT SHOW
FEATURES
Rail Scraper
Emergency Stop Button
Orange(Any color is optional)
Inward Swing Door
Applicable for YS-TB20 spray booth
All the circuits are anti-explosion
Easy Installation
12 Months Warranty
20 Business Days Delivery
Bubble Films Packaging For Sea Transportation
OPTIONS
Bump Stop Control
Paint Pot Carrier
Mechanical Stop
Safety Lock
All size can be customized according to different spray booth.
