Europe Standard Scissor Lift Table 1m 1.5m 2m

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Free Spare Parts, Life Support Service, Video Link
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Custom
  • Moves：Stationary
  • Driven Type：Hydraulic

Base Info

  • Model NO.：HW
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：GS, CE, RoHS, ISO 9001
  • Voltage：220V 380V
  • Color：Customized
  • Transport Package：Wooden Box
  • Specification：Custom
  • Trademark：PLK LIFT
  • Origin：China(Mainland)
  • HS Code：8428909090
  • Production Capacity：1000 Set,Month

Description

35~402.2655

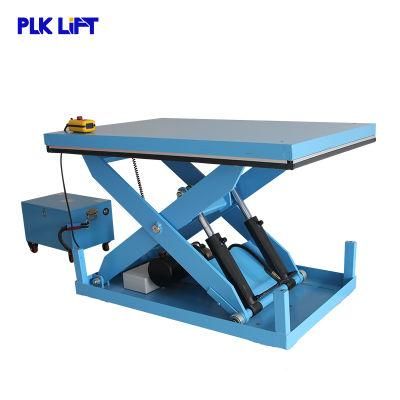

Europe Standard Scissor Lift Table 1m 1.5m 2m

Features & Advantages:
  1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
  2. High quality pump station makes scissor lift table lifts and fall very stable.
  3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
  4. Removable lifting eye to help lift the table and install.
  5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
  6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
  7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
  8. Up to American standard ANSI/ASME and Europe standard EN1570
  9. Safe clearance between scissor to prevent damages during operation.
  10. Brief structure make it much easier to operate and maintain.
  11. Stop at the per-concerted and accurate location point.
Safety Precautions:
  1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
  2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
  3. Emergency decline valve: it can go down when you meet an emergency or the power off.
  4. Overload protection locking device: in case of dangerous overload.
  5. Anti-dropping device: Prevent falling of platform.
  6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.

Europe Standard Scissor Lift Table 1m 1.5m 2m
Europe Standard Scissor Lift Table 1m 1.5m 2m
Europe Standard Scissor Lift Table 1m 1.5m 2m
