• Model NO.：CL
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：2.2kw
• Rated Loading Capacity：250kg
• Min. Lifting Height：100mm
• Max. Lifting Height：1m-10m
• Weight：450~1300kg
• Guiderail Material：Aluminum Alloy
• Surface Treatment：Plastic Spraying
• Transport Package：Wooden Box
• Specification：2000*1430*1300mm
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Basic Info.

Model NO. CL Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Power 2.2kw Rated Loading Capacity 250kg Min. Lifting Height 100mm Max. Lifting Height 1m-10m Weight 450~1300kg Guiderail Material Aluminum Alloy Surface Treatment Plastic Spraying Transport Package Wooden Box Specification 2000*1430*1300mm Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 1000

Product Description

Customized Scissor Lift Table Wheelchair Lift
Wheelchair lift is specially designed for the disabled and elderly people, which requires extra stability and safety.It is configured with cross scissors and hydraulic cylinders, which are enclosed by black high quality bellows for safety and neatness.
We produce wheelchair lifts with platform heights ranging from 1m-6m, and maximum load capacity 250kg. In addition, the platform size or equipment color can be customized to your needs.

1. Data Sheet, we produce this scissor type accessible lift according to your required loading capacity, lifting height and platform size. Please tell us if you are interested in ordering the product.


2. Photos Review:



Features and Advantages:
1. Aluminum Alloy material with great anti-corrossion function.
2. High quality pump station makes the wheelchair lift and fall very stably.
3. Automatic safety sensor at the base triggers motor shutdown amid lowering process when coming accorss barriers.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevents overload operation; Flow control valve makes descending speed adjustable.
7. Simple structure makes it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and European standard EN1570.

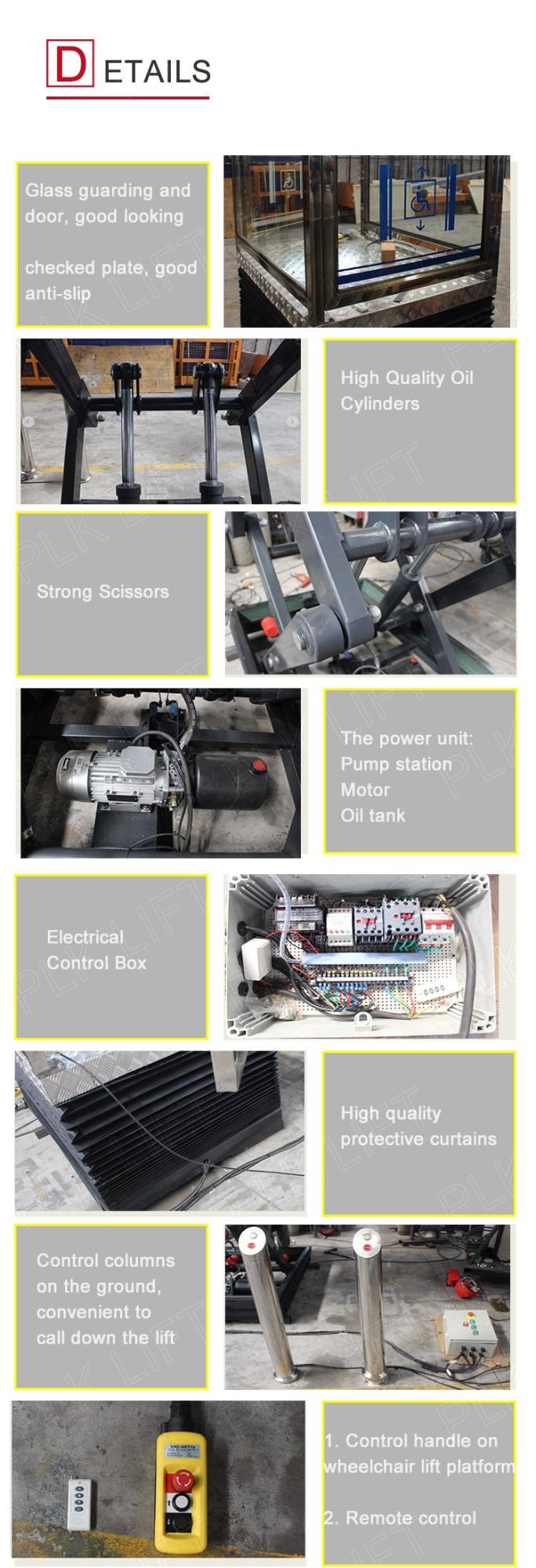

3. Details Display:

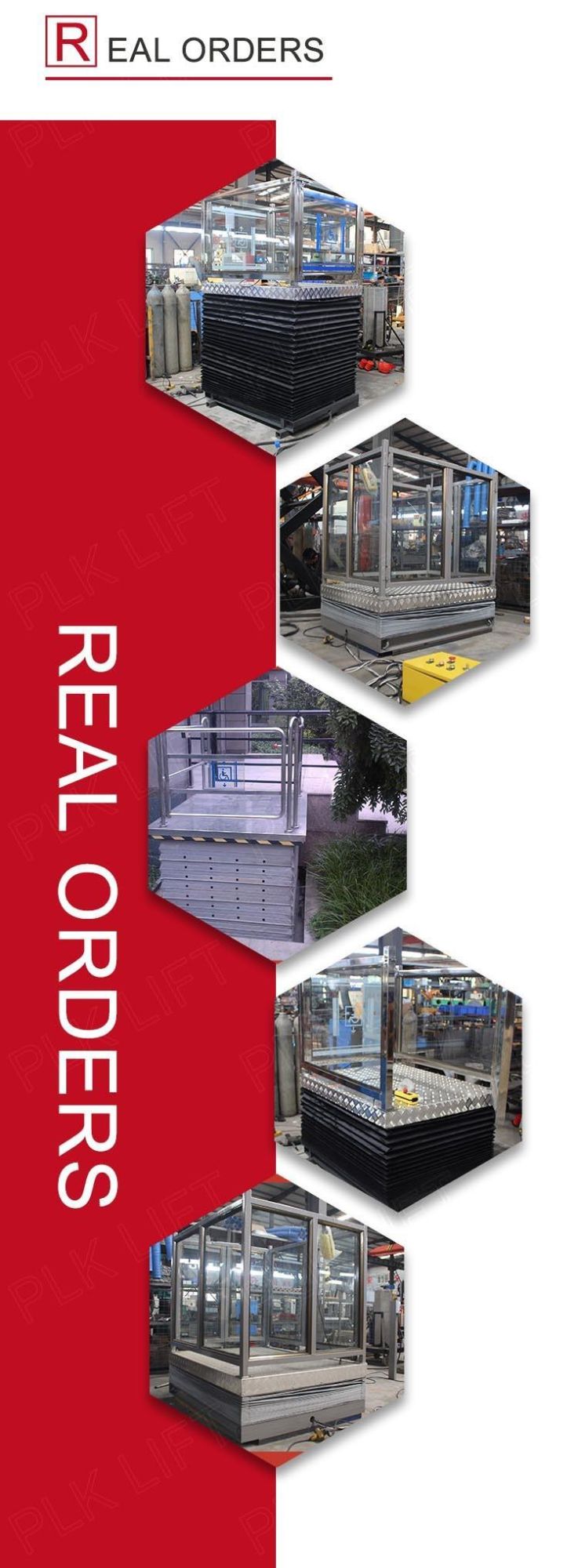

4. Real Orders Show: (We produce our wheelchair lift for both home and abroad with excellent quality.)


5. Welcome to visit our factory and place the order with us.
