Xga26 26m Hydraulic Articulated Boom Aerial Working Platform Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Weight Level
- Moves：Vehicular
Base Info
- Model NO.：XGA26
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Max. Gradeability：45%
- Transport Package：Roro,Container,Bulk
- Specification：11280*2490*3000mm
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product Description
Item
Unit
XGA26
a. Overall length of complete machine
mm
11280
b. Overall width of complete machine
mm
2490
c. Overall height
mm
3000
d. Wheelbase
mm
3000
Max. working height
m
26.38
Max. platform height
m
24.38
Max. working range
m
18.9
Max. carrying weight
kg
230
Scope of luffing of No. 1 arm
°
-1 ~ +70
Scope of luffing of No. 2 arm
°
-35 ~ +68
Slewing angle of turntable
°
360°
Max. Tail swing
mm
1330 (boom lifting)
Dimension of platform
mm
2400×900
Slewing angle of platform
°
160
Overall weight
kg
17800
Max. traveling speed
km/h
5
Min. turning radius
m
4.2m(Four-wheel steering) / 6.7m(Two-wheel steering)
Min. ground clearance
mm
260
Max. gradeability
%
45
Specification of tire
-
18-625
Engine model
-
Cummins QSF2.8 71BHP
Engine rated power
kW/(r/min)
53/(2200)

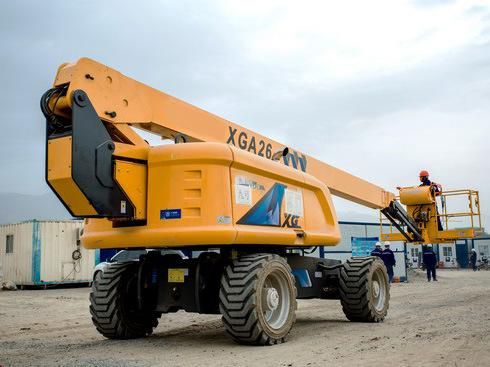

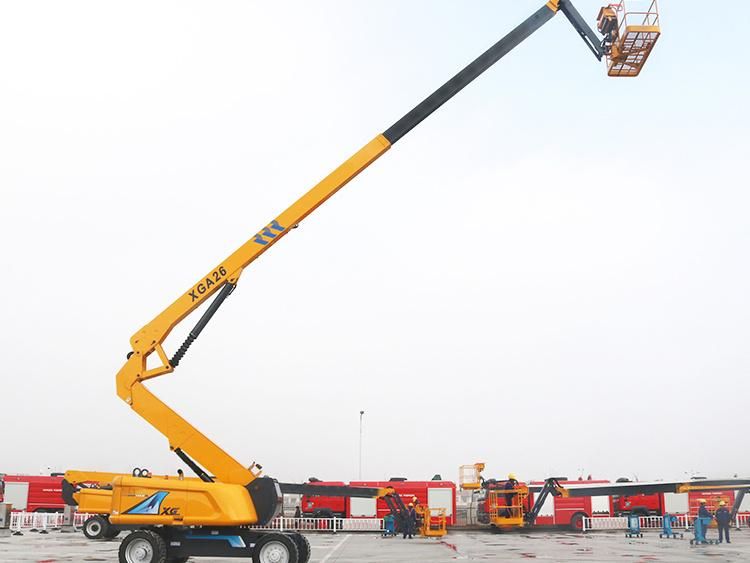

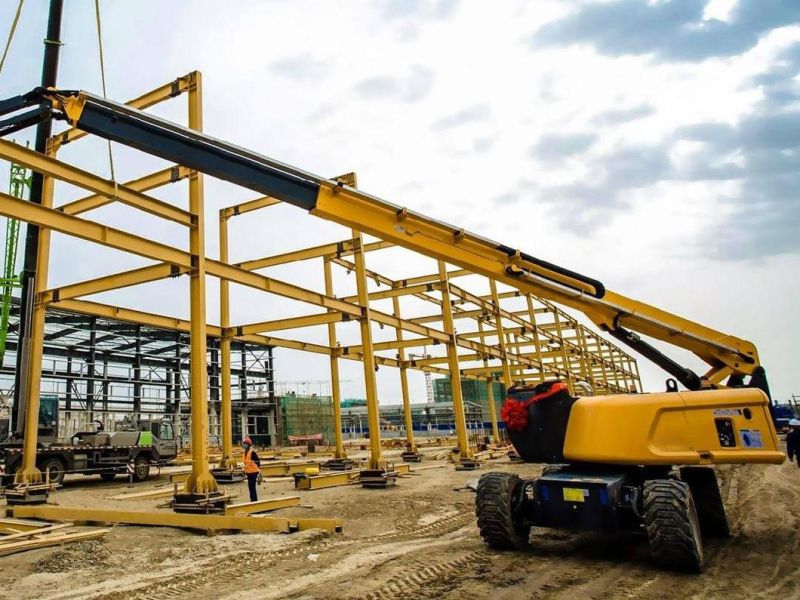

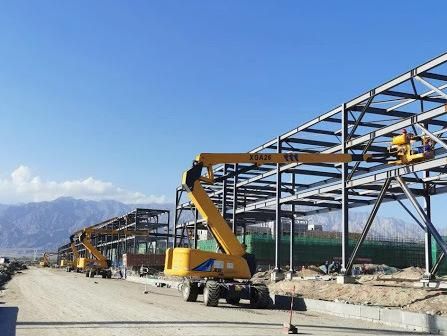

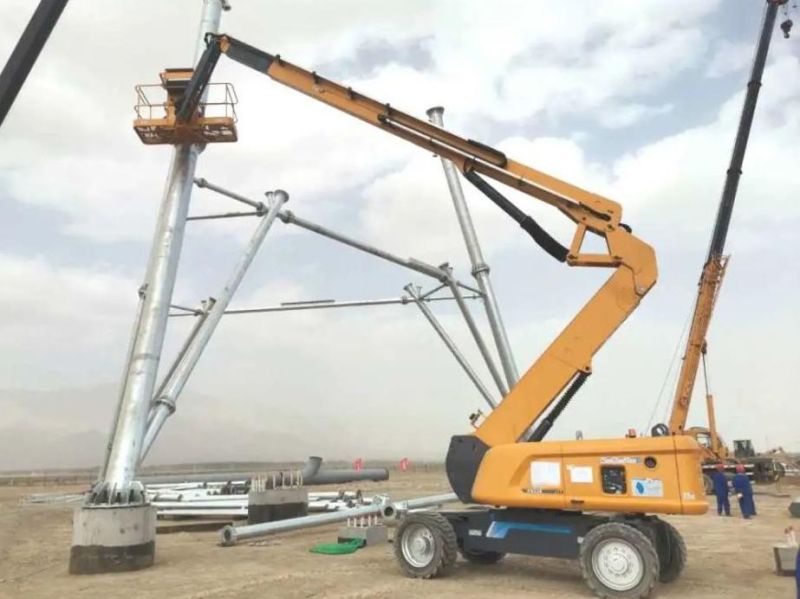

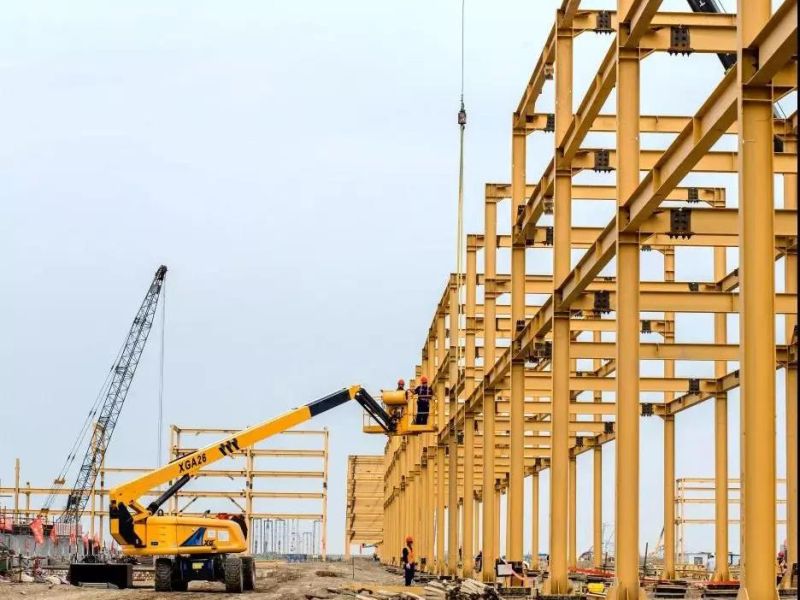

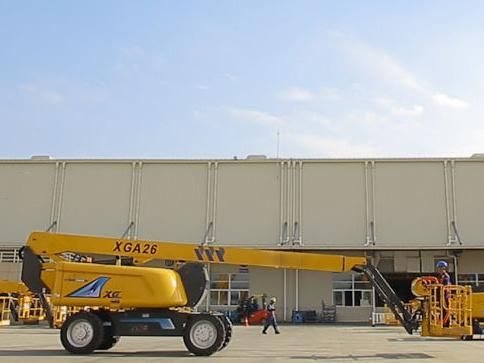

- Product Pictures
