• HS Code：8475299000
• Production Capacity：10000 Sets Per Month

Basic Info.

HS Code 8475299000 Production Capacity 10000 Sets Per Month

Product Description

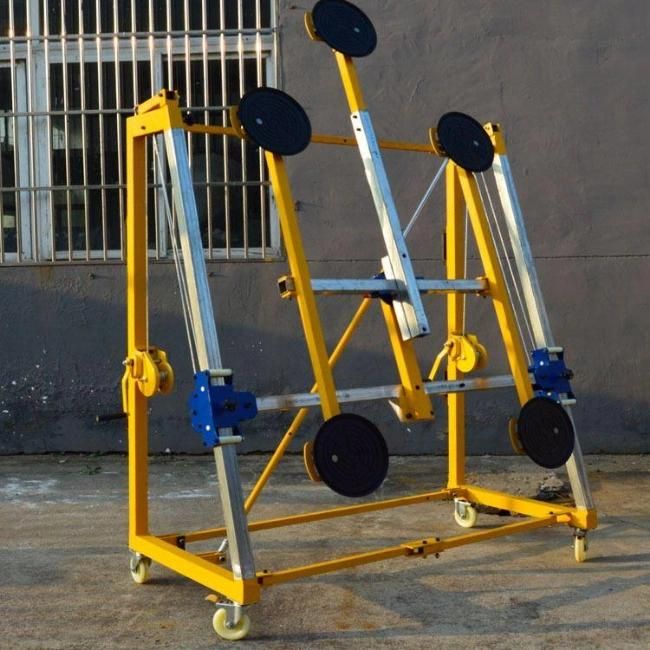

150KGS Normad Glass Vacuum Lifter:










Quattro model: This model adapted hand-pump suction pads instead of powered pads. It featured With its convenience with no power needed and detachable parts for easy carry, its movable function help people to handle or transport glass indoors with easy, unload glass from truck, as well as for glass installation indoors, the Quattro has continuous 360° Rotation but without tilting.


Model Express Normad
Capacity (kg)150/350
Dia of pads (mm)2304 of 300mm, 1 of 230mm
Pad number 25
Vacuum source Hand-pumpHand-pump
Lifting By hand winchBy hand winch
Moving Manual Manual
Rotation Manual Manual
Rotation degrees Continuous 360° Continuous 360°

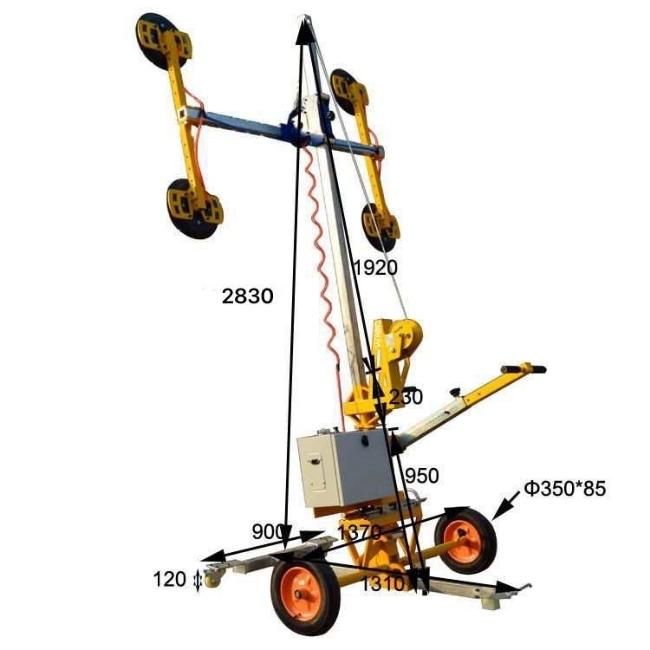

300KGS Manual Glass Lifter


Features:
It is designed to assist glass workers to unload, rotate and transport large plates of glass in shop.  It has a lifting capacity of 300 kgs.  It can rotated glass measuring up to 180".  It has a 24 volt battery powered vacuum pump.
It can rotate glass 360 degrees allowing long and heavy sheets of glass to be loaded onto an edging machine/vertical glass washer.  The bull will allow one or two people to do what use to require four to six people in the past with greater safety.  This is perfect for setting IG's into window frames to create a perfect seal.
Technical Data:
Max. Load capacity: 300kgs
Diameter of suction cup: 200mm
Number of suction cups: 5pcs
Battery: 24V
Max. Glass size: 2400X3000mm


. Guarantee & Aftersales service:

1)Guarantee the complete machine for one year, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
