Single Acting Low Height Hydraulic Cylinder Safety Lock Body
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Warranty:1 Year
- Type:Hydraulic Jack
- Structure:Hydraulic Jack
- Capacity (Load):260t
- Power Source:Hydraulic
- Max Height:204mm
Base Info
- Model NO.:SOV-CLP Series
- Certification:EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Cylinder Capacity:60-520 Ton
- Stroke:45, 50 mm
- Collapsed Height:125-192 mm
- Outside Diameter:140-400 mm
- Working Pressure:700 MPa
- Weight:15-189 Kg
- Delivery Time:1-15 Days
- Color:Yellow or Black
- Return Type:Load Return
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO
- Trademark:SOV
- Origin:China
- HS Code:8412210000
- Production Capacity:5000 Sets Per Month
Description
Basic Info.
Model NO. SOV-CLP Series Certification EPA, CS, CE, ISO 9001:2000, ISO 9001:2008 Condition New Cylinder Capacity 60-520 Ton Stroke 45/ 50 mm Collapsed Height 125-192 mm Outside Diameter 140-400 mm Working Pressure 700 MPa Weight 15-189 Kg Delivery Time 1-15 Days Color Yellow or Black Return Type Load Return Transport Package Standard Export Wooden Case Specification CE, ISO Trademark SOV Origin China HS Code 8412210000 Production Capacity 5000 Sets Per MonthProduct Description
Single Acting Low Height Hydraulic Cylinder Safety Lock BodyFeature:
SOV pancake lock nut cylinders have a flat design for use in confined areasSafety lock nut for mechanical load holdingSingle-acting load returnSpecial bearing design resists sideload forcesOverflow port functions as a stroke limiterCR-400 coupler and dust cap included on all models
Technical Parameter:
Model Number | Cylinder Capacity | Stroke | Cylinder Effective Area | Oil Capacity | Collapsed Height(A) | Extended Height(B) | Outside Diameter(D) | Weight |
ton (kN) | mm | cm2 | cm3 | mm | mm | mm | kg | |
SOV-CLP-602 | 60 (606) | 50 | 86,6 | 432 | 125 | 175 | 140 | 15 |
SOV-CLP-1002 | 100 (1027) | 50 | 146,8 | 734 | 137 | 187 | 175 | 26 |
SOV-CLP-1602 | 160 (1619) | 45 | 231,3 | 1040 | 148 | 193 | 220 | 44 |
SOV-CLP-2002 | 200 (1999) | 45 | 285,6 | 1285 | 155 | 200 | 245 | 57 |
SOV-CLP-2502 | 260 (2567) | 45 | 366,8 | 1650 | 159 | 204 | 275 | 74 |
SOV-CLP-4002 | 400 (3916) | 45 | 559,5 | 2517 | 178 | 223 | 350 | 134 |
SOV-CLP-5002 | 520 (5114) | 45 | 730,6 | 3287 | 192 | 237 | 400 | 189 |

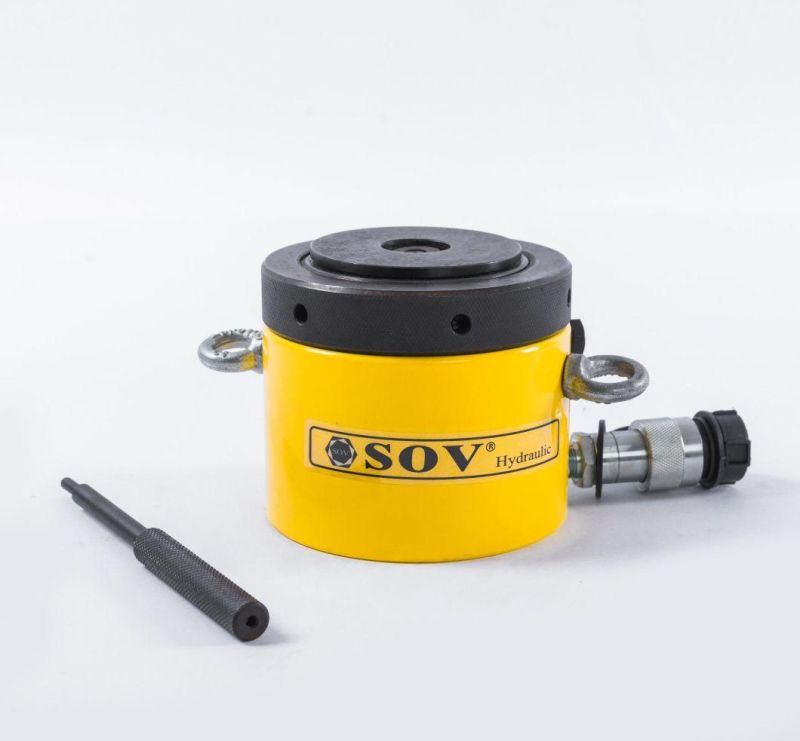

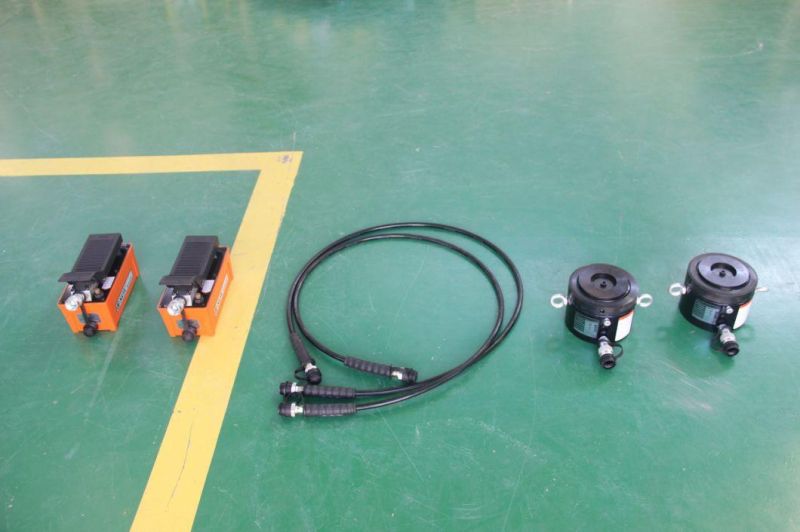

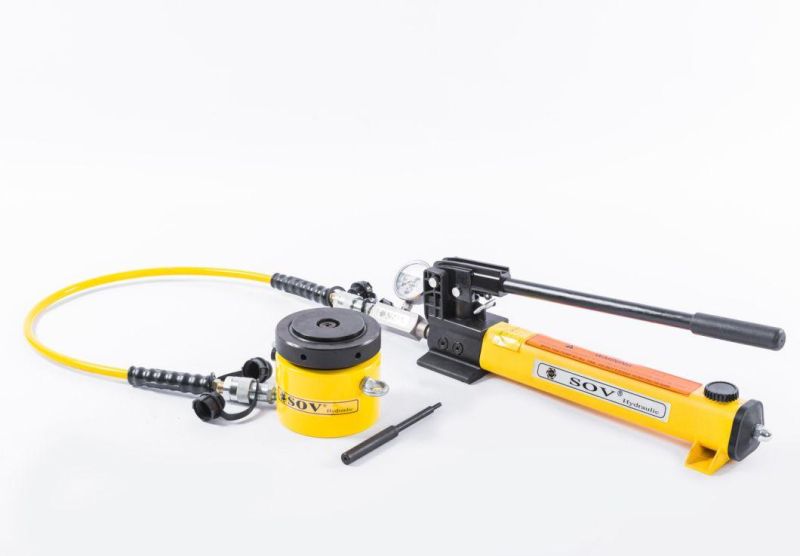

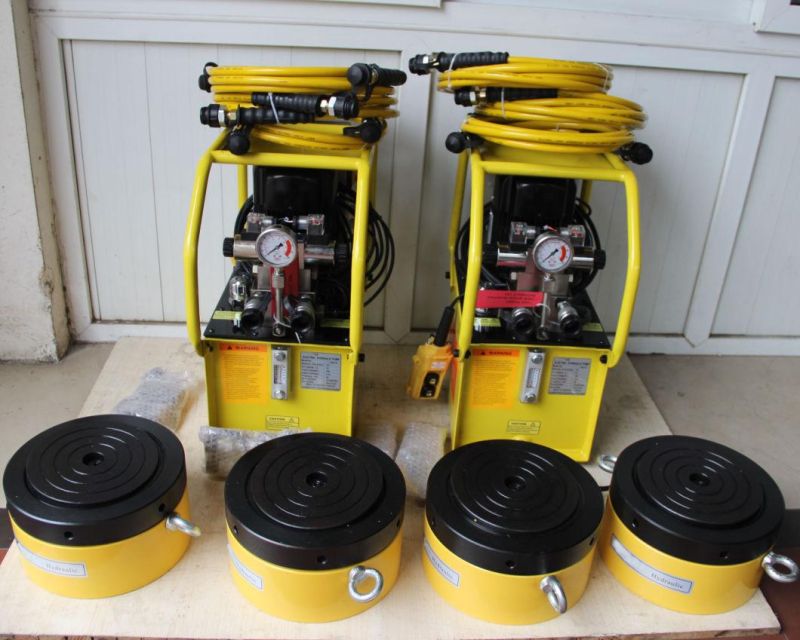

Photos

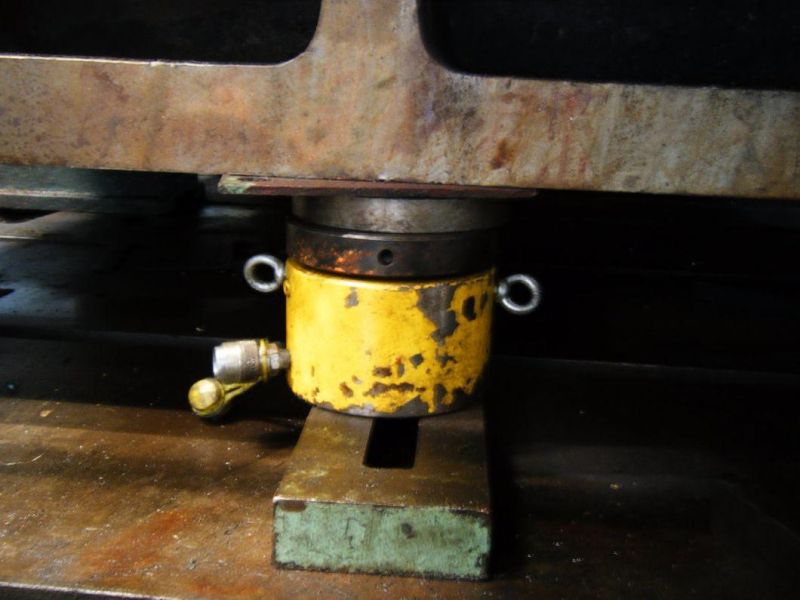

Applications
Company information
SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

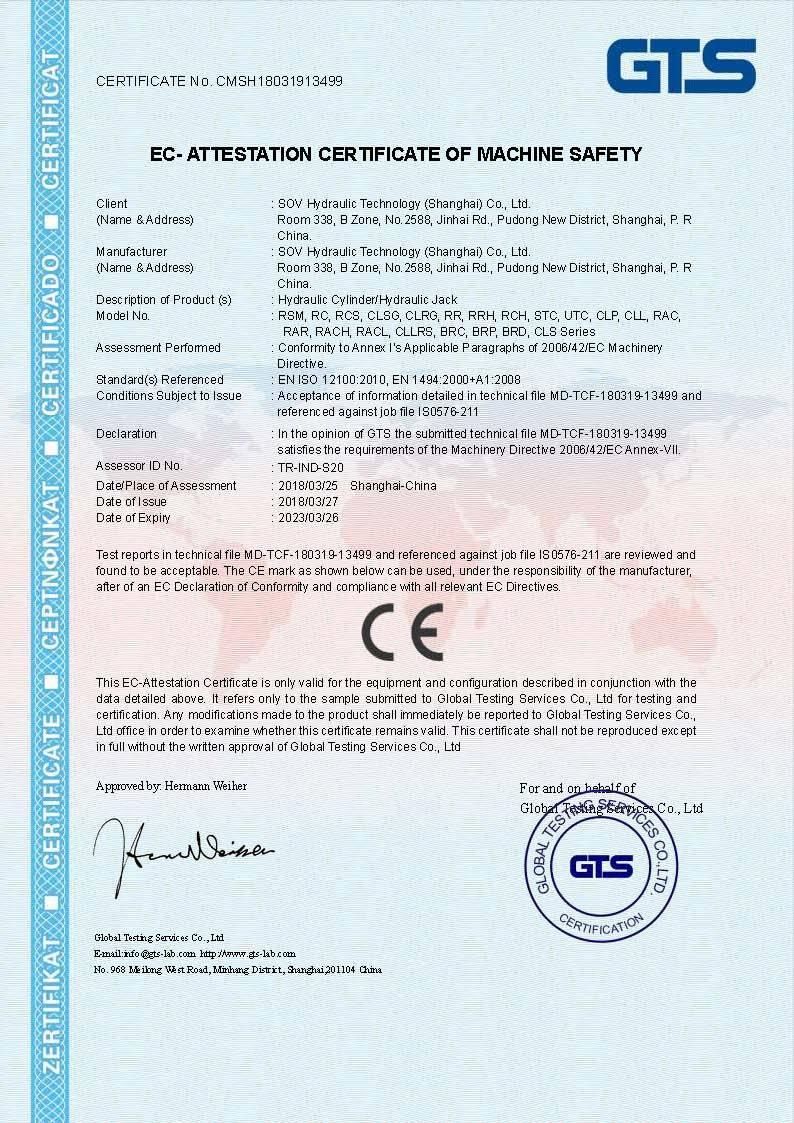

Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards,China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
