• Model NO.：CLL-1004
• Condition：New
• Cylinder Capacity (Ton)：100
• Stroke (mm)：100
• Cylinder Effective Area (Cm2)：132.7
• Oil Capacity (Cm3)：1327
• Collapsed Height(mm)：237
• Outside Diameter (mm)：165
• Cylinder Bore Diameter(mm)：130
• Depth of Plunger Hole(mm)：13
• Lock-Nut Height(mm)：44
• Weight(Kg)：39
• Transport Package：Standard Export Wooden Box
• Specification：CE, ISO, SGS
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

Basic Info.

Model NO. CLL-1004 Condition New Cylinder Capacity (Ton) 100 Stroke (mm) 100 Cylinder Effective Area (Cm2) 132.7 Oil Capacity (Cm3) 1327 Collapsed Height(mm) 237 Outside Diameter (mm) 165 Cylinder Bore Diameter(mm) 130 Depth of Plunger Hole(mm) 13 Lock-Nut Height(mm) 44 Weight(Kg) 39 Transport Package Standard Export Wooden Box Specification CE, ISO, SGS Trademark SOV Origin Shanghai, China HS Code 8412210000 Production Capacity 5000sets Per Month

Product Description

Product Features


1. Self lock nut, long time safe load support;
2. Single acting, load return;
3. Cylinder are all equipped with lug handles for easy handling;
4. Dustproof ring installed to extend cylinder life;
5. Special surface treatment, stronger corrosion resistance;
6.5 ° Maximum partial load;
7. Technical conditions, cylinder sealing size and the usage are in line with the standard of China mainland.


Parameters

Model Number	Cylinder    Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-CLP-602	60 (606)	50	86,6	432	125	175	140	15
SOV-CLP-1002	100 (1027)	50	146,8	734	137	187	175	26
SOV-CLP-1602	160 (1619)	45	231,3	1040	148	193	220	44
SOV-CLP-2002	200 (1999)	45	285,6	1285	155	200	245	57
SOV-CLP-2502	260 (2567)	45	366,8	1650	159	204	275	74
SOV-CLP-4002	400 (3916)	45	559,5	2517	178	223	350	134
SOV-CLP-5002	520 (5114)	45	730,6	3287	192	237	400	189

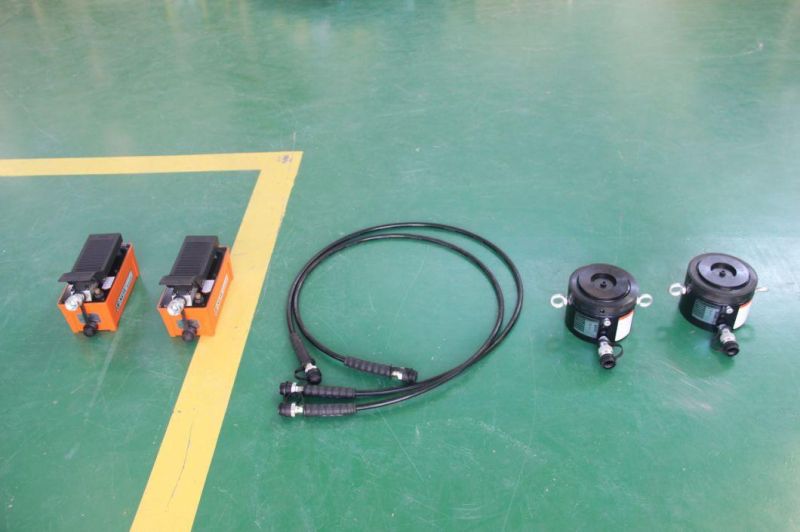

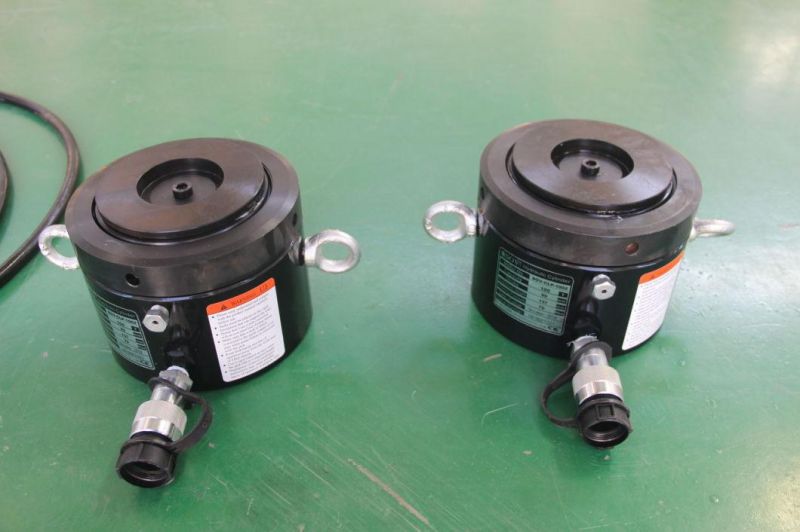

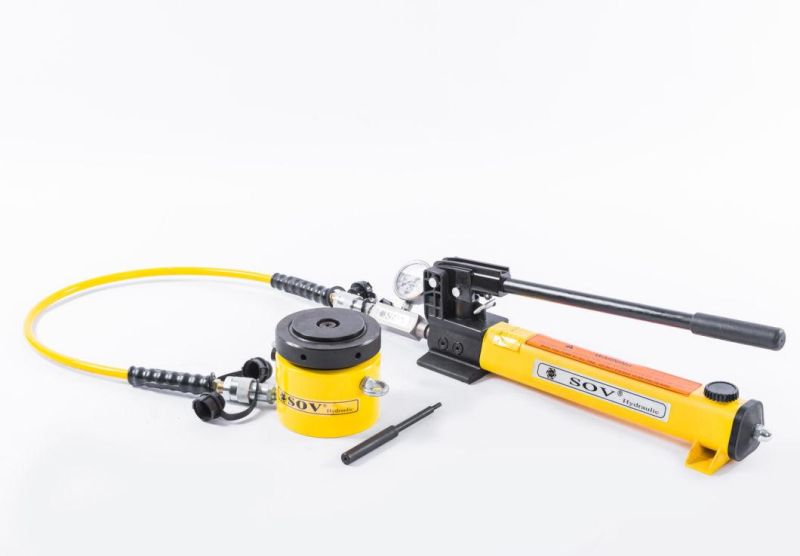

Product Picture

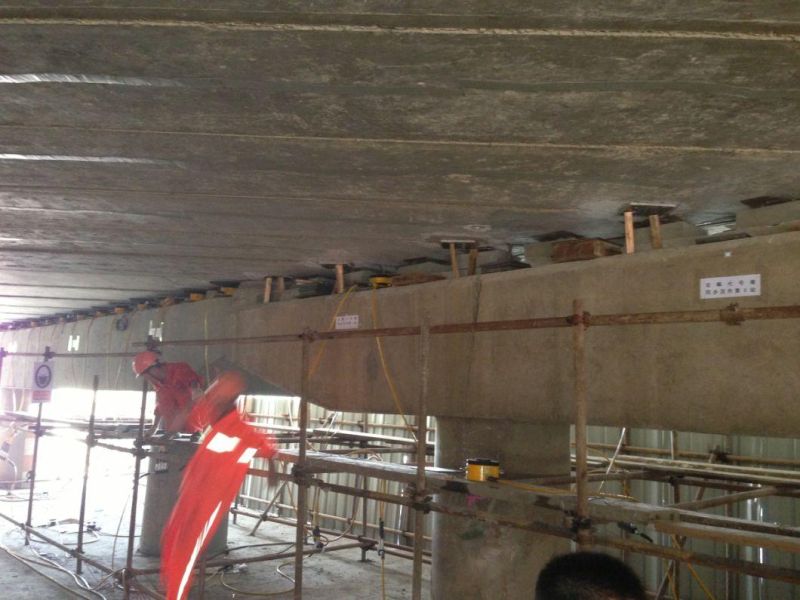

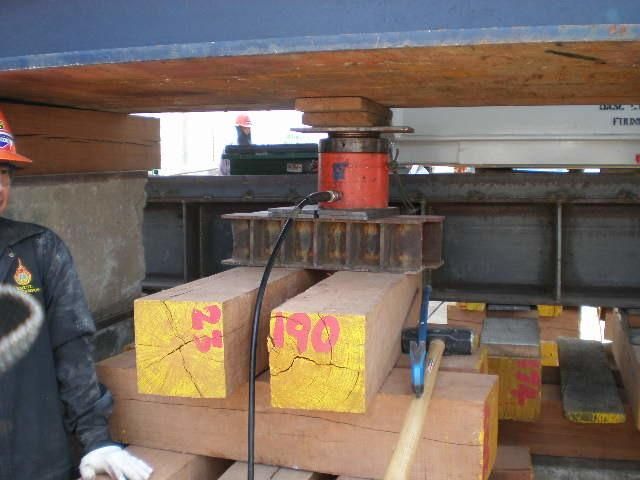

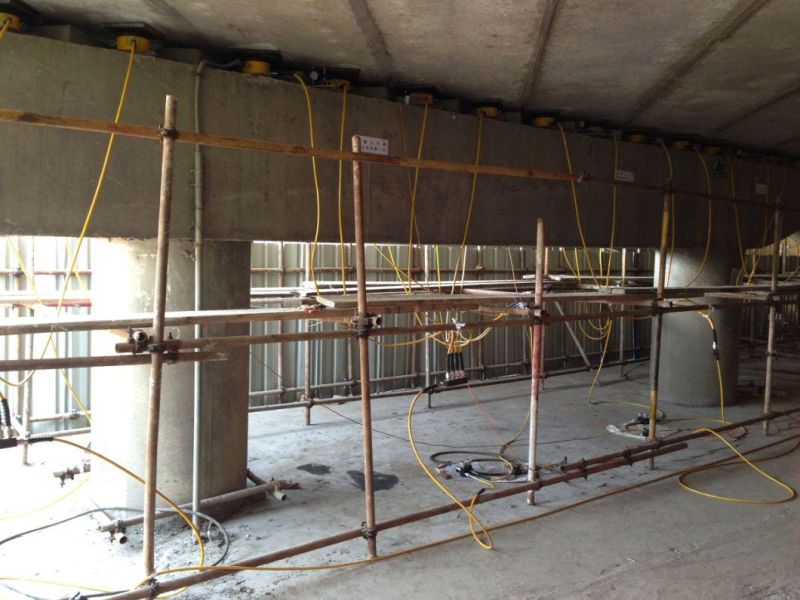

Applications






Packaging Details

1. Outside packaging: Standard export wooden packing;
2. Customized packaging acceptable.

Delivery

1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Teams





Our Service


1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards,  China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.


Competitive Advantages

1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.


Certificate
