• Model NO.：VWL
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Loading Capacity：300kg
• Platform Size：1200mm(L)* 900mm(W) or Customized
• Platform Material：Non-Skid Diamond Aluminum Platform
• Travel Height：5000mm
• Drive：Hydraulic
• Power Output：1.5kw
• Lead Rails：Double-T Steel
• Chain：16A
• Noise：50db
• Work Conditions：Both Indoor and Outdoor
• Transport Package：Standard Exporting Plywood Package
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

Basic Info.

Model NO. VWL Feature Explosion-Proof Certification CE, ISO 9001 Loading Capacity 300kg Platform Size 1200mm(L)* 900mm(W) or Customized Platform Material Non-Skid Diamond Aluminum Platform Travel Height 5000mm Drive Hydraulic Power Output 1.5kw Lead Rails Double-T Steel Chain 16A Noise 50db Work Conditions Both Indoor and Outdoor Transport Package Standard Exporting Plywood Package Specification CE, ISO, SGS Trademark Moral Origin China(Mainland), Shandong, Jinan HS Code 842890 Production Capacity 100sets Per Month

Product Description

Hydraulic Vertical Accessible Lift Platform with CE Certificated


Brief introduction:
1.vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2.It can be directly installed into the ground without architectural supporting pits     and easy to operate.
3.Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency Descending:When there is no power or malfunctions, manually descend the device
5.It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6.this machine max.lifting height is 6000mm
If you have difficulty using stairs, or use a wheelchair or mobility scooter,
then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home.
All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators


Parameter:

Platform size	1300mm(L)* 900mm(W) or  customized
Max Platform Height	6000mm
Min Platform height	80mm
Speed	60mm/s
Load capacity	250KG~350KG
Control voltage	24V/DC
Power Output	1.5KW
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic or screw
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Working Condition	Both indoors and outdoors
Working temperature	From -50°~60°C
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting

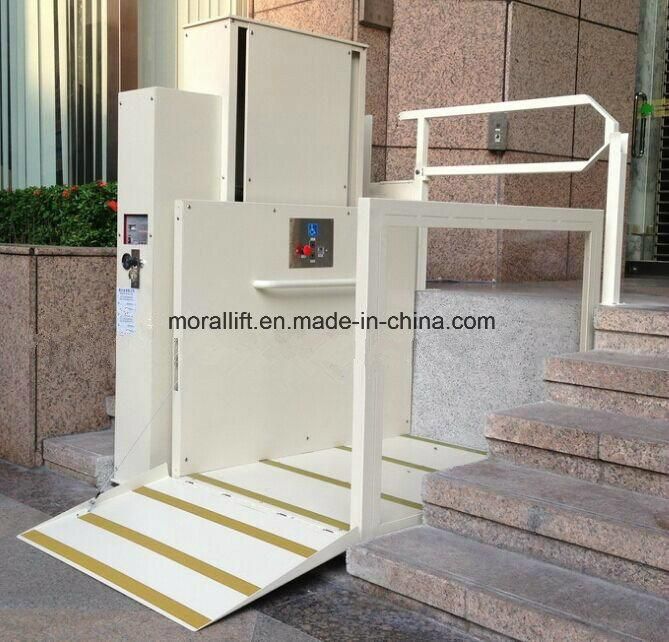

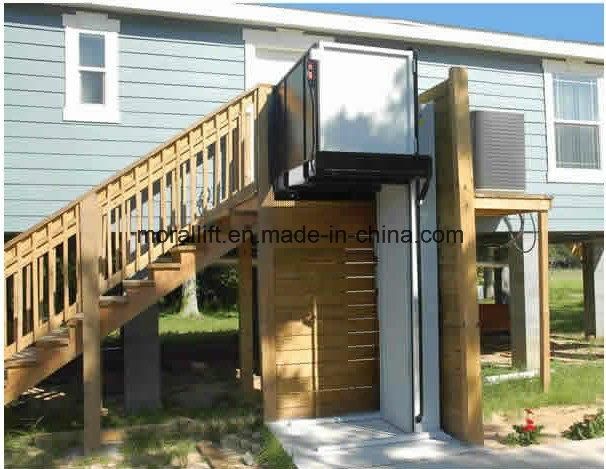

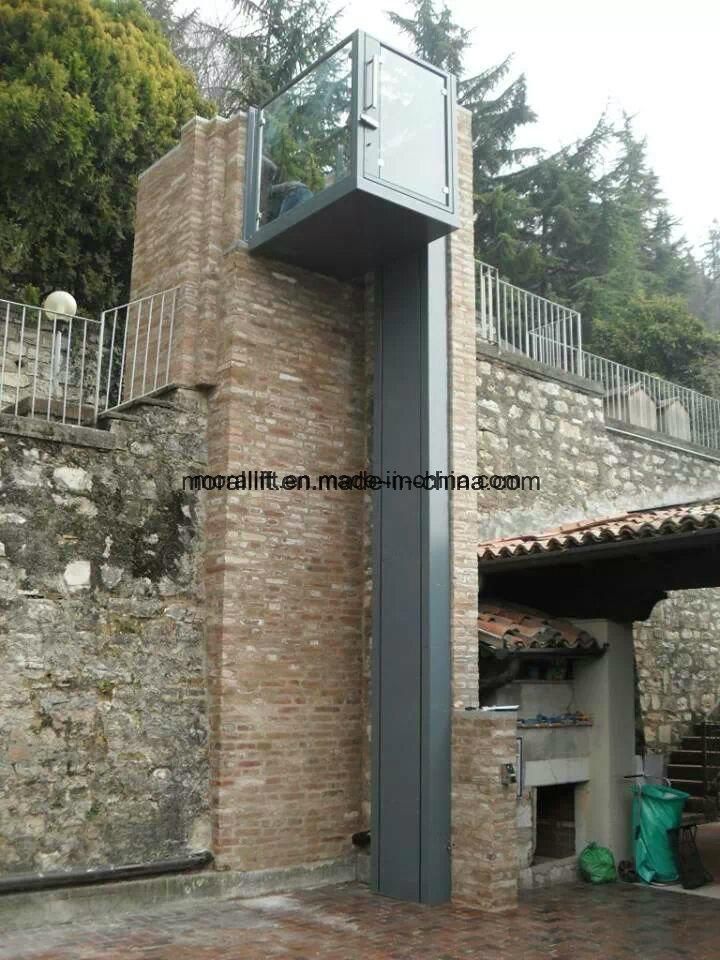

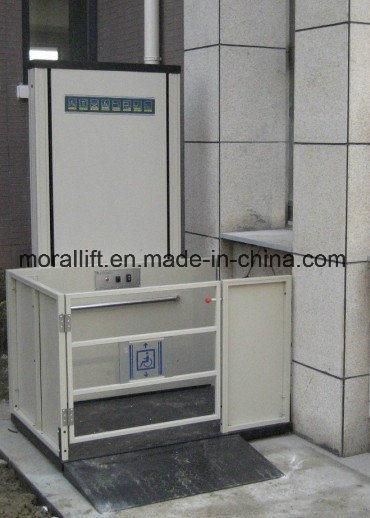

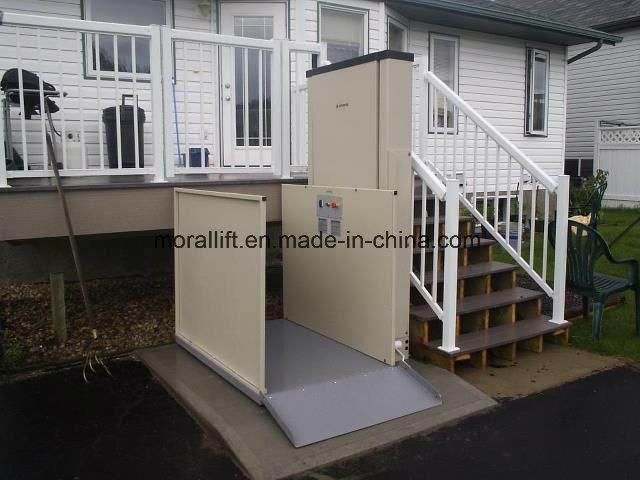

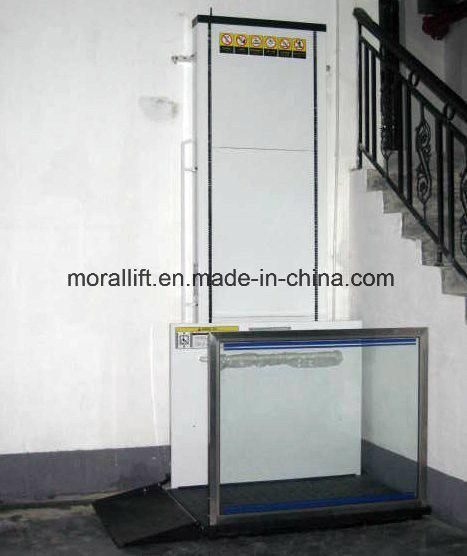

Photos:









Our Services:
1. All the machines will be full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.


FAQ:
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
3. Trade term? ( FOB/CFR/CIF to your nearest seaport)
4. Working Height?-according to your need
5. Platform Size?-according to your need
6. load capacity?-according to your need
7. Demand power source?-electric or battery, per your need
8. OEM?-accepted
