• Model NO.：VWL
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Loading Capacity：300kg
• Platform Size：1200mm(L)* 900mm(W) or Customized
• Platform Material：Non-Skid Diamond Aluminum Platform
• Travel Height：2800mm,Customize
• Drive：Hydraulic
• Power Output：1.5kw
• Lead Rails：Double-T Steel
• Chain：16A
• Noise：50dB
• Control Mode：Button,Remote Controls
• Transport Package：Standard Exporting Plywood Package
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

1300mm(L)* 900mm(W) or  customized
Max Platform Height
6000mm
Min Platform height
80mm
Speed
60mm/s
Load capacity
250KG~350KG
Control voltage
24V/DC
Power Output
1.5KW
Power Input
220V/50HZ/25A (or customized for local power supply)
Drive System
Hydraulic or screw
Control Mode
Inching Switch or Automatic
Drive Control
Self-resetting system
Overload
Protection Over current relay
Material of Platform
Checkered slip-proof aluminum alloy
Painting
Plastic electrostatic spraying
Guard panel & drive cabinet (framework)
Aluminum Alloy / 304 stainless steel

Operation Panel
Polished aluminum Alloy
Working Condition
Both indoors and outdoors
Working temperature
From -50°~60°C
Installation

Non-pit installation, directly fixed to concrete floor (the concrete
Floor below the platform shall not be lower than the ground)
Emergency Stop

The lifting and lowering process can be stopped immediately
By pressing the emergency button.
Safety device
Safety Interlock
Lock the platform when it is out of control

Safety Sensor
The operation must be stopped
immediately the safety edge meets
obstacles during operation.

Emergency lowering
The platform can be lowered by opening
Hydraulic valve manually or rolling screw rod.

Auto-flap
Turn up after lifting

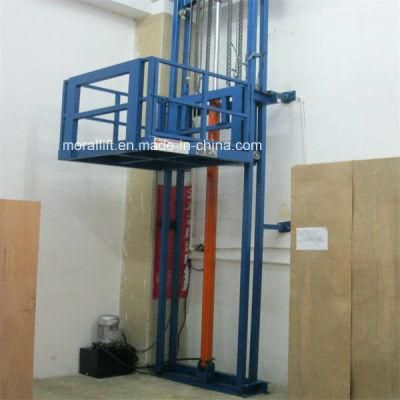

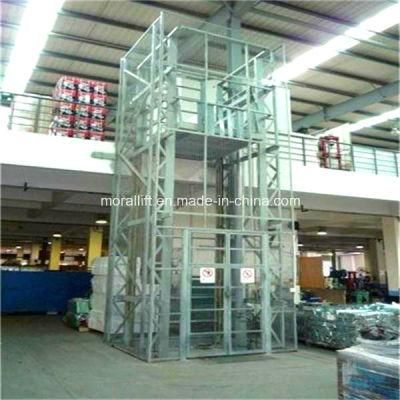

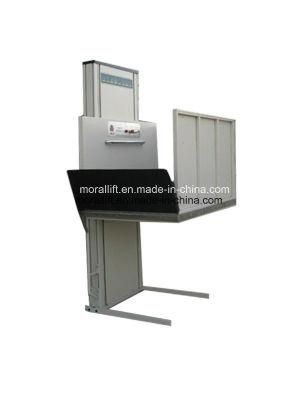

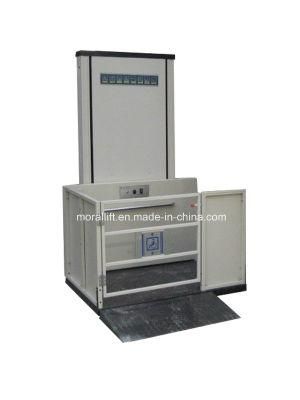

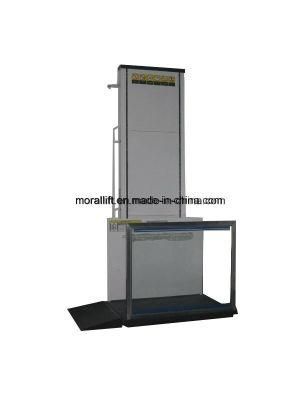

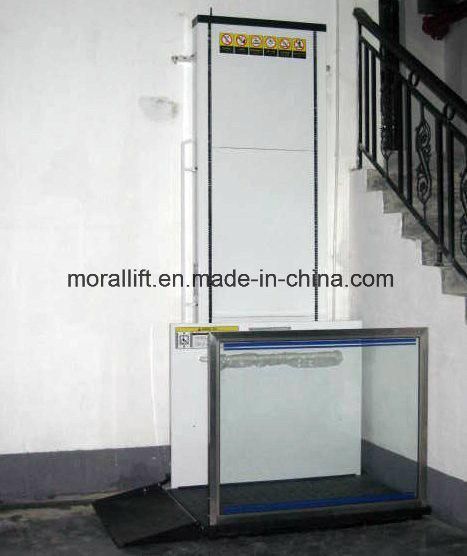

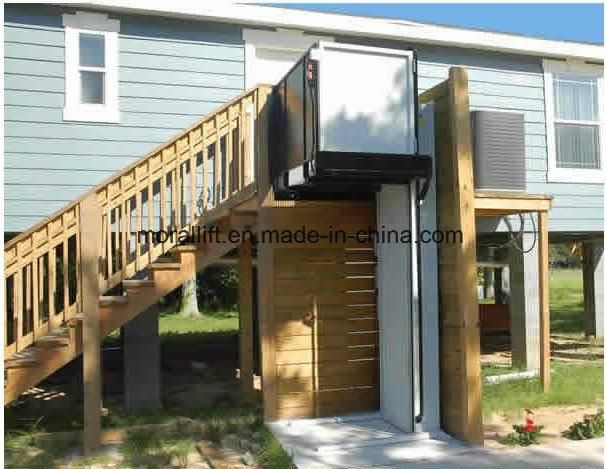

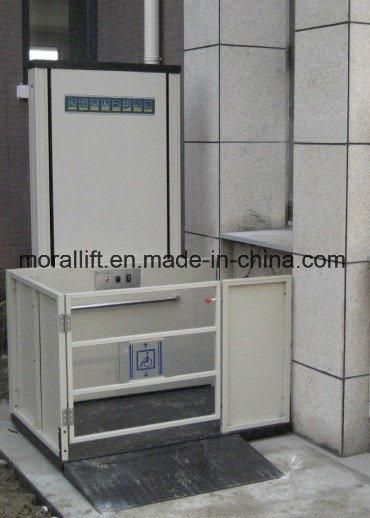

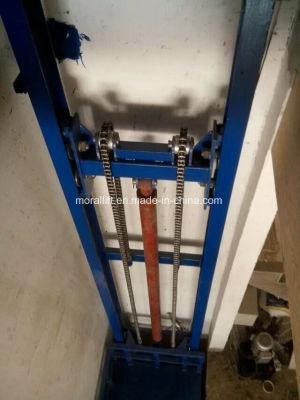

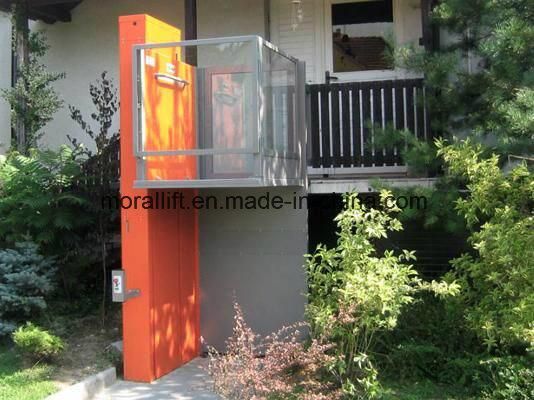

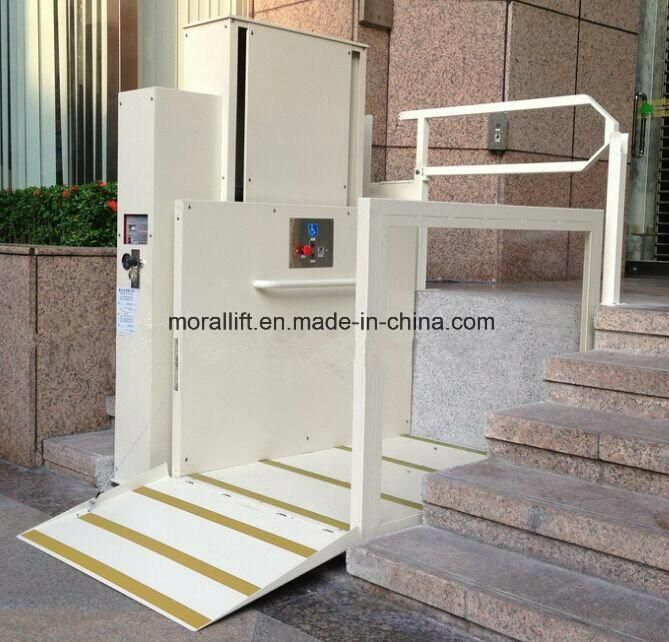

Photos:
