• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE
• Platform Size：1300*900mm
• Lifting Height：Max 6m
• Speed：100mm,S
• Drive：Hydraulic,Screw
• Load Capacity：300kg
• Power：2.2kw
• Controls：Buttons or Remote Control
• Platform：Non-Skid Diamond Aluminum Platform
• Min Platform Height：80mm
• Noise：50dB
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

1 30 0mm(L)* 9 00 mm(W)  or    customized Max Platform Height6000mmMin Platform height80mmSpeed60mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output1. 5 KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic  or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection Over current relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steel
 Operation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom - 5 0 ° ~60 ° CInstallation
 Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)Emergency Stop
 The lifting and lowering process can be stopped immediately
by pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation. Emergency loweringThe platform can be lowered by opening
hydraulic valve manually or rolling screw rod. Auto-flapTurn up after lifting

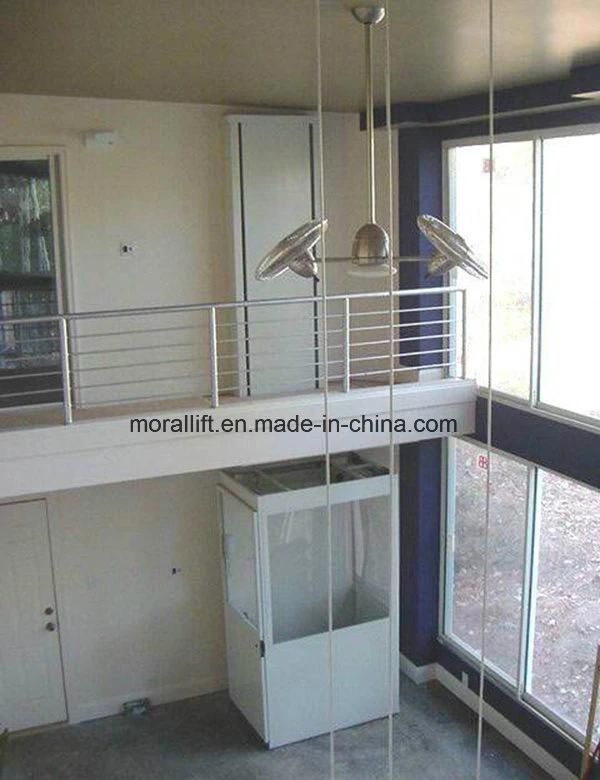

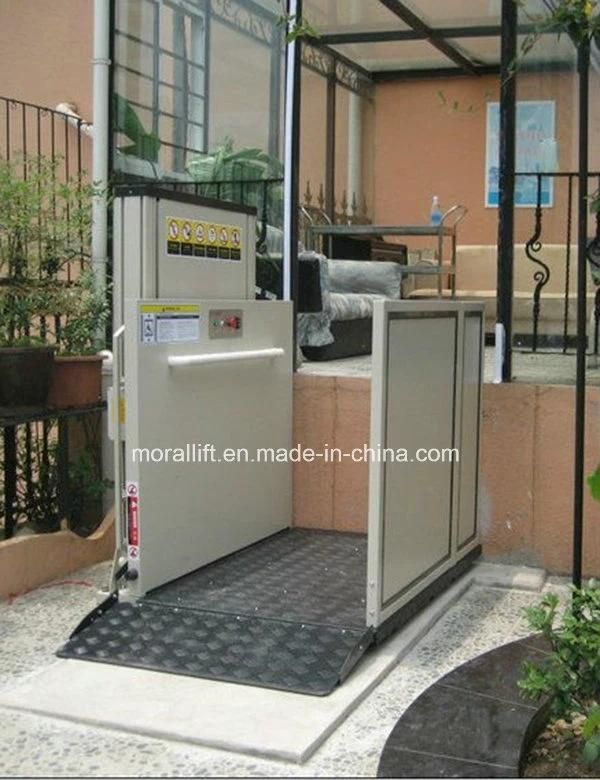

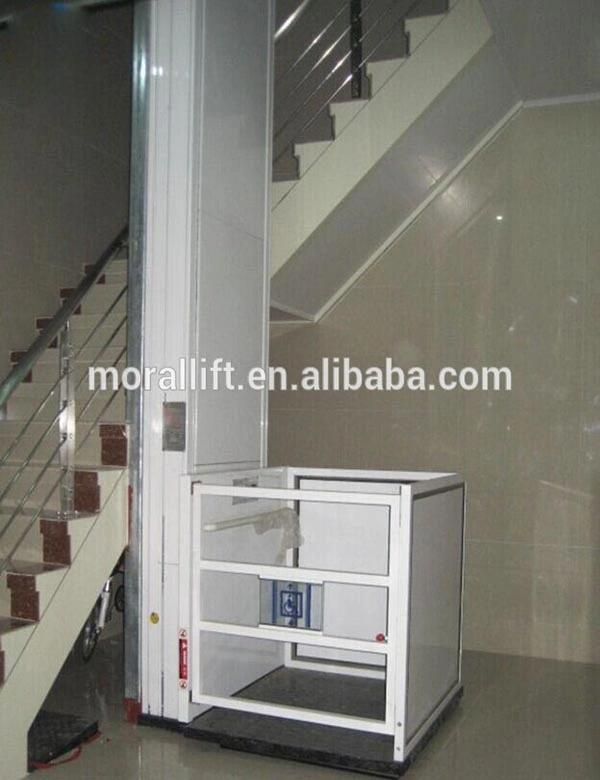

Product photos:
