• Model NO.：SJD0.5-10
• Feature：Explosion-Proof
• Certification：CE
• Speed：100mm,S
• Load Capacity：2000kg or Customized
• Platform Size：2000*1500mm or Customized
• Lifting Height：3000mm or Customized
• Power：3kw
• Drive System：Hydraulic
• Platform Material：Non-Skid Diamond Steel Platform
• Safety：Wire Rope
• Control：Button,Remote Controls
• Color：Optional
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. SJD0.5-10 Feature Explosion-Proof Certification CE Speed 100mm/S Load Capacity 2000kg or Customized Platform Size 2000*1500mm or Customized Lifting Height 3000mm or Customized Power 3kw Drive System Hydraulic Platform Material Non-Skid Diamond Steel Platform Safety Wire Rope Control Button/Remote Controls Color Optional Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/Year

Product Description

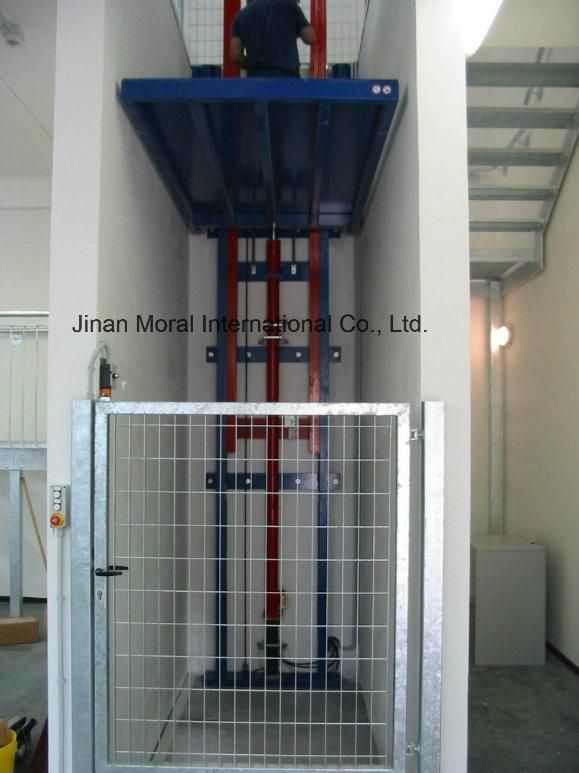

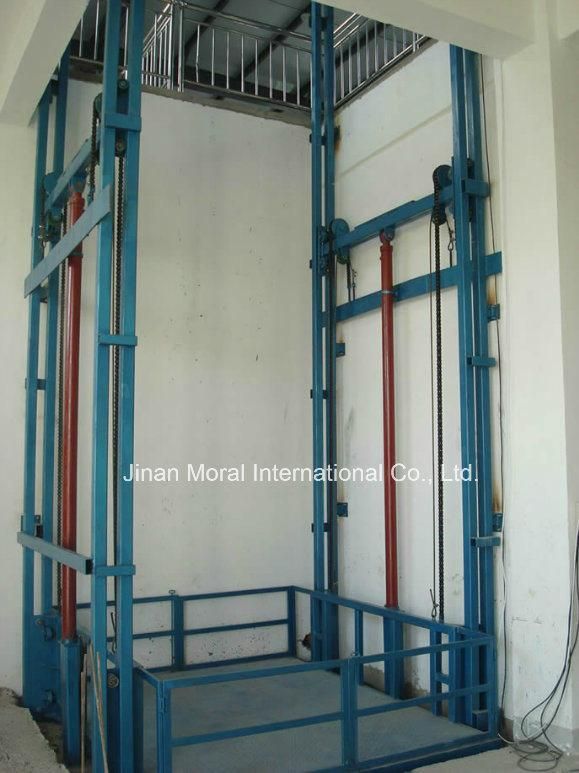

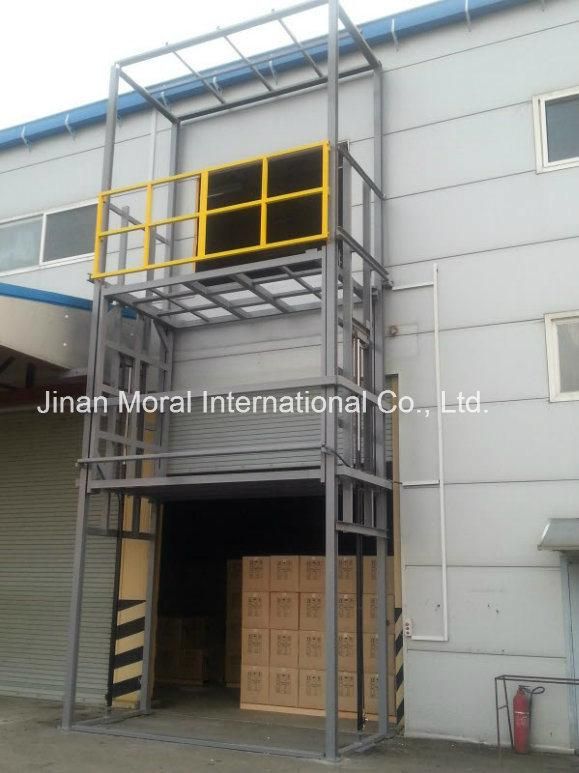

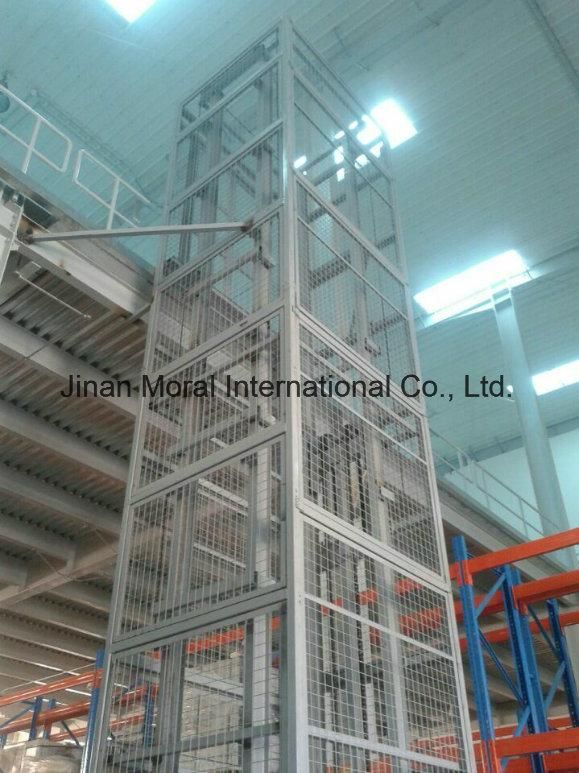

CE Approved Hydraulic Chain Goods Lift
Main feature
1)chain features lifting goods
2)hydraulic driven and lift by chain
3)steady up and down

Product induction
Vertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.

This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.

We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.

1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.

Parameters:

Model	Load	Platform size	Lifting height	Pit depth	Dimension
SJD 3-2.4	3T	2.0*2.0M	2.4M	300 MM	2.0*2.0*0.63M
SJD 2-5	2T	2.1*1.2M	5.0M	200 MM	2.1*1.2*0.87M
SJD 1-4.5	1T	2.1*1.5M	4.5M	200 MM	2.1*1.5*0.80M
SJD 5-6.5	5T	2.2*1.6M	6.5M	300 MM	2.2*1.6*1.28M
SJD3-6.5	3T	2.2*1.9M	6.5M	300 MM	2.2*1.9*1.52M
