Stair Climbing Used Hydraulic Vertical Wheelchair Lift (VWL)
Jinan Moral International Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：VWL
- Feature：Explosion-Proof
- Certification：CE
- Platform Size：1430*900mm
- Load Capacity：250--350kg
- Lifting Height：Max 10m
- Speed：70mm,s
- Power：2.2KW
- Drive：Hydraulic,Screw
- Control：Push button,remote control
- Installation：Fix to wall and ground
- Steel structure：Double-T steel
- Warranty：12 Months
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：MORAL,OEM
- Origin：Shandong. China
- HS Code：842890
- Production Capacity：500PCS,Year
Description
Basic Info.
Model NO. VWL Feature Explosion-Proof Certification CE Platform Size 1430*900mm Load Capacity 250--350kg Lifting Height Max 10m Speed 70mm/s Power 2.2KW Drive Hydraulic/Screw Control Push button/remote control Installation Fix to wall and ground Steel structure Double-T steel Warranty 12 Months Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong. China HS Code 842890 Production Capacity 500PCS/YearProduct Description
Stair Climbing Used Hydraulic Vertical Wheelchair LiftMiain Description:
1. Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2. It can be directly installed into the ground without architectural supporting pits and easy to operate.
3. Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4. Emergency Descending: When there is no power or malfunctions, manually descend the device
5. It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6. This machine max. Lifting height is 10,000mm
If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.
Parameters:
| Model | VWL |
| Load capacity | 300kg |
| Table size | 1430*900mm/customized |
| Lifting height | 3m/customized |
| Motor | 2.2KW |
| Power input | 220V/50HZ/ or customized local power |
| Speed | 70-100mm/s |
| Weight | 1050kg |

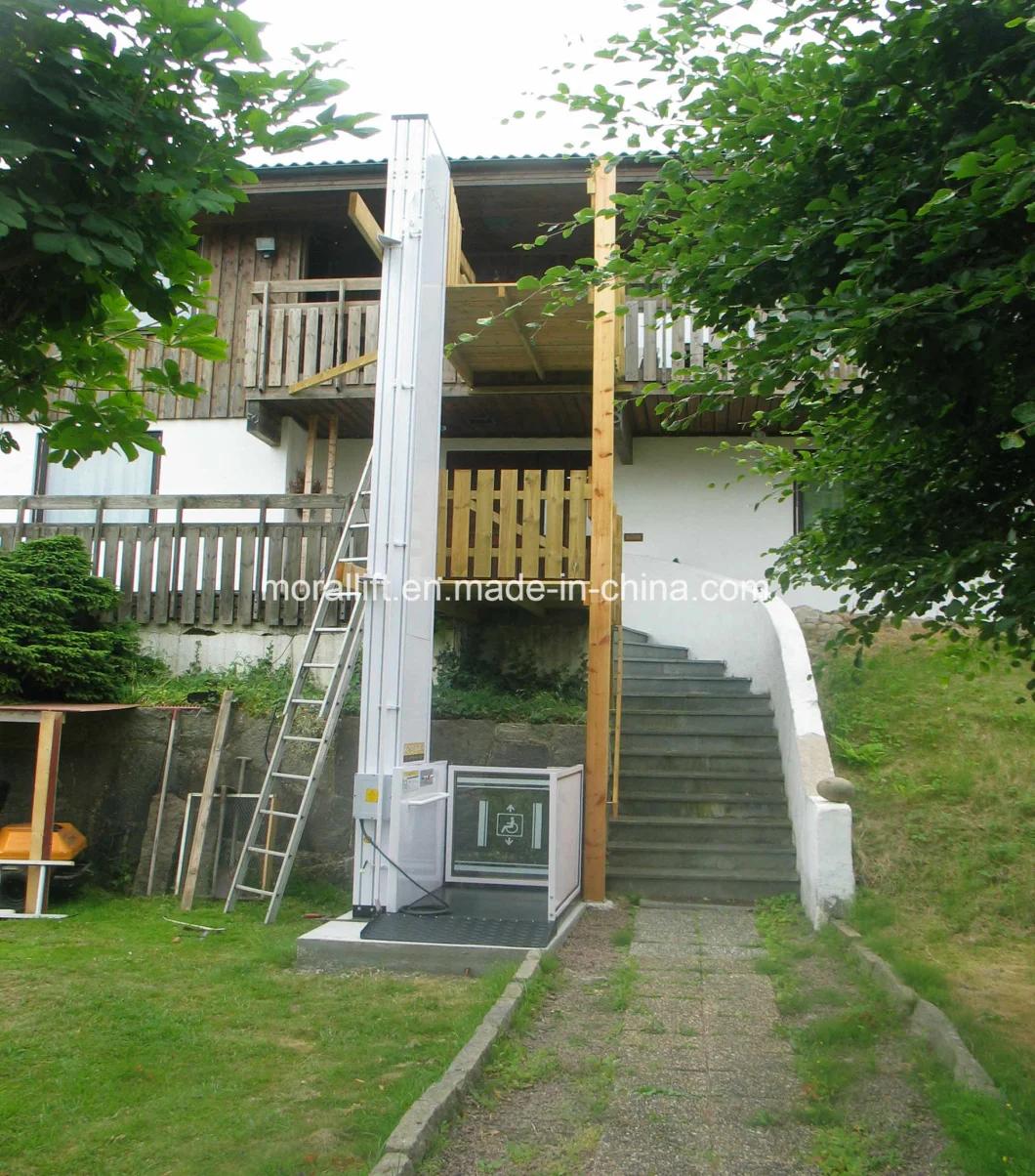

Pictures:
