• Model NO.：SOV-SMTB-24
• Certification：CE, ISO 9001:2000
• Condition：New
• Synchronous Points：24
• Synchronous Accuracy：Less Than 0.5mm
• Motor Power (Kw)：5.5
• Voltage (V)：380
• Working Pressure (MPa)：70
• Flow (L/Min)：5
• Oil Tank Capacity (L)：200
• Size (mm)：1100*960*1130mm
• Certificate：CE, ISO9001:2008
• Transport Package：Standard Export Wooden Case
• Specification：customize
• Trademark：SOV
• Origin：China
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. SOV-SMTB-24 Certification CE, ISO 9001:2000 Condition New Synchronous Points 24 Synchronous Accuracy Less Than 0.5mm Motor Power (Kw) 5.5 Voltage (V) 380 Working Pressure (MPa) 70 Flow (L/Min) 5 Oil Tank Capacity (L) 200 Size (mm) 1100*960*1130mm Certificate CE, ISO9001:2008 Transport Package Standard Export Wooden Case Specification customize Trademark SOV Origin China Production Capacity 50 Sets Per Month

Product Description

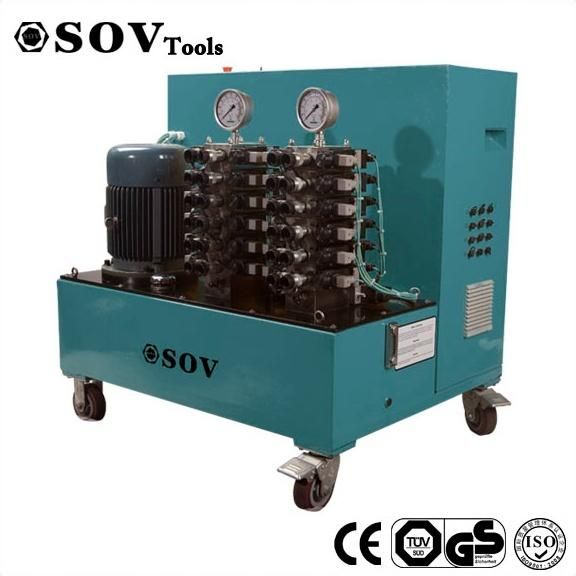

This system uses hydraulic driving, pressure and displacement closed-loop automatic control mode to realize multi-point control, widely used in replacement of highway bridge rubber bearings, overpass lifting, synchronous lifting of inland river bridge, equipment lifting and rectification etc.

System Composition and Main Principle:
This system is composed of 1 high pressure pump station, control valve groups, hydraulic cylinders, stroke monitoring devices, pressure monitoring devices and 1 set of electrical control system.
Hydraulic pump station controls the flow by on-off valve, depending on regulating the switch frequency to change the flow which achieves the purpose of output flow can be regulated continuously. Accurate control on the synchronization of each hydraulic cylinder in lifting and load balancing in weighing process can be achieved by matching with proper electric control device, to compose pressure and displacement closed-loop control.

Technical Parameters:
Displacement Synchronous Precision: <=±0.5mm
Power Supply: AC380V/50Hz ( 3 Phase)
Max. Working Pressure: 700Bar
Control Mode: Pulse-Width-Modulation
Operating Interface: Human-computer interface
Alarm device: Alarm lamp

Technical Parameters:

Model No.	Points	Synchronous Accuracy	Motor (kW)	Voltage (V)	Working Pressure (MPa)	Flow (L/min)	Oil Tank Capacity  (L)	Weight (kg)	Size (mm)
SOV-SMTB-4	4	<=±0.5	2.2	380	70	2	130	220	760×870×1210
SOV-SMTB-8	8	<=±0.5	2.2	380	70	2	130	240	760×870×1210
SOV-SMTB-12	12	<=±0.5	2.2	380	70	2	130	260	760×870×1210
SOV-SMTB-16	16	<=±0.5	5.5	380	70	5	200	380	1100×960×1130
SOV-SMTB-24	24	<=±0.5	5.5	380	70	5	200	432	1100×960×1130

Supporting the use of various types of low height hydraulic cylinders, applied to synchronous lifting and replacement of highway bridge rubber bearings.


Package and Delivery:
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery

Shipping Methods:
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Company information:

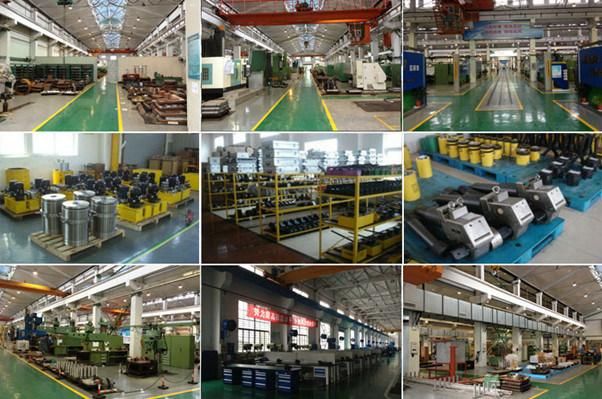

Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.


Certificate:
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Clients:
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Competitive Advantages:
1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc.

WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
