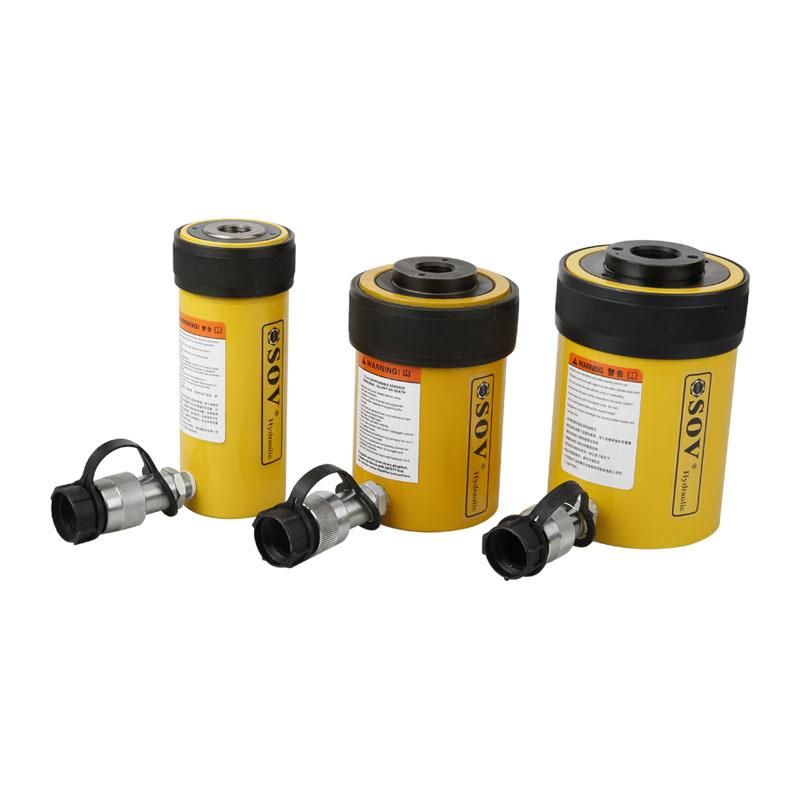

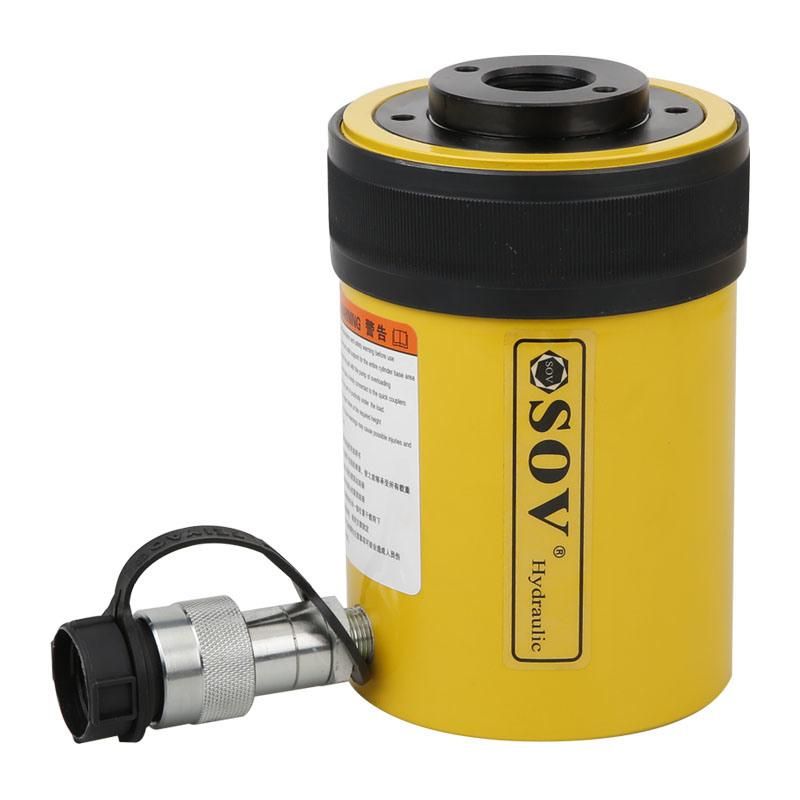

Single Acting Type Hydraulic Hollow Plunger Jack
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Type:Hydraulic Jack
- Structure:Hydraulic Jack
- Capacity (Load):11-20T
- Power Source:Hydraulic
- Max Height:63mm
- Certification:EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
Base Info
- Model NO.:SOV-RCH Series
- Condition:New
- Cylinder Capacity (Ton):13-100
- Stroke (mm):8-155
- Collapsed Height(mm):55-330
- Outside Diameter (mm):69-212
- Plunger Diameter Diameter(mm):35.1-127
- Center Hole Diameter:19.6-79
- Weight (Kg):1.5-63
- Working Pressure(Bar):700
- Return Type:Spring Return
- Transport Package:Standard Export Wooden Box
- Specification:CE, ISO, SGS
- Trademark:SOV
- Origin:China
- HS Code:8412210000
- Production Capacity:5000sets Per Month
Description
ModelCapacity Working Pressure Coll. Height
A Stroke Effective Area Center Hole Dia.
Y Oil
Capacity Outside Diameter
D Plunger Dia.
F Weight (T) (MPa) (mm) (mm) (cm2) (mm) (cm3) (mm) (mm) (kg) SOV-RCH-120 13 70 55 8 17.9 19.6 14 69 35.1 1.5 SOV-RCH-121 120 42 17.9 19.6 75 69 35.1 2.8 SOV-RCH-123 184 76 17.9 19.6 136 69 35.1 4.4 SOV-RCH-202 20 70 162 49 30.7 26.9 150 98 54.1 7.7 SOV-RCH-206 306 155 30.7 26.9 476 98 54.1 14.1 SOV-RCH-302 30 70 178 64 46.6 33.3 298 114 63.5 10.9 SOV-RCH-306 330 155 46.6 33.3 722 114 63.5 21.8 SOV-RCH-603 60 70 247 76 82.3 53.8 626 159 91.9 28.1 SOV-RCH-606 323 153 82.3 53.8 1259 159 91.9 35.4 SOV-RCH-1003 100 70 254 76 133.0 79.0 1011 212 127 63.0

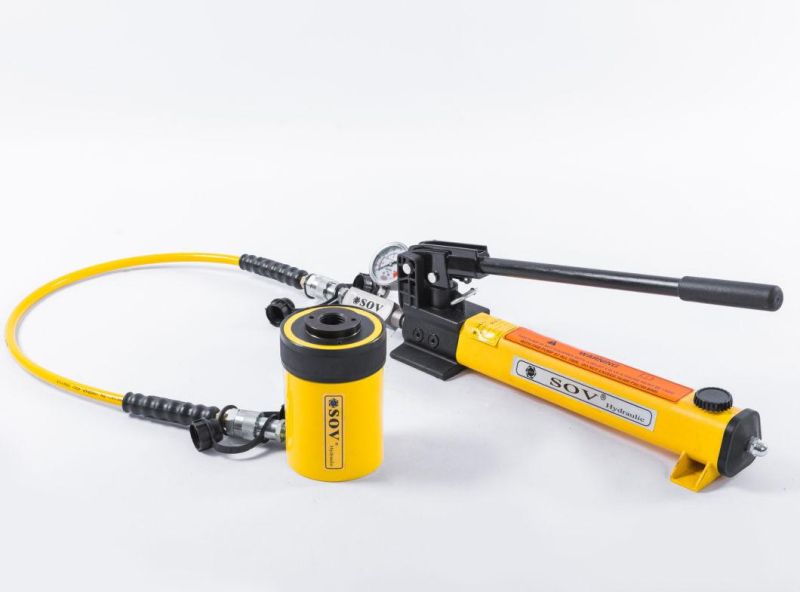

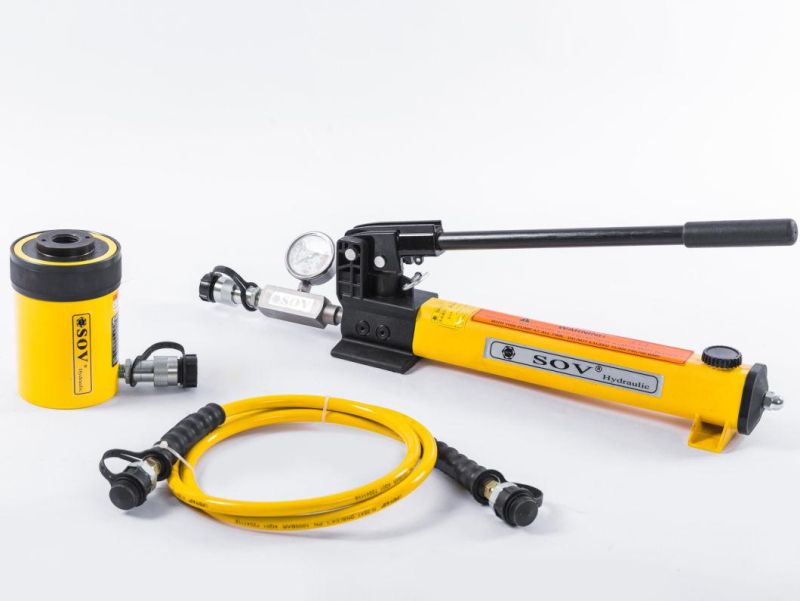

Photos

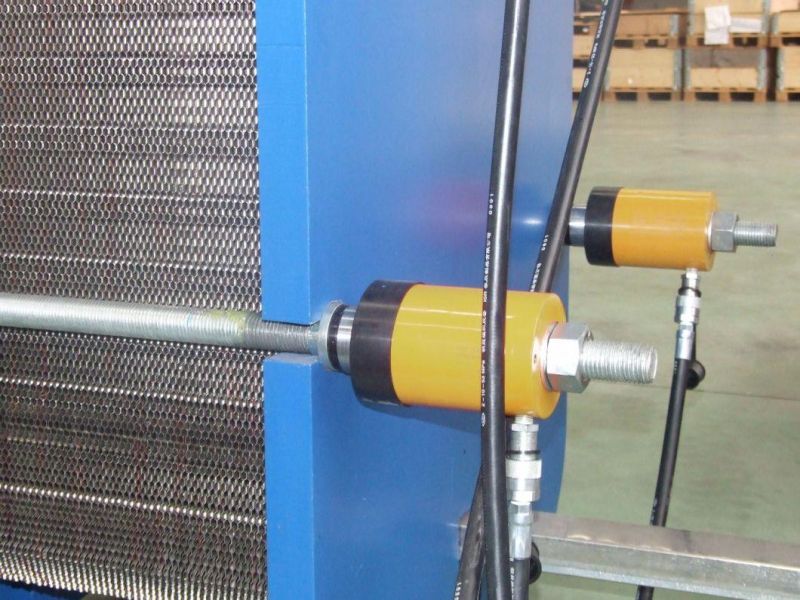

Application: use for massive heat exchanger's assembling

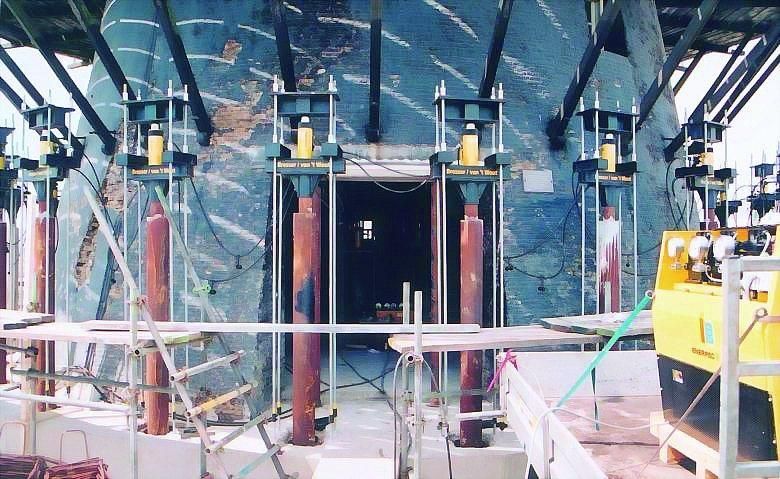

Application: Synchronous Lifting for massive windmill translation
Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

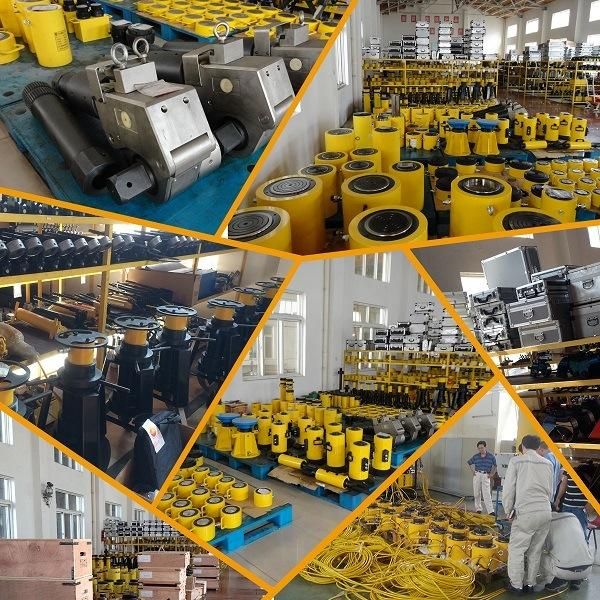

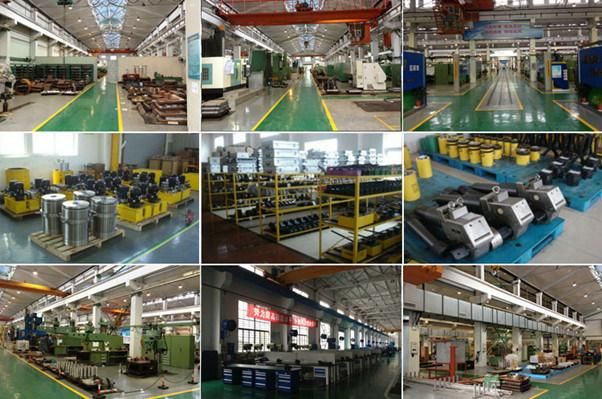

Company Information
SOV is a professional manufacturing in hydraulic tools and products, we have been in the industry for more than 20 years.Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.

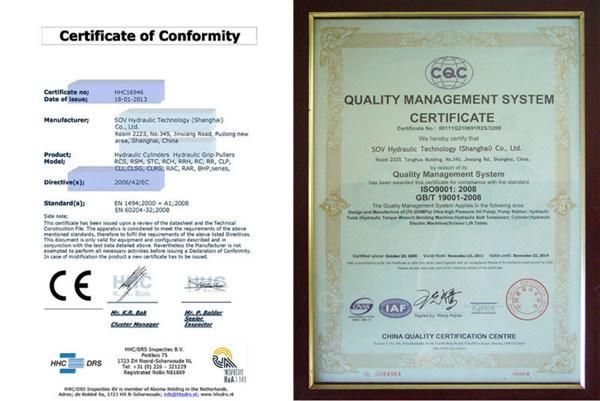

Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
