• Model NO.：ZT-TSD15
• Condition：New
• Cylinder Stroke：500mm
• Working Loading：15-100t
• Pressure：31.5MPa
• Number of Strands：1-66
• Transport Package：Wooden Box
• Specification：4 cubic meters
• Trademark：Zhongtuo
• Origin：China
• HS Code：8425491000
• Production Capacity：50piecces,Month

Basic Info.

Model NO. ZT-TSD15 Condition New Cylinder Stroke 500mm Working Loading 15-100t Pressure 31.5MPa Number of Strands 1-66 Transport Package Wooden Box Specification 4 cubic meters Trademark Zhongtuo Origin China HS Code 8425491000 Production Capacity 50piecces/Month

Product Description

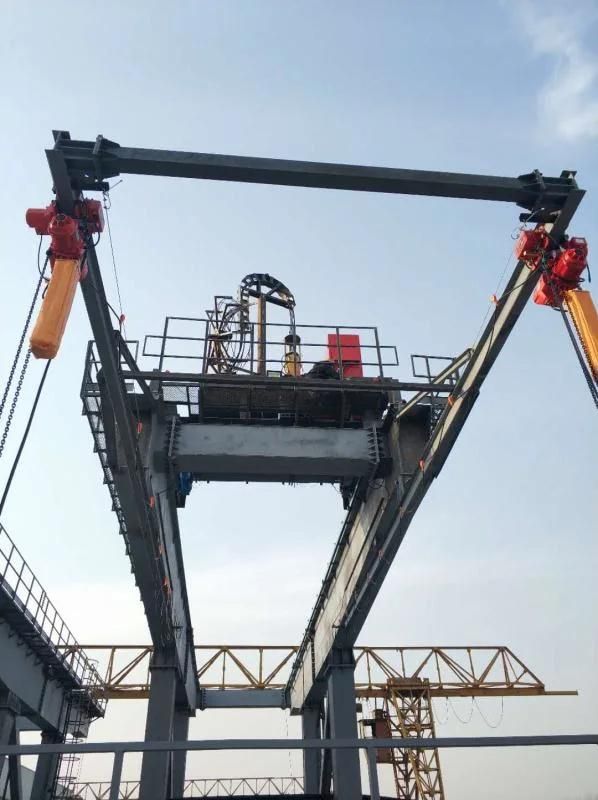

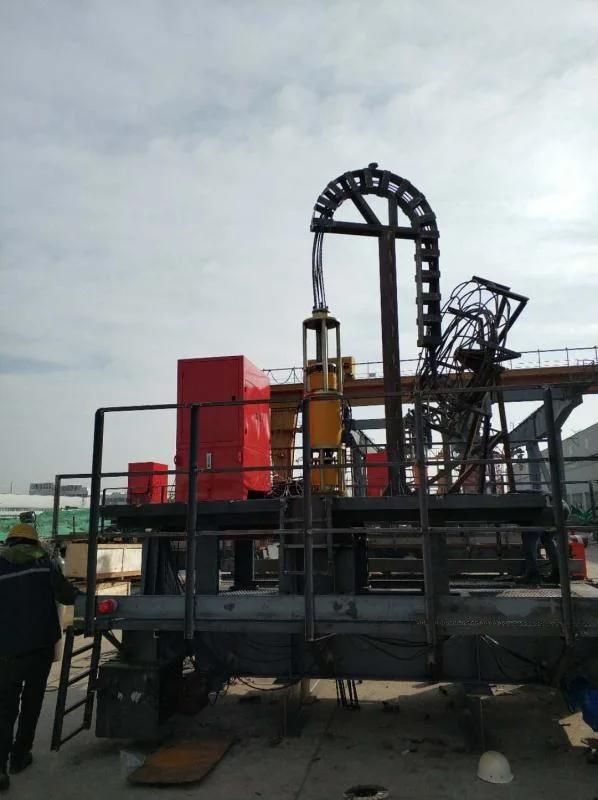

Description of lifting strand jacks:

The hydraulic pumping station is a power equipment. The load-bearing is suspended by steel strands. The upper and lower grippers (automatic tool anchors) are alternately operated and the relative movement of the jack piston and the oil cylinder along the steel strands is made to raise the weight (continuous translation). Or a moderate amount of decline. The principle is to integrate the prestressed anchor anchoring technology with the hydraulic jack technology, anchor the steel strand through the anchor, and then use the computer to centrally control the flow and oil pressure output of the hydraulic pump station (proportional valve, reversing valve, etc.) The device drives the jack piston to extend and contract (displacement sensor device), and drives the steel strand and the component to rise, descend and continuously translate, so as to realize the overall synchronous lifting (translation) and proper amount of large components, and the system has a strong construction site. Adaptability and reliability.


Parameter of lifting strand jacks:

model	Safe working load	Working pressure MPA	Cylinder stroke mm	Retraction height mm	Jack weight KG	Fixed anchor weight KG	boost speed m/h	Number of strands	Strand diametermm
ZT-TSD15	15	31.5	500	1846	148	3.2	0-25	1	18
ZT-TSD45	45	31.5	500	1726	600	28	0-25	3	18
ZT-TSD60	60	31.5	500	1726	630	32	0-25	4	18
ZT-TSD100	100	31.5	500	1790	930	46	70-25	7	18
ZT-TSD180	180	31.5	500	1886	1560	90	0-25	12	18
ZT-TSD280	280	31.5	500	1938	2330	130	0-25	19	18
ZT-TSD300	300	31.5	500	1940	2460	140	0-25	20	18
ZT-TSD400	400	31.5	500	2100	3396	220	0-25	27	18
ZT-TSD580	580	31.5	500	2220	4980	260	0-25	38	18
ZT-TSD680	680	31.5	500	2180	5410	320	0-25	45	18
ZT-TSD800	800	31.5	500	2200	6880	360	0-25	54	18
ZT-TSD1000	1000	31.5	500	2286	8520	560	0-25	66	18

FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

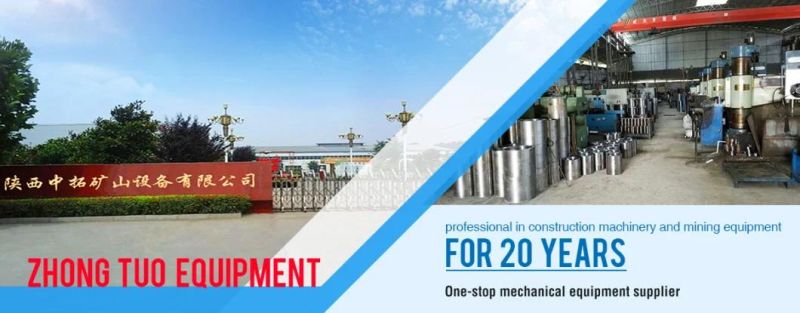

About Our Factory:


About the products:



Packing and Shipping:

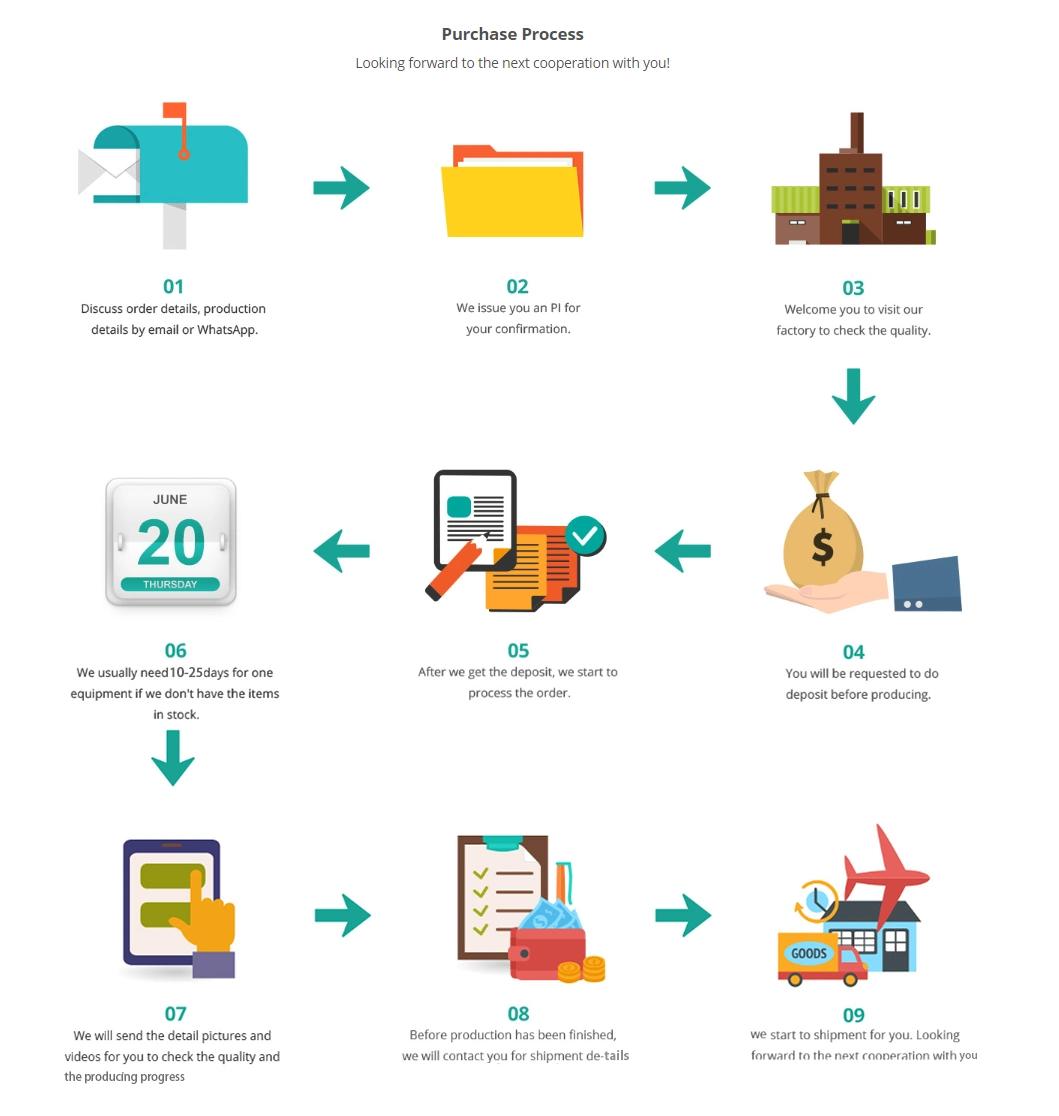

Purchase Process:

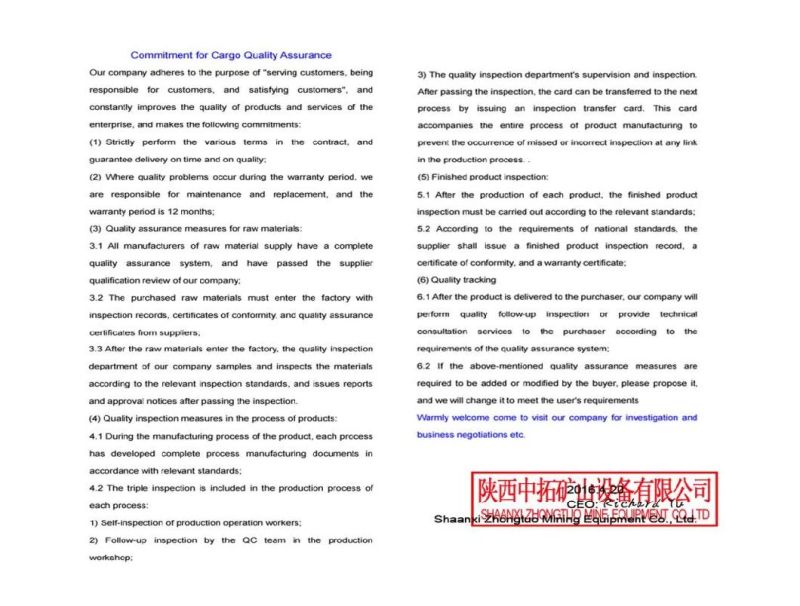

About the Quality:
