• Model NO.：SOV-RC Series
• Certification：CE, ISO 9001:2008
• Condition：New
• Name：100 Ton Spring Return Hydraulic Cylinder
• Cylinder Capacity Ton (Kn)：5 (45)-95 (933)
• Stroke(mm)：16-365
• Cylinder Effective Area(Cm2)：6, 5-133, 3
• Oil Capacity(Cm3)：10-1202
• Collapsed Height(mm)：41-492
• Weight(Kg)：1-72.6
• Color：Yellow or Black
• Delivery Time：15 Days After Receive Payment
• Transport Package：in a Wooden Case
• Specification：CE, ISO9001
• Trademark：SOV, Can OEM
• Origin：China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

Model
NumberCylinder
CapacityStrokeCylinder
Effective
AreaOil
CapacityCollapsed
HeightWeight ton (kN)mmcm2cm3mmkgSOV-RC-50**5
(45)166,510411SOV-RC-51256,5161101SOV-RC-53766,5501651,5SOV-RC-55*1276,5832151,9SOV-RC-571776,51152732,4SOV-RC-592326,51513232,8SOV-RC-10110
(101)2614,538891,8SOV-RC-102*5414,5781212,3SOV-RC-10410514,51521713,3SOV-RC-106*15614,52262474,4SOV-RC-10820314,52942985,4SOV-RC-1010*25714,53733496,4SOV-RC-101230414,54414006,8SOV-RC-101435614,55164508,2SOV-RC-15115
(142)2520,3511243,3SOV-RC-1525120,31041494,1SOV-RC-154*10120,32052005SOV-RC-156*15220,33082716,8SOV-RC-15820320,34113228,2SOV-RC-151025420,35163739,5SOV-RC-151230520,361942310,9SOV-RC-151435620,372347411,8SOV-RC-25125
(232)2633,2861395,9SOV-RC-252*5033,21661656,4SOV-RC-254*10233,23392158,2SOV-RC-256*15833,252527310SOV-RC-25821033,269732312,2SOV-RC-251026133,286737414,1SOV-RC-251231133,2103342516,3SOV-RC-2514*36233,2120247617,7SOV-RC-30830 (295)20942,188038718,1SOV-RC-50250
(498)5171,236217615SOV-RC-50410171,271922719,1SOV-RC-506*15971,2113128223,1SOV-RC-501333771,2239946037,6SOV-RC-75675
(718)156102,6160128529,5SOV-RC-7513333102,6341749259SOV-RC-100695
(933)168133,3223935759SOV-RC-10010260133,3346644972,6
SOV RC Series hydraulic cylinders set the industry standard for general purpose cylinders.
§  Unique GR2 Bearing Design, reduces wear, extending life
§  Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
§  Designed for use in all positions
§  High strength alloy steel for durability
§  Redesigned cylinder thread protector for ease of use
§  Heavy-duty, pretensioned spring improves retraction speed
§  Baked enamel finish for increased corrosion resistance
§  CR-400 coupler and dust cap included on all models
§  Plunger wiper reduces contamination, extending cylinder life

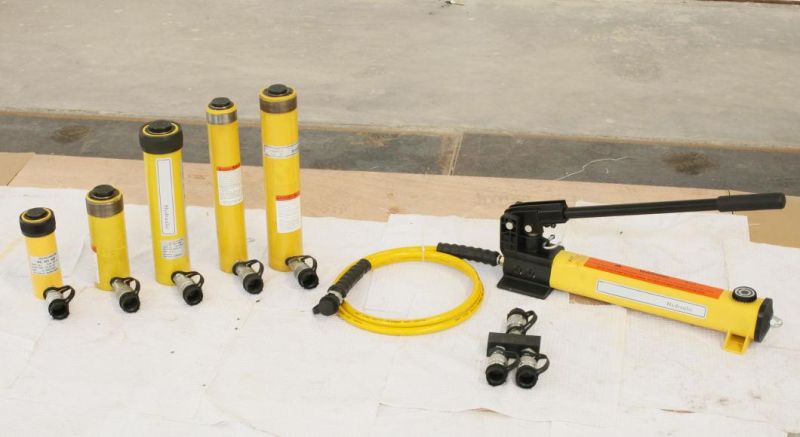

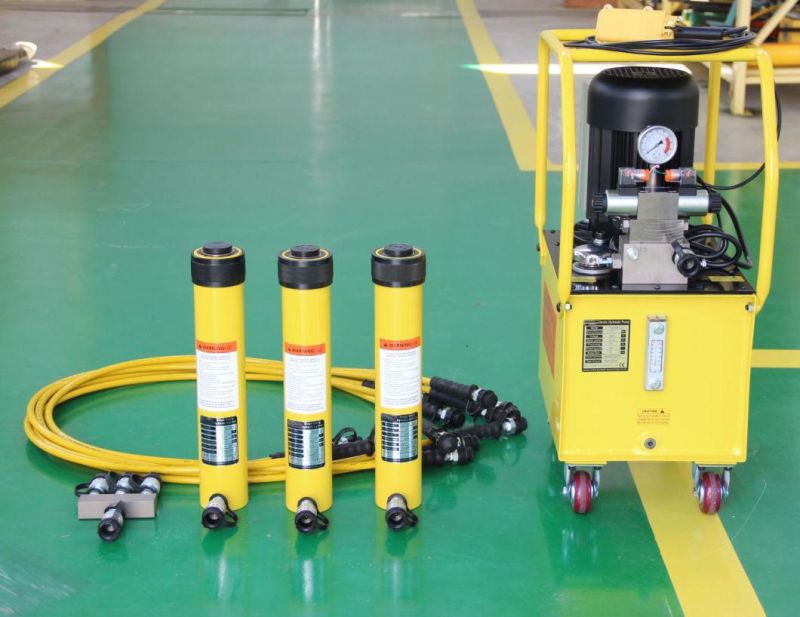

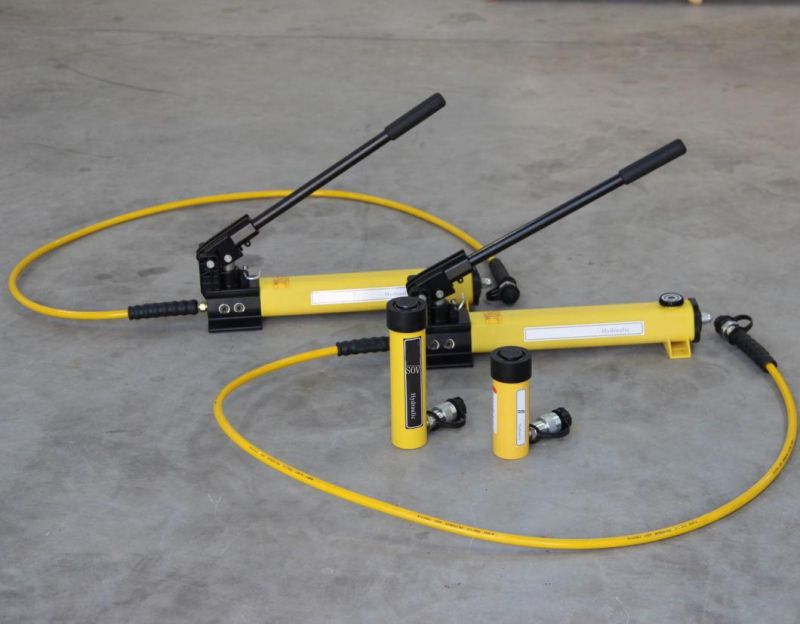

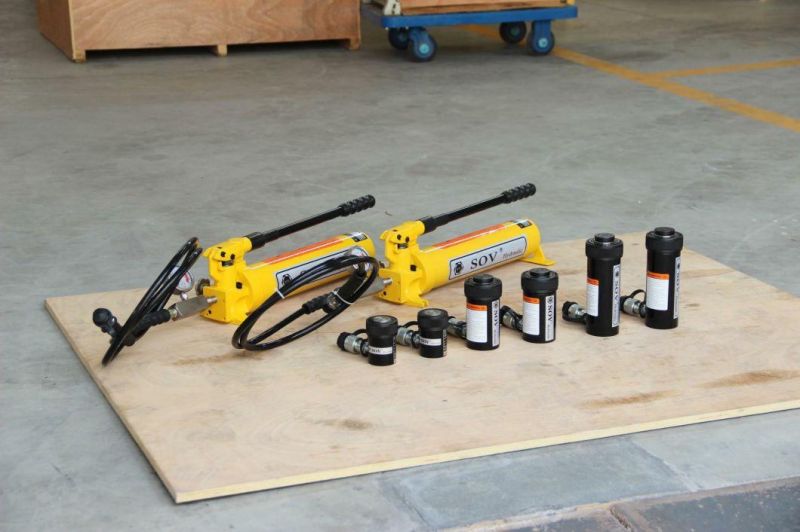

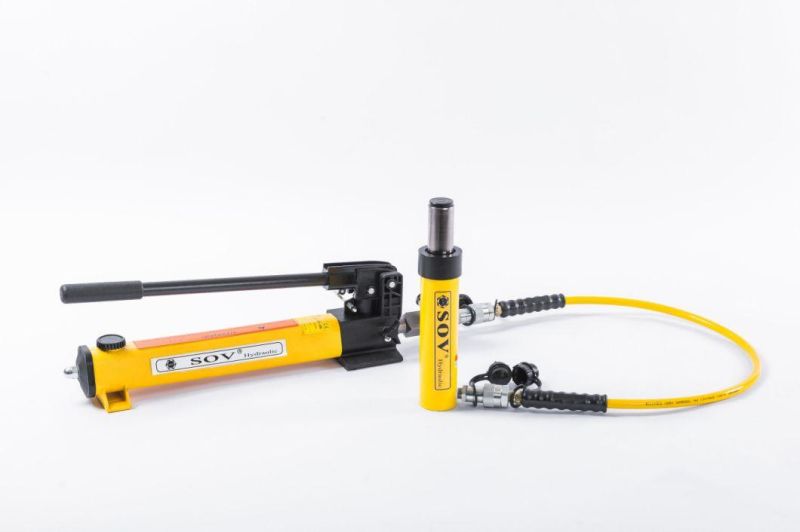

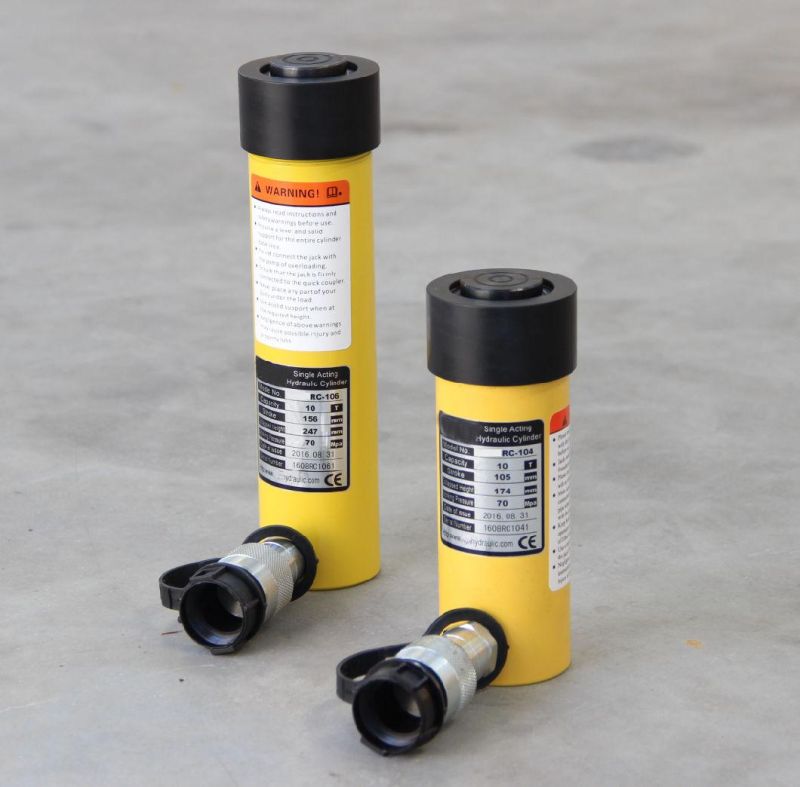

Photos

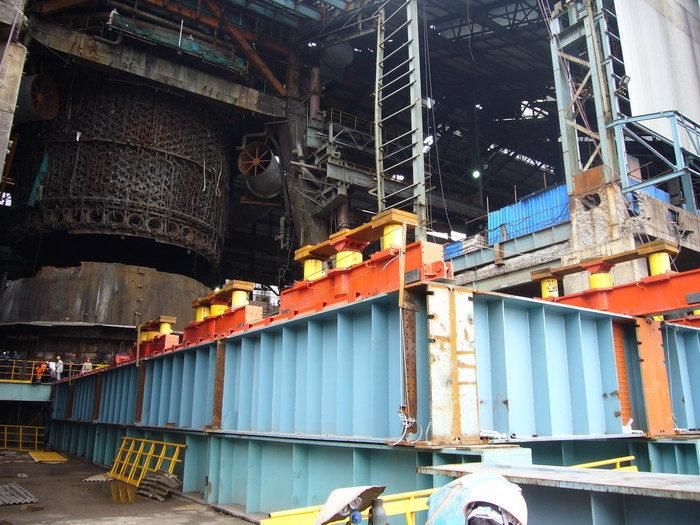

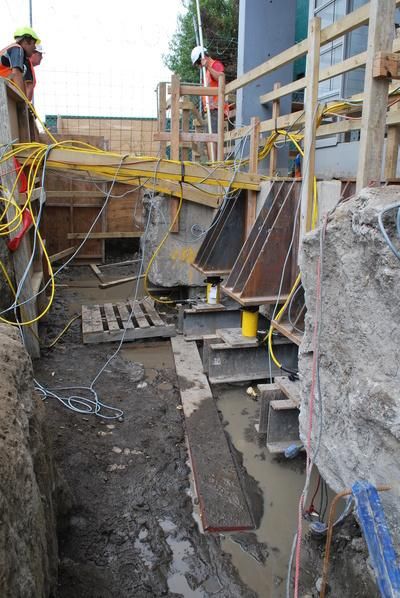

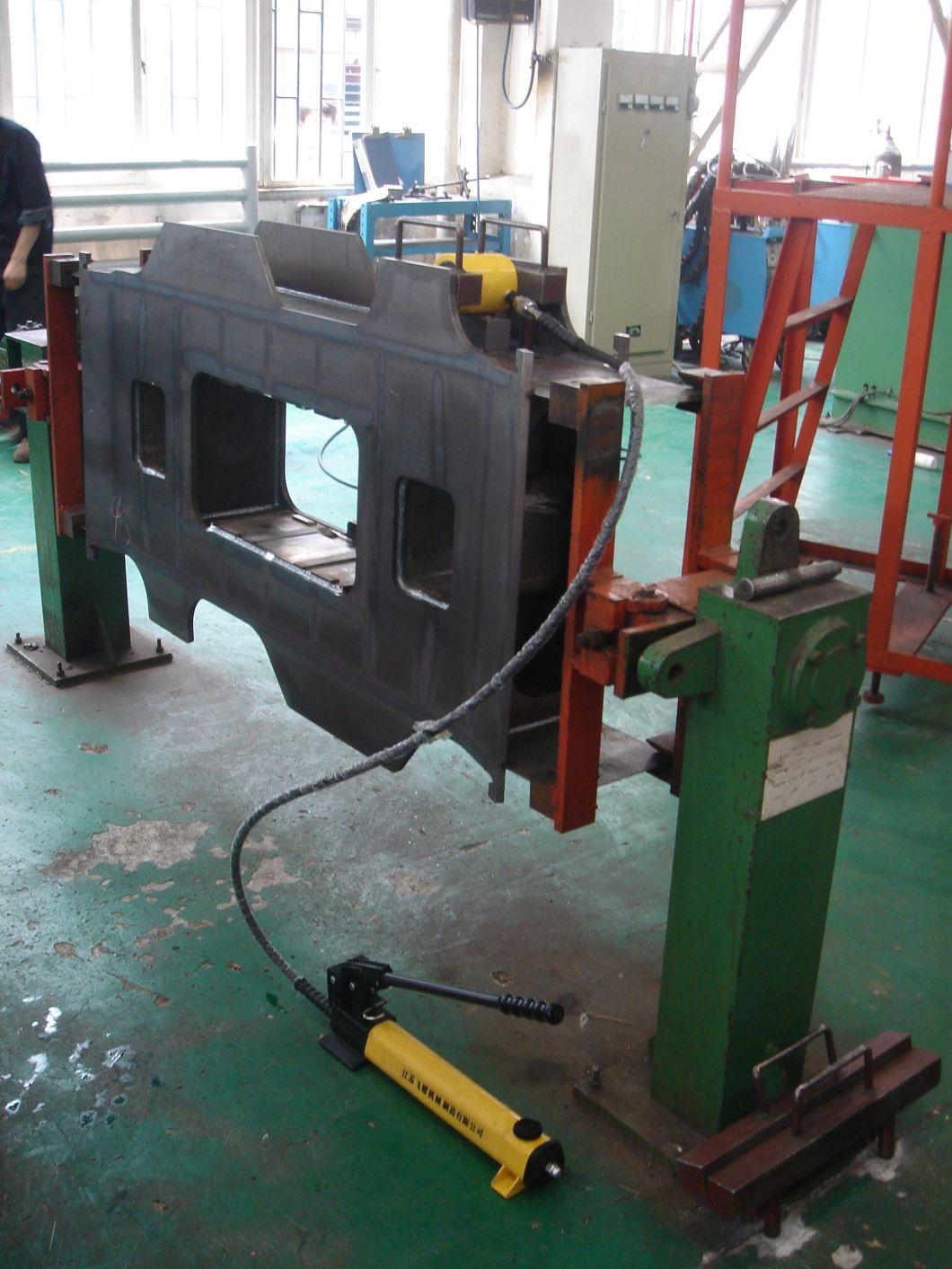

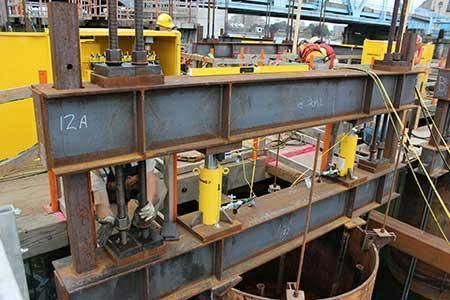

Applications






Packing&Shipping

Packing: wooden case
Shipping: by express, such as FEDEX, UPS, DHL, TNT. By sea or air.

Company information:

SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.
SOV has always been focusing on providing customers with the most stable and the safest hydraulic tools and helping customers to achieve the maximum efficiency with our suggested hydraulic solution. SOV earned good reputation from Chinese local market and international market for the following SOV main product lines,

 Hydraulic Cylinder (5ton-3000ton). --Single Acting--Double Acting--Hollow Plunger.
 PLC Based Synchronous Lift Systems( 4-72 lift pointes for house translation or leveling, bridge supporting and tank welding supporting, etc.)
 Hydraulic/ Electric /Pneumatic Torque Wrench (100Nm-160000Nm).
 Hydraulic Bolt Tensioner (M24-M600).
 Hydraulic Nut.
 Hydraulic puller (5-1000 ton).
 Hydraulic pump. --Hand and Electric Type (Max Up To 4000Bar).
 Hydraulic Hose, Quick Coupling, Manifold and other hydraulic tools accessories.

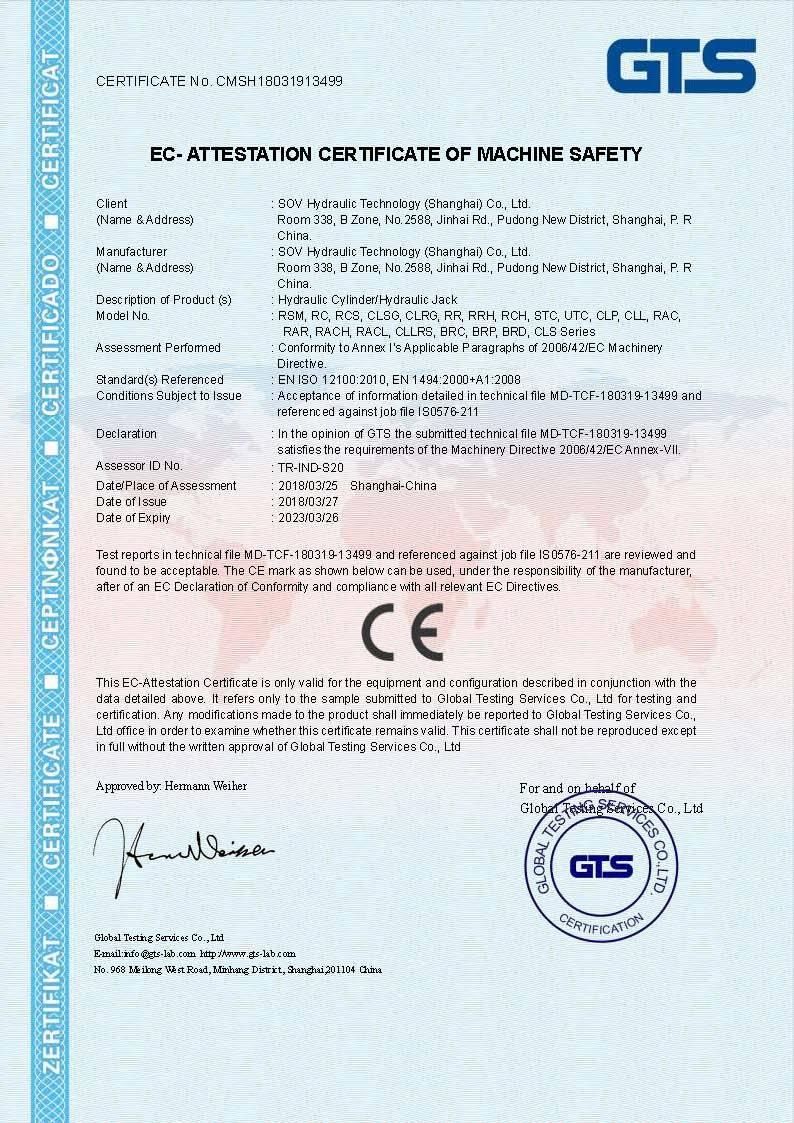

Certificate
