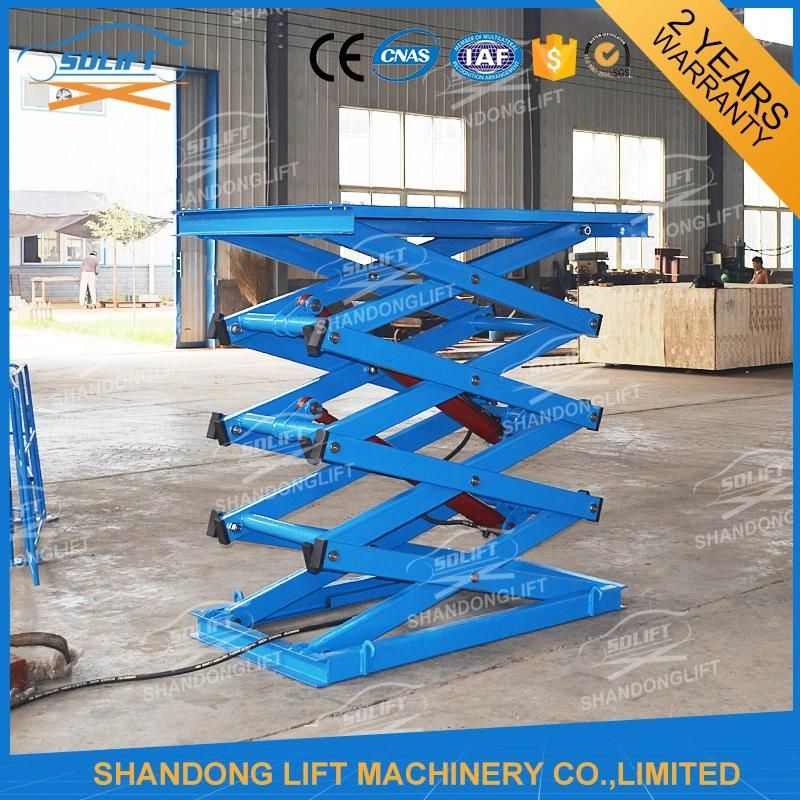

Warehouse Hydraulic Scissor Lift Rental
Shandong Lift Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJG2-4.5
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Item：Hydraulic Scissor Lift
- Lift Drive / Actuation：Hydraulic
- Safety Device：Explosion-Proof Lock Valve
- Voltage：110V 220V 240V 380V Optional
- Material：High Strength Manganese Steel
- Table Size：1800X2000mm
- Weight：2ton
- Max. Lifting Height：4500mm
- Min. Lifting Height：600mm
- Power：3.0kw-11kw
- Transport Package：Solid Iron Case or Plywood Case Package
- Specification：CE ISO9001 SGS
- Trademark：SDLIFT
- Origin：Shandong, China (Mainland)
- Production Capacity：2000sets,Year
Description
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered anti-slip plate
2) Support scissors: 160mm*80mm*6mm high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: 90*4sets high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: 50*4 hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

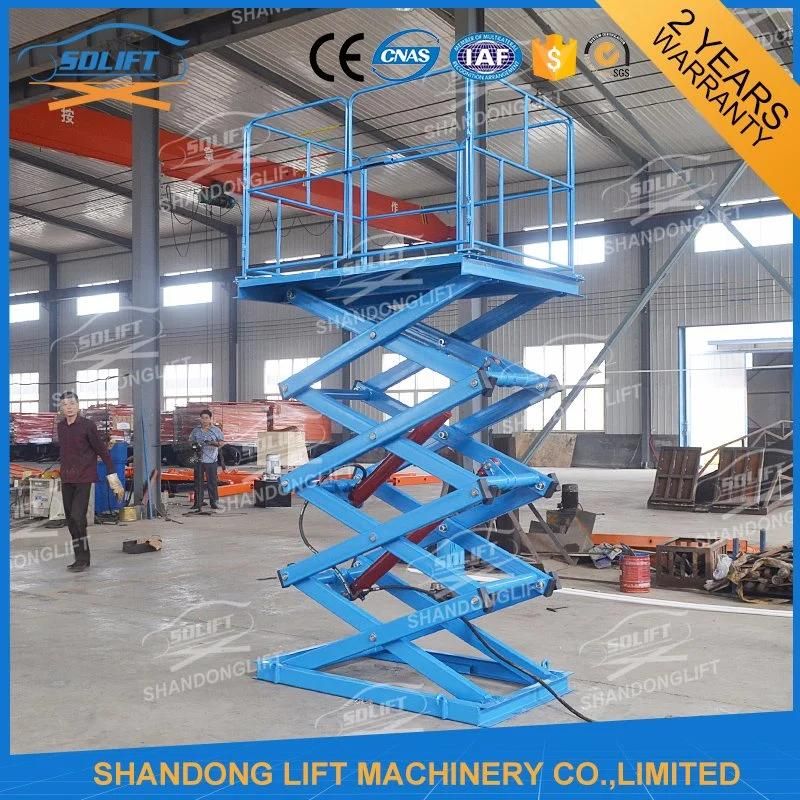

2) The safety rails to guarantee safety of the goods above stationay lifting scissor lift .
3) Equipped 4 guide rails, to ensure the stationay lifting scissor lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic scissor lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the hydraulic scissor lift are passed 1.2 times loading test before leaving factory.
Our services:
1) We can design the hydraulic scissor lift as per your requirement.
2) The most suitable hydraulic scissor lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
