• Model NO.：SJG2-4.5
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Item：Warehouse Elevator Lift
• Lift Drive / Actuation：Hydraulic
• Safety Device：Explosion-Proof Lock Valve
• Material：High Strength Manganese Steel
• Table Size：1800X2000mm
• Load Weight：2 Ton
• Max. Lifting Height：4500mm
• Min. Lifting Height：600mm
• Transport Package：Solid Iron Case or Plywood Case Package
• Specification：CE ISO9001 SGS
• Trademark：SDLIFT
• Origin：Shandong, China (Mainland)
• HS Code：842890
• Production Capacity：1200sets,Year

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG0.3-2

0.3T

1.5m X 1.5m

2m

400mm

220V, 240V or 380V

SJG0.5-3

0.5T

2m X 1.8m

3m

500mm

220V, 240V or 380V

SJG2.5-5

2.5T

5.6m X 3m

5m

800mm

220V, 240V or 380V

SJG3-2.5

3T

5m X 2.3m

2.5m

750mm

220V, 240V or 380V

SJG3-3

3T

5.2m X 2.6m

3m

800mm

220V, 240V or 380V

SJG3-3.5

3T

5.6m X 2.7m

3.5m

800mm

220V, 240V or 380V

SJG5-10

5T

4.5m X 2.5m

10m

1150mm

220V, 240V or 380V

SJG8-2.5

8T

6.5m X 4.5m

2.5m

850mm

220V, 240V or 380V

SJG12-3

12T

5.5m X 2.8m

3m

950mm

220V, 240V or 380V

SJG15-4.5

15T

8m X 2.2m

4.5m

1150mm

220V, 240V or 380V

SJG20-5

20T

6m X 3m

5m

1200mm

220V, 240V or 380V

The Cargo Elevator Warehouse Elevator Lift can be customized as your detailed size.

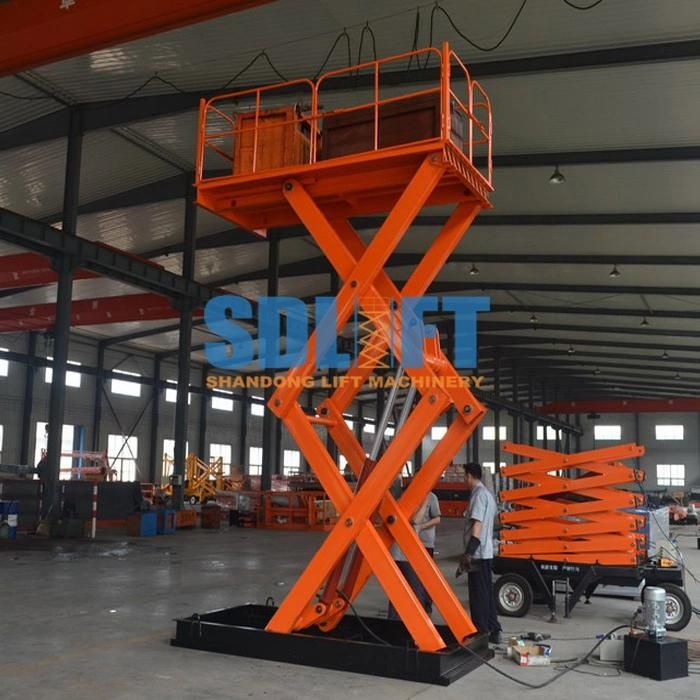

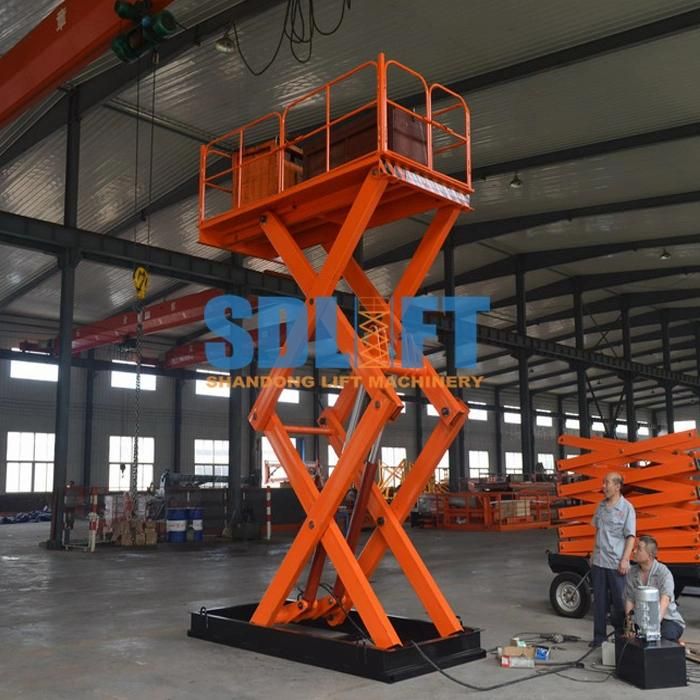

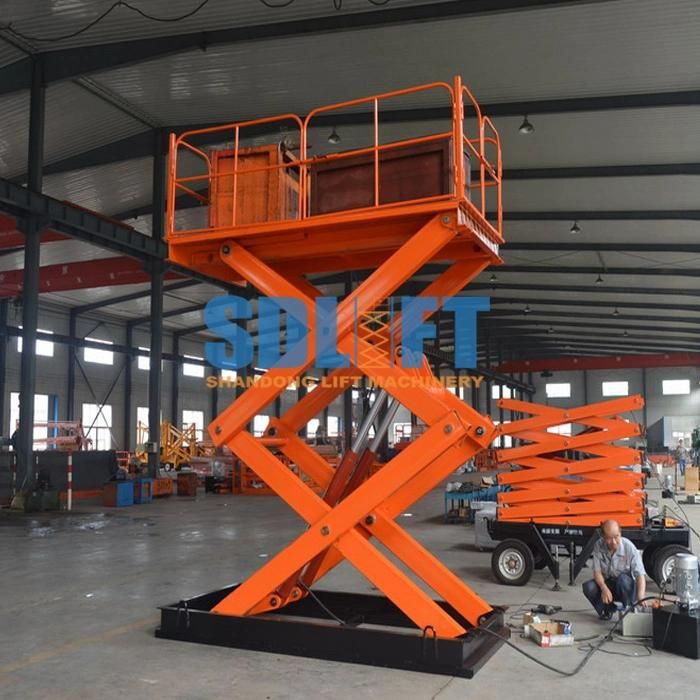

Product pics:





Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the Warehouse Elevator Lift runs more smoothly and steadily.
4) The limit switch system helps the Cargo Elevator Warehouse Elevator Lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the Cargo Elevator Warehouse Elevator Lift are passed 1.2 times loading test before leaving factory.

The customers visiting:

The Certificates:
