• Model NO.：JTH200
• Condition：New
• Structures：Acme Screw, Worm and Worm Gear, Gearbox, Bearings
• Acme Screw Diameter：70mm
• Gear Ratios：1,7, 1,28
• Stroke：Non Standard, Customized
• Screw Ends：Top Plate, Clevis End, Plain End, Threaded End
• Configurations：Translating, Keyed for Non-Rotating, and Rotating
• Installation Types：Upright, Inverted
• Input Types：Standard Input Shafts, Motor Flange
• Drive Types：Manually, Electrically
• Loads Types：Tension Load, Compression Load
• System Arrangements：Single, Pair or Multiple Units Lifting Systems
• Assembly Drawing：3D Model, 2D Drawing
• Transport Package：Standard Exporting Plywood Cases
• Specification：JTH200
• Trademark：JACTON
• Origin：Made in China
• HS Code：8428909090
• Production Capacity：6855PCS Per Month

Basic Info.

Model NO. JTH200 Condition New Structures Acme Screw, Worm and Worm Gear, Gearbox, Bearings Acme Screw Diameter 70mm Gear Ratios 1/7, 1/28 Stroke Non Standard, Customized Screw Ends Top Plate, Clevis End, Plain End, Threaded End Configurations Translating, Keyed for Non-Rotating, and Rotating Installation Types Upright, Inverted Input Types Standard Input Shafts, Motor Flange Drive Types Manually, Electrically Loads Types Tension Load, Compression Load System Arrangements Single, Pair or Multiple Units Lifting Systems Assembly Drawing 3D Model, 2D Drawing Transport Package Standard Exporting Plywood Cases Specification JTH200 Trademark JACTON Origin Made in China HS Code 8428909090 Production Capacity 6855PCS Per Month

Product Description

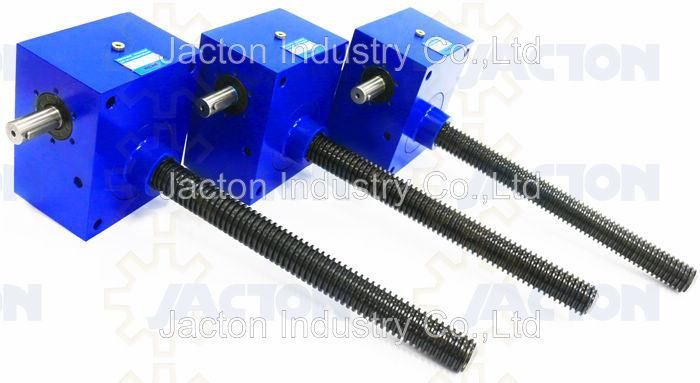

200kN Cubic-type Metric Machine Screw Jacks - Through Mounting Holes
The cubic-type screw jacks are lifting elements that have enjoyed great popularity among users for decades due to their shape and characteristics. The screw drives from our own production, paired with high-quality worm gearboxes, result in screw jacks with outstanding properties in terms of lifting power and smoothness.

200kN Cubic-type Metric Machine Screw Jacks Features:
* Self locking lifting screw, precise positioning, and uniform speed.
* Static load capacity 200 kN.
* Lifting screw diameter 70 mm.
* No standard travel length, custom-made stroke.
* Upright or Inverted mounting. Available in tension or compression loads.
* Translating, Keyed for non-rotating, and Rotating designs.
* Each Model has TWO gear ratios, they are 1/7, 1/28.
* Standard with 1-start lifting screw, custom 2-starts lifting screw which offers increased travel speed and require a brake or external locking device to hold position.
* Custom-made lifting screw diameter and pitch, gear ratios, and worm shaft sizes.
* Lifting Screw Ends: top plate, clevis end, plain end, threaded end, fork end, rod end.
* Can be operated by manual operation or by electric driven.
* Can be applied either individually use or combined into a exactly synchronized lifting system, linked by connecting shafts, bevel gearboxes, motor adapters, limit switches, geared motor and couplings etc.
* Custom-made double clevis screw jack, anti-backlash screw jack.
* Can be used as alternatives to hydraulic and pneumatic systems.

200kN Cubic-type Metric Machine Screw Jacks Materials:
* Housing(Gearbox): Ductile Iron.
* Lifting Screw: Carbon steel #45. Custom stainless steel.
* Worm(Input Shaft): Hardened worm, carbon steel #45. Custom stainless steel.
* Worm Gear(Wheel): High strength bronze.
* Travelling Nut and Safety Nut: High strength bronze.

200kN Cubic-type Metric Machine Screw Jacks Accessories:
* Motorized driven (AC or DC) by asynchronous motors (normal, YEJ brake, YVP variable frequency, B explosion proof, D multi-speed), stepper motors, servo motors with encoders and controllers. IEC motor flange or NEMA C-Face motor adapter for connect with motors. Frequency inverters.
* Manually operated by Aluminum handwheels, or Cast iron handwheels.
* Connection Devices: Couplings. Universal joints. Telescopic universal joints. Connecting shafts.
* Screw Protective Devices: Bellows boot. Telescopic spring covers. Protective tubes.
* Safety Devices: Limit switches. Proximity switches. Safety nuts. Anti-backlash nut. Overload safety couplings. Stop nuts. Position Encoders. Overload clutch. Brake motor. Linear braking elements. Wear detection/monitors. Linear guides and rails. Potentiometer. Pressure sensor.
* Others Accessories: Travel nuts. Position indicators. Trunnion adapter plates. Trunnion mounting brackets. Pillow blocks. Flange blocks. Rod end bearings.

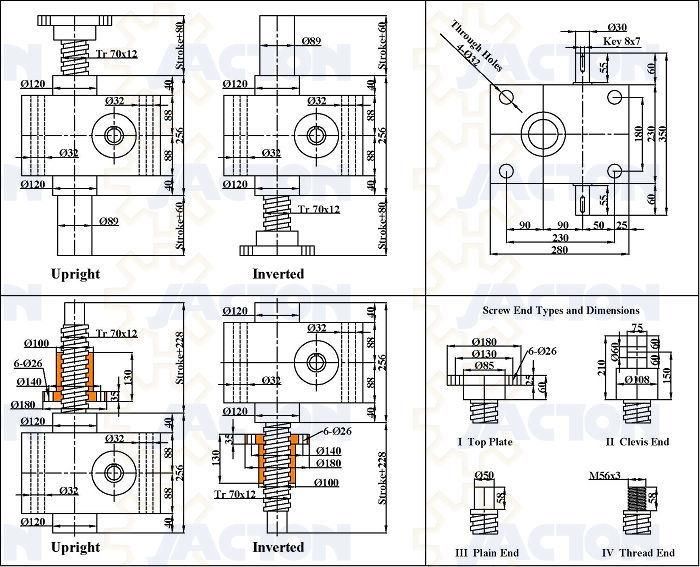

200kN Cubic-type Metric Machine Screw Jacks Drawing Dimensions

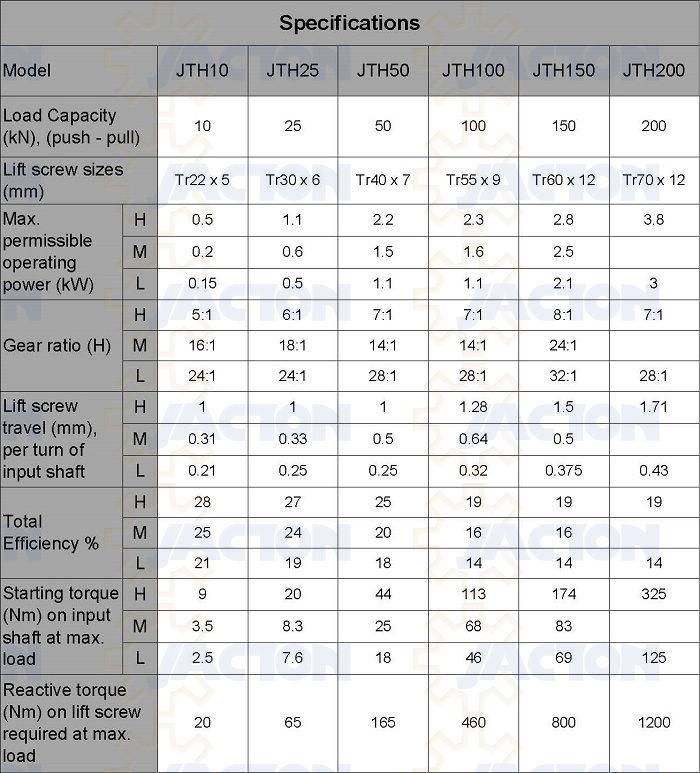

200kN Cubic-type Metric Machine Screw Jacks Specifications

Company Profiles

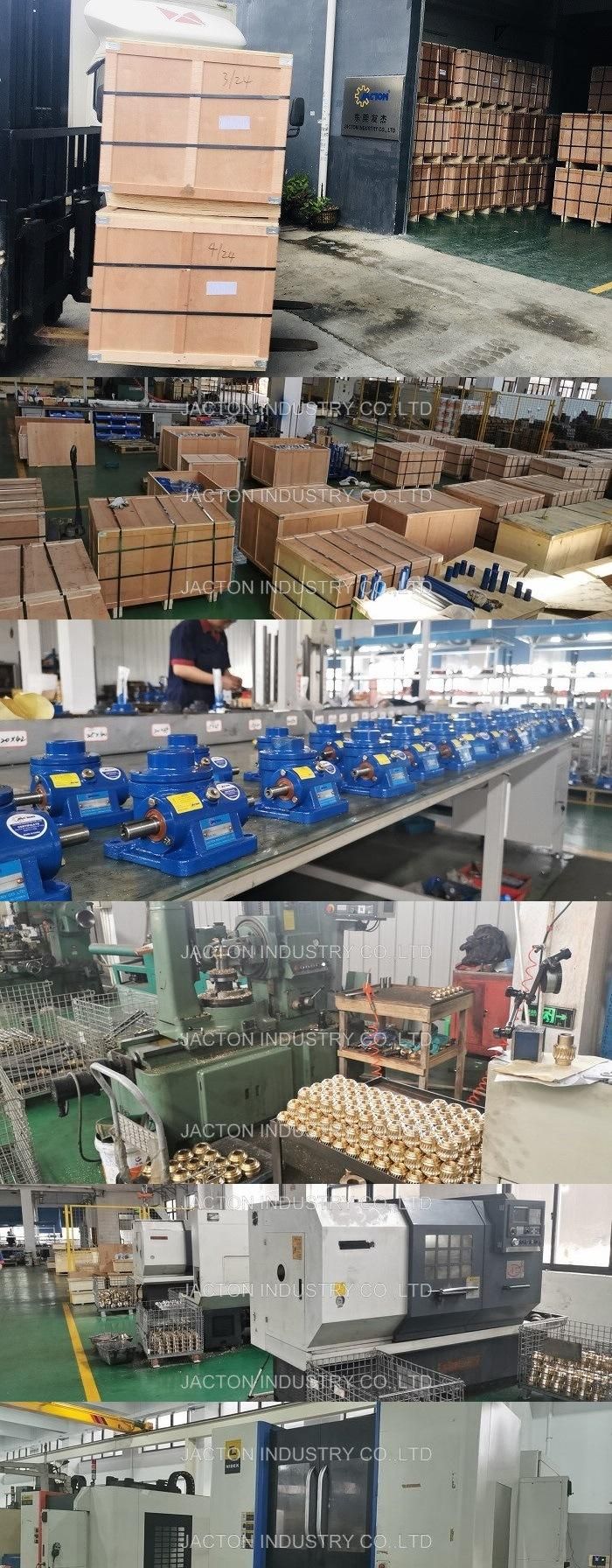

JACTON Industry Co.,Ltd (VAT No.: 9144190007026567X3, registered Capital 500000CNY) is a leading manufacturer and supplier of Screw Jacks (Mechanical Actuators), Bevel Gearboxes, Lifting Systems, Electric Linear Actuators, Gearmotors and Speed Reducers, Others Linear Motion and Power Transmission Products in China. We are located in Chang An, Dong guan, Guang dong in China. We are an audited professional manufacturer and supplier by SGS (Serial NO.: QIP-ASI192186) and BV (Serial NO.: MIC-ASR202862) organizations. We have a strict quality system, with senior engineers, experienced skilled workers and practiced sales teams, and consistently provide the customers with the best engineered solution for precision linear actuation, power transmission and mechanical jacking systems. Jacton Industries guarantees quality, reliability, performance and value for today's demanding industrial applications.

Company Advantages
* One of the biggest orders with 1750 units screw lift jacks.
* Standard products with 2D Drawings(DXF, DWG, PDF) and 3D CAD Model(STEP).
* 100% quality assured with double quality inspections. Original Inspection Reports, Operation Manual, and Book Catalogue are put into the packages.
* 100% safety transportation with strong standard export plywood cases materials (free fumigation).
* International standard materials for all standard products.
* Custom design available, OEM service available, Free engineering advice and Customer label available.

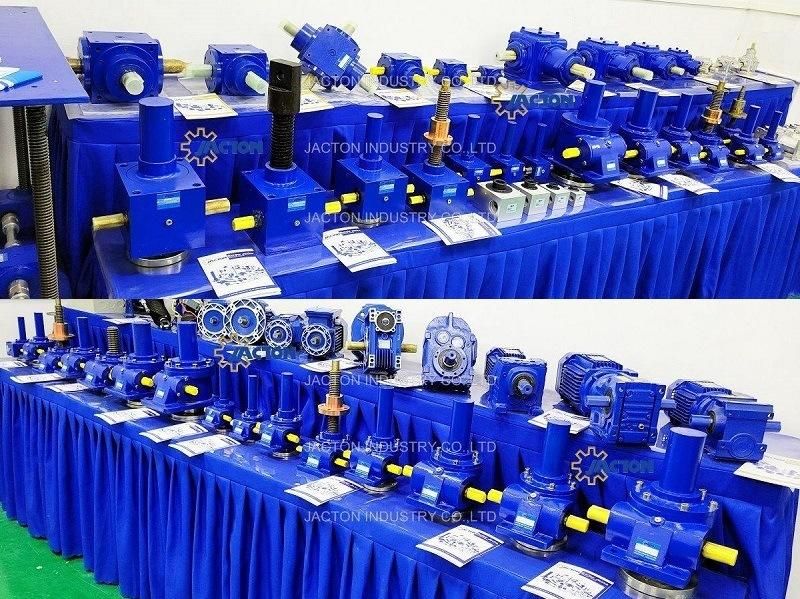

Products List
