• Model NO.：JT-5T-Tr 38x6-Max. 2000MM
• Structures：Lift Screw, Worm Shaft, Worm Gear, Housing etc.
• Lifting Screw Sizes：Screw Diameter 38mm, Pitch 6mm
• Worm Gear Ratios：1:6, 1:12, 1:24
• Lift Height：Customize Lift Height 0-2000mm
• Screw End Fittings：Top Plate, Clevis End, Threaded End, Plain End
• Screw Designs：Translating Screw, Keyed Screw, Rotating Screw
• Mount Types：Upright Mount, Inverted Mount
• System Arrangements：Single Unit or Multiple Units Lifting Systems
• Input Types：Worm Shafts, Motor Flange
• How to Operate：Hand Operated, Motor Driven, or Both
• Assembly Drawing：3D Model, 2D Drawing
• Transport Package：Standard Exporting Plywood Cases
• Trademark：JACTON
• Origin：Guangdong, China
• HS Code：8428909090
• Production Capacity：3800sets,Month

Basic Info.

Model NO. JT-5T-Tr 38x6-Max. 2000MM Structures Lift Screw, Worm Shaft, Worm Gear, Housing etc. Lifting Screw Sizes Screw Diameter 38mm, Pitch 6mm Worm Gear Ratios 1:6, 1:12, 1:24 Lift Height Customize Lift Height 0-2000mm Screw End Fittings Top Plate, Clevis End, Threaded End, Plain End Screw Designs Translating Screw, Keyed Screw, Rotating Screw Mount Types Upright Mount, Inverted Mount System Arrangements Single Unit or Multiple Units Lifting Systems Input Types Worm Shafts, Motor Flange How to Operate Hand Operated, Motor Driven, or Both Assembly Drawing 3D Model, 2D Drawing Transport Package Standard Exporting Plywood Cases Trademark JACTON Origin Guangdong, China HS Code 8428909090 Production Capacity 3800sets/Month

Product Description

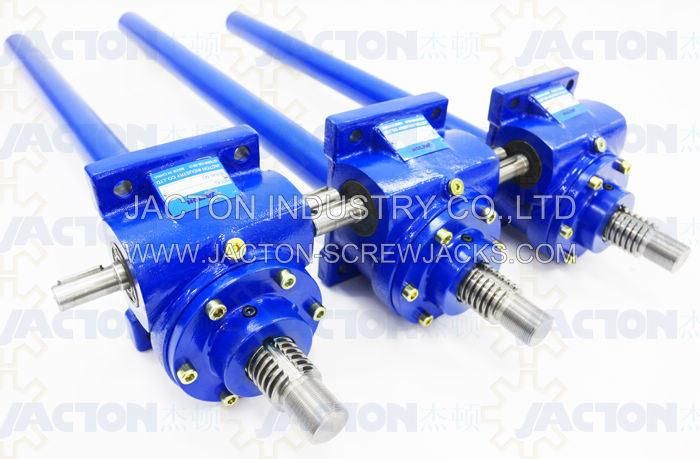

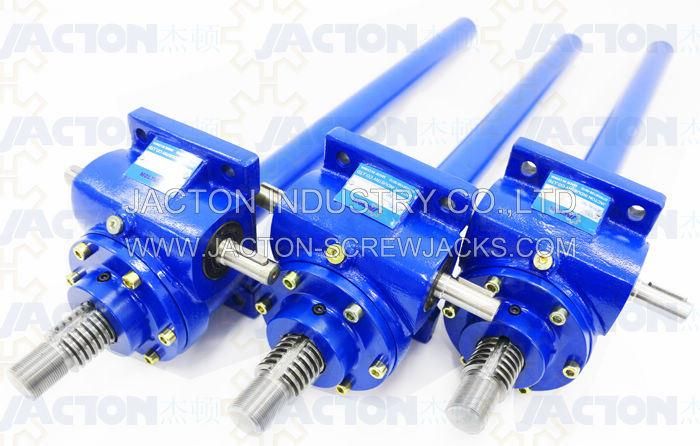

JACTON offers high quality 5 Ton Acme Screw Jack for your requirements. Important Note: The original actual pictures, videos, designs and molds came from the audited manufacturer and supplier - JACTON Industry Co.,Ltd. Don't copy the pictures, videos, models, designs and drawing dimensions without JACTON permission.

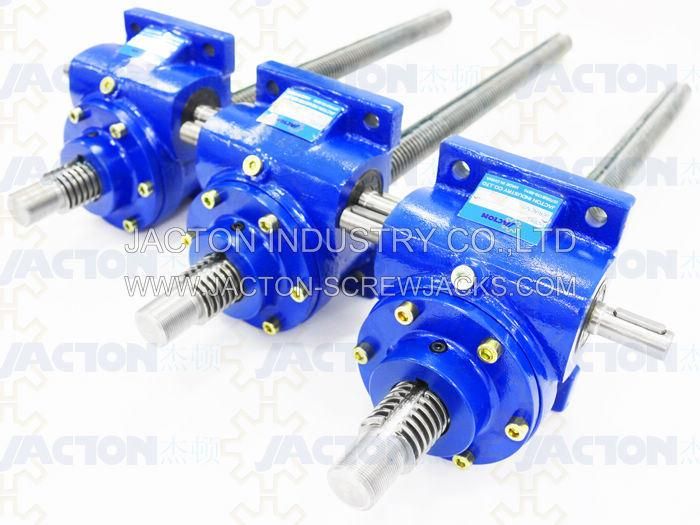

5 Ton Acme Screw Jack Features:
1. Maximum lifting capacities 5 ton
2. Lifting screw sizes Tr 38x6
3. Worm gear ratios 1:6, 1:12, 1:24
4. Custom made lifts height 0-2000mm
5. End fittings: top plate, clevis end, threaded end, plain end, forked head and rod end
6. Screw designs: translating, keyed, rotation screw design
7. Power source: manually operation (hand wheel) or electrically operated (electric motor)
8. Single unit or multiple units 5 Ton Acme Screw Jack lifting system arrangements

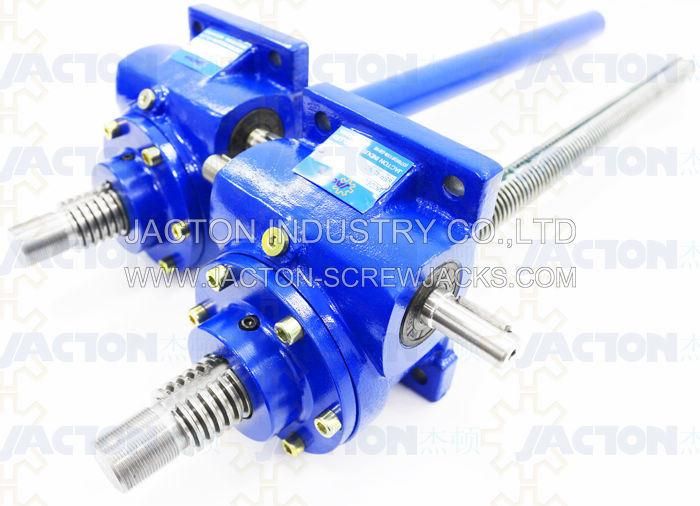

5 Ton Acme Screw Jack main components with international standard materials: The main components are trapezoidal lifting screw (worm screw) with C45 steel material, worm gear or travelling nut with bronze material, worm shaft with heat treatment C45 steel material, thrust bearings, grease seals and gear housing with ductile iron.

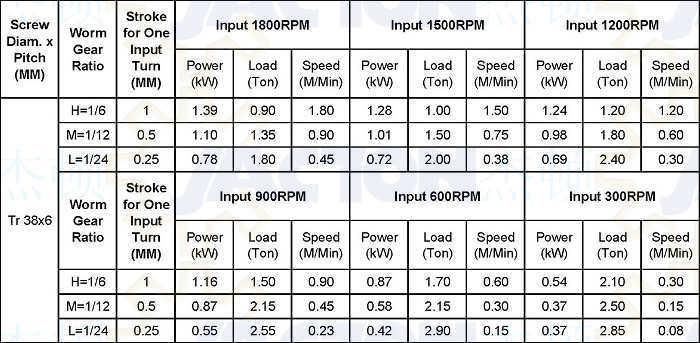

5 Ton Acme Screw Jack Specifications
1. Conditions: 20% running time/60 minutes or 30% running time/10 minutes, 20 °C ambient temperature.
2. H=high ratio, M=medium ratio, L=slow ratio.
3. kW=input power required, Ton=maximum dynamic load, for maximum static load 5 ton, RPM=input speed required, M/Min=travel speed or lifting speed.
4. Selection of screw jacks using above figures should only be carried out in consultation with Jacton engineers.

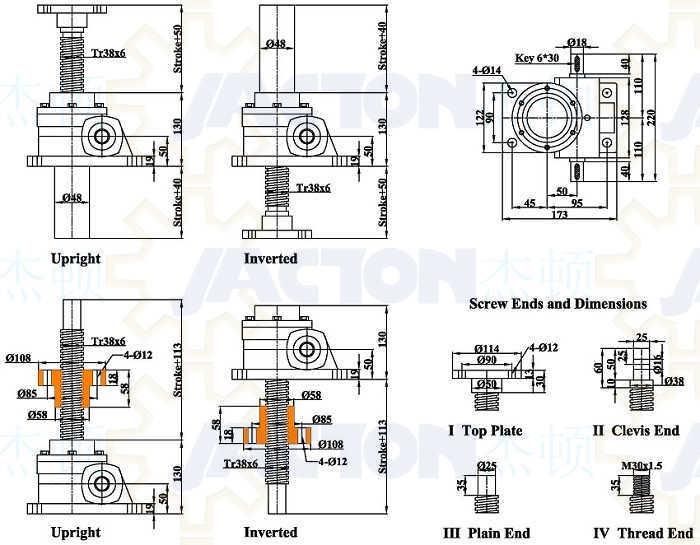

5 Ton Acme Screw Jack Dimension Drawing
Find out 5 Ton Acme Screw Jack front view, side view and top view assembly drawings. About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact us directly.
