• Model NO.：SOV-RTC
• Condition：New
• Stroke：10mm
• Capacity：5-200ton
• Collapsed Height：30-35mm
• Outside Diameter：60-204mm
• Piston Diameter：21-132mm
• Working Pressure：1500 Bar, 2000 Bar
• Weight：0.75-10.5kg
• Couplings：G 1,4′′
• Color：Black or Customized
• Suitable for：Limited Space
• Transport Package：Standard Export Wooden Case
• Specification：CE
• Trademark：SOV
• Origin：China
• HS Code：8425421000
• Production Capacity：500 Sets Per Month

ModelLoad Capacity
(T)Collapsed Length

(mm)Collapsed Width
(mm)Collapsed Height

(mm)Stroke
(mm)O.D
(mm)Piston Diameter
(mm)self-alignment AngleFuel Capacity
(ml)ReturnInterfaceSOV-RTC-0051051256030106021 3.46LoadG 1/4"SOV-RTC-01010101357030107030 7.07LoadG 1/4"SOV-RTC-02510251559030109047 17.35LoadG 1/4"SOV-RTC-0501050180115301011870 36.32LoadG 1/4"SOV-RTC-100101002171523310152943°69.4LoadG 1/4"SOV-RTC-1501015024518034101801163°105.68LoadG 1/4"SOV-RTC-2001020027020535102041323°136.85LoadG 1/4"

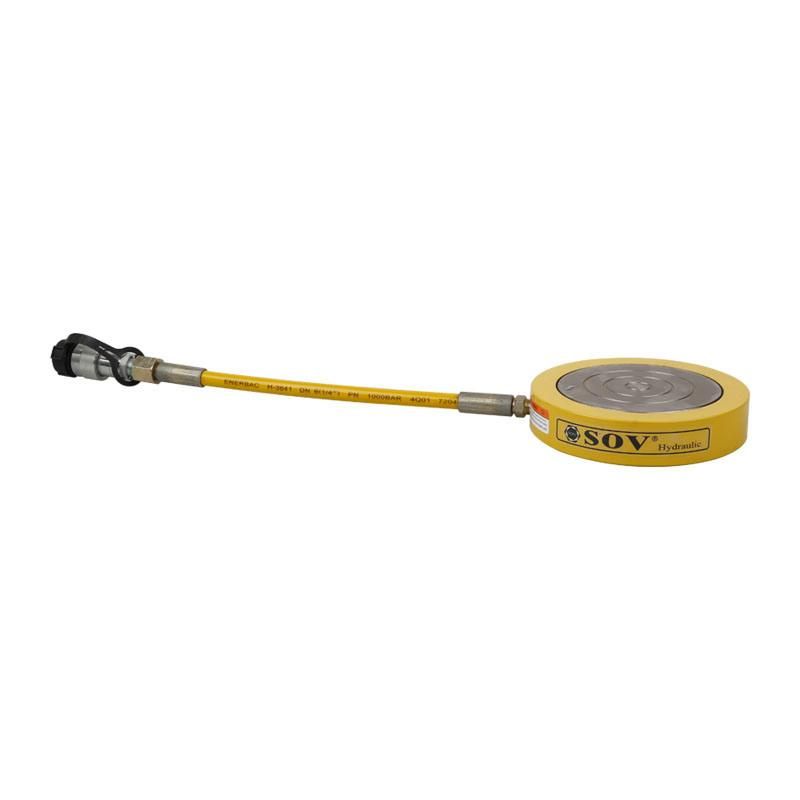

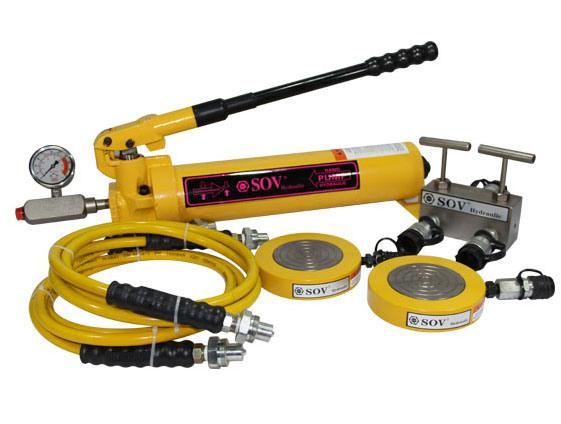

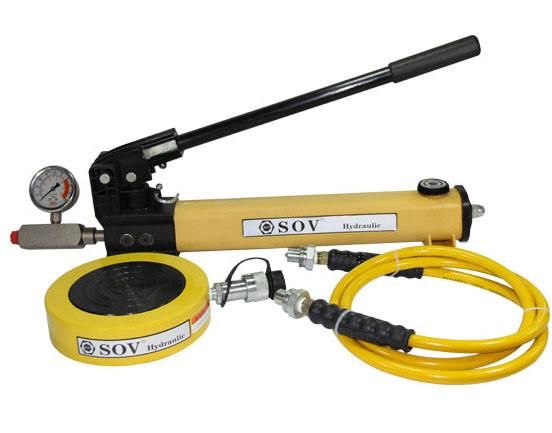

Photos

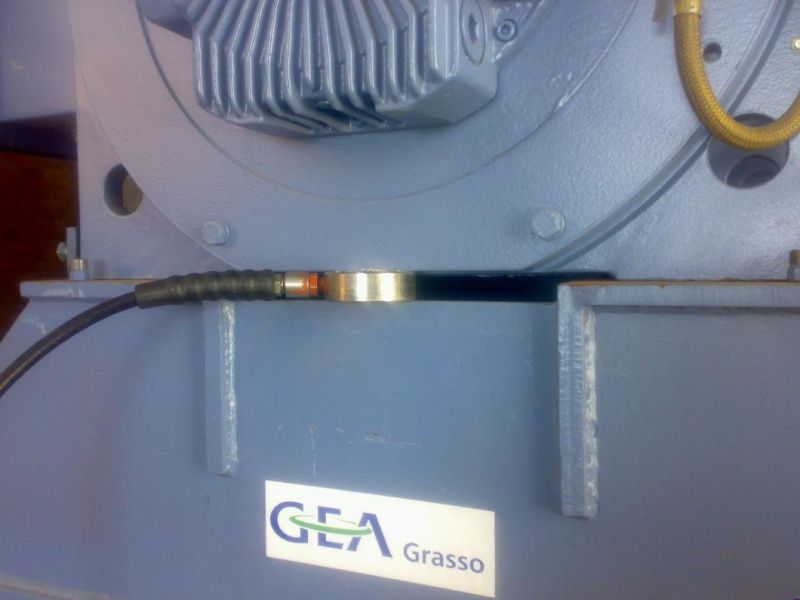

Applications

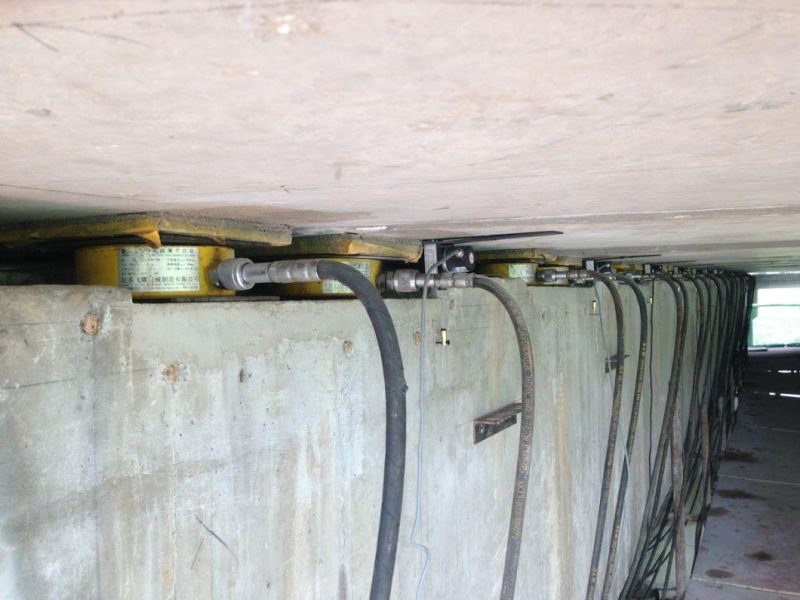

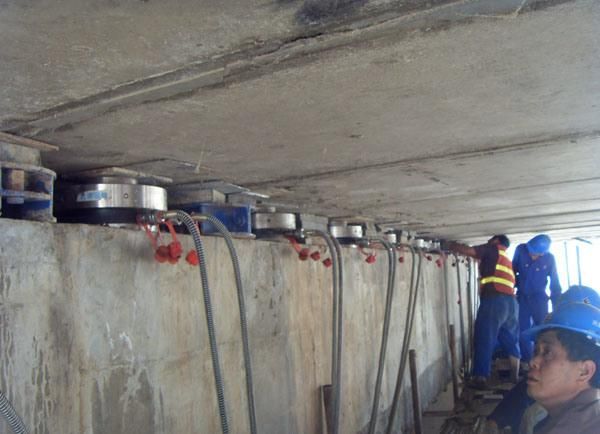

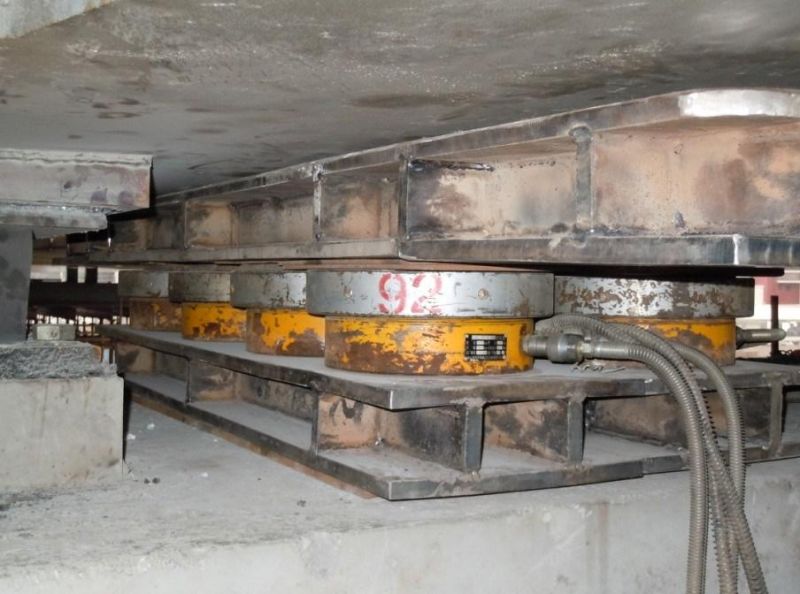

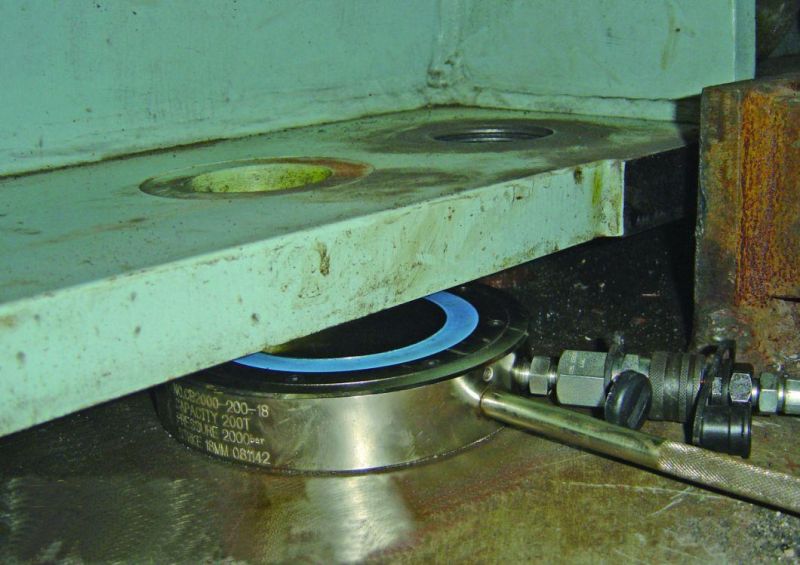

Application: Synchronous lifting for the rubber bearing's replacement of highway maintenance work








Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.

Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

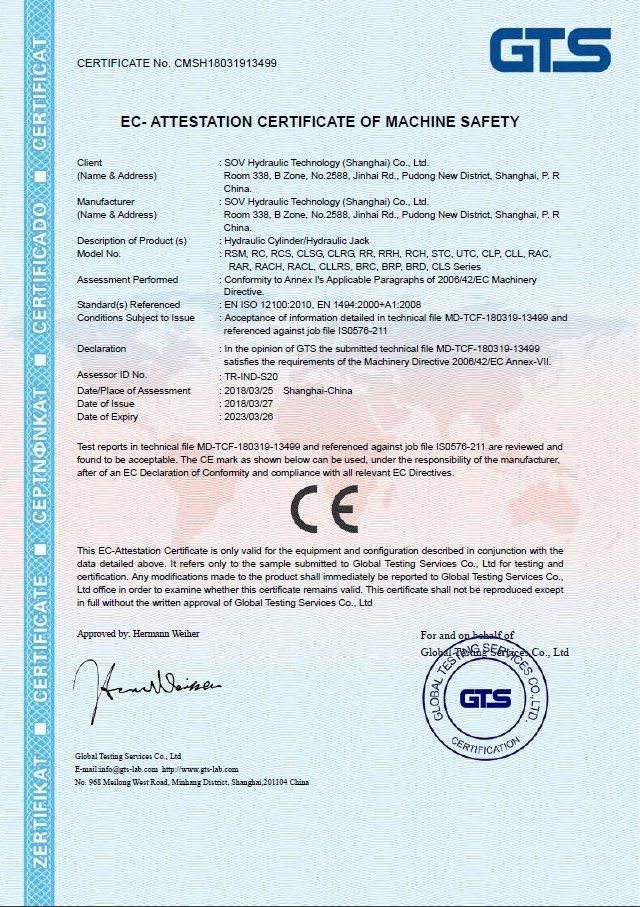

Certificate

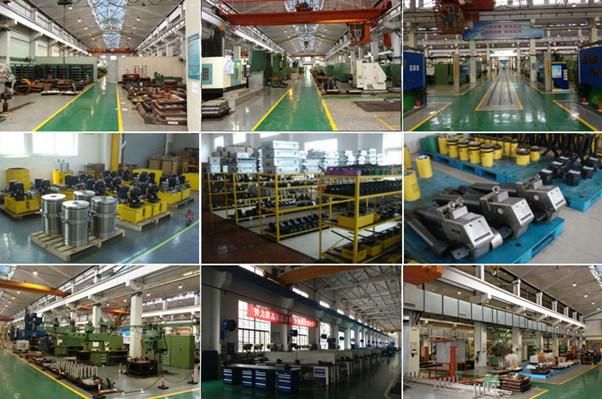

Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.




Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts

Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
