Scaffold Swing Stage Cradle Construction Suspended Platform Building Steel Electrical Work Gondola Equipment
Shandong Xingdou Intelligent Equipment Co., Ltd.- Application：Building Crane
- Lift Mechanism：Rack&Pinion
- Carrying Capacity：OEM
- Moves：Moving
- Driven Type：Rack&Pinion
- Running Mode：Moving
Base Info
- Model NO.：ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Usage：Electrical Work Gondola Equipment
- Surface Treatment：Painted, Hot Galvanized
- Matrial：Steel, Aluminum Alloy
- Rated Load(Kg)：200, 500, 630, 800, 1000
- Voltage：220-440V, 50-60Hz,3phase
- Safety Lock：Ls 30, 20-30kn.M
- Operate System：Electrical, Auto, Manual
- Max. Lifting Height：300 M
- Length of Platform：From 1m to 10m
- Wire Rope Dia.：8.3,8.6,9.1,9.3,10.2mm
- Transport Package：Paper Box and Wooden Cases or as Your Requirements
- Specification：Steel, Aluminum Alloy
- Trademark：XINGDOU
- Origin：China
- HS Code：8428909090
- Production Capacity：5000sets,Year
Description
Frequency(HZ)50 50 50 50 Type LTD5.0 LTD6.3 LTD8A Rated Lifting Force 5.0 kN 6.3 kN 8.0 kN Lifting Speed 9.3m/min 9.3m/min 8.3m/min Motor Power 1.5 kW 1.5 kW 1.8 kW Diameter of wire rope 8.3mm 8.3mm 8.6mm Self weight 48 kg 50kg 52kg
The temporary suspended platform must be equipped with a fall arrest device, which secures the load against falling
with a safety rope.

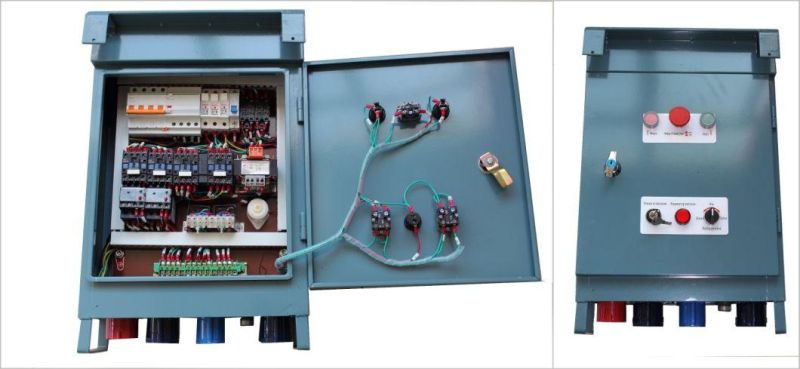

ELECTRIC CONTROL BOX
Adopting famous international brand ( Schneider) electric control components and with 36V control voltage, it is more
safer and reliable.
Standard figure include: electricity-leaking protection, thermal relay protection, top limit protection and bell alarm,etc.

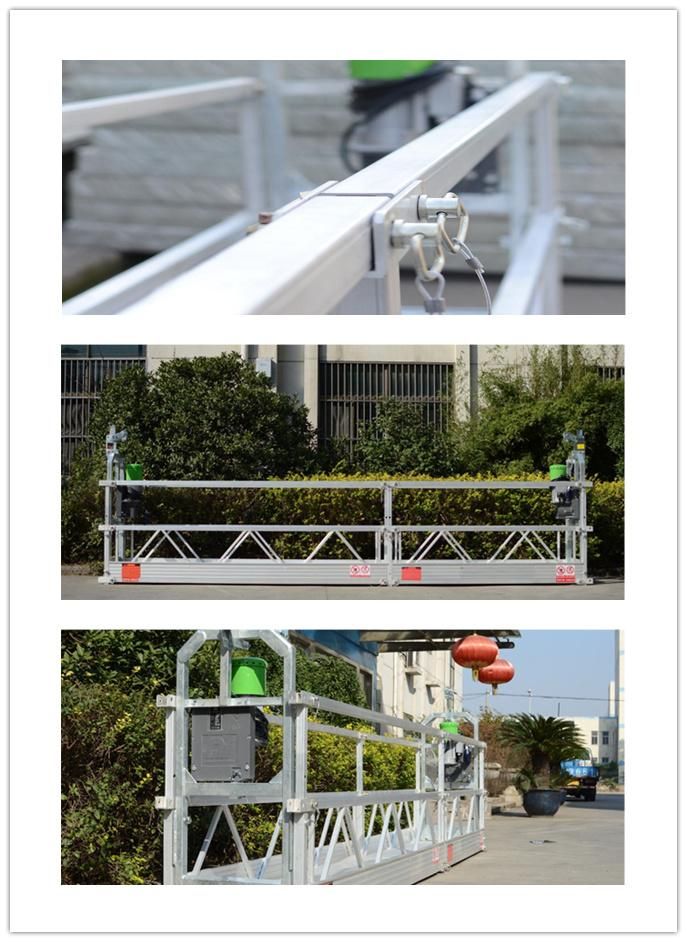

V. ZLP500/630/800 TSP ALUMINUM ( Pin-type). Max. length: 15mtrs
VI. LOADING QUANTITY
( 20"FT CONTAINER FOR 13 SETS,without counterweight)
(40" HQ FOR 33SETS,without counterweight)

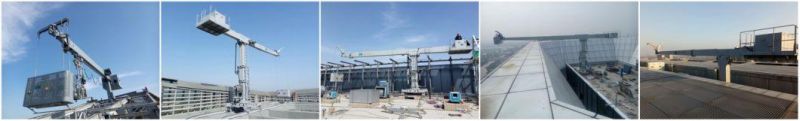

VII.BUILDING MAINTENANCE UNIT
TIPS: IF YOU WANT TO KNOW MORE INFORMATION ABOUT US OR PRODUCTS, PLEASE FEEL FREE CONTACT US.(SERVICE TIME: 24HOURS)
CONTACT PERSON: MS.IRIS
POSITION: OVERSEAS MARKETING DIRECTOR
The temporary suspended platform must be equipped with a fall arrest device, which secures the load against falling
with a safety rope.
ELECTRIC CONTROL BOX
Adopting famous international brand ( Schneider) electric control components and with 36V control voltage, it is more
safer and reliable.
Standard figure include: electricity-leaking protection, thermal relay protection, top limit protection and bell alarm,etc.
V. ZLP500/630/800 TSP ALUMINUM ( Pin-type). Max. length: 15mtrs
VI. LOADING QUANTITY
( 20"FT CONTAINER FOR 13 SETS,without counterweight)
(40" HQ FOR 33SETS,without counterweight)VII.BUILDING MAINTENANCE UNIT TIPS: IF YOU WANT TO KNOW MORE INFORMATION ABOUT US OR PRODUCTS, PLEASE FEEL FREE CONTACT US.(SERVICE TIME: 24HOURS)
