• Model NO.：zpl
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Usage：Electrical Work Gondola Equipment
• Surface Treatment：Painted, Hot Galvanized
• Matrial：Steel, Aluminum Alloy
• Rated Load(Kg)：200, 500, 630, 800, 1000
• Voltage：220-440V, 50-60Hz,3phase
• Safety Lock：Ls 30, 20-30kn.M
• Operate System：Electrical, Auto, Manual
• Max. Lifting Height：300 M
• Length of Platform：From 1m to 10m
• Wire Rope Dia.：8.3,8.6,9.1,9.3,10.2mm
• Transport Package：Paper Box and Wooden Cases or as Your Requirements
• Specification：Steel, Aluminum Alloy
• Trademark：XINGDOU
• Origin：China
• HS Code：8428909090
• Production Capacity：5000sets,Year

Technical ParameterTypeZLP500ZLP630ZLP800ZLP1000Rated Load500KG630KG800KG1000KGPlatform Sise 5x0.69x1.18m6x0.69x1.18m7.5x0.69x1.18m7.5x0.69x1.18mPlatform materialAluminum Alloy type, steel type with hot galvanized,steel type with paintingWire Rope Height0-200mElectrical Cable(3x2.5+2x1.5mm2 )0-200mWorking height0-200mSteel rope 4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mmHoisting Machinery
(Copper winding) LTD5.0LTD6.3LTD8.0  LTD10.01.5kwx21.5kwx21.8kwx22.2kwx215KN15KN15KN15KNLifting speed9.3m/min ± 5%Safety LockLSG20LSG20LSG30LSG3020KN20KN30KN30KNLocking Cable Angle: 3°~8°Suspension mechanism Hot Galvanized Front beam overhang: 1.3 mSupport adjustable height: 1.1~1.6mPower Source380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phaseCounterweight800kg1000kg1000kg1200kg

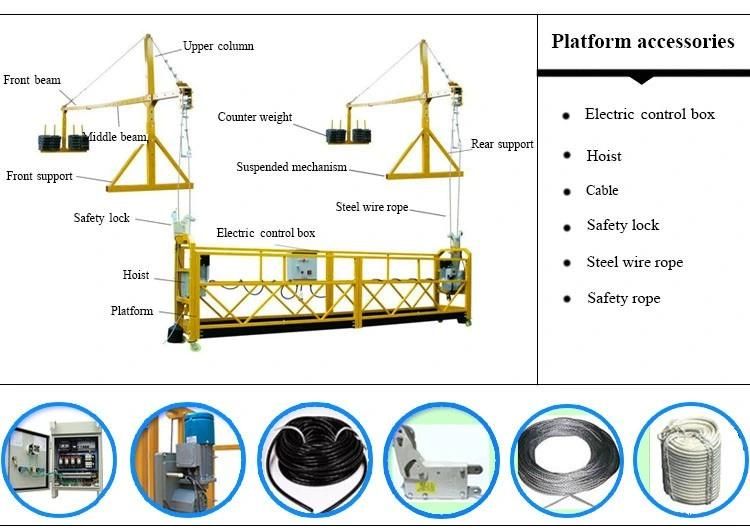

Platform accessories

A.Features of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform

1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be asjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized stee wirel rope
8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot gavalnized could choosed; price will be different. )

B. Our CHINA ZLP800, ZLP1000, ZLP250, ZLP500, ZLP630 Suspended Platform|Cradle|Gondola|Swing Stage|Powered


Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

1.The length of platform can be adjusted within 1M-30M.
2.The working height can be adjusted with your need.
3.The voltage can be adjusted with your need.
4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel

C. Parts contains:

1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)
2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm or 8.6mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts

D. Advantages of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform

1. CE ISO international certificates.
2. One year guarantee time.
3. Special made can be accepted.
4. Factory direct sale.


Product detail

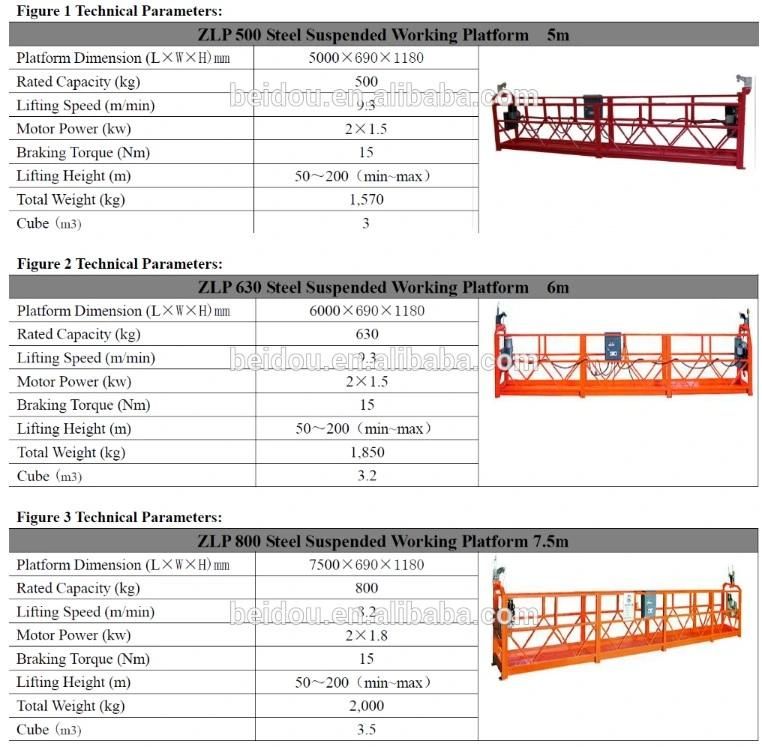

ZLP series Steel Suspended Platform As Fllowing:

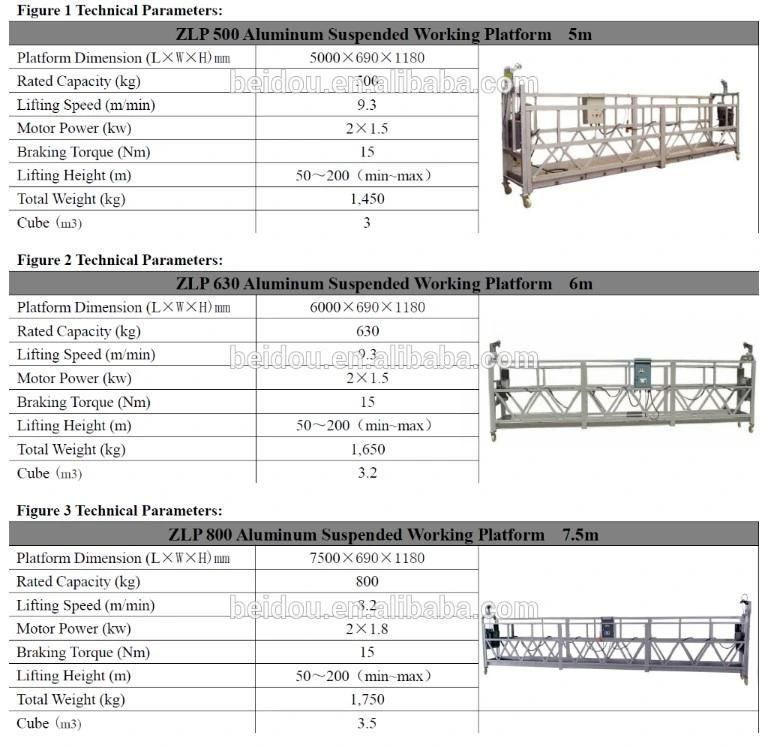

ZLP series Aluminum Suspended Platform As Fllowing:

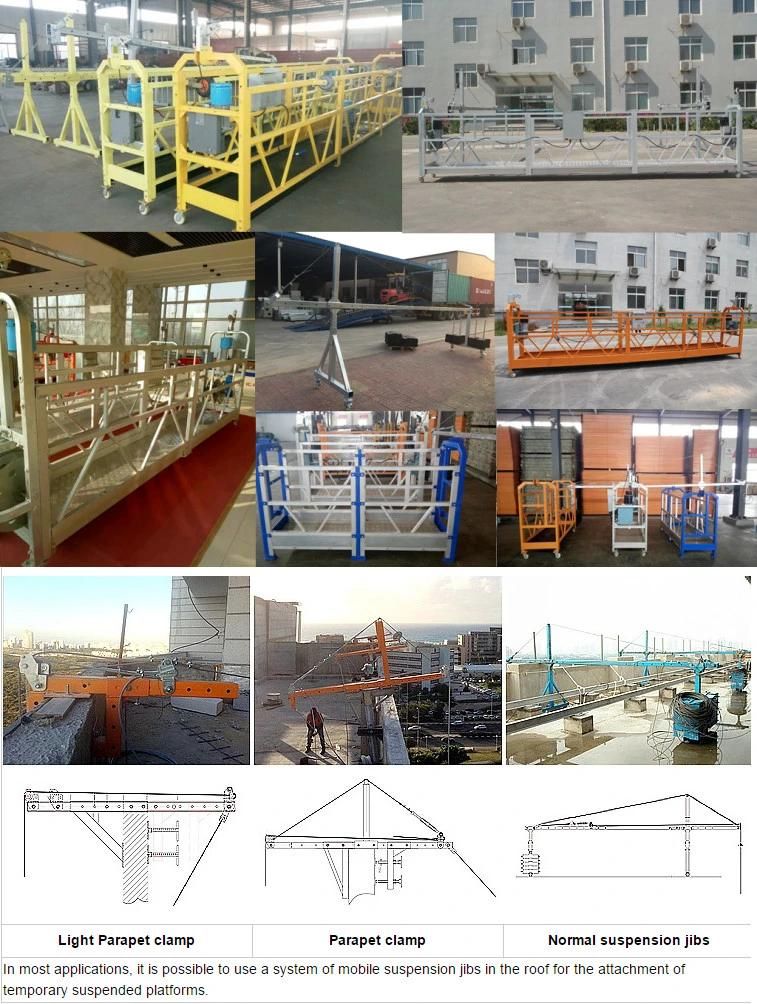

Products show

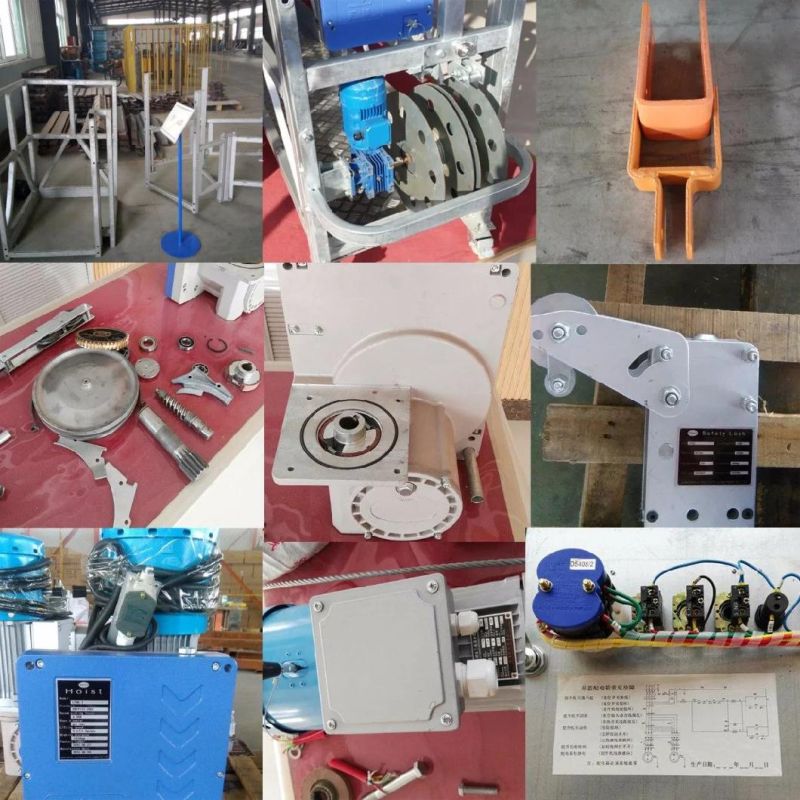

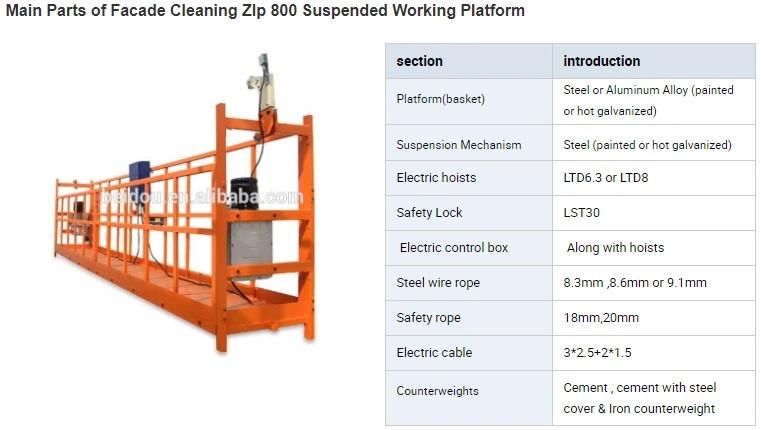

Parts of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform:

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)



2. Suspension Mechanism: Steel (painted or hot galvanized)  &Electric hoists:LTD6.3 or TD8.0&Safety Lock: LST30

FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.

4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.

5. Payment term?
T/T or L/C at sight.

6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.

7. Can you make suspended platform with our brand?
Yes.

8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
