• Model NO.：HY1001, HY1005, HY1501, HY2001
• Moves：Stationary
• Driven Type：AC
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：CE
• Capacity：1000kg, 1500kg, 2000kg
• Min. Height：85-105mm
• Max. Height：860-870mm
• Table Size：1450*1140mm
• Lift Time：25-35s
• Color：Customizable
• Net Weight：357-405kg
• Certificate：Ce Approved
• Scissor：Single Scissor Lift Table
• Type：Stationary Lift Table
• Accessories：Ramp
• Power：380V,50Hz
• Stroke：775mm
• Product Name：Low Profile Lift Table
• Delivery Time：One Month
• Transport Package：1PC,Wooden Case
• Specification：customizable
• Trademark：Buytool
• Origin：Made in China
• HS Code：8427900000
• Production Capacity：3000PCS,Month
• Package size per unit product：150.00cm * 120.00cm * 35.00cm
• Gross weight per unit product：380.000kg

Basic Info.

Model NO. HY1001, HY1005, HY1501, HY2001 Moves Stationary Driven Type AC Running Mode Stationary Feature Explosion-Proof Certification CE Capacity 1000kg, 1500kg, 2000kg Min. Height 85-105mm Max. Height 860-870mm Table Size 1450*1140mm Lift Time 25-35s Color Customizable Net Weight 357-405kg Certificate Ce Approved Scissor Single Scissor Lift Table Type Stationary Lift Table Accessories Ramp Power 380V/50Hz Stroke 775mm Product Name Low Profile Lift Table Delivery Time One Month Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 150.00cm * 120.00cm * 35.00cm Gross weight per unit product 380.000kg

Product Description

Low Profile Hydraulic Electric Lift Tables/Lifting TableHeavy duty lift tables with larger platform.

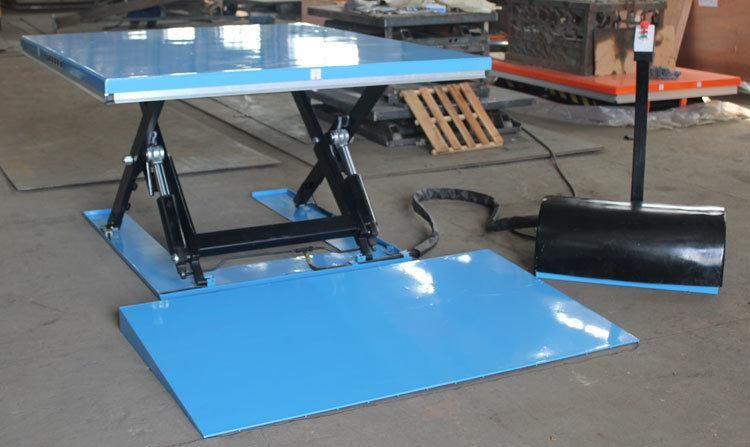

Loading ramp is a standard equipment.
Oiless bushings on pivot points.
Static electro-hydraulic lift tables are specially designed for installation without a pit.
They are manufactured to all European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.













FAQ:

Q: What about the quality of the lift tables?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our lift tables carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
