• Model NO.：Qcy-270
• Condition：New
• Stroke：200mm
• MOQ：1 PC
• Material：Steel
• Nominal Oil Pressure：50MPa
• Hole Diameter：19 mm
• Nominal Tension：257kn
• Tension Piston Area：5.137*10 -3 M2
• Return Piston Area：1.335*10 -3 M2
• Trolley Trip：200mm
• Dimensions：180*568
• Return Oil Pressure：≦25 MPa
• Transport Package：Wooden Case
• Specification：27T
• Trademark：ZHONGTUO
• Origin：China
• HS Code：8425421000
• Production Capacity：1000PCS,Set

Basic Info.

Model NO. Qcy-270 Condition New Stroke 200mm MOQ 1 PC Material Steel Nominal Oil Pressure 50MPa Hole Diameter 19 mm Nominal Tension 257kn Tension Piston Area 5.137*10 -3 M2 Return Piston Area 1.335*10 -3 M2 Trolley Trip 200mm Dimensions 180*568 Return Oil Pressure ≦25 MPa Transport Package Wooden Case Specification 27T Trademark ZHONGTUO Origin China HS Code 8425421000 Production Capacity 1000PCS/Set

Product Description

Hydraulic PC Strand Jack with Drill Bits

Product Description:
Mono strand Hydraulic Jack is a multi-purpose pre-stressed tensioning device, easy to operate. Mainly used for single hole tensioning. But also for porous preload, tension and troubleshooting,and can be applied to a variety of sizes of high-strength steel wire and strand.It made of high strength steel, and it can be customized 20-30 tons of tension.It also has a compact structure, light weight, small size.

Product Application:
Widely used in monostrand jack of large-scale buildings, structures, prestressed concrete bridge, rock anchor, hydraulic structure, foundation anchorage and other major projects.

Technical Parameters:

project	unit	Value
Nominal tension	KN	257
Nominal oil pressure	MPA	50
Tension piston area	M2	5.137*10
Return piston area	M2	1.335*10
Piercing hole diameter	MM	19
Trolley trip	MM	200
Dimensions	MM	180*568
Return oil pressure	MPA	Less than or equal to 25

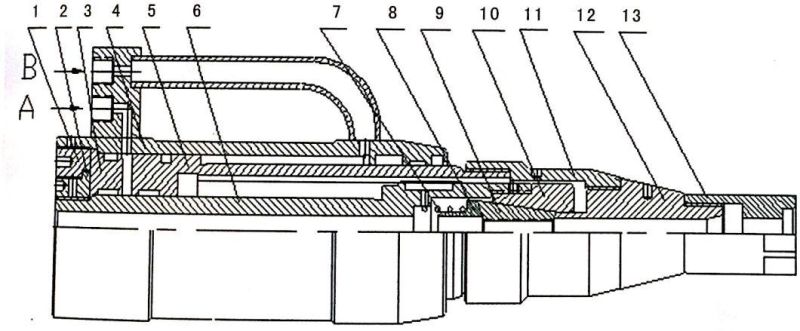

Schematic diagram of Mono Stand Jack


1.End cap  2.Tie rod nut  3.Sealing plate  4.Cylinder  5.Piston   6.Tie rod   7.Return spring
8.Spring seat  9.Clip  10.Anchor Cup  11.Support sleeve  12.Anchor connector
13.Plum blossom limit head

Purchase Notes:
1.How many millimeters is the diameter of the tensioned steel strand?
A: The jack clip needs to be matched with the corresponding steel strand.
2.What should I do if I pull a variety of steel stand specifications?
A: Each type of steel strand specification needs to be matched with clips of corresponding specifications.
3.Does the jack need an oil Pump?
A: Yes, one jack is equipped with an oil pump.
4.What are the main consumables for jacks?
A: Clips, top anchors and anchors.

FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2:  No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province, China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equipment.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

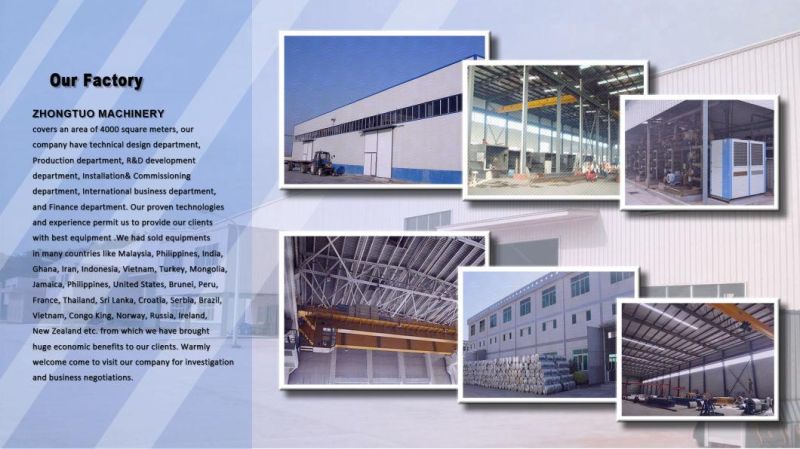

About Our Factory:




About the products:




Packing and Shipping:

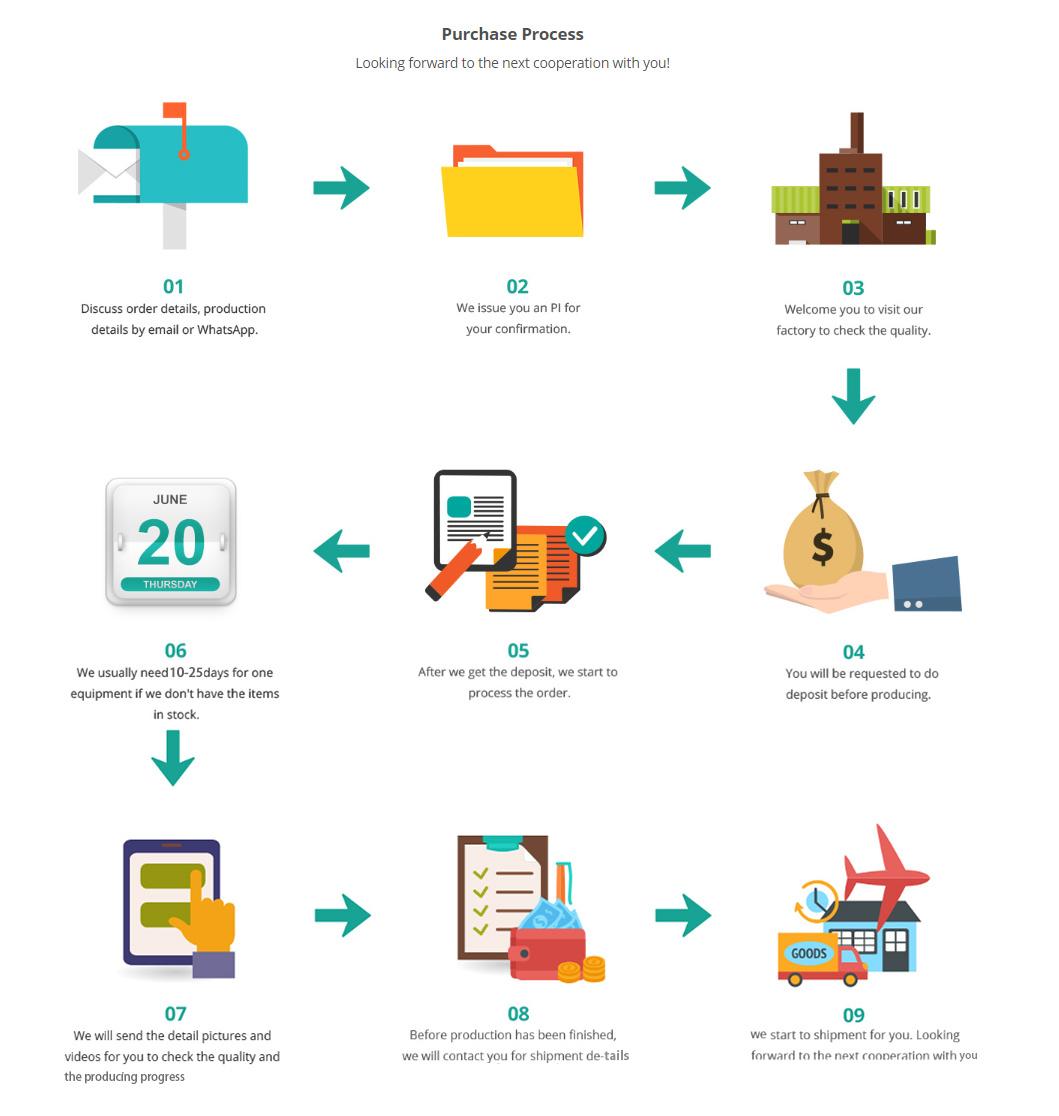

Purchase Process:

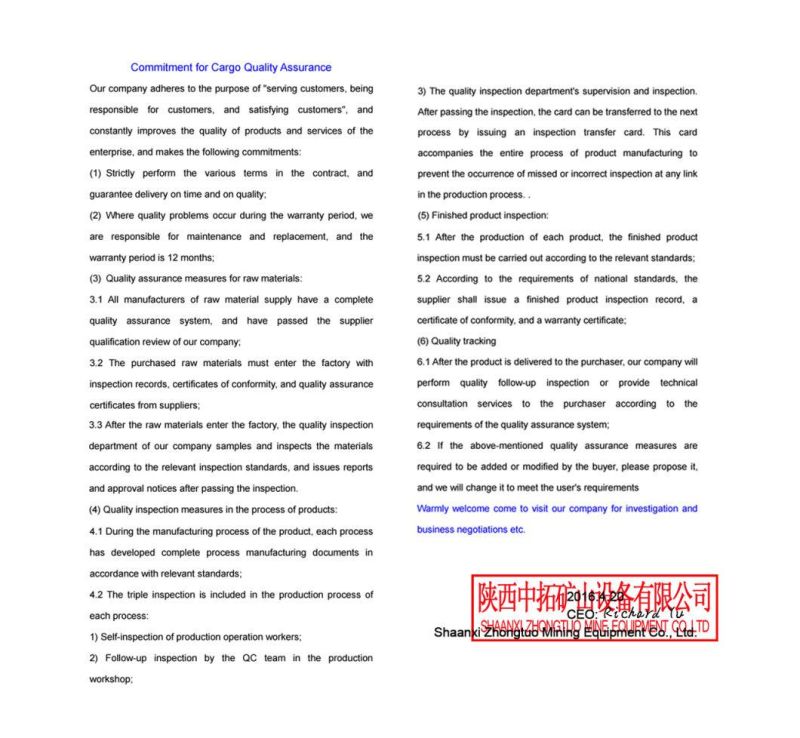

About the Quality:



Others:






Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
