Modular Single/Twin Mast Lifting High Altitude Work Platform
Shanghai Strong Engineering Construction Co., Ltd.- After-sales Service：1 Year Warranty
- Warranty：1 Year Warranty

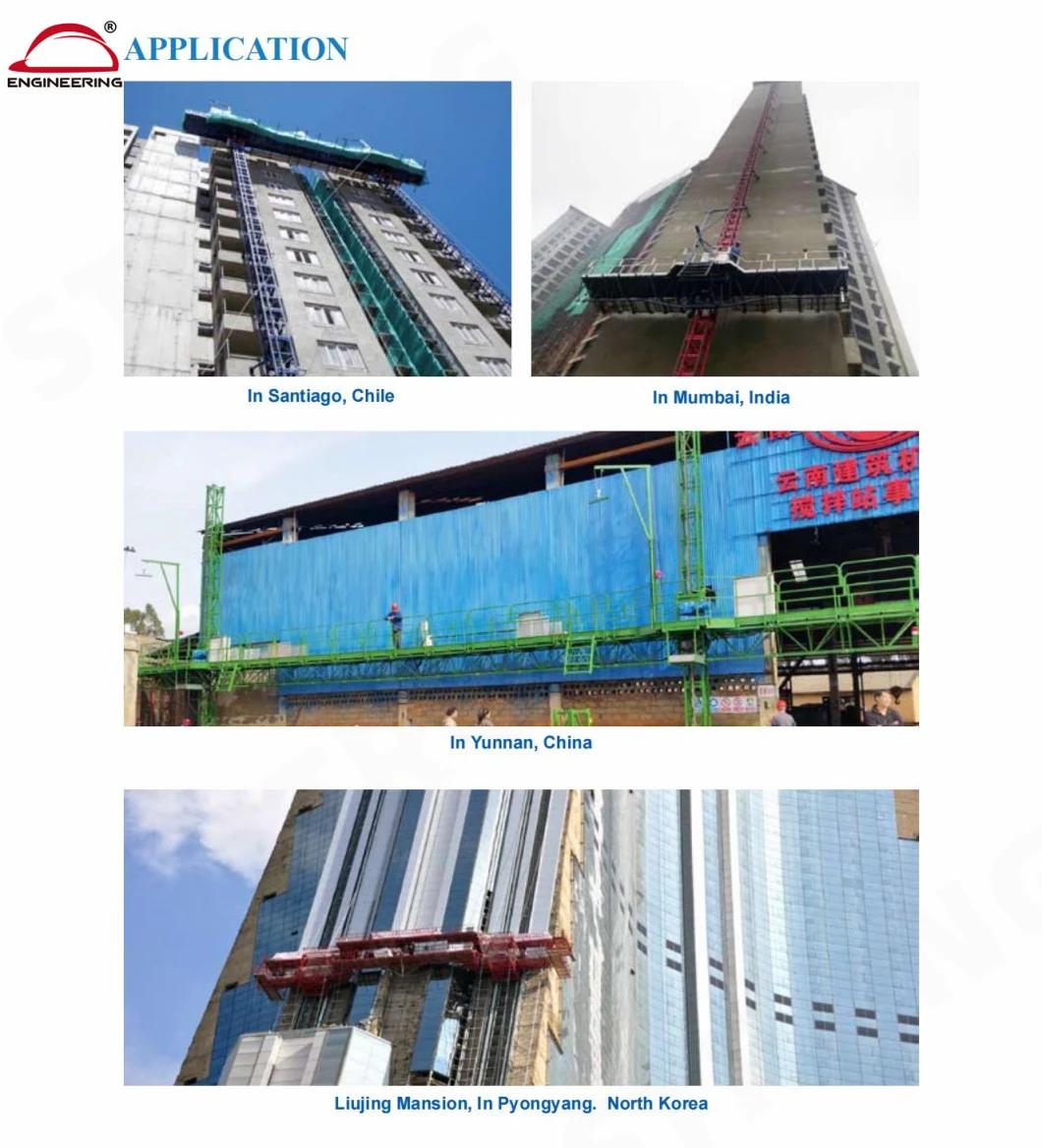

- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Rack&Pinion
- Carrying Capacity：Weight Level
- Moves：Moving
Base Info
- Model NO.：STRONG
- Driven Type：Rack&Pinion
- Running Mode：Moving
- Feature：Insulating
- Certification：CE, ISO 9001
- Lifting Speed：0-6m,Min
- Max Lifting Height：200m
- Free Standing Height When Working：6m
- Free Standing Height When Erecting：15m
- Tie-in Interval：7.5m
- Max Wind Speed Allowed for Working：12.7m,S
- Max Wind Speed Allowed for Erection：8m,S
- Platform Weight：115kg
- Voltage/Frequency：380V,50Hz
- Control Voltage/Frequency：24V,50Hz
- Weight of Normal Mast Section：80kg

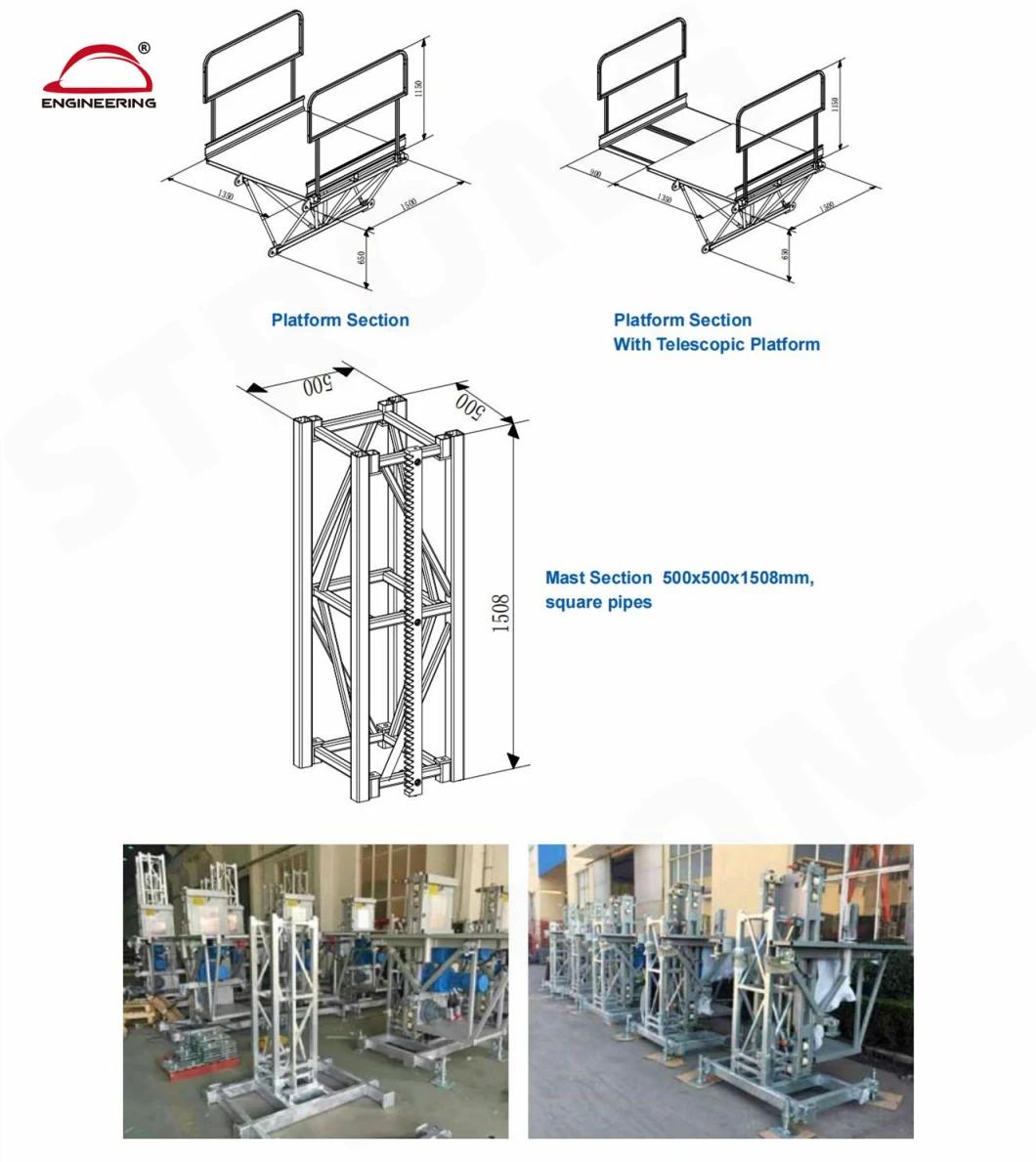

- Mast Section Size：0.5m*0.5m*1.508m
- Platform Section Size：1.5m*1.35m*0.65m
- Transport Package：Wooden
- Trademark：STRONG
- Origin：Shanghai
- HS Code：8428909090
- Production Capacity：6000sets,Year
Description
Load (KG)L(m)WN(L)N(M)Driving UnitN(R)TTmTmisTcTos11m7m1x1.54x1.52x1m1x1.53600360017801500100012.5m8.5m1x1.55x1.52x1m1x1.53560356017801500100014m10m1x1.56x1.52x1m1x1.53430343017201500100014m7m2x1.54x1.52x1m2x1.53430343017201200100015.5m11.5m1x1.57x1.52x1m1x1.53300330013001500100015.5m8.5m2x1.55x1.52x1m2x1.53300330016501200100017m13m1x1.58x1.52x1m1x1.53170317011001500100017m10m2x1.56x1.52x1m2x1.53170317015901200100017m7m3x1.54x1.52x1m3x1.5317031701590100050018.5m14.5m1x1.59x1.52x1m1x1.53040200010001500100018.5m11.5m2x1.57x1.52x1m2x1.53040304015201200100018.5m8.5m3x1.53x1.52x1m3x1.5304030401520100050020161x1.510x1.52x1m1x1.5291015008001500100020132x1.58x1.52x1m2x1.52910291012001200100020103x1.56x1.52x1m3x1.5291029101460100050021.514.52x1.59x1.52x1m2x1.52780200011001200100021.511.53x1.57x1.52x1m3x1.5278027801390100050023162x1.510x1.52x1m2x1.5265015008001200100023133x1.58x1.52x1m3x1.5265026501330100050024.514.53x1.59x1.52x1m3x1.5252020001260100050026163x1.510x1.52x1m3x1.523901500800120050026192x1.512x1.52x1m2x1.5239013005001200100029193x1.512x1.52x1m3x1.521301300500100050030203x1.512x1.5+1x12x1m3x1.5200012004001000500L: Platform Length W: Distance Between center of two masts
N(L): Left Wing Composition N(M): Central Deck Composition
N(R): Right Wing Composition T: Load Tm: Maximum Evenly Distributed Load in the middle
Tmis: Maximum Concentrated Load at innermost side of middle area. Tc: Maximum Evenly Distributed Load at cantilever side
Tos: Maximum Concentrated Load at outside part of cantilever
-Safety Features:
N(L): Left Wing Composition N(M): Central Deck Composition
N(R): Right Wing Composition T: Load Tm: Maximum Evenly Distributed Load in the middle
Tmis: Maximum Concentrated Load at innermost side of middle area. Tc: Maximum Evenly Distributed Load at cantilever side
Tos: Maximum Concentrated Load at outside part of cantilever
