Mast Climbing Work Platform Machine for Construction
Shanghai Strong Engineering Construction Co., Ltd.- After-sales Service：1 Year Warranty
- Warranty：1 Year Warranty
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Rack&Pinion
- Carrying Capacity：Weight Level
- Moves：Moving
Base Info
- Model NO.：STRONG
- Driven Type：Rack&Pinion
- Running Mode：Moving
- Feature：Insulating
- Certification：CE, ISO 9001
- Lifting Speed：0-6m,Min
- Max Lifting Height：200m
- Free Standing Height When Working：6m
- Free Standing Height When Erecting：15m
- Tie-in Interval：7.5m
- Max Wind Speed Allowed for Working：12.7m,S
- Max Wind Speed Allowed for Erection：8m,S
- Platform Weight：115kg
- Voltage/Frequency：380V,50Hz
- Control Voltage/Frequency：24V,50Hz
- Weight of Normal Mast Section：80kg

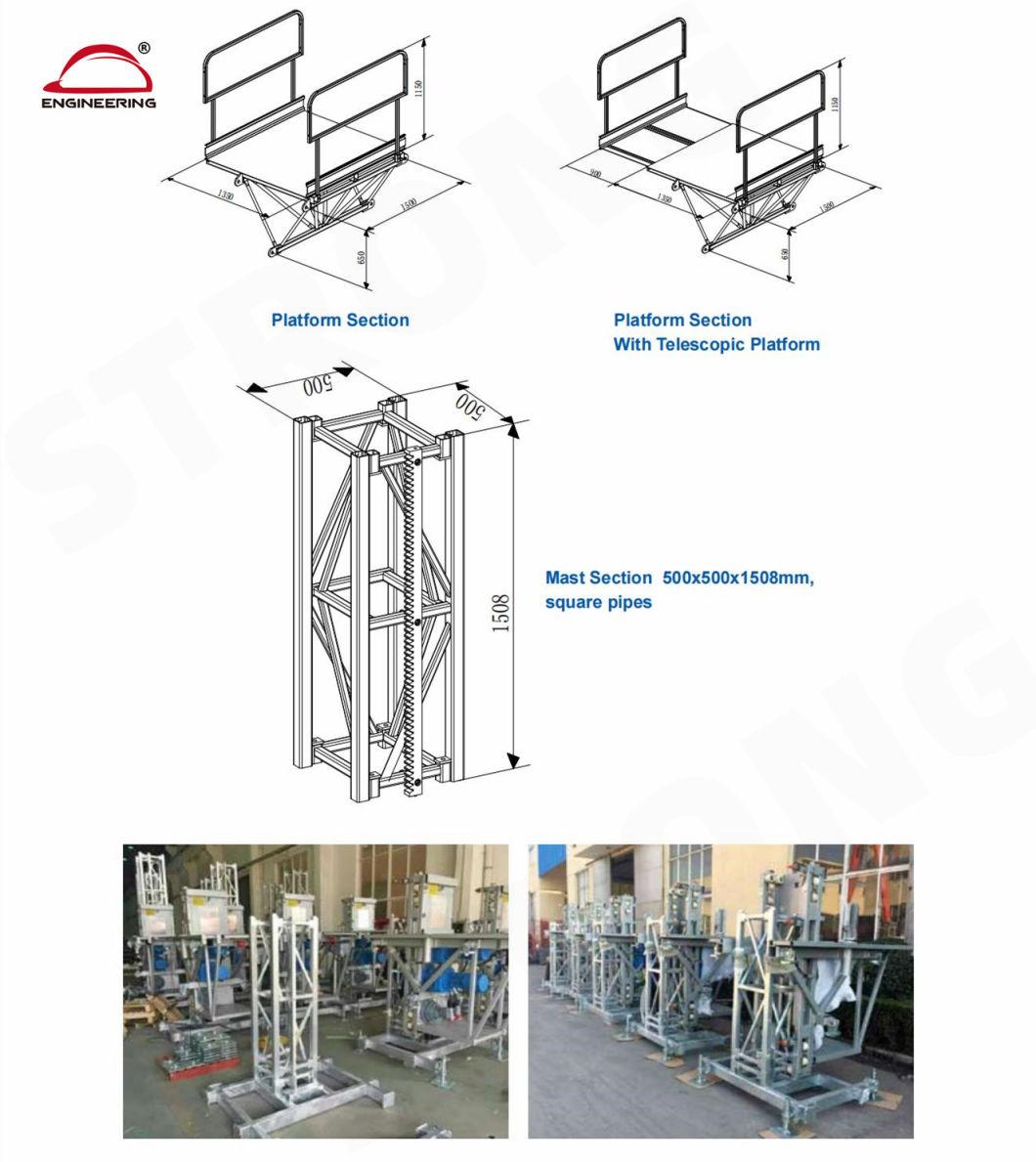

- Mast Section Size：0.5m*0.5m*1.508m
- Platform Section Size：1.5m*1.35m*0.65m
- Transport Package：Wooden
- Trademark：STRONG
- Origin：Shanghai
- HS Code：8428909090
- Production Capacity：6000sets,Year
Description
Load (KG)L(m) W N(L) N(M) Driving Unit N(R) T Tm Tmis Tc Tos 11m 7m 1x1.5 4x1.5 2x1m 1x1.5 3600 3600 1780 1500 1000 12.5m 8.5m 1x1.5 5x1.5 2x1m 1x1.5 3560 3560 1780 1500 1000 14m 10m 1x1.5 6x1.5 2x1m 1x1.5 3430 3430 1720 1500 1000 14m 7m 2x1.5 4x1.5 2x1m 2x1.5 3430 3430 1720 1200 1000 15.5m 11.5m 1x1.5 7x1.5 2x1m 1x1.5 3300 3300 1300 1500 1000 15.5m 8.5m 2x1.5 5x1.5 2x1m 2x1.5 3300 3300 1650 1200 1000 17m 13m 1x1.5 8x1.5 2x1m 1x1.5 3170 3170 1100 1500 1000 17m 10m 2x1.5 6x1.5 2x1m 2x1.5 3170 3170 1590 1200 1000 17m 7m 3x1.5 4x1.5 2x1m 3x1.5 3170 3170 1590 1000 500 18.5m 14.5m 1x1.5 9x1.5 2x1m 1x1.5 3040 2000 1000 1500 1000 18.5m 11.5m 2x1.5 7x1.5 2x1m 2x1.5 3040 3040 1520 1200 1000 18.5m 8.5m 3x1.5 3x1.5 2x1m 3x1.5 3040 3040 1520 1000 500 20 16 1x1.5 10x1.5 2x1m 1x1.5 2910 1500 800 1500 1000 20 13 2x1.5 8x1.5 2x1m 2x1.5 2910 2910 1200 1200 1000 20 10 3x1.5 6x1.5 2x1m 3x1.5 2910 2910 1460 1000 500 21.5 14.5 2x1.5 9x1.5 2x1m 2x1.5 2780 2000 1100 1200 1000 21.5 11.5 3x1.5 7x1.5 2x1m 3x1.5 2780 2780 1390 1000 500 23 16 2x1.5 10x1.5 2x1m 2x1.5 2650 1500 800 1200 1000 23 13 3x1.5 8x1.5 2x1m 3x1.5 2650 2650 1330 1000 500 24.5 14.5 3x1.5 9x1.5 2x1m 3x1.5 2520 2000 1260 1000 500 26 16 3x1.5 10x1.5 2x1m 3x1.5 2390 1500 800 1200 500 26 19 2x1.5 12x1.5 2x1m 2x1.5 2390 1300 500 1200 1000 29 19 3x1.5 12x1.5 2x1m 3x1.5 2130 1300 500 1000 500 30 20 3x1.5 12x1.5+1x1 2x1m 3x1.5 2000 1200 400 1000 500
N(L): Left Wing Composition N(M): Central Deck Composition
N(R): Right Wing Composition T: Load Tm: Maximum Evenly Distributed Load in the middle
Tmis: Maximum Concentrated Load at innermost side of middle area. Tc: Maximum Evenly Distributed Load at cantilever side
Tos: Maximum Concentrated Load at outside part of cantilever
-Safety Features:
N(L): Left Wing Composition N(M): Central Deck Composition
N(R): Right Wing Composition T: Load Tm: Maximum Evenly Distributed Load in the middle
Tmis: Maximum Concentrated Load at innermost side of middle area. Tc: Maximum Evenly Distributed Load at cantilever side
Tos: Maximum Concentrated Load at outside part of cantilever
