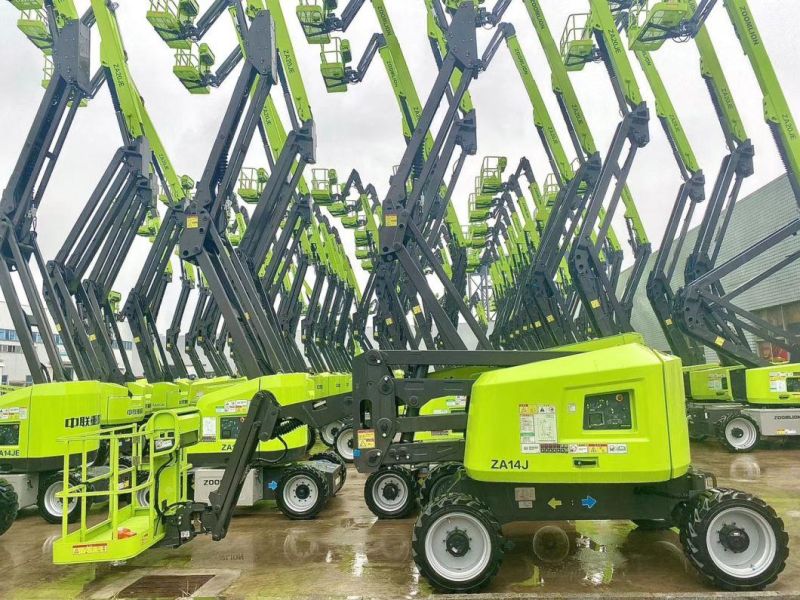

• Model NO.：ZA14J
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：15.80m
• Platform Height：13.80m
• Platform Width：0.76m
• Platform Length：1.83m
• Battery：24X2V,320ah
• Charger：48V,60A
• Drive Motor：AC 32V
• Hydraulic Tank Capacity：30L
• Transport Package：Container
• Specification：22.71m*17.5m
• Trademark：Zoomlion
• Origin：China
• Production Capacity：50000pieces,Year

Electric Articulating Boom LiftsComply with CE/ANSI/GB StandardModel ZA14JESizeWork Height16mPlatform Height14mHorizontal Outreach7.50mUp and Over Height7.74mA - Stowed Length6.6mB - Stowed Width1.75mC - Stowed Height2mD - Platform Length1.52mE - Platform Width0.76mF - Wheelbase2.05mG - Ground Clearance200mmPerformancePlatform Capacity230kgDrive Speed6.1km/hGradeability30%(17°)Axles OscillationTurning Radius (Inside)0.79mTurning Radius (Outside)3.15mSwing360°   continuousPlatform Rotation±90°H-Tail Swing0mMax. Working Slope2/4°Max. Wind Speed12.5m/sPowerBattery24×2V/320AhCharger48V/60ADrive MotorAC 32VLift MotorDC 48VAuxiliary PowerManual PumpHydraulic Tank Capacity30LTireType240/55D17.5 Foam-filled TiresWeightGross6800kgHighlightsZA14JECenter layout, great structural rigidity, and small boom deflectionAdvanced dual control system (valve control + pump control) offers a energy-saving and smooth controlAccurate and efficient traveling AC drive system provides strong power and stable controlFeaturesStandard FeaturesProportional controlAll motion alarmFlashing amber beaconSelf-closing entry gateEmergency descent systemEmergency stop buttonAuto-leveling systemOn-board diagnostic systemOver tilt protection systemLoad sensing system4.3' LED displayHornAccessories & OptionsAC power to platformAirline to platformNon-marking tire
